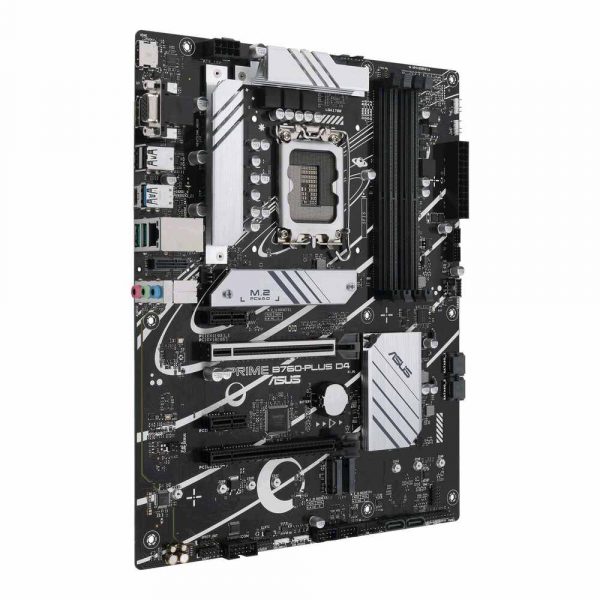

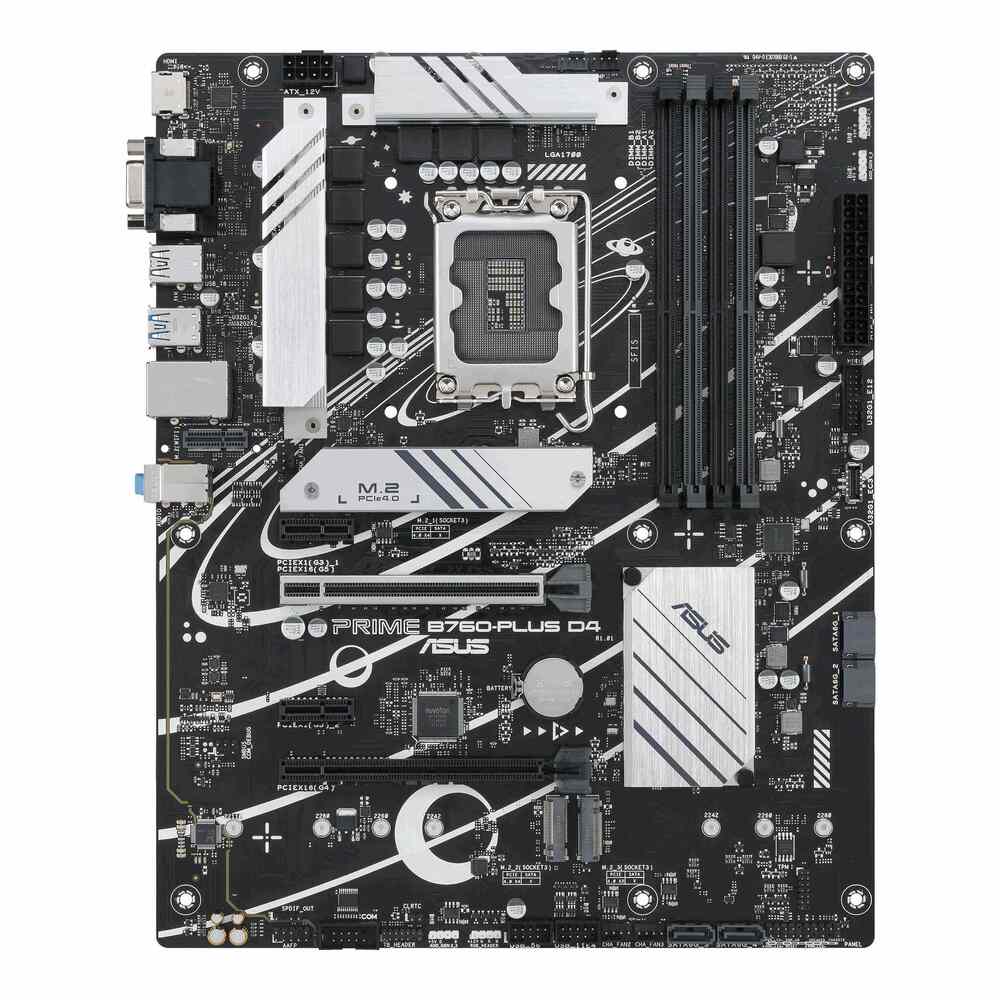

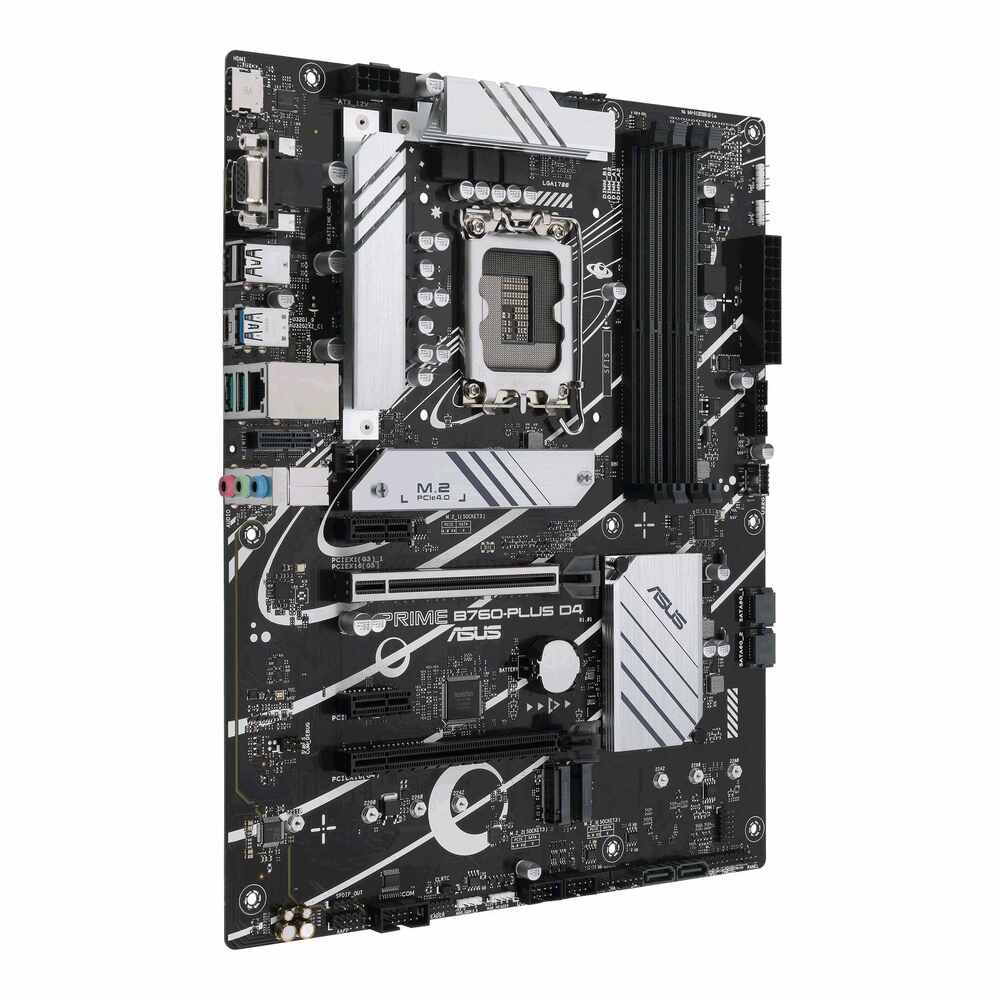

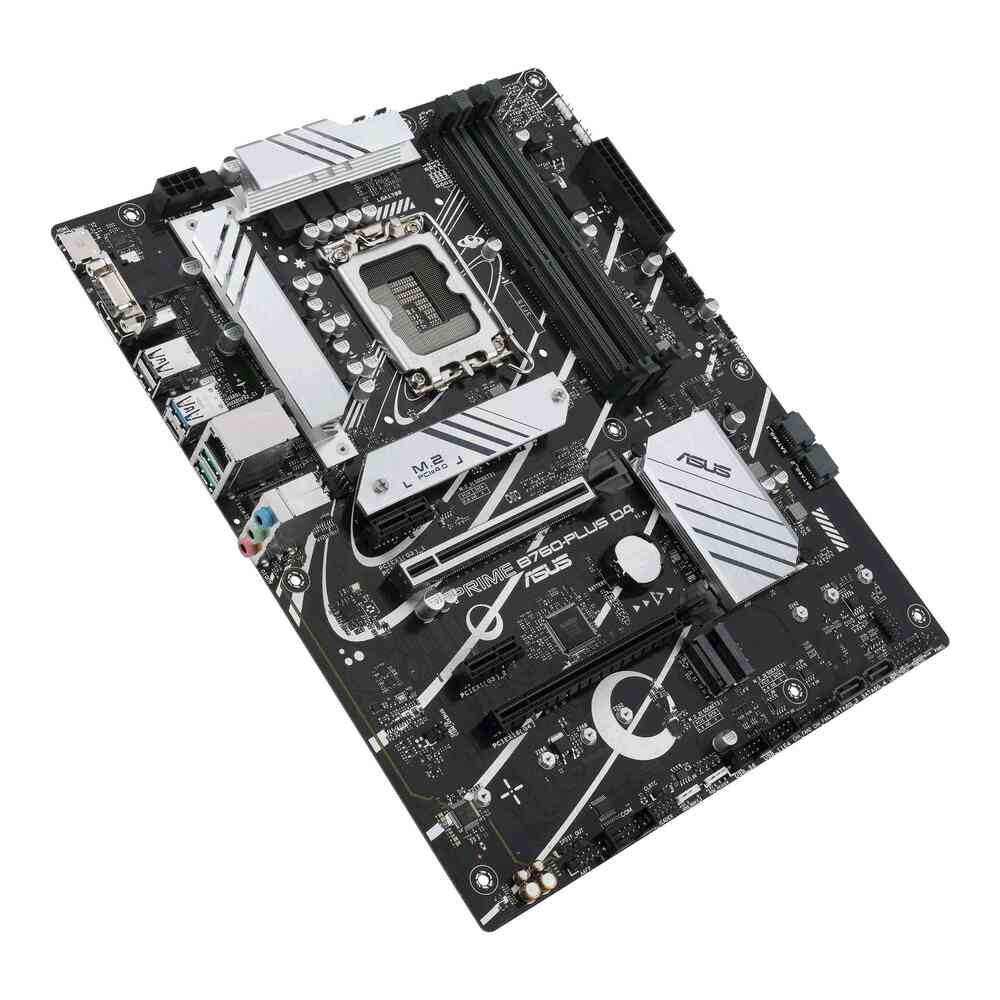

Asus Prime B760-Plus D4 Motherboard :
Features :
- Intel® LGA 1700 Socket: Ready for 13th and 12th Gen Intel® processors
- Ultrafast Connectivity: PCIe 5.0, three PCIe 4.0 M.2, Realtek 2.5Gb Ethernet, USB 3.2 Gen 2×2 Type-C®, front USB 3.2 Gen 1 Type-C® and Thunderbolt™ (USB4®) header support
- Comprehensive Cooling: VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
- ASUS OptiMem: Careful routing of traces and vias to preserve signal integrity for improved memory stability
- Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware
Overview :
The carefully crafted Asus Prime B760-Plus D4 motherboard maximises the performance of 13th generation Intel CoreTM processors. The Asus Prime B760-Plus D4 boasts a reliable power architecture, extensive cooling options, and intelligent tuning options. These characteristics enable users and PC DIY builders to access a variety of performance optimisations.
FLEXIBILITY
The Asus Prime B760-Plus D4 is built on a foundation of extensive controls. The Asus Prime B760-Plus D4 motherboard has adaptable features that let you fine-tune every part of your system, enabling performance adjustments that exactly fit the way you work to increase productivity.
Intelligent Management
ASUS Your PC becomes smart thanks to intelligent control. It handles intricate tweaking, dynamically optimises crucial components of your system, and provides intelligently simplified options for PC DIY beginners as well as more advanced features for seasoned pros.
Comprehensive Energy Efficiency
The Power Saving function has a number of parameters that make it simple to maximise energy savings and optimise power consumption. You may turn on a CPU power cap, dim the Aura lighting, and alter the fan profile to use less power. The Power Saving plan that comes with Microsoft Windows can also be switched on and off.
Flexible Controls for Air and Liquid Cooling
All-in-one (AIO) coolers and fans can be fully controlled by ASUS Fan Xpert 2+ software. Its Auto-Tuning mode intelligently sets all parameters with a single click, whether cooling with air or water. Moreover, there is an Extreme Silent option that keeps your system virtually silent when performing light tasks by lowering the chassis fan speeds to below the default minimum. The UEFI can also be used to regulate fans and AIO coolers.
Digital Power Control with Accuracy
Real-time control over voltage droop, automated switching frequency, and power-efficiency settings are provided by the Digi+ voltage-regulator module (VRM). Also, it enables you to optimise your CPU for maximum speed and stability.
BIOS UEFI
Everything you require to set up, fine-tune, and adjust your system is available in the acclaimed ASUS UEFI BIOS. It provides thorough functionality for seasoned veterans as well as smartly simplified alternatives for PC DIY beginners.
Tuning for Serious Tweakers: Advanced
You may exert total control thanks to the UEFI’s simple Advanced mode. It’s simple to identify settings thanks to an integrated search tool, and a number of sophisticated features let you intelligently make little tweaks to performance to suit your preferences.
Search Mechanism
Find the setting or option you require quickly and effortlessly.
User Profile for ASUS
Share configuration settings with friends or port them between different BIOS versions.
Easy and quick setup
To help you quickly set up your rig, EZ mode features guided wizards, drag-and-drop flexibility, and one-click application of crucial parameters. It also displays critical settings and analytics.
Graphical Fan Control That Is Simple
Each fan settings can be adjusted by by dragging a curve with the mouse.
On/Off Aura Mode (Stealth)
For a subtle aesthetic touch, you may easily turn on or off all of the inbuilt LEDs or the Aura RGB lights.
COOLING
The Asus Prime B760-Plus D4 motherboard is designed with a number of onboard heatsinks and a variety of hybrid fan headers to keep your system stable and cool even when under heavy strain.
Heatsink M.2
Throttling that can happen with M.2 storage after prolonged transfers is prevented with an M.2 heatsink. Captive screws keep the heatsink in place, and having removable captive screws lowers the possibility of drops or other losses during heatsink removal.
Thermal pads and VRM Heatsinks
Heat transfer from the MOSFETs is improved by VRM heatsinks and thermal pads for improved cooling performance.
by Design, Cooler
The Asus Prime B760-Plus D4 has extensive cooling controls that may be customised using either the UEFI BIOS or the Fan Xpert 2+ software.
Many Sources of Temperature
Three thermal sensors may be dynamically referred to by each header. With the help of Fan Xpert 2+, you may map the temperature of ASUS graphics cards that are compatible to improve cooling for CPU- and GPU-demanding tasks.
Header for AIO Pump
a specific PWM/DC header for systems with standalone water cooling.
Smart Defense
Each fan header is shielded from overheating and overcurrent by a specific integrated circuit.
4-Pin DC/PWM Fan
PWM or DC fans can be automatically detected by each onboard header.
PERFORMANCE
The 13th Gen Intel® CoreTM Processors’ high core counts and bandwidth requirements are supported by the Asus Prime B760-Plus D4 motherboard. Your system will be ready for action with reliable power, intelligent cooling, and versatile data transfer choices thanks to the Asus Prime B760-Plus D4 motherboard, which offers all the essentials to increase daily productivity.
dependable power design
To get the most performance out of Intel® processors, stable power is crucial. The Asus Prime B760-Plus D4 is designed to meet the requirements of modern CPUs with several cores.
Connection ProCool
In addition to the motherboard’s connection to the PSU, proprietary connectors include 8 pin connectors that deliver 12 volts of power directly to the processors. The solid pins in each jack can withstand more current than hollow-pin connectors
DDR4 Support
Improvements to trace routing design provide the latest Intel® processors with enhanced access to memory bandwidth. ASUS OptiMem technology carefully maps memory signal pathways across different PCB layers to reduce path distance, and it adds shielding zones that significantly reduce crosstalk.
ASUS OptiMem
Revisions to the Asus Prime B760-Plus D4 motherboard trace routing provide the latest Intel® processors with unrestricted access to memory bandwidth. ASUS OptiMem technology carefully maps memory signal pathways across different PCB layers to reduce vias and adds shielding zones that significantly reduce crosstalk.
ASUS OptiMem benefits:
- Improved memory stability and compatibility
- Allows lower memory latencies at equivalent voltages
- Improved memory frequency margin
Storage
Three M.2 Slots (up to 64 Gbps)
PAsus Prime B760-Plus D4 offers a total of three M.2 slots that support data-transfer speeds of up to 64 Gbps via PCIe 4.0, enabling quicker boot-up and app load times with OS or application drives.
PCIe 5.0 Slot
PCIe 5.0 offers twice the data transfer speed of PCIe 4.0, making it robust enough to handle new data-heavy tasks. PCIe 5.0 also brings other benefits, such as electrical changes to improve signal integrity, backward-compatible CEM connectors for add-in cards, and compatibility with previous versions of PCI Express.
USB 3.2 Gen 2×2 Type-C®
A batch of USB ports support high-end rigs loaded with peripherals, including the rear USB Type-C® connector with ultrafast USB 3.2 Gen 2×2 for transmission speeds of up to 20 Gbps.
Front USB Type-C®
A full complement of USB ports support high-end rigs loaded with peripherals, including a front-panel USB 3.2 Gen 1 Type-C® connector that provides data transfer speeds of up to 5 Gbps.
Thunderbolt™ 4 (USB4® compliant)
Asus Prime B760-Plus D4 motherboard features USB4® support via a Thunderbolt™ (USB4®) header. With an ASUS add-on card*, Asus Prime B760-Plus D4 motherboard can enable bi-directional speeds of up to 40 Gbps on a single cable, while providing power to fast-charge device. Additionally, this card has a daisy-chain function for multi-screen connection and supports up to dual displays with 4K resolution
Realtek 2.5 Gb Ethernet
Realtek 2.5 Gb Ethernet reduces CPU overhead and offers exceptionally high TCP and UDP throughput for faster, smoother data transfers
LANGuard
ASUS LANGuard is a hardware-level network protection feature that integrates advanced signal-coupling technology and premium anti-EMI surface-mounted capacitors to improve throughput and ensure a more reliable connection.
CUSTOMIZATION
The Asus Prime B760-Plus D4 motherboard adds the nuanced details that improve every experience, from exclusive codecs that provide pristine audio quality to
intuitive RGB lighting controls that let you customize your system to create a uniquely personal look.
Outstanding Audio
Combined onboard features deliver elevated audio
Intelligent design and premium hardware create audio quality unlike anything you’ve ever experienced.
Audio Shielding
Audio shielding ensures precision analog/digital separation and greatly reduced multi-lateral interference.
Dedicated Audio PCB Layers
Separate layers for left and right tracks ensures both channels deliver consistent, equal quality.
Premium Audio Capacitors
Provides warm, natural, and immersive sound with exceptional clarity and fidelity.
Aura Sync
Outshine the Competition
A well-tuned enthusiast system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for the built-in RGB LEDs as well as strips and devices connected to the onboard RGB headers — and it can all be synced with an ever-growing portfolio of Aura-capable hardware.
Addressable Gen 2 Headers
Three Addressable Gen 2 headers are capable of detecting the number of LEDs on second-gen addressable RGB devices, allowing the software to automatically tailor lighting effects to specific devices. The new headers also offer backward-compatibility with existing Aura RGB gear.
Armoury Crate
Within a single intuitive interface, Armoury Crate offers easily customized Aura Sync RGB settings for every compatible device in your arsenal , plus controls for an ever-growing family of ASUS products, including keyboard and mouse preferences. Armoury Crate also integrates product registration and a news feed so that you never miss updates of interest to the ASUS community.
Q-LED Core
The Q-LED Core display produces light patterns by power LED during the Power-On Self-Test (POST) that can help users troubleshoot potential issues.
SafeSlot Core+
PCIe 5.0 is 2x faster than PCIe 4.0, so we adapted our SMT manufacturing process for the faster SafeSlot Core+, to ensure the highest data speeds. SafeSlot Core+ is a reinforced metal sheath added to a PCIe slot to keep a card firmly installed.
Overvoltage Protection
World-class circuit-protecting power design
An exclusive circuit design with built-in voltage regulators to protect your motherboard from damage caused by unexpected high-level voltages from unstable or inferior power supplies.
Stainless-Steel Back I/O
3X corrosion-resistance for greater durability
Corrosion-resistant stainless-steel back I/O panels bonded with chromium oxide have a lifespan that’s three times longer than ordinary panels.
Specifications :

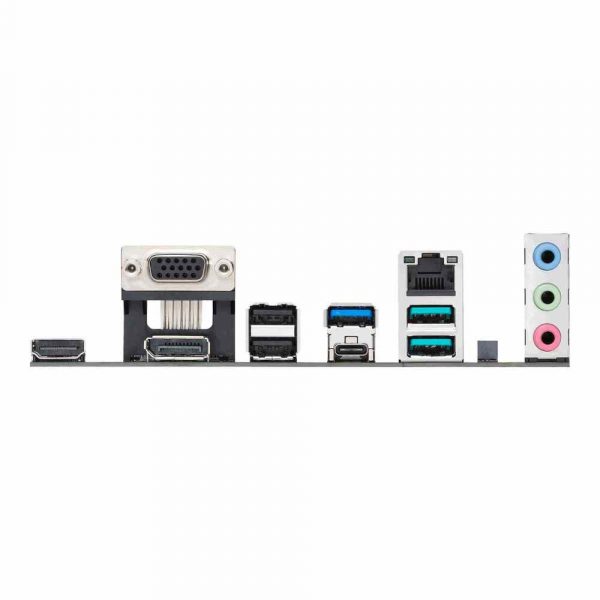

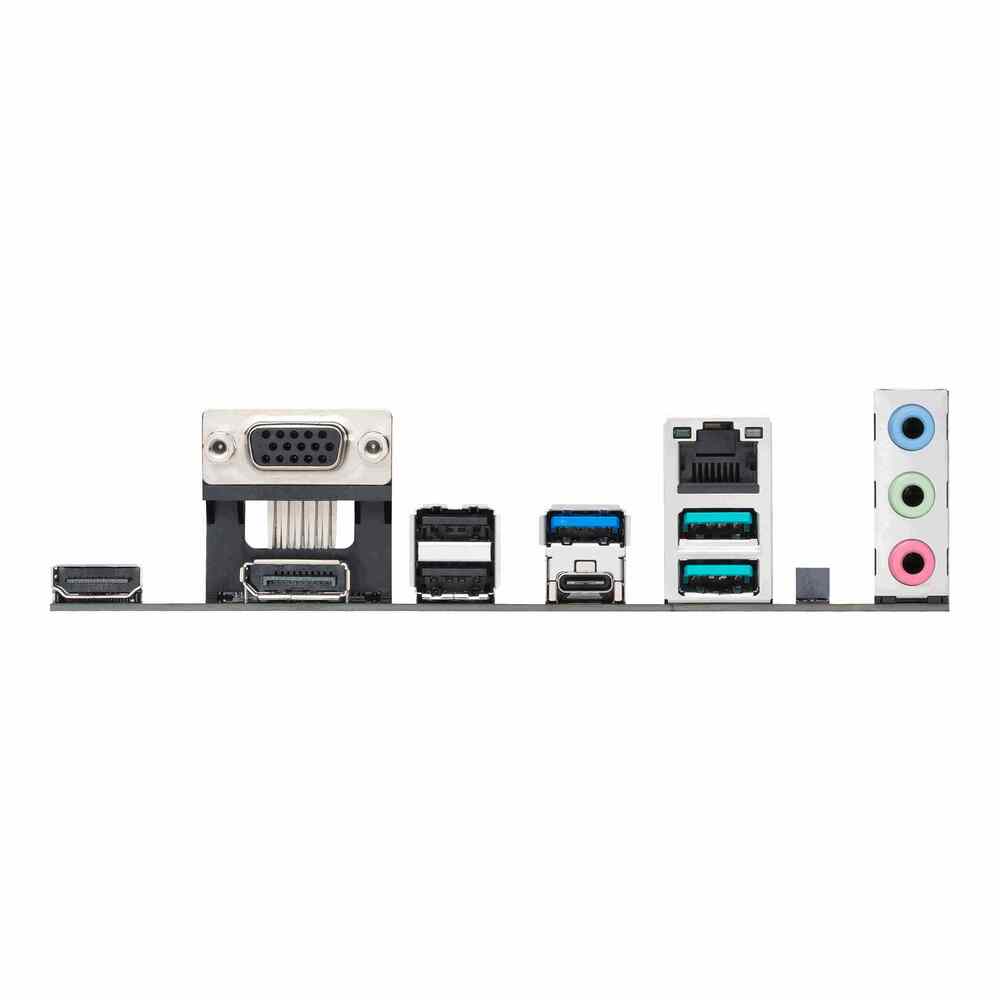

| Model | PRIME B760-PLUS D4 |
| CPU | Intel® Socket LGA1700 for 13th Gen Intel® Core™ & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors* Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. |
| Chipset | Intel® B760 Chipset |
| Memory | 4 x DIMM, Max. 128GB, DDR4 5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/. |
| Graphics | 1 x DisplayPort** 1 x VGA port 1 x HDMI® port*** * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Supports max. 4K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI® 2.1. |
| Expansion Slots | Intel® 13th & 12th Gen Processors* 1 x PCIe 5.0 x16 slot Intel® B760 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 2 x PCIe 3.0 x1 slots Note: To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals. |
| Storage | Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports* Intel® 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel® B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode) 4 x SATA 6Gb/s ports * Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10. |
| Ethernet | 1 x Realtek 2.5Gb Ethernet |
| Wireless & Bluetooth | Vertical M.2 slot only (Key E, CNVi & PCIe)* * Wi-Fi module is sold separately. |
| USB | Rear USB (Total 6 ports) 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®) 2 x USB 3.2 Gen 2 ports (2 x Type-A) 1 x USB 3.2 Gen 1 port (1 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 1 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – Supports up to 24-Bit/192 kHz playback Audio Features – Audio Shielding – Premium audio capacitors – Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
| Back Panel I/O Ports | 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®) 2 x USB 3.2 Gen 2 ports (2 x Type-A) 1 x USB 3.2 Gen 1 port (1 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x VGA port 1 x HDMI® port 1 x Vertical M.2 slot (Key E) 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks |
| Internal I/O Connectors | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 connector (supports USB Type-C® ) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt™ (USB4®) header |
| Special Features | ASUS 5X PROTECTION III – DIGI+ VRM – LANGuard – Overvoltage Protection – SafeSlot Core+ – Stainless-Steel Back I/O ASUS Q-Design – Q-DIMM – Q-LED Core – Q-Slot ASUS Thermal Solution – M.2 heatsink – VRM heatsink design ASUS EZ DIY – ProCool Aura Sync – Aura RGB header – Addressable Gen 2 headers |
| Software Features | ASUS Exclusive Software Armoury Crate – Aura Creator – Aura Sync – Fan Xpert 2+ – Power Saving AI Suite 3 – DIGI+ VRM – PC Cleaner ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR UEFI BIOS ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |

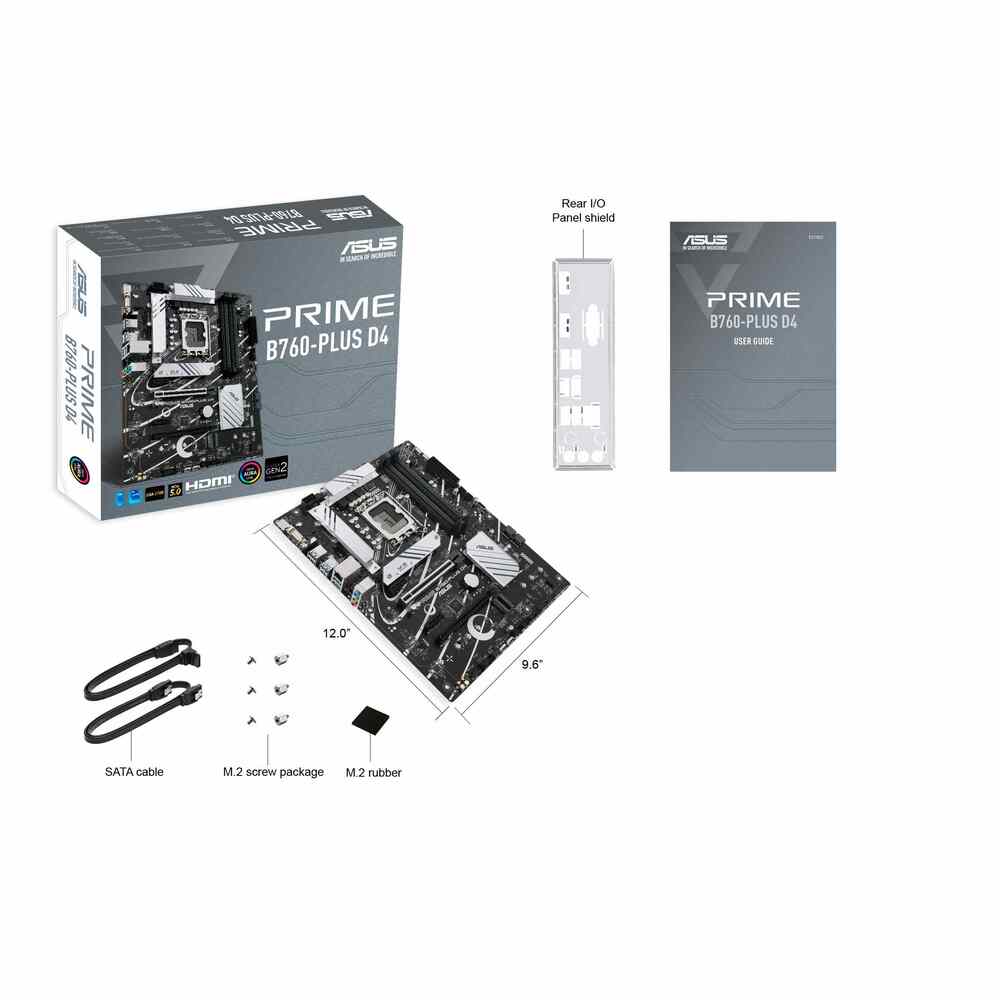

| Accessories | Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x I/O Shield 1 x M.2 Rubber Package 2 x Screw Packages for M.2 SSD Documentation 1 x User guide |
| Operating System | Windows® 11, Windows® 10 64-bit |
| Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
