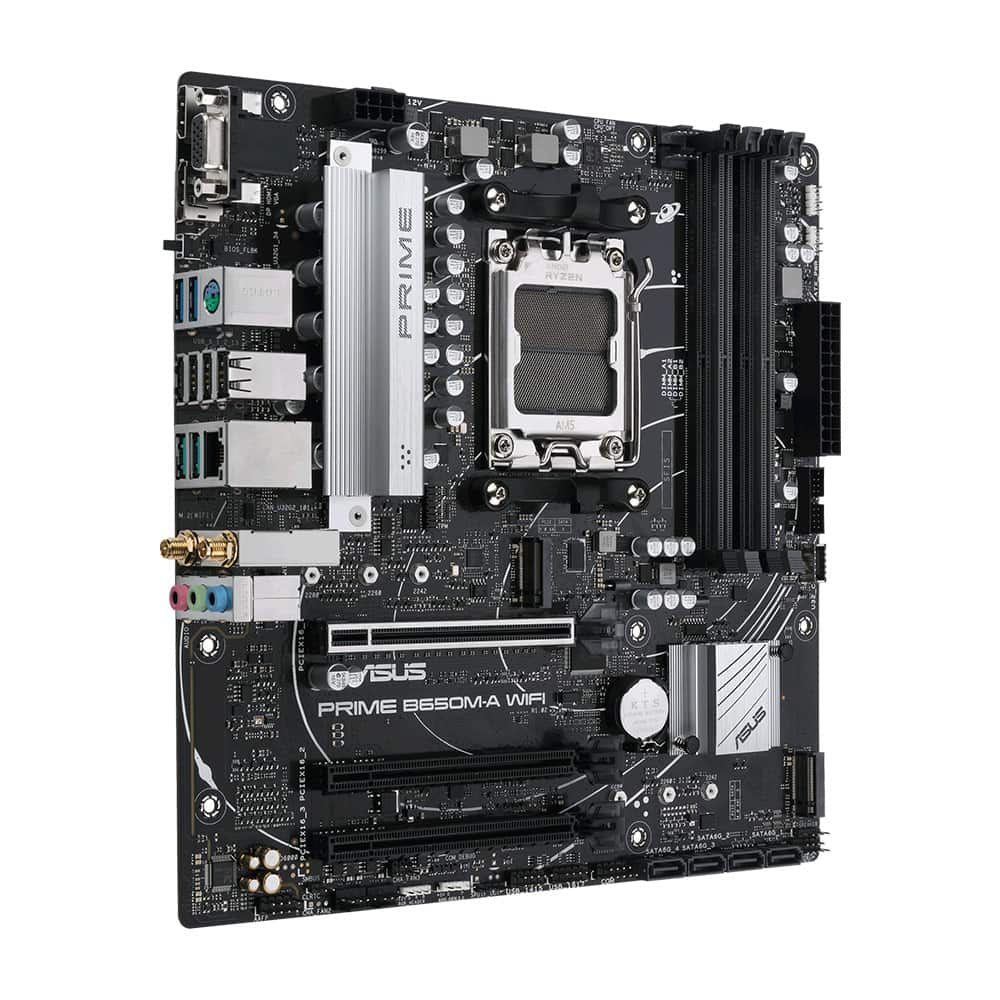

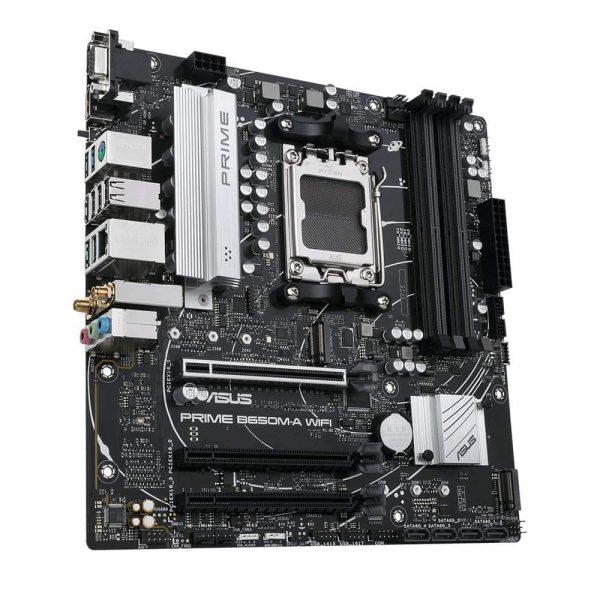

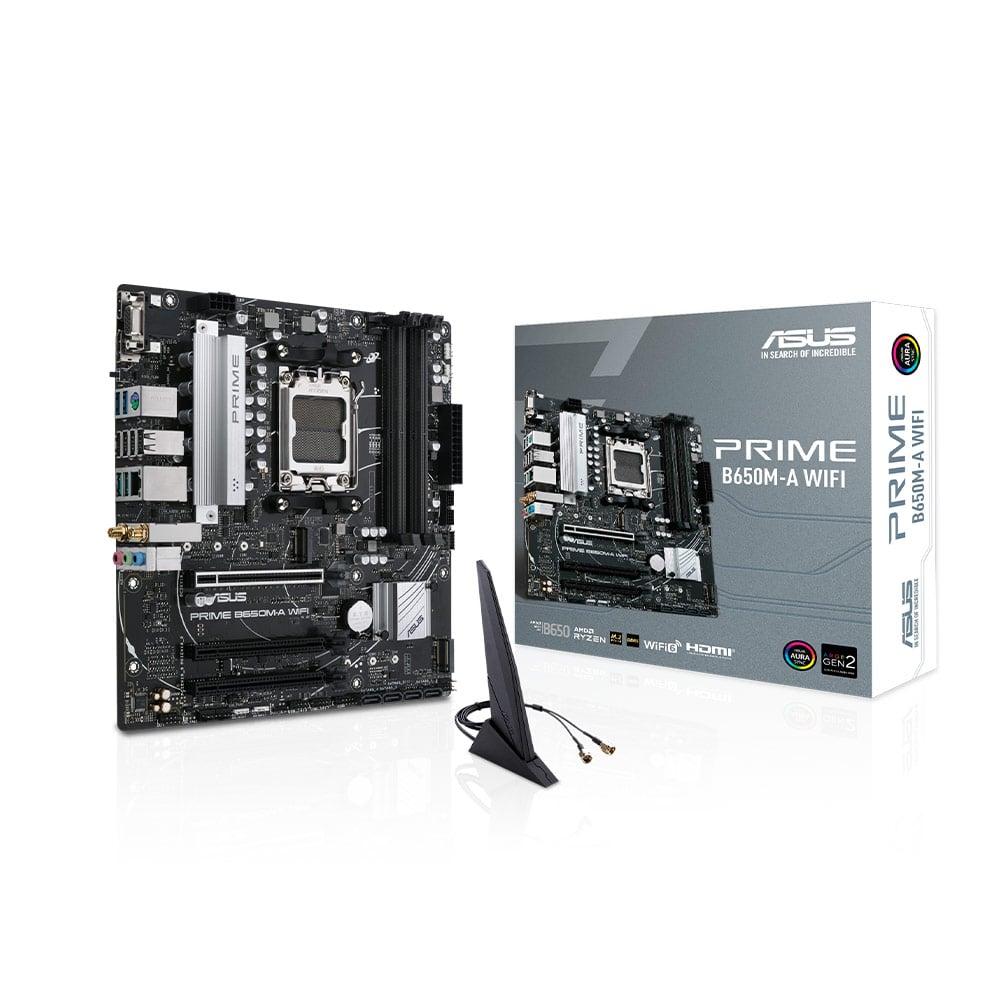

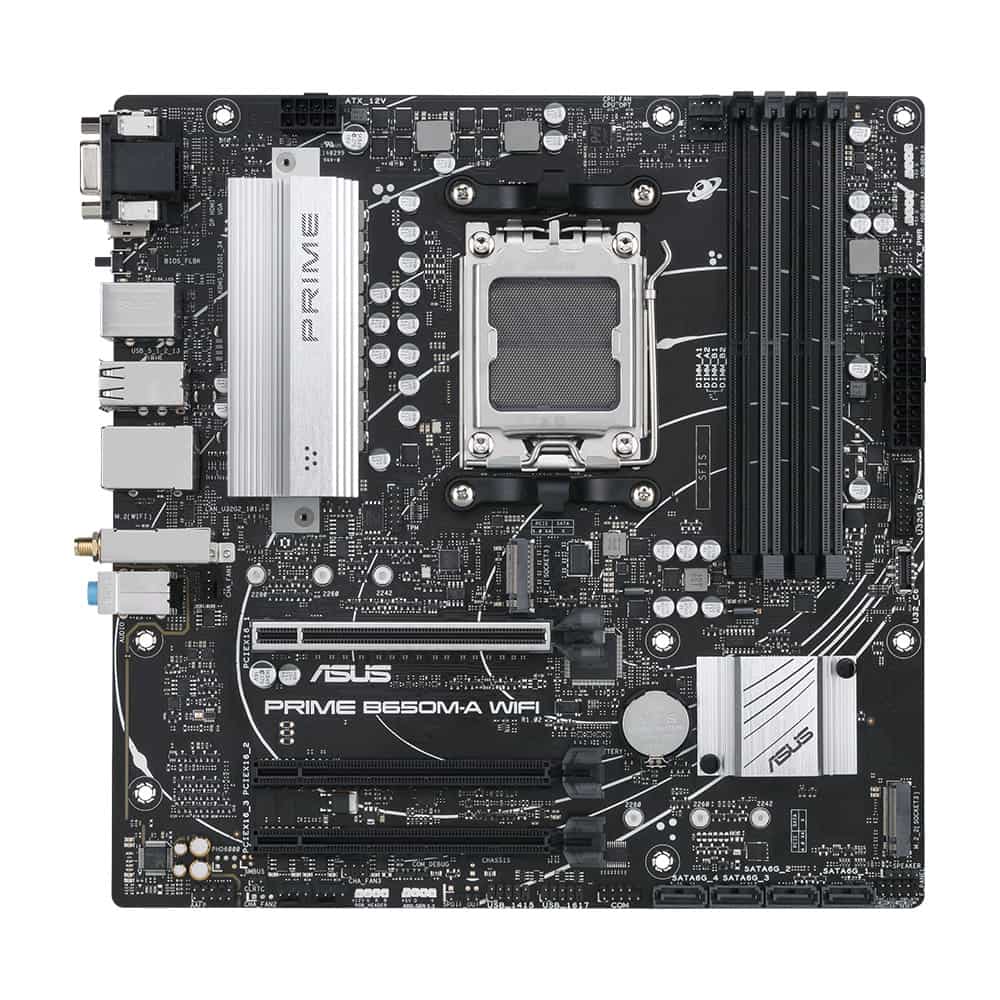

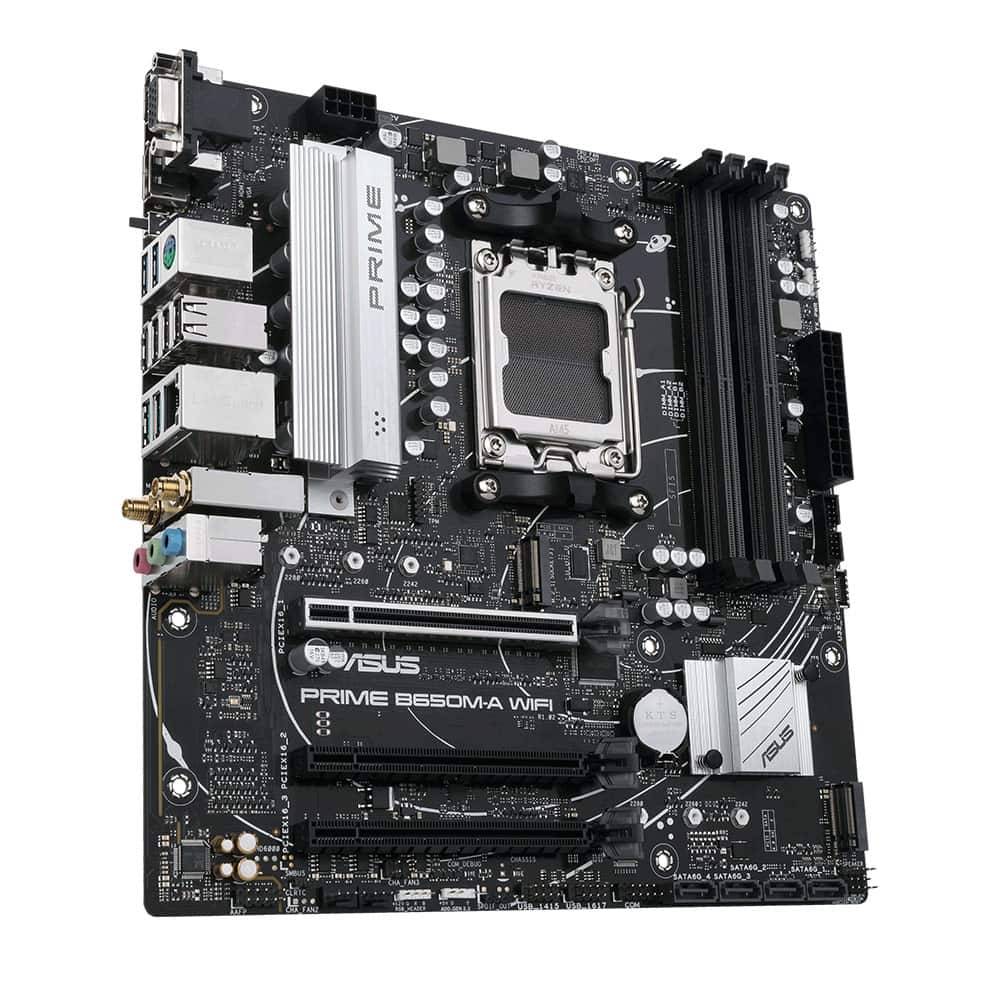

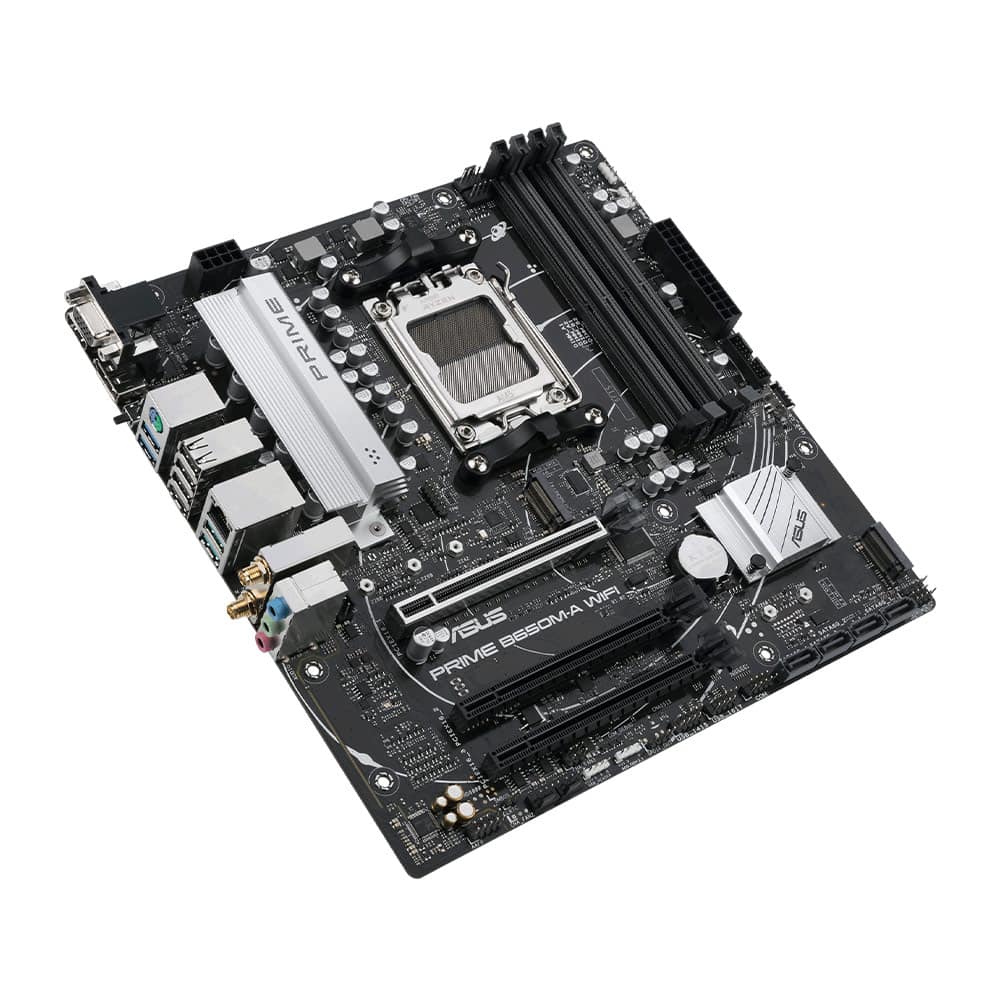

Asus Prime B650M-A WiFi Motherboard

Original price was: ₹20,500.Current price is: ₹18,149. (Inclusive of GST)

-11%
Brand:

Out of stock

Email when back in stock

Asus Prime B650M-A WiFi DDR5 Motherboard

Features:

  • AMD AM5 Socket: Ready for AMD Ryzen™ 7000 Series Desktop Processors
  • Ultrafast Connectivity: Wi-Fi 6, M.2 PCIe 5.0, Realtek 2.5Gb Ethernet, USB 3.2 Gen 2 ports, front USB 3.2 Gen 1 Type-C®
  • ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking
  • Comprehensive Cooling: VRM heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
  • Aura Sync RGB Lighting:Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware

Specification:

ModelPRIME B650M-A WIFI
CPUAMD Socket AM5 for AMD Ryzen 7000 Series Desktop Processors*
* Refer to www.asus.com for CPU support list.
ChipsetAMD B650 Chipset
Memory4 x DIMM, Max. 128GB, DDR5 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800, ECC and Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports AMD Extended Profiles for Overclocking (EXPO)
OptiMem II
* Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
* Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function.
Graphics1 x DisplayPort**
1 x VGA port
1 x HDMI® port***
* Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
** Supports max. 8K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI® 2.1.
Expansion SlotsAMD Ryzen 7000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x16 mode)
AMD B650 Chipset
2 x PCIe 4.0 x16 slots (support x1 mode)
* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
StorageTotal supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
AMD Ryzen
 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
AMD B650 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
* AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10.
Ethernet1 x Realtek 2.5Gb Ethernet
Wireless & BluetoothWi-Fi 6
2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
Supports 2.4/5GHz frequency band
Bluetooth® v5.2
USBRear USB (Total 8 ports)
2 x USB 3.2 Gen 2 ports (2 x Type-A)
2 x USB 3.2 Gen 1 ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 7 ports)
1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
AudioRealtek 7.1 Surround Sound High Definition Audio CODEC*
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– Supports up to 24-Bit/192 kHz playback
Audio Features
– Audio Shielding
– Premium audio capacitors
– Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

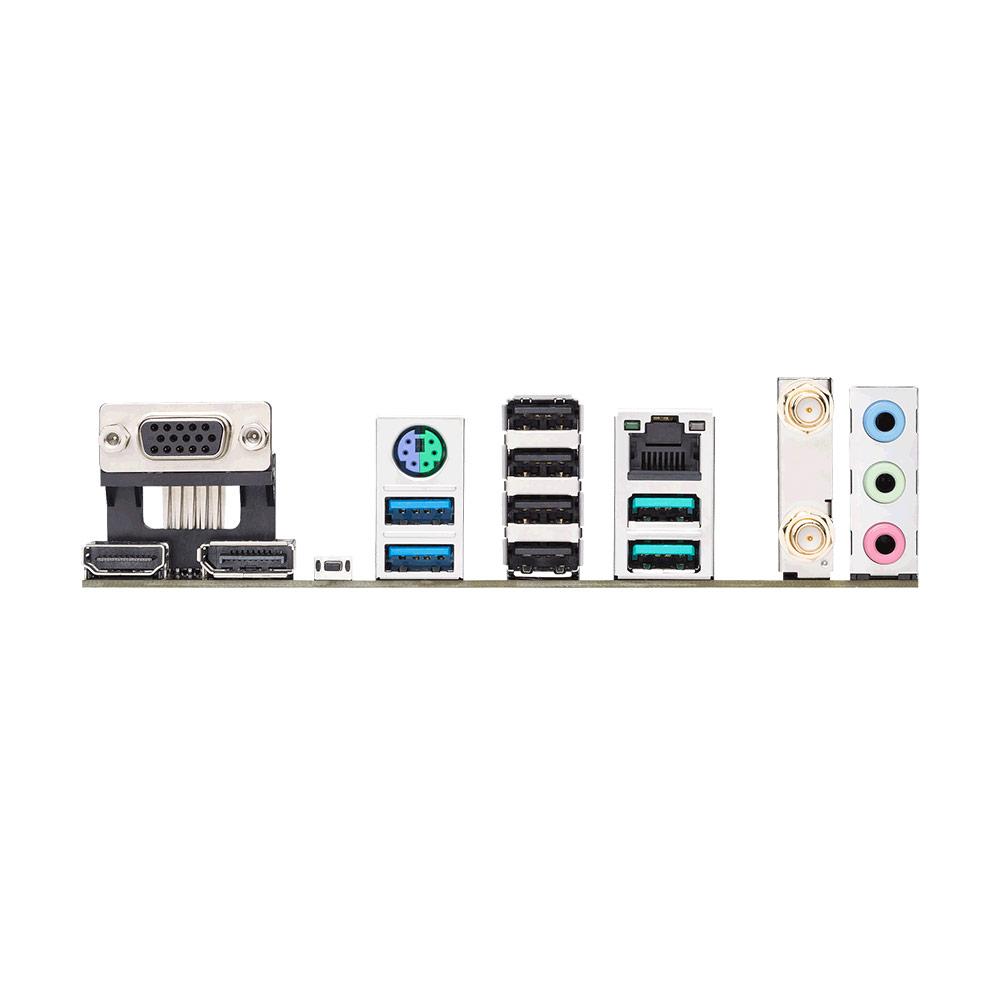

Back Panel I/O Ports2 x USB 3.2 Gen 2 ports (2 x Type-A)
2 x USB 3.2 Gen 1 ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x VGA port
1 x HDMI® port
1 x Wi-Fi Module
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
1 x BIOS FlashBack button
1 x PS/2 Keyboard/Mouse combo port
Internal I/O ConnectorsFan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
3 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 connector (supports USB Type-C® )
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x Speaker header
1 x SPI TPM header (14-1pin)
1 x 10-1 pin System Panel header
Special FeaturesASUS 5X PROTECTION III
– DIGI+ VRM
– LANGuard
– Overvoltage Protection
– Safeslot Core+
– Stainless-Steel Back I/O
ASUS Q-Design
– Q-DIMM
– Q-LED Core
– Q-Slot
ASUS Thermal Solution
– VRM heatsink design
ASUS EZ DIY
– BIOS FlashBack button
– BIOS FlashBack LED
Aura Sync
– Aura RGB header
– Addressable Gen 2 headers
Software FeaturesASUS Exclusive Software
Armoury Crate
– Aura Creator
– Aura Sync
– Fan Xpert 2+
– Power Saving
AI Suite 3
– TurboV EVO
– DIGI+ VRM
– PC Cleaner
ASUS CPU-Z
MyAsus
Norton Anti-virus software (Free Trial version)
WinRAR
UEFI BIOS
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode
BIOS256 Mb Flash ROM, UEFI AMI BIOS
ManageabilityWOL by PME, PXE
AccessoriesCables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS Wi-Fi moving antennas
1 x I/O Shield
1 x Screw Package for M.2 SSD
Documentation
1 x User guide
Operating SystemWindows® 11, Windows® 10 64-bit
Form FactormATX Form Factor
9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
Warranty3 Years



Additional information

Weight5 kg
Brand

Asus

Chipset

B650

Form Factor

M-ATX

Memory Slot

4 Slot

Memory Slot Type

DDR5

Platfrom

AMD

Socket

AM5
