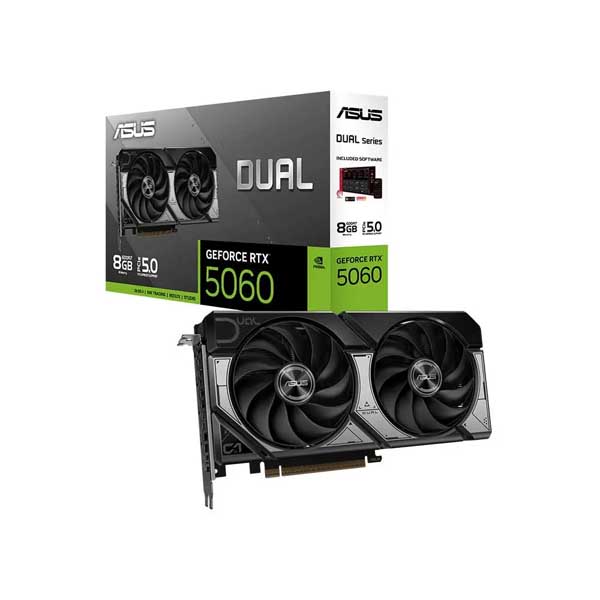

Asus Dual RTX 5060 8GB GDDR7 Dual Fan Graphics Card
Feature:
ASUS Dual RTX 5060 8GB GDDR7 combines powerful thermal performance with broad compatibility. Advanced cooling solutions from flagship graphics cards — including two Axial-tech fans for optimizing airflow to the heatsink. Designed in a compact 2.5-slot form factor, delivering more power in less space. These enhancements make ASUS Dual the perfect choice for gamers who want heavyweight graphics performance in a compact build.
Build Small. Play Big.
You can pack high performance into a smaller footprint with this SFF-Ready Enthusiast GeForce card. Look for cases that are compatible with SFF-Ready Enthusiast GeForce Cards to get a sure fit and streamline your PC build.
2.5-slot Design
A carefully designed shroud, heatsink, and heatpipe layout enables the two Axial-tech fans to leverage chassis side-panel ventilation, delivering thermal performance that beyond the compact size.
Axial-tech Upgrades
Two tried-and-true Axial-tech fans feature a smaller hub facilitates longer blades and a barrier ring to increase downward air pressure.
0dB Technology
To eliminate unnecessary noise, the stop mode automatically halts all fans when the GPU temperature drops below 50 degrees and power consumption is low.
Dual Ball Fan Bearings
Fan bearings come in different types, each with its own advantages. Dual ball bearings provide superior durability and can last up to twice as long as sleeve-bearing designs.
Vented Backplate
A vented backplate significantly enhance heat dissipation, helping to keep the GPU cooler during intense tasks. This additional airflow helps ensure optimal temperatures, boosting performance, longevity and stability by defending against overheating and thermal throttling.
ASUS GPU Guard
ASUS Dual RTX 5060 8GB GDDR7 GPU Guard applies adhesive to secure all four corners to reduce the risk of cracks.
Specification:
| Model | DUAL-RTX5060-8G |
| Graphic Engine | NVIDIA® GeForce RTX™ 5060 |
| AI Performance | 613 TOPs |
| Bus Standard | PCI Express 5.0 |
| Open GL | OpenGL®4.6 |
| Video Memory | 8GB GDDR7 |
| Engine Clock | OC mode: 2527MHz Default mode: 2497MHz (Boost Clock) |
| Cuda Core | 3840 |
| Memory Speed | 28 Gbps |
| Memory Interface | 128 Bit |
| Resolution | Digital Max Resolution 7680 x 4320 |
| Interface | Yes x 1 (Native HDMI 2.1b) Yes x 3 (Native DisplayPort 2.1b) HDCP Support Yes (2.3) |
| Maximum Display Support | 4 |
| NVlink/ Crossfire Support | No |
| Accessories | 1 x Speedsetup Manual 1 x Thank You Card |
| Software | ASUS GPU Tweak III & MuseTree & GeForce Game Ready Driver & Studio Driver: please download all software from the support site. |
| Dimensions | 228 x 123 x 50 mm 8.98 x 4.84 x 1.97 inches |
| Recommended PSU | 550W |
| Power Connectors | 1 x 8-pin |
| Slot | 2.5 Slot |
| SFF Ready | Compatible |
| Warranty | 3 Years |
| Note** | **Prices, Specifications & Features are subject to change without notice |
