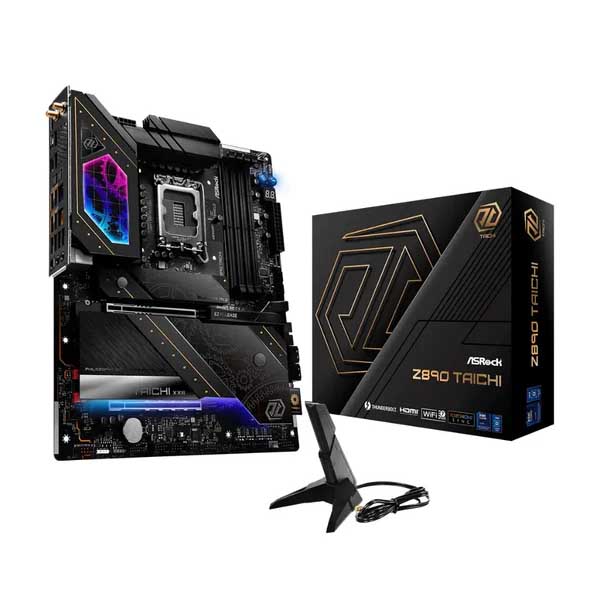

ASRock Z890 Taichi WIFI ATX Motherboard (Intel Socket LGA 1851, DDR5, WIFI 7)
Feature:
- ASRock Z890 Taichi WIFI Supports Intel® Core™ Ultra Processors (Series 2) (LGA1851)
- 20+1+2+1+1 Power Phase, 110A SPS for VCore
- 4 x DDR5 DIMMs Supports Dual Channel, up to 9600+ (OC)
- 1 PCIe 5.0 x16, 1 PCIe 4.0 x16
- Graphics Output Options: 1 HDMI, 2 Thunderboltâ„¢ 4 Type-C
- Realtek ALC4082 5.1 CH HD Audio Codec, ESS SABRE9219 DAC, WIMA Audio Cap, Nahimic Audio
- 4 SATA3 1 Blazing M.2 (PCIe Gen5 x4) 4 Hyper M.2 (PCIe Gen4 x4) 1 Hyper M.2 (PCIe Gen4 x4 & SATA3)
- 2 Thunderboltâ„¢ 4 Type-C (Rear) 1 USB 3.2 Gen2x2 Type-C (Front) 4 USB 3.2 Gen2 Type-A (Rear) 8 USB 3.2 Gen1 (4 Rear, 4 Front) 6 USB 2.0 (2 Rear, 4 Front)
- 5Gbps LAN, 2.5G LAN
- 802.11be Wi-Fi 7 + Bluetooth
- ASRock Z890 Taichi WIFI Supports Memory OC Shield, BIOS Flashback, 20K Caps with 1000uF Capacitance, M.2 Expansion Card
20+1+2+1+1 Power Phase Design
Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well.
SPS (Smart Power Stage)
ASRock Z890 Taichi WIFI has Dr.MOS design features the latest SPS (Smart Power Stage) technology. It’s optimized for monitoring current and temperature of each phase, thus delivering smoother and neater power to the CPU with enhanced performance and OC capability.
Hi-Density Power Connector
CPU overclocking requires higher current, ASRock Hi-Density Power connectors is able to withstand current higher traditional CPU 8-pin and ATX 24-pin connector, giving a more stable system as well as lowering the risk of fire under heavy overclocking.
The server grade low loss PCB improves signal integrity, allowing motherboard to support PCIe 5.0 for both graphics card and M.2 SSD, it also improves memory OC potential to deliver the most extreme memory performance.
2 ounce copper inner layers that provide stable signal traces and power shapes! Delivering lower temperature and higher energy efficiency for overclocking.
Specification:
| Brand | ASRock |
| Model | Z890 Taichi |
| Chipset | Intel Z890 |
| Socket | LGA1851 |
| Form Factor | ATX (30.5 cm x 24.4 cm) |
| Memory Support | DDR5, 4 DIMM slots, up to 256GB, 8533+ MHz (OC) |
| Expansion Slots | 1 x PCIe 5.0 x16, 1 x PCIe 4.0 x16 |
| Storage | 1 x Blazing M.2 (PCIe Gen5x4), 3 x Hyper M.2 (PCIe Gen4x4), 4 x SATA3 |
| USB Ports | Thunderboltâ„¢ 4 Type-C, USB 3.2 Gen2x2, USB 3.2 Gen2, USB 3.2 Gen1 |
| Networking | Marvell 5G LAN, Intel 2.5G LAN, Wi-Fi 7 (802.11be), Bluetooth 5.4 |
| Audio | Realtek ALC4082 7.1 HD Audio Codec, Nahimic Audio |
| Power Design | 20+1+2+1+1 Phase, SPS Dr.MOS |
| Country of Origin | China |
| Model Number | Z890 Taichi |
| Warranty | 3 Years |
| Weight | 2 kg |
