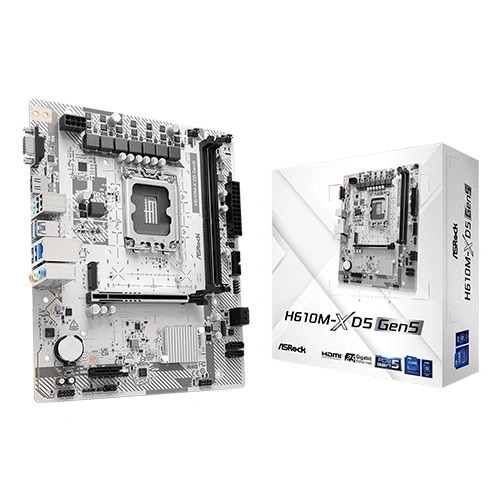

ASRock H610M-X D5 Gen5 M-ATX Motherboard (Intel Socket LGA1700, DDR5)
Feature:
- ASRock H610M-X D5 Gen5 Supports 14th, 13th & 12th Gen Intel Core Processors (LGA1700)
- 6+1+1 Power Phase
- 2 x DDR5 DIMMs
- Supports Dual Channel, up to 5600
- 1 PCIe 5.0 x16, 1 PCIe 3.0 x1
- Graphics Output Options: 1 HDMI, 1 D-Sub
- Realtek ALC897 7.1 CH HD Audio Codec
- 1 Ultra M.2 (PCIe Gen3x4)
- 4 SATA3
- 4 USB 3.2 Gen1 (2 Rear, 2 Front)
- 6 USB 2.0 (4 Rear, 2 Front)
- Realtek 2.5G LAN
The ASRock H610M-X D5 Gen5 motherboard provides a high-value solution, balancing performance and versatility within a compact form factor. It’s highly capable in handling a wide range of tasks, from professional productivity to everyday usage, striking an excellent balance between affordability, reliability, and efficiency.
Power Phase Design
Featuring sturdy components and completely smooth power delivery to the CPU, offering enhanced performance for gamers.
Ultra M.2 Gen3 x4
ASRock H610M-X D5 Gen5 has The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s.
PWM/DC Fan Support
ASRock fan headers automatically detect whether fans are running in DC or PWM mode, allowing users to fine-tune the fan curve and achieve quieter operation.
- CPU Fan Connector
- Chassis Fan Connector
Dragon 2.5 Gb/s LAN
The intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you’ll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups.
Dual Graphics Outputs
Complete with two types of most used connectors! Packed with a HDMI + D-Sub combo, you have more graphics output options now.
Specification:
| Platform | INTEL |
| Socket | LGA1700 |
| Cpu Type | 14th Gen,13th Gen,12th Gen |
| Chipset | H610 |
| Memory Speed | up to 5600 |
| Max Memory Support | 128 GB |
| Supported Memory Type | DDR5 |
| Channel Supported | Dual Channel |
| Memory Feature | 2 x DDR5 DIMM Slots 14th and 13th Gen Intel Core Processors support DDR5 non-ECC, un-buffered memory up to 5600* 12th Gen Intel Core Processors support DDR5 non-ECC, un-buffered memory up to 4800* Max. capacity of system memory: 128GB* Supports Intel Extreme Memory Profile (XMP) 3.0 |
| Graphics Port | 1 x HDMI, 1 x D-Sub |
| Expansion Slots | CPU: 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode* Chipset: 1 x PCIe 3.0 x1 Slot (PCIE2)* |
| Back Panel I/O Ports | 1 x PS/2 Mouse/Keyboard Port 1 x D-Sub Port 1 x HDMI Port 2 x USB 3.2 Gen1 Type-A Ports 4 x USB 2.0 Ports 1 x RJ-45 LAN Port HD Audio Jacks: Line in / Front Speaker / Microphone |
| Internal I/O Connector | 1 x SPI TPM Header 1 x Chassis Intrusion and Speaker Header 1 x CPU Fan Connector (4-pin) (Smart Fan Speed Control)* 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)** 1 x 24 pin ATX Power Connector 1 x 8 pin 12V Power Connector 1 x Front Panel Audio Connector 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) |
| Form Factor | Micro-ATX |
| Warranty | 3 Years |
| Note | Features, Price and Specifications are subject to change without notice. Images used for Representation Purpose Only. |
