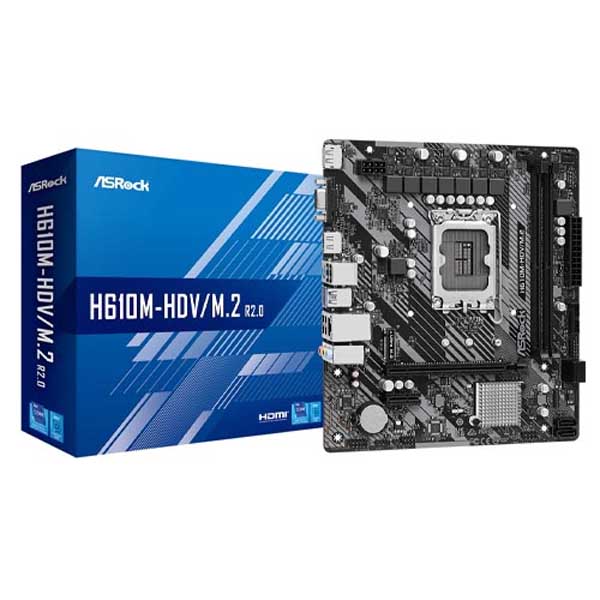

ASROCK H610M-HDV/M.2 R2.0 M-ATX Motherboard (Intel Socket LGA1700, DDR4)
Feature:
- ASROCK H610M-HDV/M.2 R2.0 Supports 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700)
- 7 Phase Power Design
- Supports DDR4 3200MHz
- 1 PCIe 4.0 x16, 1 PCIe 3.0 x1
- Graphics Output Options: HDMI, DisplayPort, D-Sub
- Realtek ALC897 7.1 CH HD Audio Codec
- 4 SATA3
- 1 Ultra M.2 (PCIe Gen3 x4)
- 4 USB 3.2 Gen1 (2 Rear, 2 Front)
- 6 USB 2.0 (4 Rear, 2 Front)
- Realtek Gigabit LAN
Digi Power
This ASROCK H610M-HDV/M.2 R2.0 motherboard uses a next generation digital PWM (Pulse-Width Modulation) design, providing CPU a smooth and efficient power source which expands the lifespan and stability of the motherboard.
Ultra M.2 32Gb/s (PCIe Gen3 x4)
The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s.
3 Graphics Outputs
Complete with all three types of most used connectors! Packed with a D-Sub + DisplayPort + HDMI combo.
HDMI 4k @60Hz
Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry.
Specification:
| CPU Support : | Supports 12th Gen Intel Core Processors |
| Socket : | LGA1700 |
| Chipset : | Intel H610 |
| Ram Type : | Supports DDR4 non-ECC, un-buffered memory up to 3200 |
| Memory Channel : | Dual Channel DDR4 Memory Technology |
| DIMM Slots : | 2 |
| Max Memory : | 64GB |
| PCI-EX16 : | 1 x PCIe 4.0 x16 Slot (PCIE2), supports x16 mode |
| SATA III : | 4 x SATA3 6.0 Gb/s Connectors |
| M.2/NVME : | Yes |
| LAN : | PCIE x1 Gigabit LAN 10/100/1000 Mb/s |
| WIFI 4 Bluetooth : | NA |
| USB 3.2 Ports(Front) : | 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) |
| USB 3.2 Ports(Rear) : | 2 x USB 3.2 Gen1 Ports (Supports ESD Protection) |
| USB 2.0 Ports(Front) : | 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection) |
| USB 2.0 Ports(Rear) : | 4 x USB 2.0 Ports (Supports ESD Protection) |
| Audio Ports(Rear) : | HD Audio Jacks: Line in / Front Speaker / Microphone |
| Display Port : | 1 x DisplayPort 1.4 |
| HDMI : | 1 x HDMI Port |
| Form Factor : | Micro-ATX |
| Warranty : | 3 Years |
