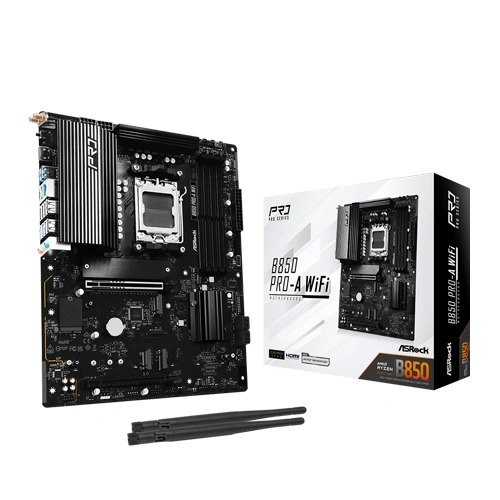

ASRock B850 Pro-A WiFi ATX Motherboard (AMD Socket AM5, DDR5, WiFi 6E)
Feature:
- Supports AMD Socket AM5 Ryzen 9000, 8000 and 7000 Series Processors
- 14+2+1 Phase Power Design, 80A Dr.MOS for VCore+SOC+MISC
- 4 x DDR5 DIMMs
- Supports Dual Channel, up to 8000+ (OC)
- 1 PCIe 5.0 x16, 1 PCIe 4.0 x16
- Graphics Output Options: 1 HDMI, 1 USB Type-C (DP-alt)
- Realtek ALC897 7.1 CH HD Audio Codec
- 1 Blazing M.2 (PCIe Gen5x4)
2 Hyper M.2 (PCIe Gen4x4)
1 Ultra M.2 (PCIe Gen3x4)
4 SATA3
1 USB 3.2 Gen2x2 Type-C (Front)
1 USB 3.2 Gen2 Type-C (Rear)
1 USB 3.2 Gen1 Type-C (Rear)
6 USB 3.2 Gen1 (4 Rear, 2 Front)
9 USB 2.0 (6 Rear, 3 Front) - Realtek 2.5G LAN
- 802.11axe WiFi 6E +Bluetooth
- Supports BIOS Flashback
ASRock B850 Pro-A WiFi 6E series is designed for enhanced stability, durability, and efficiency, it offers reliable performance, user-friendly features and a streamlined aesthetic, making it ideal for daily computing needs.
8 Layer PCB
The 8 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency for memory overclocking! Thus, it’s able to support the latest memory modules with most extreme memory performance!
DDR5 XMP & EXPO Support
Derived from the “built for stable and reliable” designing concept, ASRock does not compromise on any details. This motherboard is built with high quality materials, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance by enabling the pre-tested profiles. Make sure the memory modules are Intel XMP/AMD EXPO capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all.
PCIe Gen5 Blazing M.2
The Blazing M.2 accommodates the latest PCI Express 5.0 standard to perform twice the bandwidth compared to previous generation, with a breathtaking 128Gb/s transfer speed, it is ready to unleash the full potential of future ultrafast SSDs.
Aluminum Heatsink
The first thing that catches the eye is the optimized Aluminum Heatsink Design. Heatsinks are crucial for efficient heat dissipation, especially during heavy workloads like gaming or productivity tasks. Motherboard that built with heatsinks can effectively manage thermal performance, hence ensure system stability and durability effortlessly.
Wi-Fi 6E 802.11axe
ASRock B850 Pro-A WiFi 6E technology has extended to the whole new 6GHz spectrum band, providing more WiFi capability and giving an even better and faster internet traffic. In addition to deliver higher speeds, the WiFi 6E also enhances the lower latency and supports service levels that are equivalent to 5G networks
Specification:
| Platform | AMD |
| Socket | AM5 |
| Cpu Type | Ryzen 9000,Ryzen 8000,Ryzen 7000 |
| Chipset | B850 |
| Memory Speed | up to 8000+ |
| Max Memory Support | 256 GB |
| Supported Memory Type | DDR5 |
| Channel Supported | Dual Channel |
| Memory Feature | Supports DDR5 ECC/non-ECC, un-buffered memory Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules |
| Graphics Port | 1 x HDMI,1 x USB 3.2 Gen1 Type-C |
| Expansion Slots | CPU: – 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode Chipset: – 1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode – 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module – 15μ Gold Contact in VGA PCIe Slot (PCIE1) |
| Wireless Networking | WiFi 6E,Bluetooth 5.2 |
| Back Panel I/O Ports | – 2 x Antenna Ports – 1 x HDMI Port – 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) – 1 x USB 3.2 Gen1 Type-C Port (DP-alt mode supports DP1.4a) – 4 x USB 3.2 Gen1 Type-A Ports – 6 x USB 2.0 Ports – 1 x RJ-45 LAN Port – 1 x BIOS Flashback Button – HD Audio Jacks: Line in / Front Speaker / Microphone |
| Internal I/O Connector | – 1 x SPI TPM Header – 1 x Power LED and Speaker Header – 1 x RGB LED Header – 3 x Addressable LED Headers – 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control) – 4 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control) – 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control) – 1 x 24 pin ATX Power Connector – 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) – 1 x Front Panel Audio Connector – 2 x USB 2.0 Headers (Support 3 USB 2.0 ports) – 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) – 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) |
| Form Factor | ATX |
| Warranty | 3 Years |
| Note | Features, Price and Specifications are subject to change without notice. Images use for Representation Purpose Only. |
