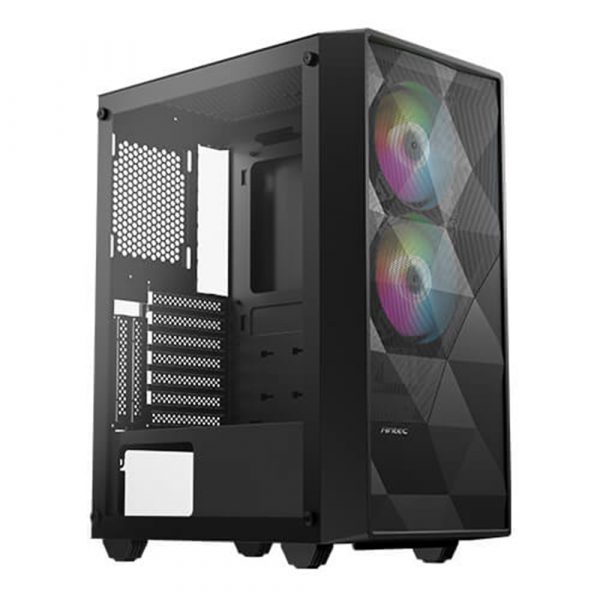

Antec NX270 TG Gaming Cabinet :
Features :
- Motherboard support: Up to ATX
- 2.5″ SSD: 1
- 3.5″ HDD/2.5″ SSD(convertible): 2/1
- Graphics Card Support: Up to 270 mm
- CPU Cooler Support: Up to 160 mm
- PSU Support: Up to 160 mm (with HDD)
Up to 295 mm (without HDD)
Overview :
Creation of Value & Function
The Antec NX270 TG Gaming Cabinet effortlessly combines a bevy of in-demand features: USB 3.0 connectivity, ample storage drive bays, room for expansion, and includes 2 x 120 RGB fixed model fans in front. With support for up to a 280 mm liquid cooling radiator in front & a 240 mm radiator on top, Antec NX270 TG Gaming Cabinet is easy to build with and easy to cool.

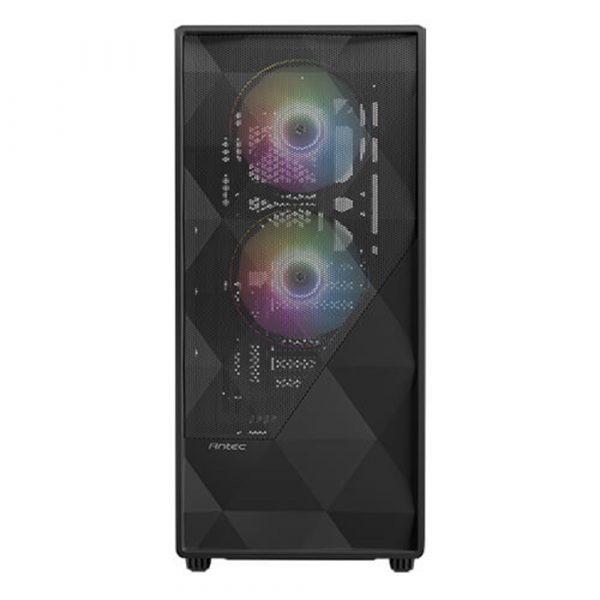

Mesh & Geometric Diamond-shaped Design Front Panel
The Antec NX270 TG Gaming Cabinet features an unique mesh and geometric diamond-shaped design on its front panel. With its preinstalled 2 x 120 RGB fixed model fans in front, the Antec NX270 TG Gaming Cabinet provides massive airflow and good thermal performance.
ED On/Off Anytime
Sometimes you want to focus on your work instead of playing games. Just a single press on the LED On/Off button, then you can easily turn off all the lighting effects.
Specifications :
| Dimensions | 362 x 217 x 461 mm (DWH) |
| Form Factor | Mid Tower |
| Materials | Steel+Plastic |
| Mainboard Support | ATX, Micro-ATX, ITX |

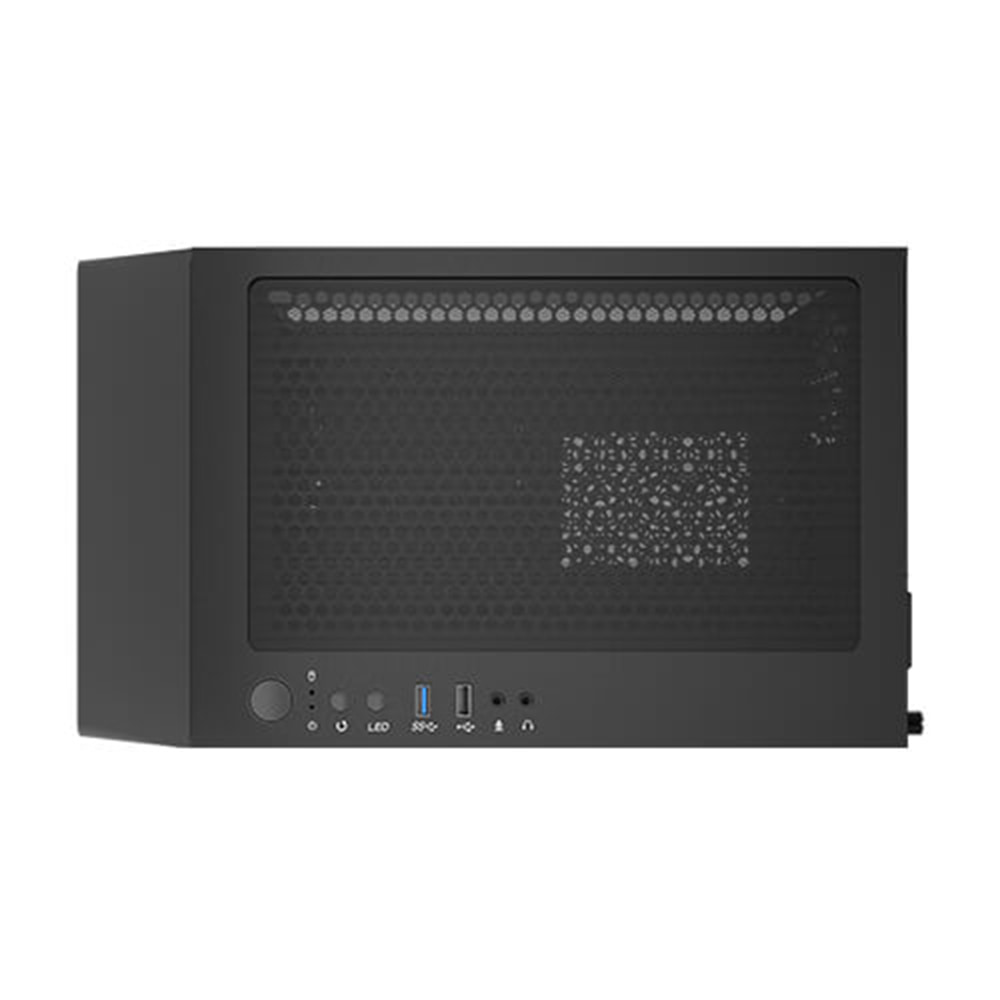

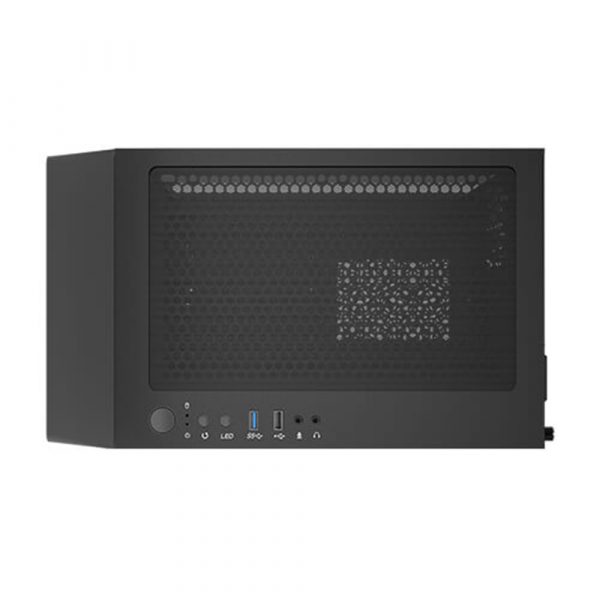

| Front Access & Controls | Power, Reset, LED On/Off Button, 1 x USB 2.0, 1 x USB 3.0, MIC/HD-AUDIO |
| Side Panel | Tempered Glass |
| Expansion & Drive Bays | |

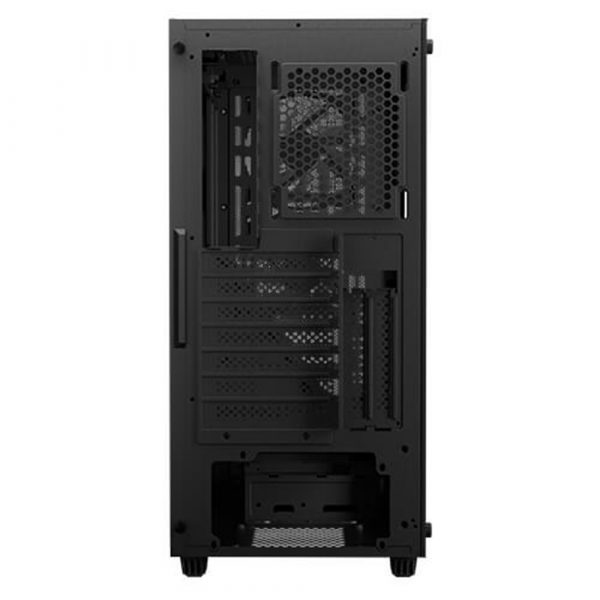

| Expansion Slots | 7 + 2 |
| 5.25″ | / |
| 3.5″ / 2.5″ | 2 / 1 |
| 2.5″ | 1 |
| Fan Support | |
| Front | 3 x 120 mm / 3 x 140 mm |
| Top | 2 x 120 mm |
| Power Supply | 2 x 120 mm |
| Rear | 1 x 120 mm |
| Included Fan(s) | 2 x 120 RGB fixed model fans in front |
| Radiator Support | |
| Front | 120 / 140 / 240 / 280 mm |
| Top | 120 / 240 mm |
| Clearance | |
| Max GPU Length | ≤ 270 mm |
| Max CPU Cooler Height | ≤ 160 mm |
| Max PSU Length | ≤ 160 mm (with HDD) ≤ 295 mm (without HDD) |
| Miscellaneous | |
| Dust Filter | Top |
| Net Weight | 4.25 kg |
| Gross Weight | 5.2 kg |
| UPC# | 0-761345-81007-4 |
