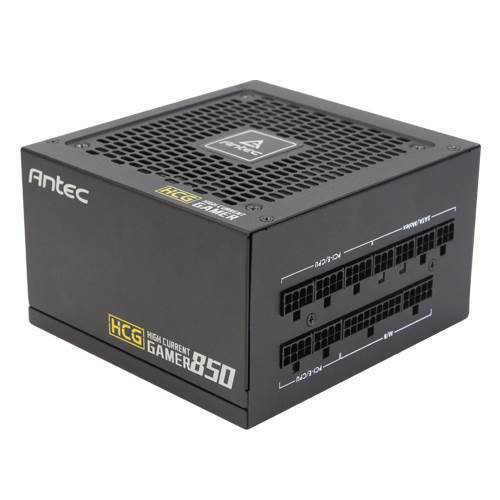

Antec HCG 850 80 Plus Gold Power Supply :
The latest generation of High Current Gamer Antec HCG 850 80 Plus Gold power supplies offer unparalleled stability and 80 PLUS® Gold-certified efficiency, thanks to the top-grade Japanese capacitors and Active PFC. Advanced thermal control with the Zero RPM mode enables optimal balance between silence and cooling, and a quiet 120 mm fluid dynamic bearing fan completes the package. The CircuitShield™ suite of industrial-grade protections ensures that the power delivered to your system is safe and reliable in any environment. If loads of power, high-level engineering and extreme efficiency are what you’re after, the High Current Gamer Gold series is the winner.
Features :
- Guaranteed 850W of Continuous Power from Antec
- 100% Modular-Improves airflow and reduces clutter
- 80 PLUS® GOLD certified-Up to 92% efficient, to reduce your electricity bill
- PhaseWave™ Design-A server-class full-bridge LLC design with a synchronous rectification based on a DC-DC topology
- Antec Quality 10-year warranty and lifetime global 24/7 support
- 120mm FDB Silence-Whisper-quiet high-quality fluid-dynamic bearing fan with long lifetime
- Zero RPM Manager-An advanced low voltage fan control with fan-off mode at low loads for absolute silence
- 99%+12V – Output for maximum CPU & GPU support
- CircuitShield™-Full suite of industrial grade protections: OCP, OVP, UVP, SCP, OPP, OTP, SIP, NLO
- 100% Japanese capacitors achieve unprecedented tight voltage regulation & low ripple & noise to maximize your system’s performance
- 28(18+10) pin MBU socket – For possible future MBU connectors
- ATX12V 2.4-Engineered according to the newest PSU guideline and compatible with the latest CPU generation
- Compact size 140mm depth power supply is the best choice for compact ATX chassis
Overview :

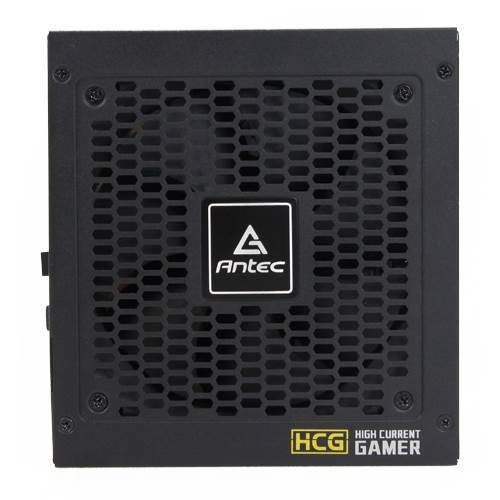

120mm FDB FAN
Antec HCG 850 80 Plus Gold whisper-quiet, fluid-dynamic bearing fan provides high airflow with the durability and longevity that is a signature of Antec quality.
Antec HCG 850 80 Plus Gold High-performance Japanese capacitors ensure the tightest DC stability and regulation, for reliability that you and your system can count on.
Antec HCG 850 80 Plus Gold PhaseWave™ Design – synchronous rectification based on a DC-DC topology.
Antec HCG 850 80 Plus Gold Have A server-class full-bridge LLC design.
Specifications :
Product Name | HCG850 Gold |
Model Name | HCG850 Gold |
Type | ATX 12V 2.4 |
Modular | Fully Modular |
Dimension (W x L x H) | 140(L)*150(W)*86(H) mm |
Warranty | 10 years |
Input Voltage | 100-240 VAC ±10% |
Input Current | 12A-6A |
Input Frequency Range | 50Hz-60Hz |
PFC | Active PFC (>0.9 typical) |
Power Good Signal | 100-500ms |
Efficiency | 92% Typically |
Protection | OCP/OVP/UVP/SCP/OPP/OTP/SIP/NLO |
Output Capacity | 850W |
Operation Temperature | 0~40°C |
Regulatory | cTUVus/TUV/CB [IEC62368 Compliant] /RCM/CE/EAC/CCC/BSMI/FCC/KR |
Fan | 120mm FDB Fan |
Certifications | 80 Plus Gold |

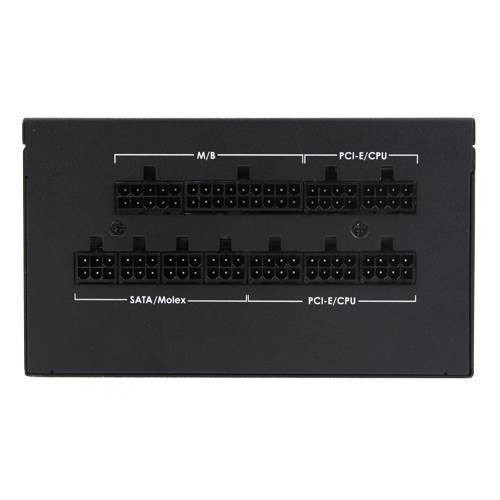

Connector | 1 x MB 24(20+4) Pin |
2 x 8(4+4) Pin EPS 12V | |
6 x 8(6+2) Pin PCI-E | |
10 x SATA | |
5 x Molex | |
1 x FDD | |
Net Weight | 2.46Kg |
Gross Weight | 3.77Kg |
UPC# | 0- A A AAADAAAWADAAAWAWETARWARTYUYAUYAA |
