Antec AX61 Elite ARGB Black Gaming Cabinet :
Overview :
Unique Design & Powerful Heat Dissipation
The front panel of Antec AX61 Elite Gaming Cabinet adopts an ample mesh design with geometrical styling for increasing airflow and dust prevention. The ARGB lighting creates various visual effects.

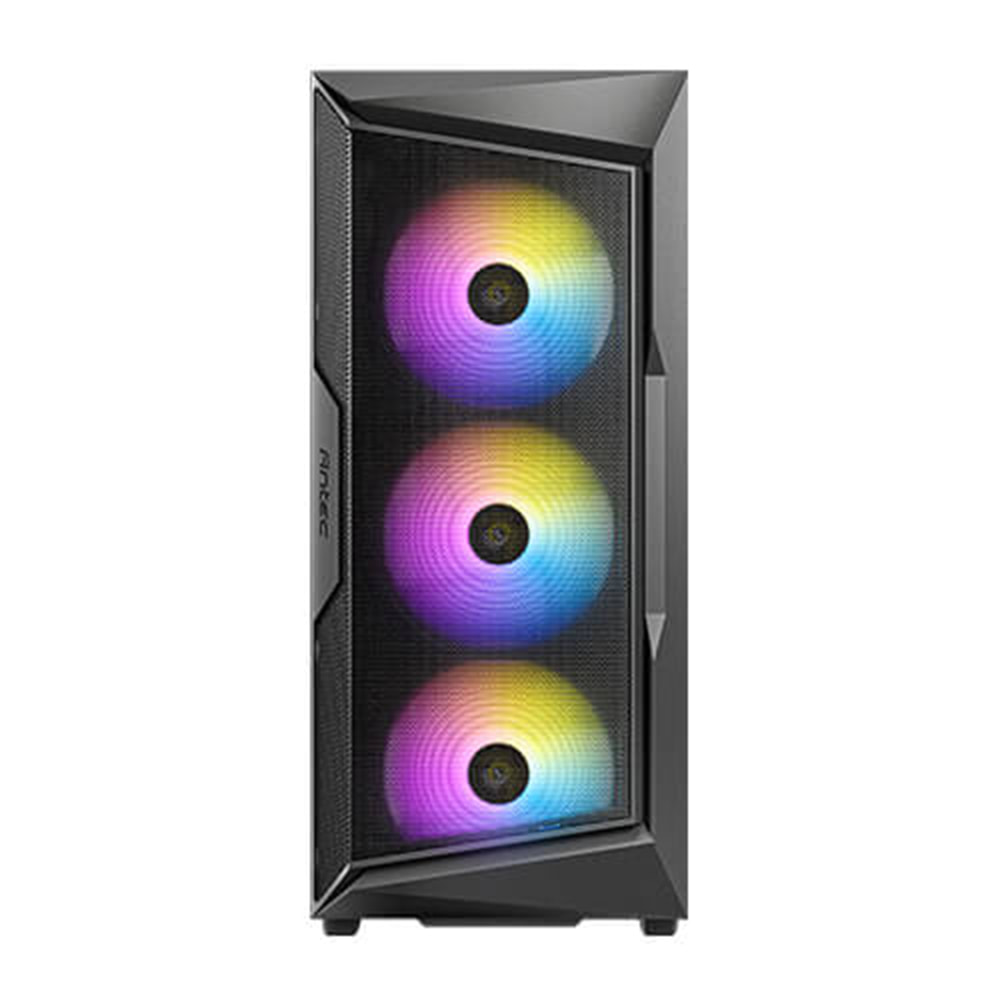

High-Airflow Front Panel
All-round airflow paths provide highly efficient cooling. Air intakes at the front and bottom of Antec AX61 Elite Gaming Cabinet ensure outstanding heat dissipation.
Pre-Installed 4 x 120mm ARGB fans
Work in sync with the motherboard.
In Sync with Motherboard for ARGB Lighting
Use the main case fan to daisy-chain the other two fans for ARGB sync and create your personal style.

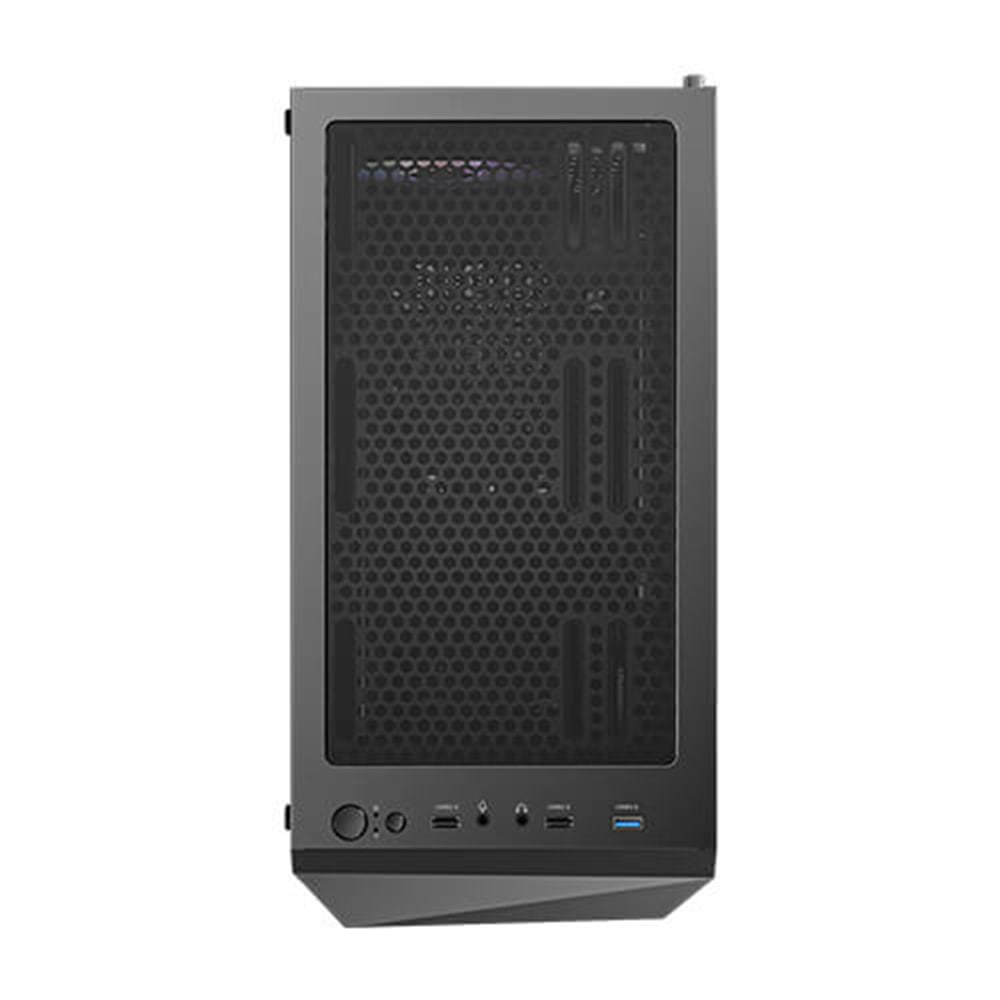

I/O Panel
Power, LED Control Button, USB2.0 x 2, MIC/HD-AUDIO, USB3.0 x 1
Neat Build within Reach
There are 24mm depth on the left side and 13mm on the right side for easy cable management.
Powerful Cooling Compatibility
Max. CPU Cooler Height : 160mm. Supports most of the high-end air coolers.
Specifications :
| Dimensions | 405 x 200 x 449mm (DWH) |
| Form Factor | Mid Tower |
| Materials | Steel + Plastic |
| Mainboard Support | ATX, Micro-ATX, ITX |
| Front Access & Controls | Power, LED Control Button, 2 x USB 2.0, 1 x USB 3.0, HD-AUDIO |
| Side Panel | 4MM Tempered Glass |
| Drive Bays | |
| 3.5″ / 2.5″ | 2/1 |
| 2.5″ | 2 |
| Expansion Slots | 7 |
| Fan Support | |
| Front | 3 x 120mm |
| Top | 2 x 120mm / 2 x 140mm |
| Power Supply | 2 x 120mm |
| Rear | 1 x 120mm |
| Included Fan(s) | 3 x 120mm ARGB fans in front + 1 x 120mm ARGB fan in rear |
| Radiator Support | |
| Front | 120 / 240 / 360mm |
| Clearance | |
| Max GPU Length | ≤ 320mm |
| Max CPU Cooler Height | ≤ 160mm |
| Max PSU Length | (Include cable) ≤ 165mm (with HDD) (Include cable) ≤ 345mm (without HDD) |
| Miscellaneous | |
| Dust Filter | Top / Bottom |
| Net Weight | 4.84 Kgs |
| Gross Weight | 5.62 Kgs |
| Warranty | 1 Year |
| UPC# | 0-761345-10069-4 |
