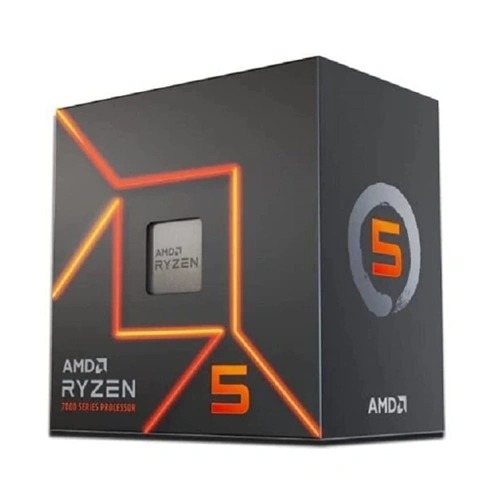

AMD Ryzen 5 7500F 5000 Series Desktop Processor – 6 Cores / 12 Threads
Overview:
The AMD Ryzen 5 7500F is a powerful gaming desktop processor from the Ryzen 7000 series, featuring the advanced Zen 4 architecture. With 6 CPU cores and 12 threads, it delivers excellent performance for both gaming and multitasking. The processor’s base clock operates at 3.7 GHz, providing solid performance for everyday tasks and gaming, while the maximum boost clock of up to 5.0 GHz ensures smooth gameplay and high responsiveness during more demanding applications.
Equipped with a generous 38MB total cache, the AMD Ryzen 5 7500F ensures faster data access, which contributes to lower latency and improved overall system efficiency. The processor has a Thermal Design Power (TDP) of 65W, making it energy-efficient while still delivering high performance. This combination of power and efficiency makes it ideal for users who need a balance of performance and energy savings, especially in gaming systems.
The AMD Ryzen 5 7500F supports the AM5 socket, offering compatibility with a wide range of motherboards. It is designed to work with chipset families such as A620, X670E, X670, B650E, B650, X870E, X870, B840, B850 providing users with a variety of options for building or upgrading their systems.
This Desktop Gaming CPU also supports PCIe 5.0 version and Supports Memory type DDR5 that has a system memory specification of up to 5200 MT/s with maximum memory capacity of 128GB
Whether you’re gaming at high settings or running intensive applications, the AMD Ryzen 5 7500F provides an outstanding experience, offering strong performance, multi-core efficiency, and future-proofing with its support for the latest technology.
Specification:
| General Specifications | Name: AMD Ryzen 5 7500F Family: Ryzen Series: Ryzen 7000 Series Form Factor: Desktops, Boxed Processor Market Segment: Enthusiast Desktop AMD PRO Technologies: No Regional Availability: Global Former Codename: Raphael AM5 Processor Architecture: Zen 4 # of CPU Cores: 6 Multithreading (SMT): Yes # of Threads: 12 Max. Boost Clock: Up to 5 GHz Base Clock: 3.7 GHz L1 Cache: 384 KB L2 Cache: 6 MB L3 Cache: 32 MB Default TDP: 65W Processor Technology for CPU Cores: TSMC 5nm FinFET Processor Technology for I/O Die: TSMC 6nm FinFET CPU Compute Die (CCD) Size: 71mm² I/O Die (IOD) Size: 122mm² Package Die Count: 2 Unlocked for Overclocking: Yes AMD EXPO™ Memory Overclocking Technology: Yes Precision Boost Overdrive: Yes Curve Optimizer Voltage Offsets: Yes AMD Ryzen™ Master Support: Yes CPU Socket: AM5 Supporting Chipsets: A620 , X670E , X670 , B650E , B650 , X870E , X870 , B840 , B850 CPU Boost Technology: Precision Boost 2 Instruction Set: x86-64 Supported Extensions: AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64 Thermal Solution (PIB): AMD Wraith Stealth Max. Operating Temperature (Tjmax): 95°C *OS Support: Windows 11 – 64-Bit Edition , Windows 10 – 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit |
| Connectivity | Native USB 3.2 Gen 2 (10Gbps): 4 Native USB 3.2 Gen 1 (5Gbps): 0 Native USB 2.0 (480Mbps): 1 Native SATA Ports: 0 PCI Express® Version: PCIe® 5.0 Native PCIe® Lanes (Total/Usable): 28 , 24 Additional Usable PCIe Lanes from Motherboard: X670E 12x Gen4 X670 12x Gen4 B650E 8x Gen4 B650 8x Gen4 A620 4x Gen3 NVMe Support: Boot , RAID0 , RAID1 , RAID10 System Memory Type: DDR5 Memory Channels: 2 Max. Memory: 128 GB System Memory Subtype: UDIMM Max Memory Speed: 2x1R DDR5-5200 2x2R DDR5-5200 4x1R DDR5-3600 4x2R DDR5-3600 ECC Support: Yes (Requires mobo support) |
| Graphics Capabilities | Graphics Model: Discrete Graphics Card Required |
| Key Features | AMD EXPO™ Technology , AMD Ryzen™ Technologies |
| Warranty | 3 Years |
| Note* | Price, feature and specifications are subject to change without notice. |
