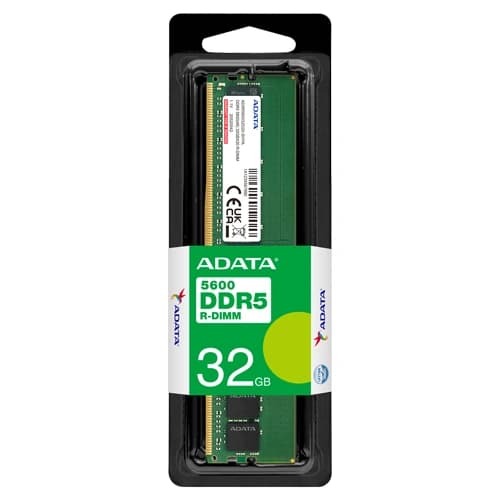

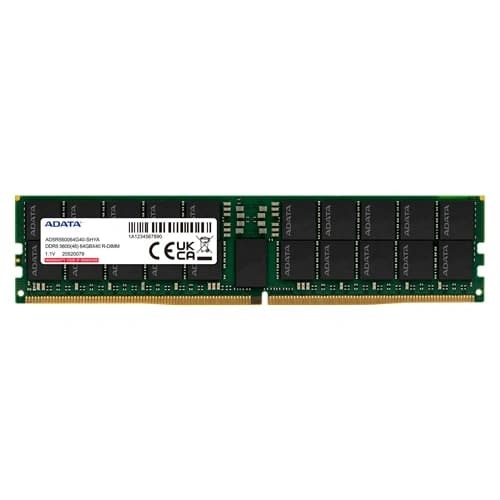

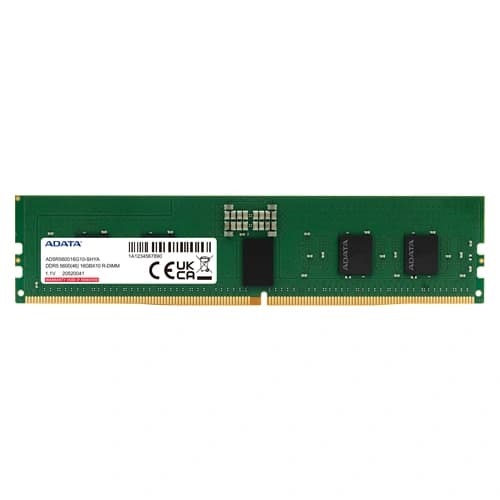

Adata R-DIMM 32GB 5600MHz CL46 DDR5 Desktop RAM :
Overview :
The Adata R-DIMM 32GB 5600MHz CL46 DDR5 Desktop RAM is a high-performance memory module designed for professional workstations and servers. Built on the latest DDR5 technology, Adata R-DIMM 32GB 5600MHz CL46 DDR5 Desktop RAM offers improved bandwidth, energy efficiency, and data integrity. This module is ideal for demanding tasks like content creation, 3D rendering, data science, and enterprise-level workloads. With support for Intel Xeon and AMD Ryzen Threadripper PRO platforms, Adata R-DIMM 32GB 5600MHz CL46 DDR5 Desktop RAM ensures optimal compatibility, stability, and scalability in multi-channel memory configurations.
Key Features :
- High-speed performance with 5600MT/s data rate
- Supports ECC (on-die and side-band) for enhanced data integrity
- Operates at low 1.1V for improved power efficiency
- Registered DIMM (R-DIMM) design for better stability
- Temperature sensor for thermal monitoring
- Ideal for workstation and server environments
- Compatible with Intel Xeon W-2400/W-3400 and AMD Ryzen Threadripper PRO platforms
Specifications Table :
| Capacity | 32GB |
| Memory Type | DDR5 |
| Module Type | R-DIMM (Registered DIMM) |
| Speed | 5600 MT/s |
| CAS Latency | CL46 |
| Voltage | 1.1V |
| ECC Support | On-die ECC and side-band ECC |
| Form Factor | 288-pin DIMM |
| Operating Temperature | 0°C to 85°C |
| Industrial Temp Range | -40°C to 95°C |
| Register | Yes (with clock driver) |
| Gold Finger Coating | 30µ gold-plated contacts |
| Compliance | JEDEC, RoHS |
| Compatibility | Intel Xeon W-2400/W-3400, AMD Ryzen Threadripper PRO 7000WX/7000 series |
| Additional Features | Temperature sensor, high-quality ICs |
| Warranty | Limited lifetime |
