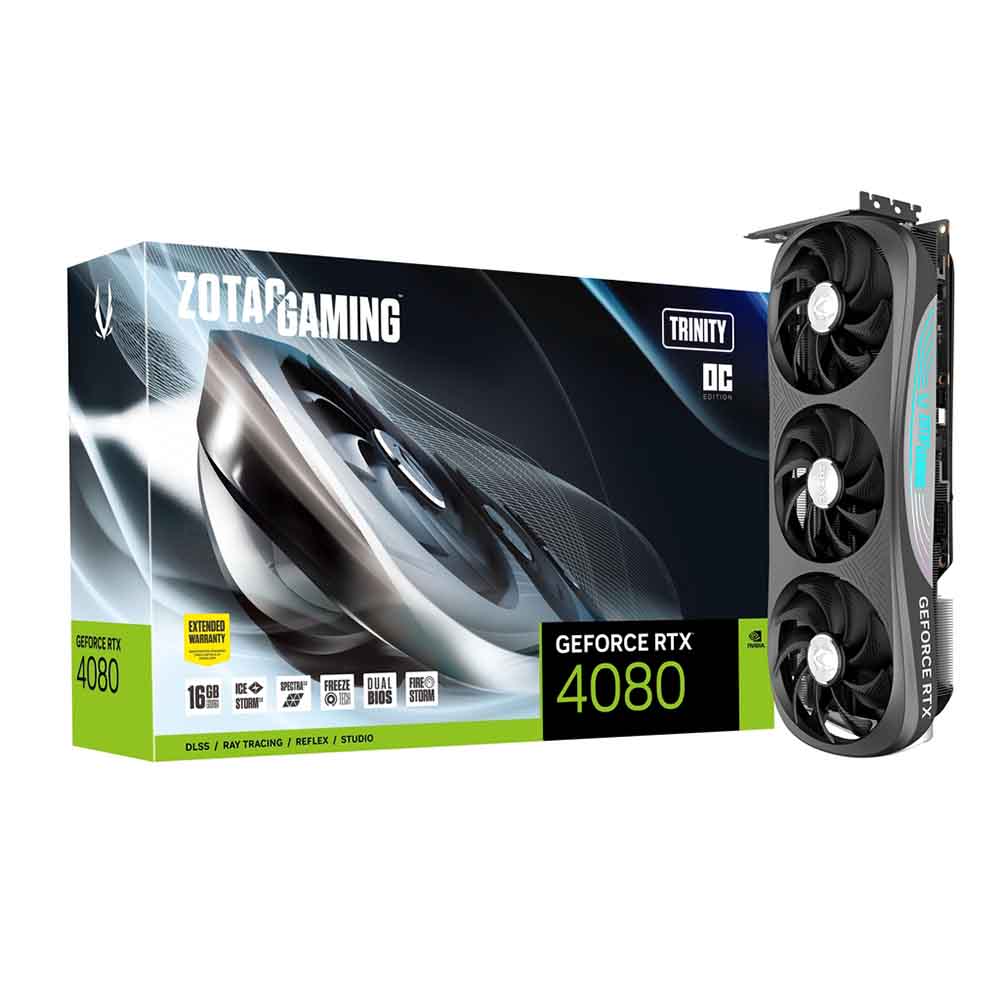

Zotac RTX 4080 Trinity OC 16GB 256 Bit Gaming Graphics Card
- NVIDIA Ada Lovelace Streaming Multiprocessors: Up to 2x performance and power efficiency
- 4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering
- 3rd Generation RT Cores: Up to 2X ray tracing performance in Zotac RTX 4080 Trinity OC 16GB
- IceStorm 2.0 Advanced Cooling
- FREEZE Fan Stop, Active Fan Control, Dual BIOS
- SPECTRA 2.0 RGB Lighting (compatible with external LED strip)
- Metal Backplate
- Bundled with GPU Support Bracket
- All-new FireStorm Utility
THE AIRO EVOLUTION
Inspired by aerodynamic concepts, the Zotac RTX 4080 Trinity OC 16GB utilizes an AIR-Optimized design to bring out the best in the world’s most advanced gaming GPU powered by the NVIDIA Ada Lovelace architecture. For gamers and enthusiasts who desire the ultimate performance, the AMP Extreme AIRO graphics card has everything to offer – from unrivalled power to outstanding thermal and noise performance.
Refined in every aspect, IceStorm 2.0 is our advanced cooling system that pushes the limit of GPU performance in the most graphically demanding PC games.
CUT THROUGH THE AIR

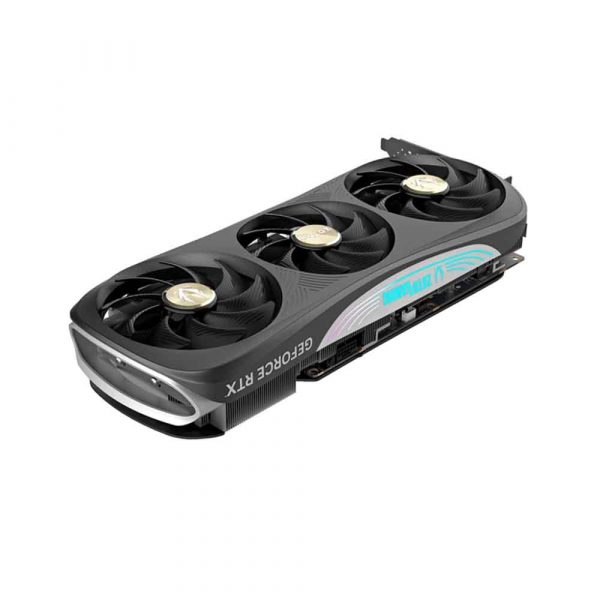

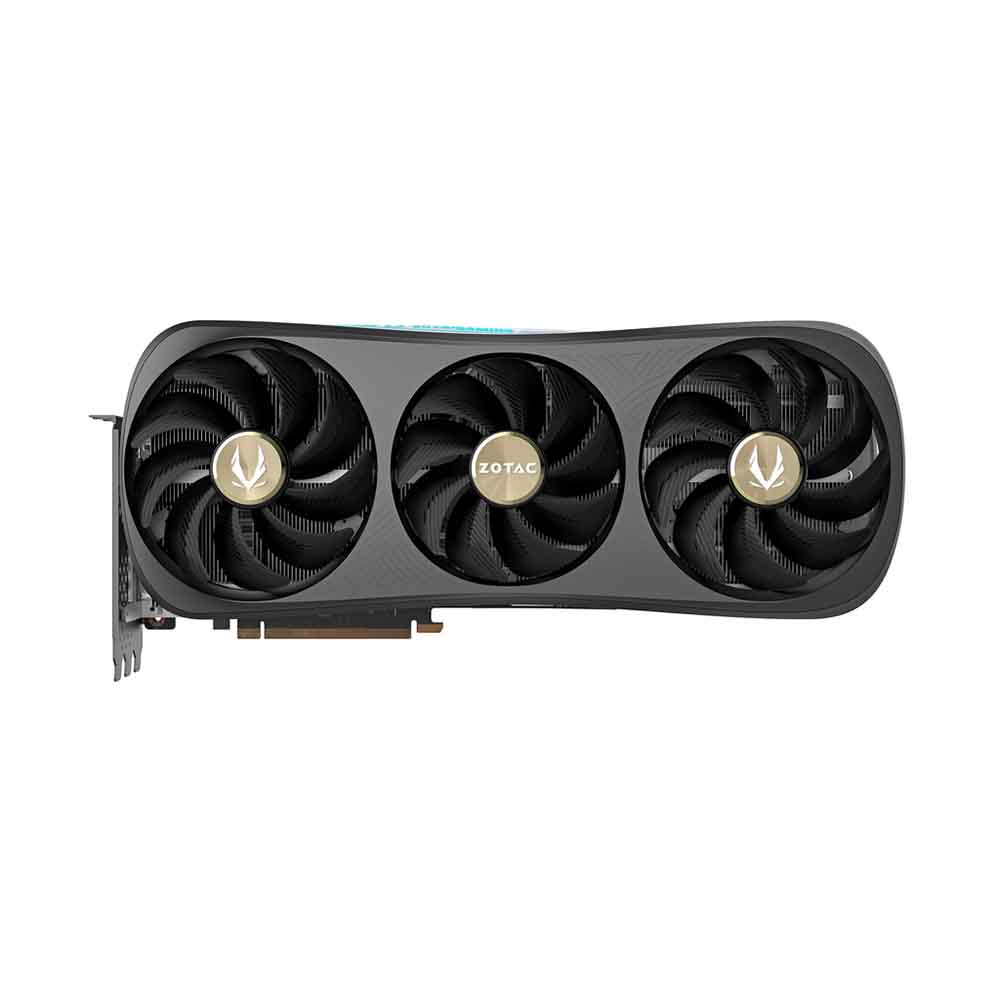

Mounted with triple 110mm large fans featuring wide curved blades that have twice the blade size of the previous generation. Each curvature and stripe on the blade is meticulously designed to maximize airflow and air pressure.
IMPROVED AIRFLOW DYNAMICS
The fan height is significantly increased to ensure optimal airflow. Backed by a deeper fan shroud design to help generate a more focused airstream intake, each fan rotation pushes more cool air down and keeps it onto the heat spreader longer for improved temperatures.
MORE POWERFUL HEATSINK

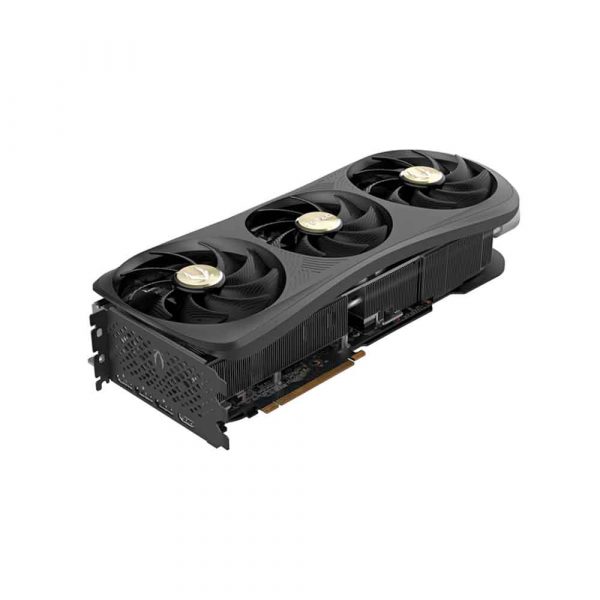

Filling the massive 3.5-slot footprint is a colossal aluminum fin stack ready for the most intense thermal challenges.
9 precision-machined copper heatpipes are shifted into a vertical layout for increased surface contact with the GPU, extracting more heat to disperse along the full length of the heatsink.
Made of composite layers consisting of a thicker envelope and a grooved wick with a multi-channel working fluid, each heatpipe is more efficient at transferring heat.
With ample designed ventilation paths, airflow can maneuver and exhaust from every side to reduce trapped heat.
Zotac RTX 4080 Trinity OC 16GB brings new noise-reducing features to the GeForce RTX 40 Series to enhance immersion when gaming.
CALMING THE STORM
A counter-rotating center fan helps reduce air turbulence, minimizing noise with a smoother airflow. Further noise refinement comes with the assistance of mounted anti-vibration pads.
DESIGNED FOR DURABILITY
Built to last and perform, the Zotac RTX 4080 Trinity OC 16GB boasts a strong foundation for peak performance.

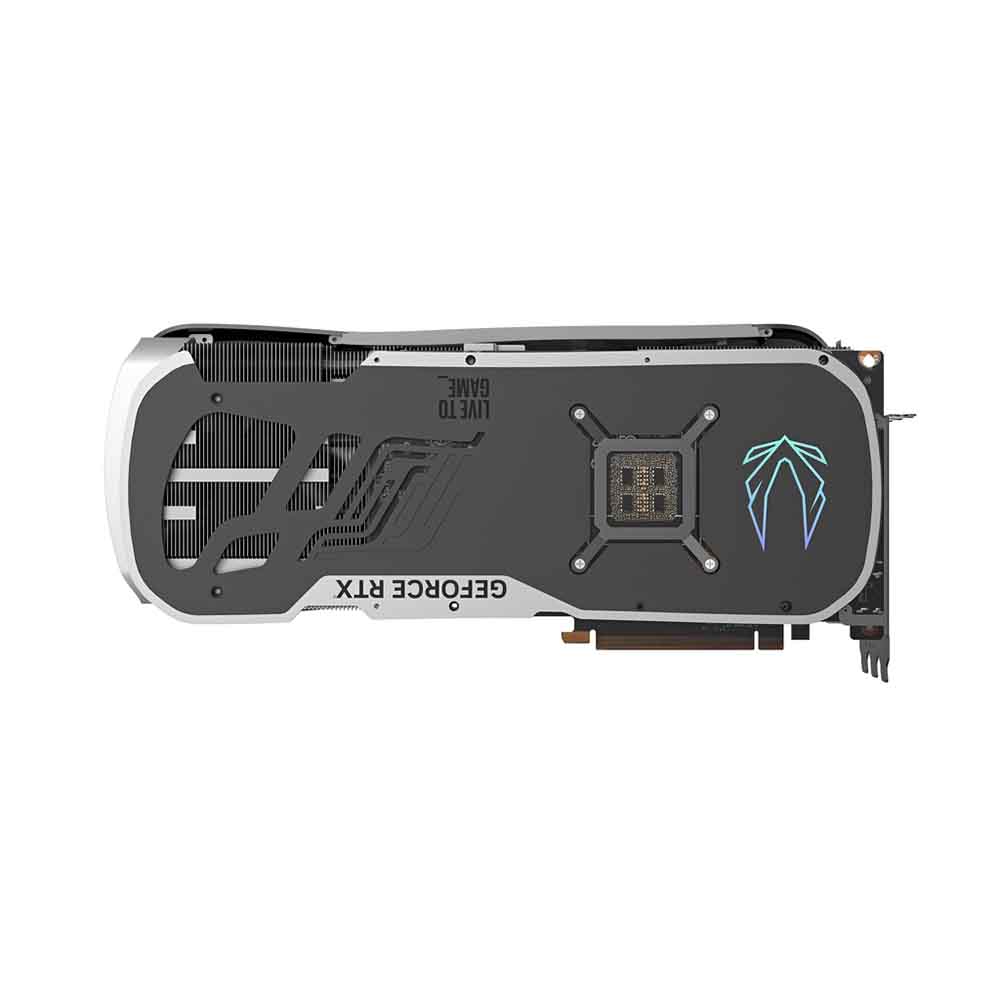

Overall rigidity is backed with a solid die-cast metal backplate with further enhancement of a rear retention bracket mounted on AMP Extreme AIRO models.
More power phases allow more efficient distribution of power. Trinity OC graphics card spreads the load between 24+3 power phases, resulting in more power stability, increased resilience, and improved temperatures.
The new cooling fans feature a dual ball bearing design that reduces rotational friction and further prolongs fan lifespan.
Take advantage of a bundled metal support stand for additional GPU reinforcement.
SPECTRA ALL AROUND
ZOTAC GAMING’s dedicated lighting system, SPECTRA 2.0, enables vibrant LED light colors and unique animated options powered by Addressable RGB LEDs.
5-ZONE RGB LIGHTING
Customize different modes and colors for the 5 lighting zones at the front, sides and rear of the graphics card, or synchronize the whole.
The surreal beauty of the large RGB presence on top is enhanced by an iridescent and translucent finish that allows lighting paths underneath to shine through.
EXPAND THE AMBIANCE
The featured 3-pin RGB header empowers your graphics card to synchronize lighting with a compatible RGB LED strip for added aesthetics and customization.
NEW. SIMPLE. INTUITIVE.
The all-new ZOTAC GAMING FireStorm Utility for 40 Series features an entirely re-designed interface that makes complex fine-tuning tasks easier to do. The new software comes with a host of tuning and monitoring options that include clock speeds, GPU memory frequencies, voltage, fan speed, fan curve settings, SPECTRA RGB lighting effects, and one-click BIOS switching.
|GPU||GeForce RTX 4080|
|Video Memory||16GB GDDR6X|
|Engine Clock||Boost: 2520 MHz|
|Memory Clock||22.4 Gbps|
|PCI Express||4.0 16x|
|Display Outputs||3 x DisplayPort 1.4a (up to 7680×4320@60Hz)|
1 x HDMI® Connector*
*Supports 4K 120Hz HDR, 8K 60Hz HDR, and Variable Refresh Rate as specified in the HDMI 2.1 Specification
|Multi Display Capability||Quad Display|
|Recommended Power Supply||750W|
|Power Input||1 x 12VHPWR|
|Supported OS||Windows 11 / 10 (64-bit, April 2018 update or later)|
|Card Length||356.1mm x 150.1mm x 71.4mm / 14″ x 5.9″ x 2.8″|
|Accessories||GPU Support Stand|
3-pin RGB Header Cable
3x 8-pin-to-12VHPWR cable (Limited service life with up to 30 connect / disconnects)
|Warranty||3 Years + 2 Years Extended (On Registration)|
