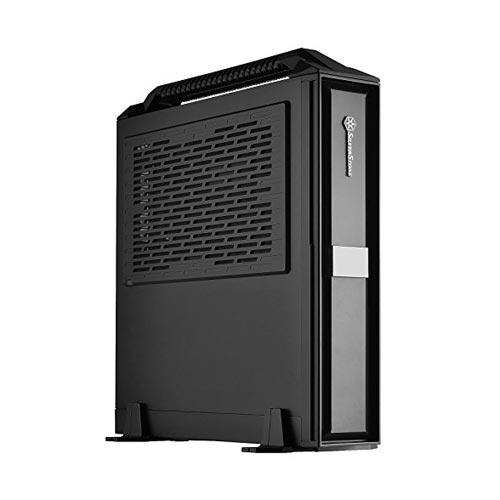

Silverstone ML08 HTPC Case SST-ML08B-H
Overview :
￭ Highest performance capability in super slim form factor
￭ Optional models includes removable carrying handle (ML08B-H, ML08B-HW)
￭ Support graphics card up to 13 inches (330mm)
￭ Mini-ITX motherboard & SFX PSU compatible
￭ Independent expansion slot design for easy assembly
￭ Tool-less drive cage design
￭ Fits in nearly any environment with horizontal or vertical orientation
Specification :
| Model No. | SST-ML08B-H (black + handle) |
| Material | SilverStone ml08 htpc Reinforced plastic outer shell, steel body |
| Motherboard | Mini-ITX |
| Drive bay | |
| External | Slim optical 12.7mm or 9.5mm x 1 |
| (9.5mm compatibility limited to tray type) | |
| Internal | 2.5″ x 2 |
| (one additional 3.5″ or 2.5″ space depending on expansion card installed) | |
| Cooling system | |
| Front | — |
| Rear | Passive exhaust vents |
| Side | Oversized vents over CPU/motherboard and expansion area |
| Top | — |
| Bottom | — |
| Internal | — |
| Expansion slot | 2 |
| Front I/O port | USB 3.0 x 2 |
| audio x 1 | |
| MIC x 1 | |
| Power supply | SFX & SFX-L |
| Expansion card | *Compatible up to 13″ (330mm) long, width restriction-4.78″ (121mm) |
| Limitation of CPU cooler | 58mm |
| Net weight | 3.2kg~3.5kg |
| Dimension | 380mm (W) x 87mm (H) x 370mm (D), 12 liters |
| 14.96″ (W) x 3.43″ (H) x 14.57″ (D), 12 liters | |
| Extra | SilverStone ml08 htpc Support two Kensington locks |
| PCI Express riser card set x 1 |
