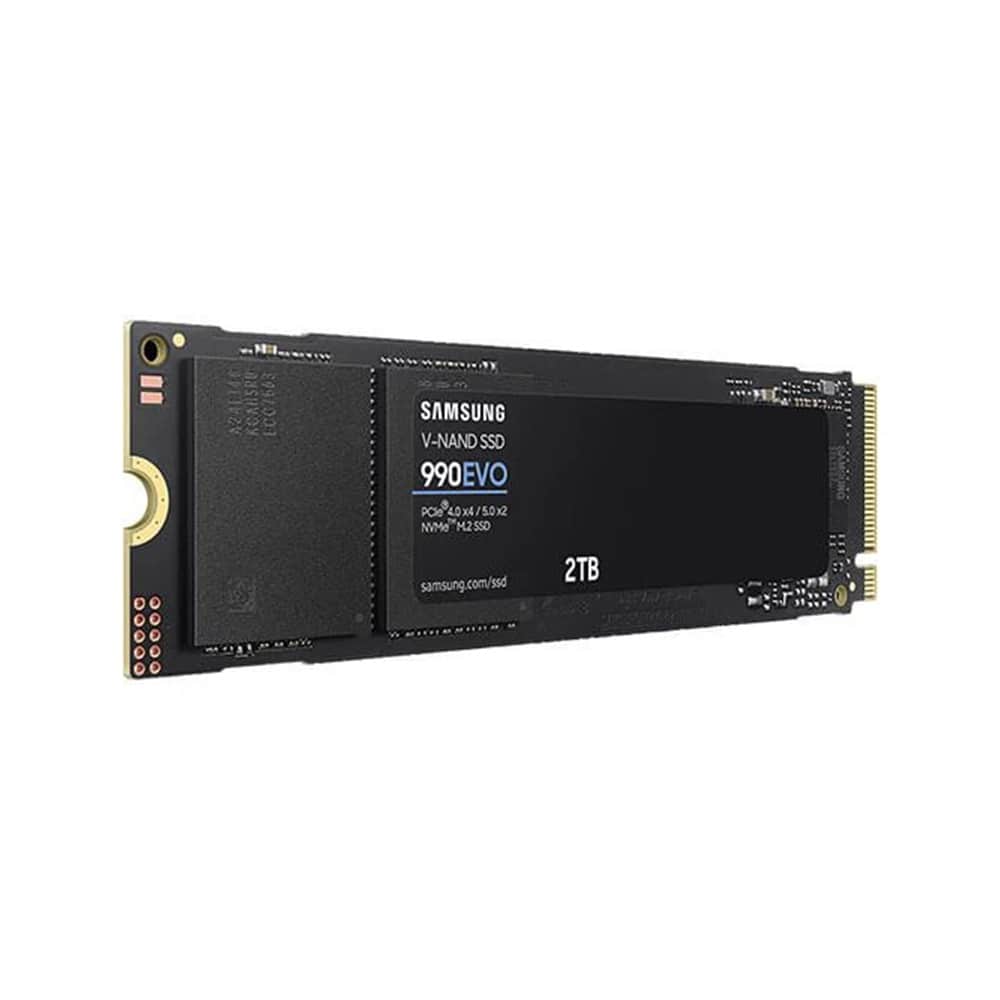

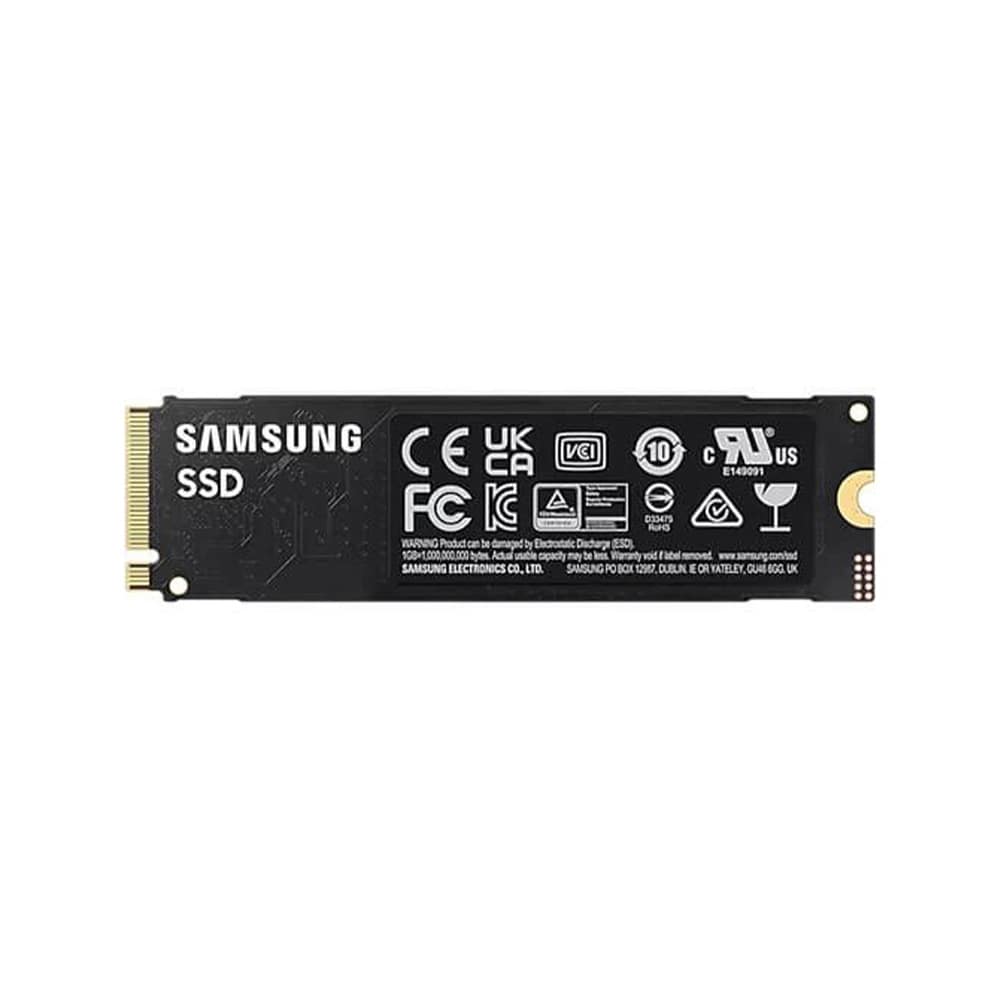

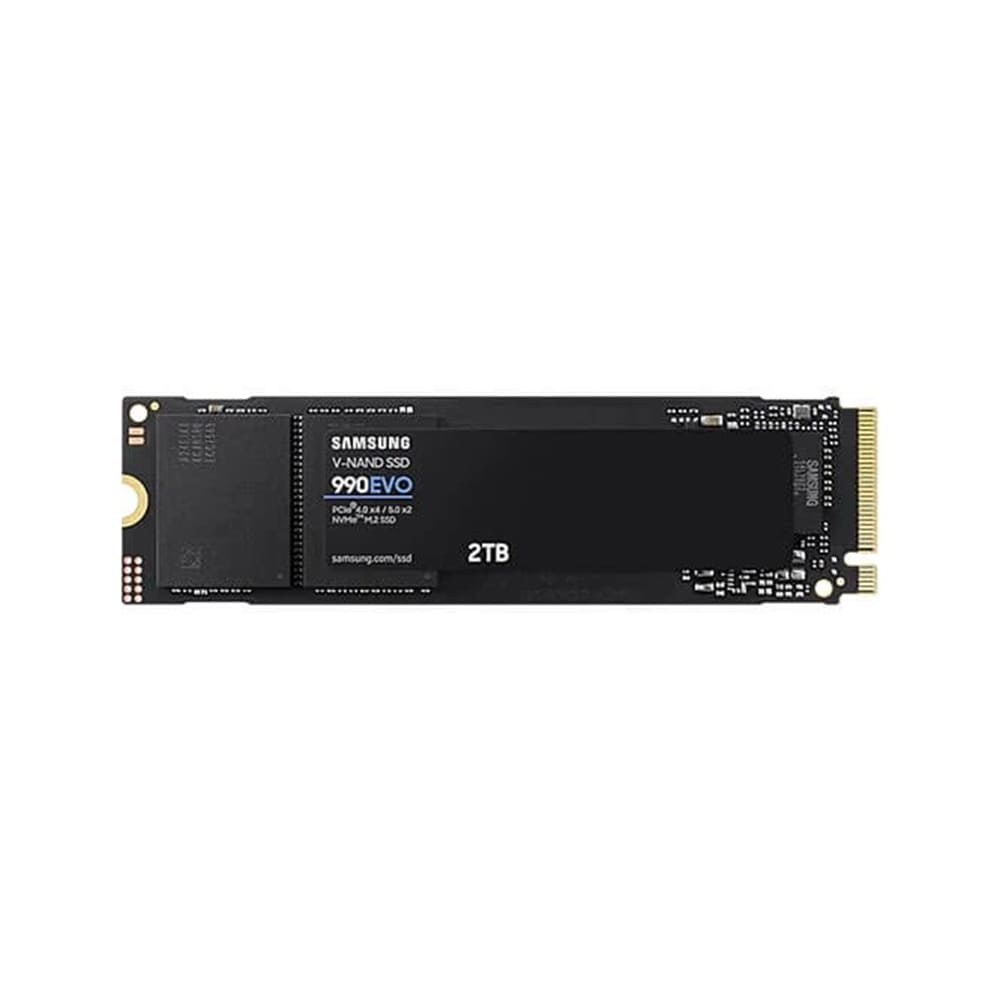

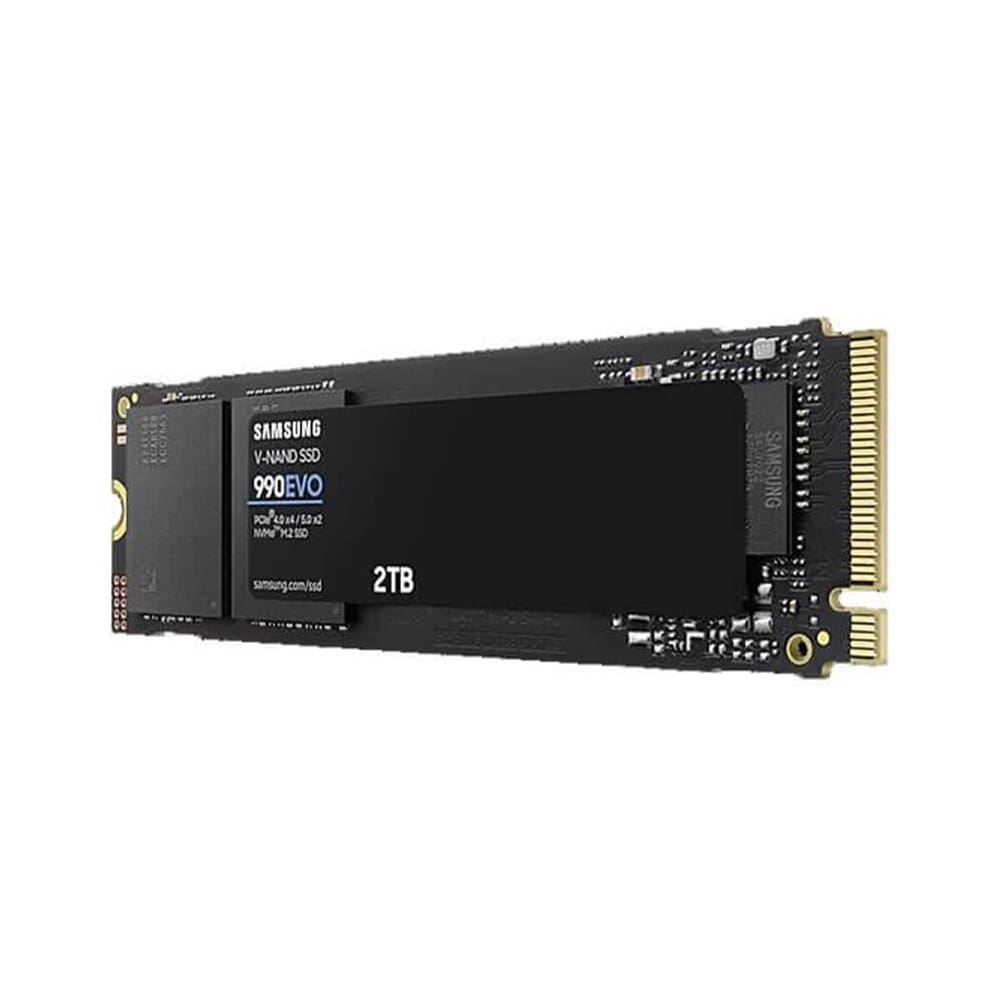

Samsung 990 EVO 2TB M.2 NVMe Gen4 Internal SSD :
Features :
- Sequential read speed up to 5000 MB/s
- Elevate everyday performance in Gaming, Business, Creative work with PCIe 4.0 x 4 and PCIe 5.0 x 2 compatibility
- 70% enhanced power efficiency supporting modern standby and longer battery life
Overview :
Performance
Upgrade to faster sequential read speed up to 5,000 MB/s, reaching 43% faster than the previous model of Samsung ssd.
Power efficiency
70% enhanced power efficiency compared to the previous model, supporting Modern Standby and longer battery life.
Versatility
Elevate everyday performance in gaming, business, and creative work with PCIe® 4.0 x4 and PCIe® 5.0 x2 compatibility.
Speed that stays ahead
The 990 EVO offers enhanced sequential read/write speeds up to 5,000/4,200 MB/s, and random read/write speeds up to 700K/800K IOPS, reaching 43% faster than the 970 EVO Plus 2TB. Wait less for games and access big files quick. All in Samsung 990 EVO 2TB M.2 NVMe Gen4.
Smart thermal solution
The 990 EVO’s heat spreader label helps thermal control of the NAND chip. Samsung’s cutting-edge thermal control algorithm, paired with Dynamic Thermal Guard, ensures both consistent and reliable performance. Keep your performance red-hot, not your drive.
Samsung Magician software
Make your SSD works like magic. Samsung Magician software’s optimization tools ensure the best SSD performance. It’s the safe and easy way to migrate all your data for a Samsung SSD upgrade. Protect valuable data, monitor drive health, and get the latest firmware updates.
Nickel Coated Controller with Smart Thermal Control
Keep your cool Now you can ramp things up without overheating the system. Samsung’s nickel-coated, high-end controller delivers effective thermal control to avoid performance drops mid-project and make sure your checkpoints are saved.
Bringing innovations to life
For decades, Samsung’s NAND flash memory has powered groundbreaking technologies that have changed every part of our daily lives. This NAND flash technology also powers our consumer SSDs, making room for the next big push of innovation.
Specification :
| P/N | MZ-V9E2T0BW |
| Model | Samsung 990 EVO 2TB M.2 NVMe Gen4 |
| Capacity | 2TB |
| General Feature | |
| Application | Client PCs |
| Capacity | 2,000GB (1GB=1 Billion byte by IDEMA) * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise) |
| Form Factor | M.2 (2280) |
| Interface | PCIe® 4.0 x4 / 5.0 x2 NVMe™ 2.0 |
| Dimension (WxHxD) | 80 x 22 x 2.38 mm |
| Weight | Max 9.0g Weight |
| Storage Memory | Samsung V-NAND TLC |
| Controller | Samsung in-house Controller |
| Cache Memory | HMB(Host Memory Buffer) |
| Special Feature of Samsung 990 EVO 2TB M.2 NVMe Gen4 | |
| TRIM Support | Supported |
| S.M.A.R.T Support | Supported |
| GC (Garbage Collection) | Auto Garbage Collection Algorithm |
| Encryption Support | AES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 (Encrypted drive) |
| WWN Support | Not supported |
| Device Sleep Mode Support | Yes |
| Performance in Samsung 990 EVO 2TB M.2 NVMe Gen4 | |
| Sequential Read | Up to 5,000 MB/s * Performance may vary based on system hardware & configuration |
| Sequential Write | Up to 4,200 MB/s * Performance may vary based on system hardware & configuration |
| Random Read (4KB, QD32) | Up to 700,000 IOPS * Performance may vary based on system hardware & configuration |
| Random Write (4KB, QD32) | Up to 800,000 IOPS * Performance may vary based on system hardware & configuration |
| Random Read (4KB, QD1) | Up to 20,000 IOPS * Performance may vary based on system hardware & configuration |
| Random Write (4KB, QD1) | Up to 90,000 IOPS * Performance may vary based on system hardware & configuration |
| Environment | |
| Average Power Consumption (system level) | *Average: Read 5.5 W / Write 4.7 W* Actual power consumption may vary depending on system hardware & configuration |
| Power consumption (Idle) | Typical 60 mW * Actual power consumption may vary depending on system hardware & configuration |
| Power Consumption (Device Sleep) | Typical 5 mW * Actual power consumption may vary depending on system hardware & configuration |
| Allowable Voltage | 3.3 V ± 5 % Allowable voltage |
| Reliability (MTBF) | 1.5 Million Hours Reliability (MTBF) |
| Operating Temperature | 0 – 70 ℃ Operating Temperature |
| Shock | 1,500 G & 0.5 ms (Half sine) |
| Accessories with Samsung 990 EVO 2TB M.2 NVMe Gen4 | |
| Installation Kit | Not Available |
| Software for Samsung 990 EVO 2TB M.2 NVMe Gen4 | |
| Management SW | Magician Software for SSD management |
| Warranty | 5 years |
