Phanteks Metallic Gear Neo Qube 2 Black Cabinet :

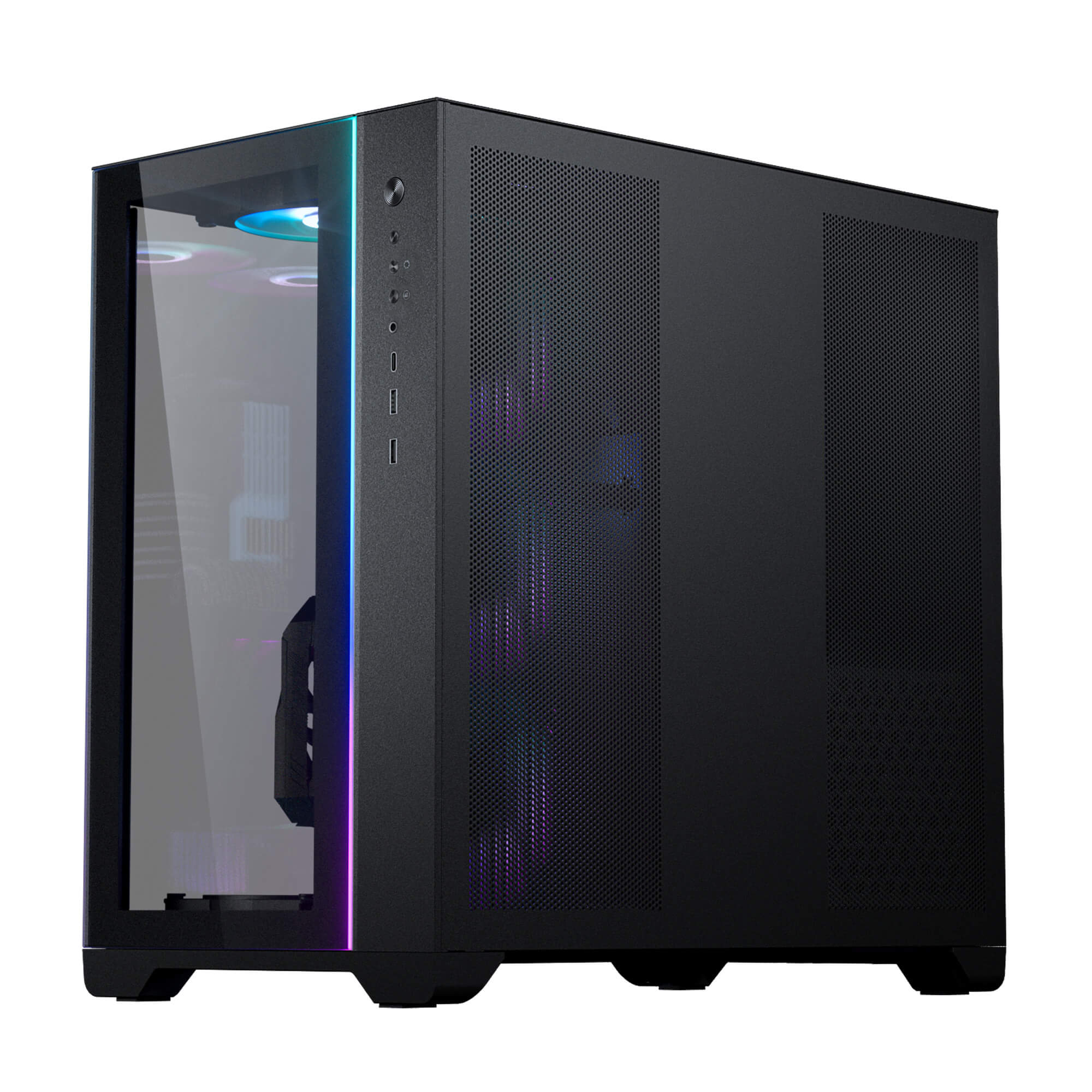

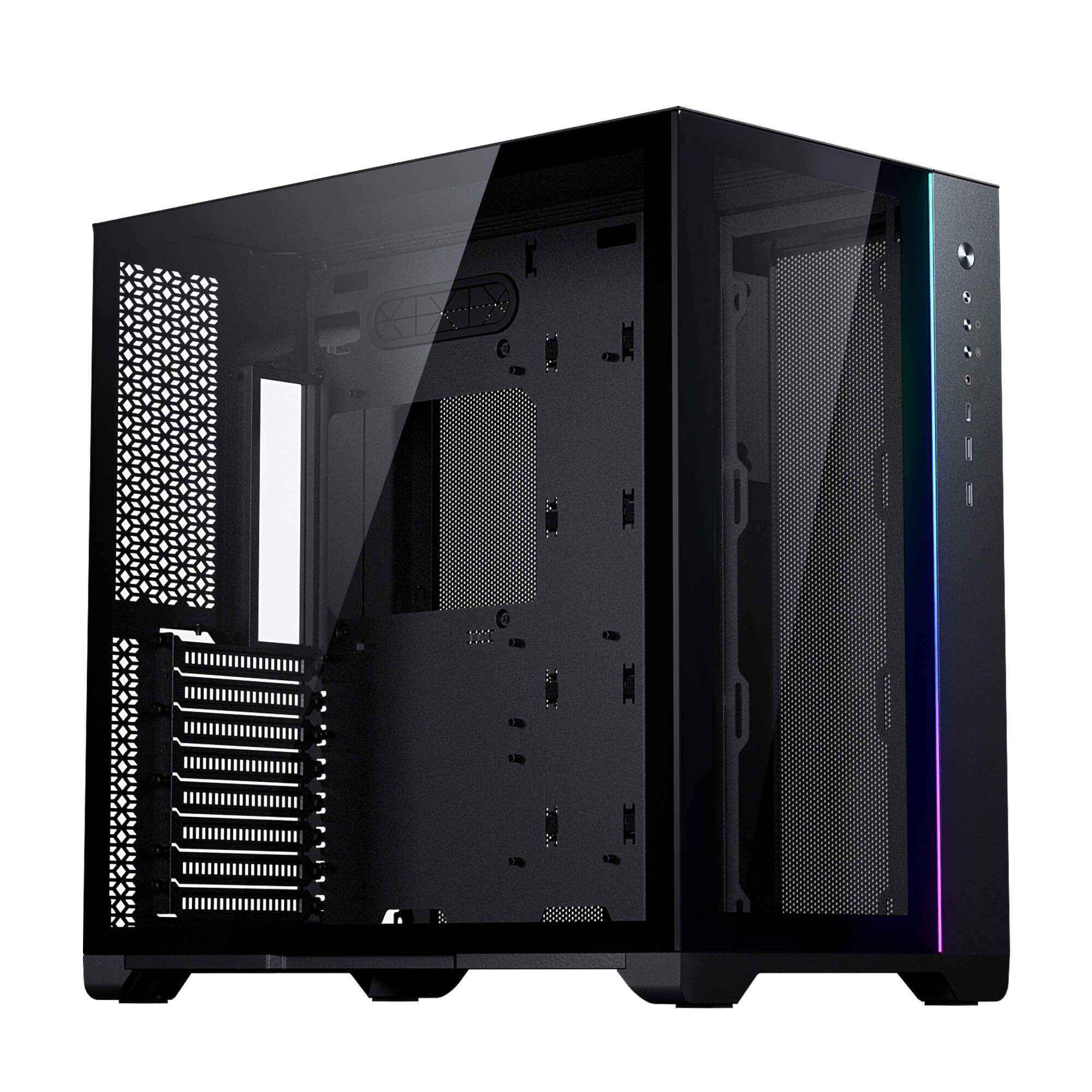

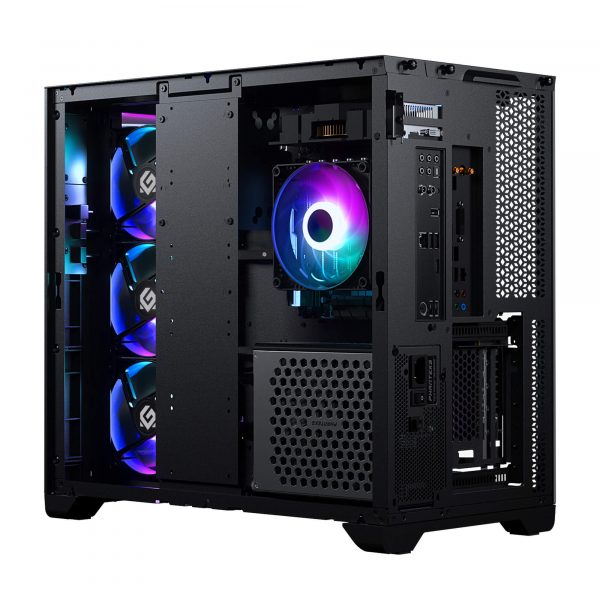

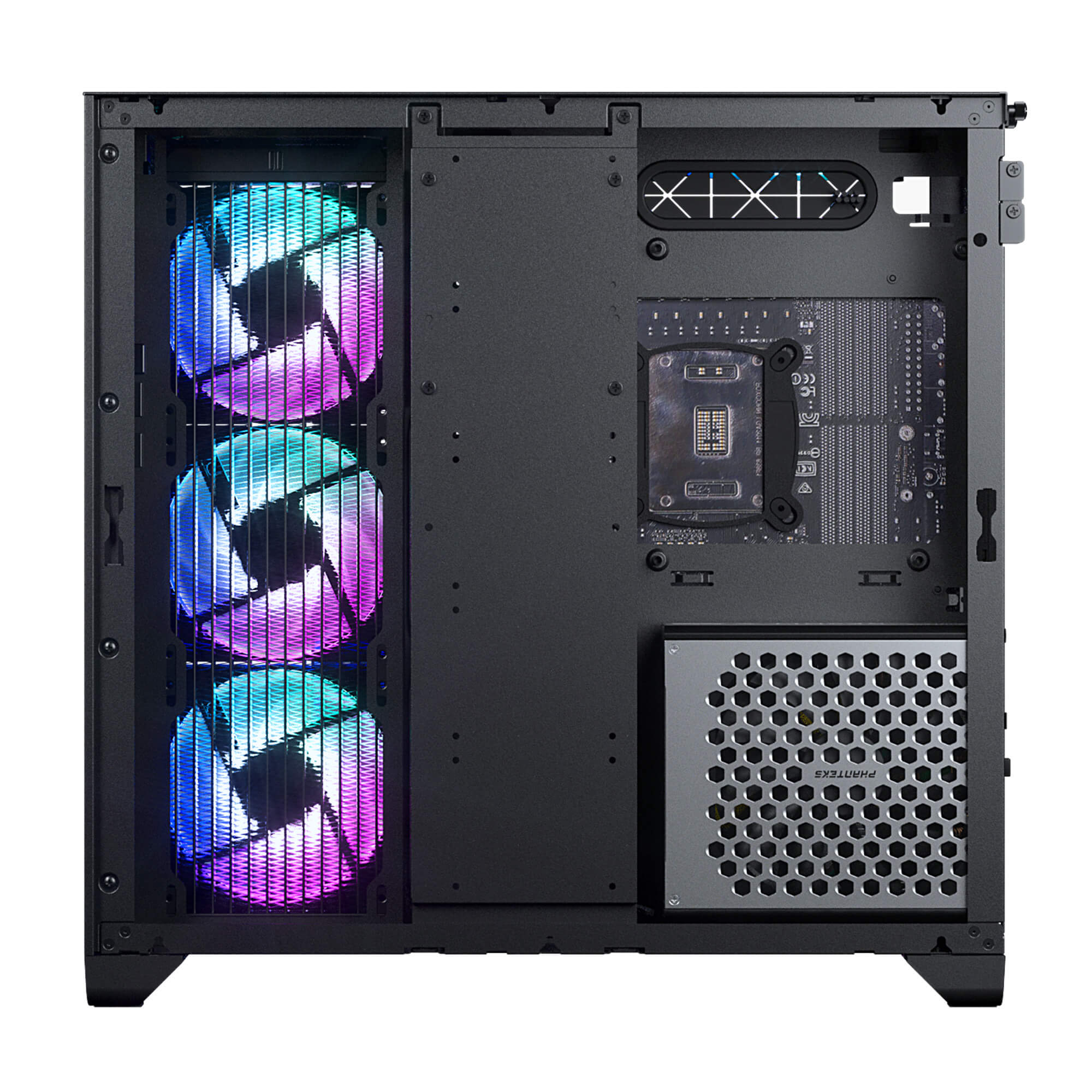

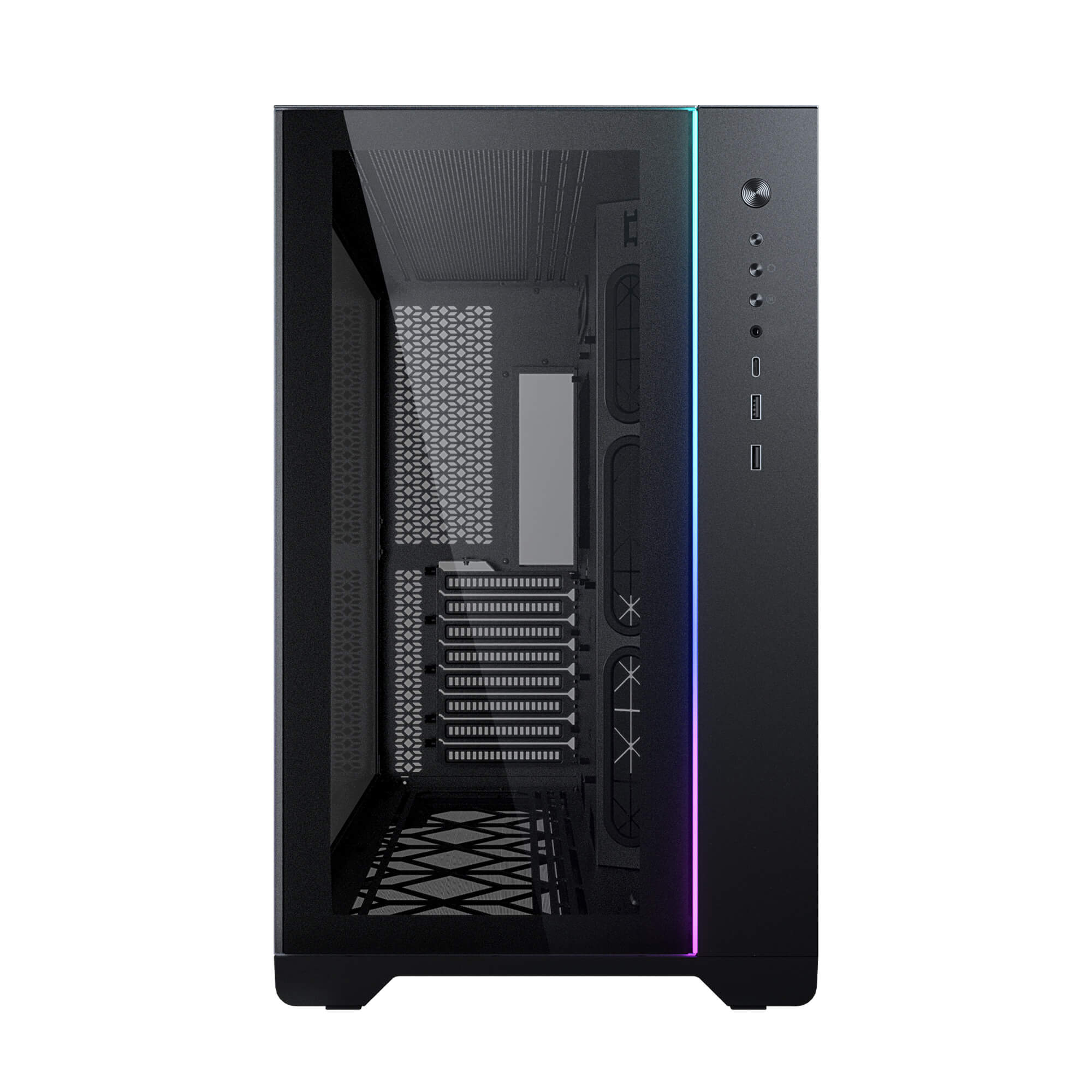

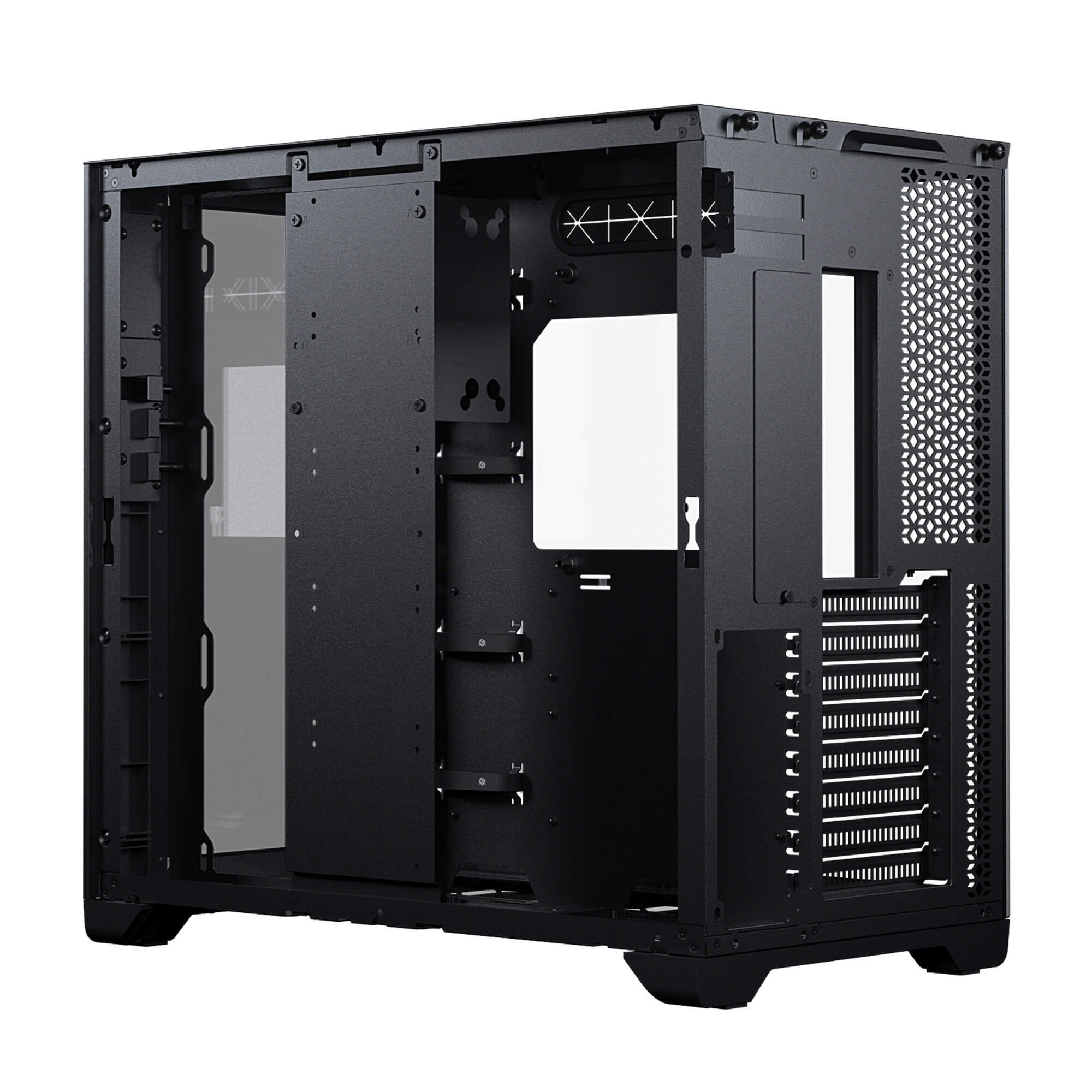

The Phanteks Metallic Gear Neo Qube 2 Black from Magnium Gear is a true showcase mid-tower chassis without compromise. Its dual chamber design makes installation and cable management a breeze while all system components are highlighted through the double tempered glass panels. What sets the NEO Qube 2 apart is it’s infinity mirror coating on the front glass panel and built-in lighting effects. This changes the tempered glass front panel to an endless Digital-RGB view like no other, yet you will have a good view of the systems components through the side glass panel.

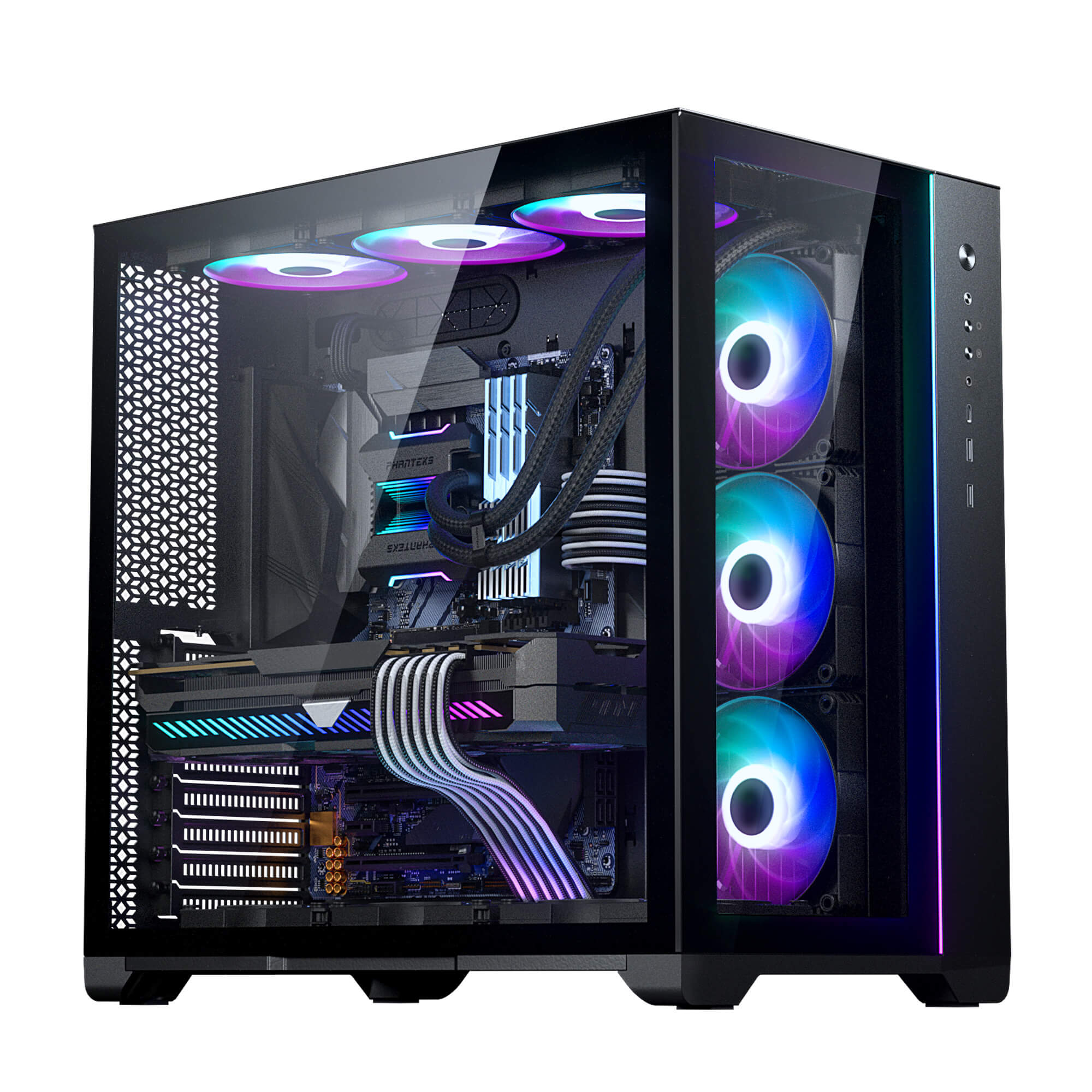

The Phanteks Metallic Gear Neo Qube 2 Black is capable of housing the most powerful gaming system with support for up to triple 360 radiators. Airflow has been optimized with low restriction mesh on all side and a high-quality slidable dust filter at the bottom. The Digital-RGB lighting is integrated and comes with a pre-programmed controller that works software-free straight out of the box. The Phanteks Metallic Gear Neo Qube 2 Black comes with all connectors installed to allow for Digital-RGB expansions and optionally sync with a compatible motherboard to allow for software control.
- The Digital-RGB lighting is integrated and comes with a pre-programmed controller that works software-free out of the box.
- The NEO Qube 2 comes with all connectors installed to allow for Digital-RGB expansions and optionally sync with a compatible motherboard to allow for software control.
- Get an even more beautiful look with the Neo Qube 2 IM edition. From the side it showcases your hardware just as the full glassed panel version, but at the front it creates an endless Digital-RGB view inside.
- Show your system how and where you want it with the NEO Qube 2 from Magnium Gear.

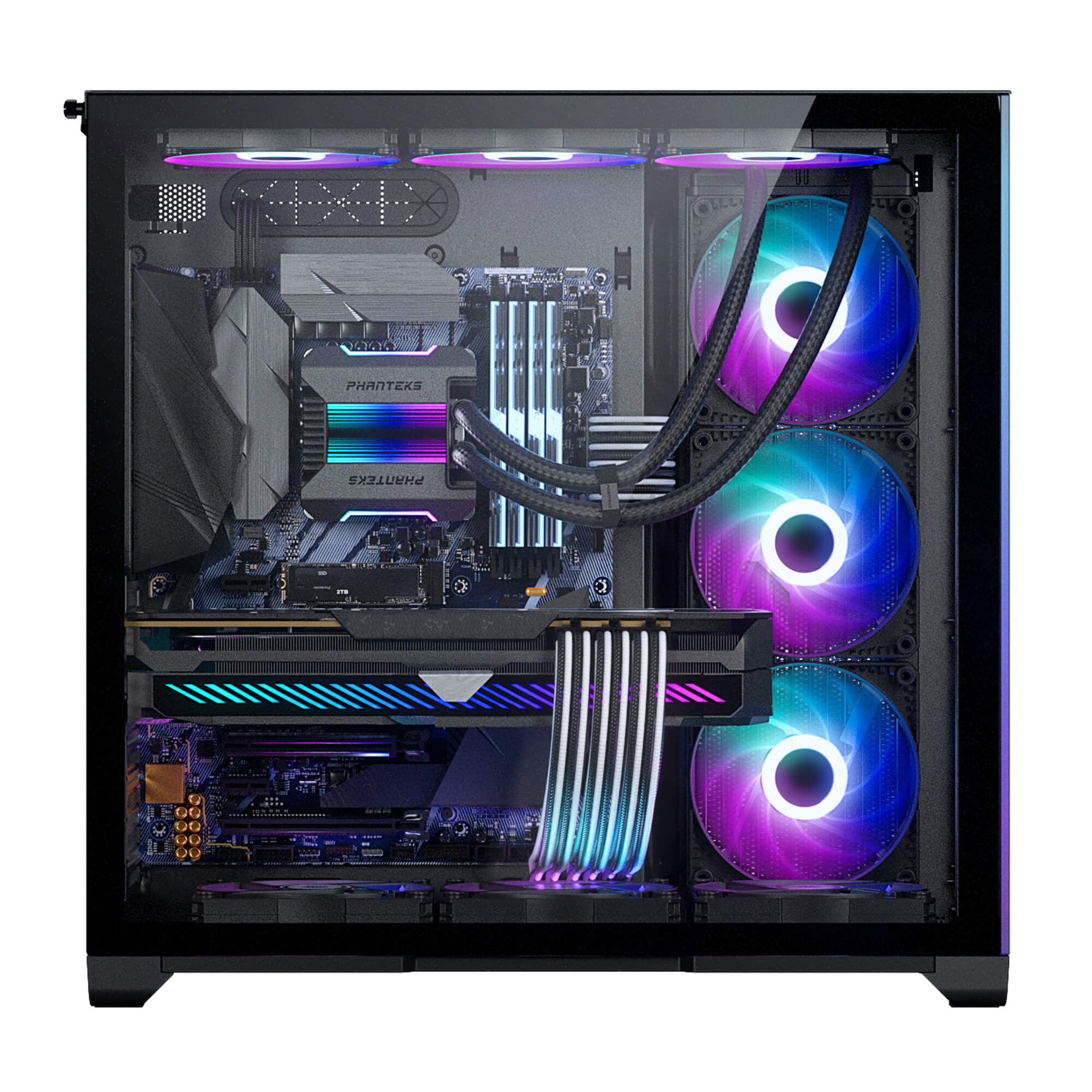

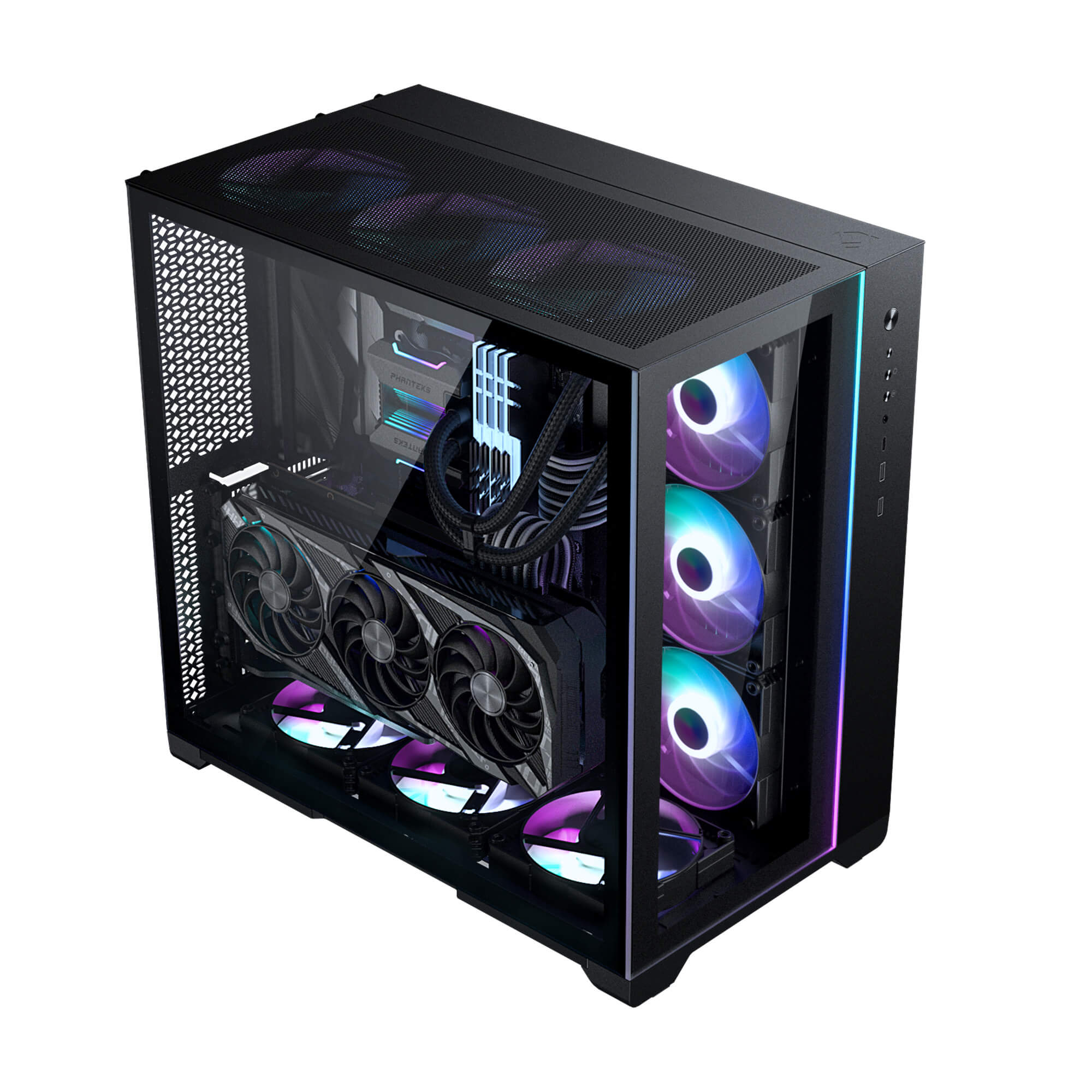

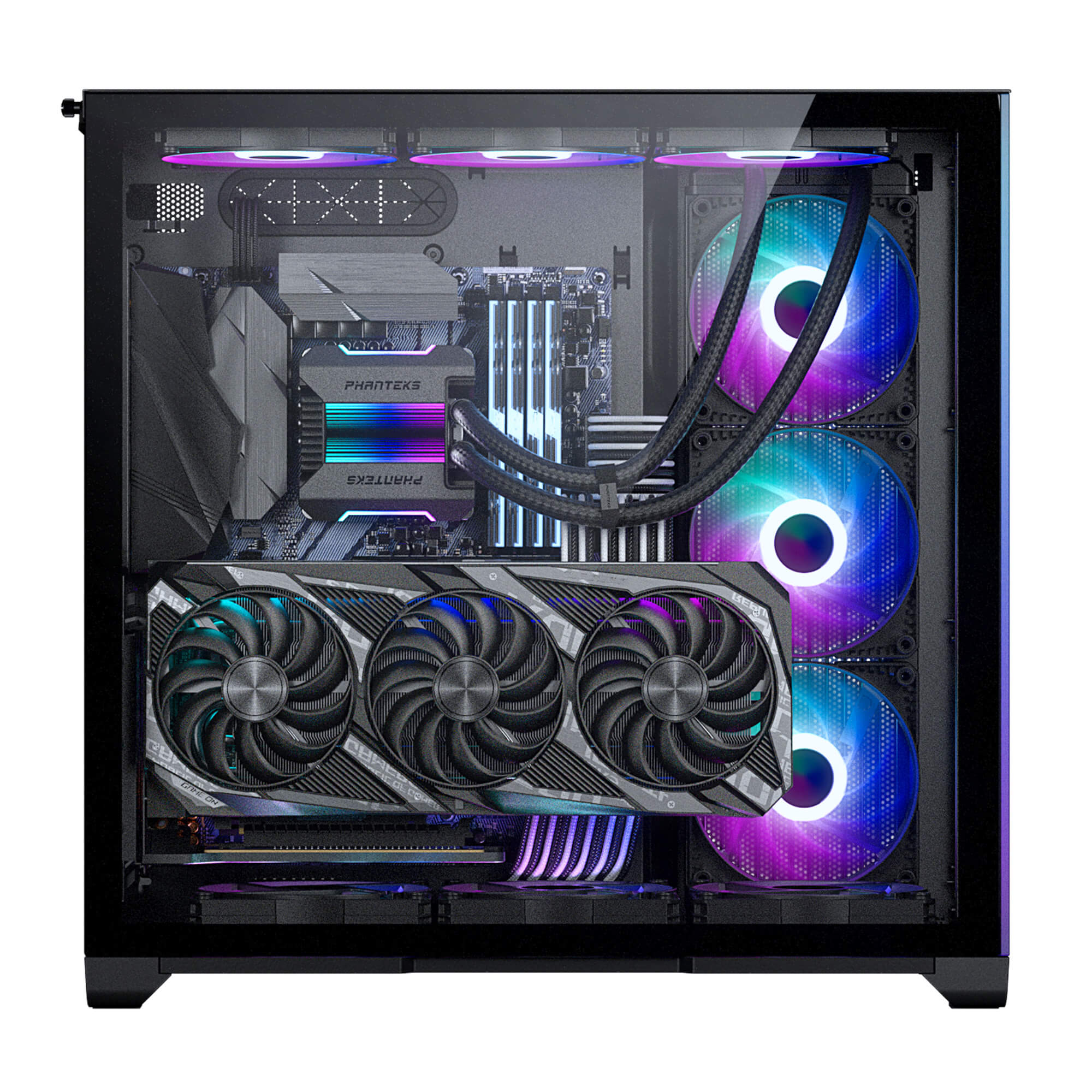

The Phanteks Metallic Gear Neo Qube 2 Black supports up to an E-ATX motherboard (up to 280mm wide) and supports a lot of cooling posibilities, you have the option to install a triple (3x) 360 radiator (these can be installed simultaneously) or take cooling to the next level with fan support for up to 9x 120 mm positions.
When using 140 mm fans, 2x can be places on top and 2x at the bottom. The Neo Qube 2 comes with a high airflow washable dust filter in the bottom that simply slides out from the side.

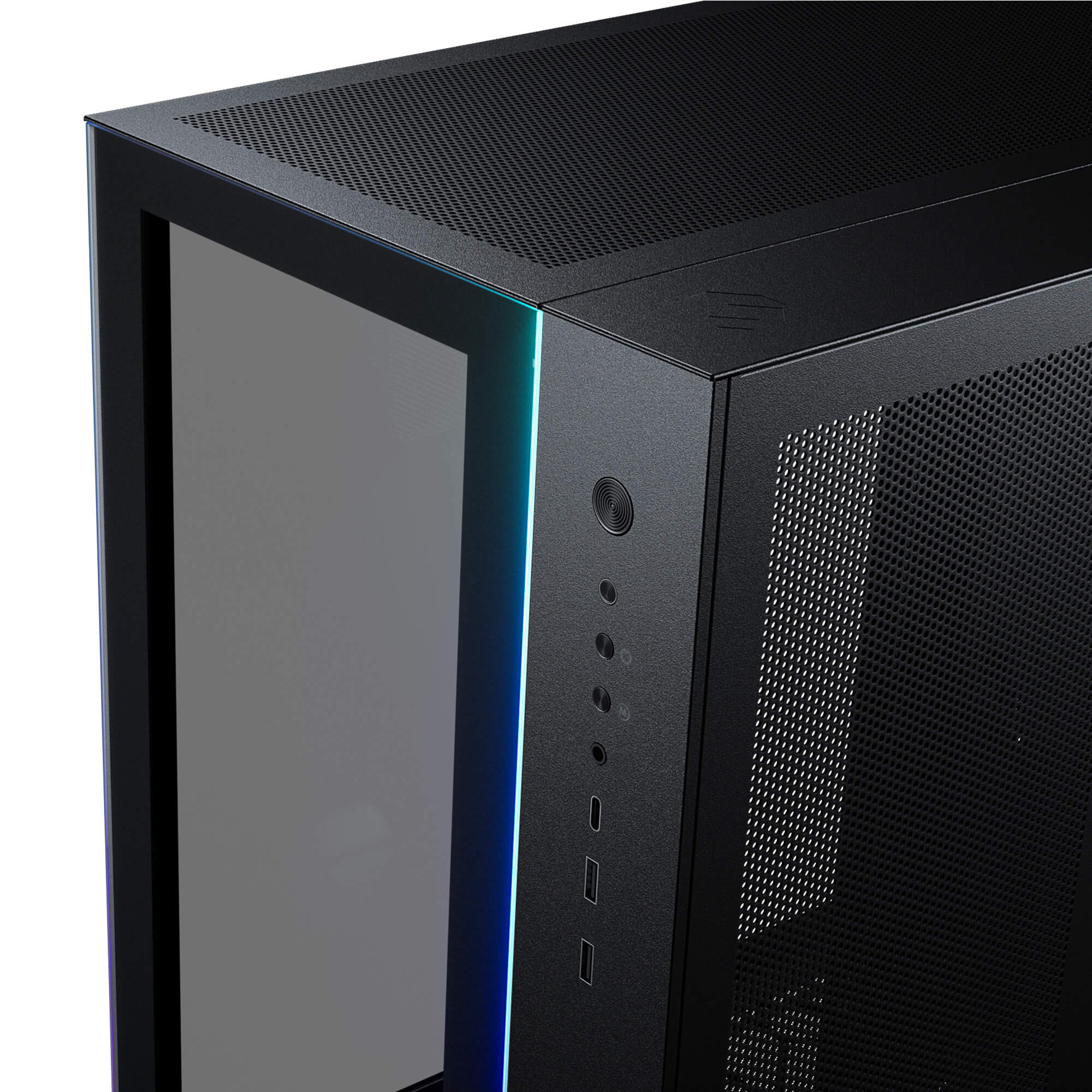

At the front of the Phanteks Metallic Gear Neo Qube 2 Black is located a high speed USB-C 10Gbps, 2x USB 3.0 and audio combo ports for easy access..

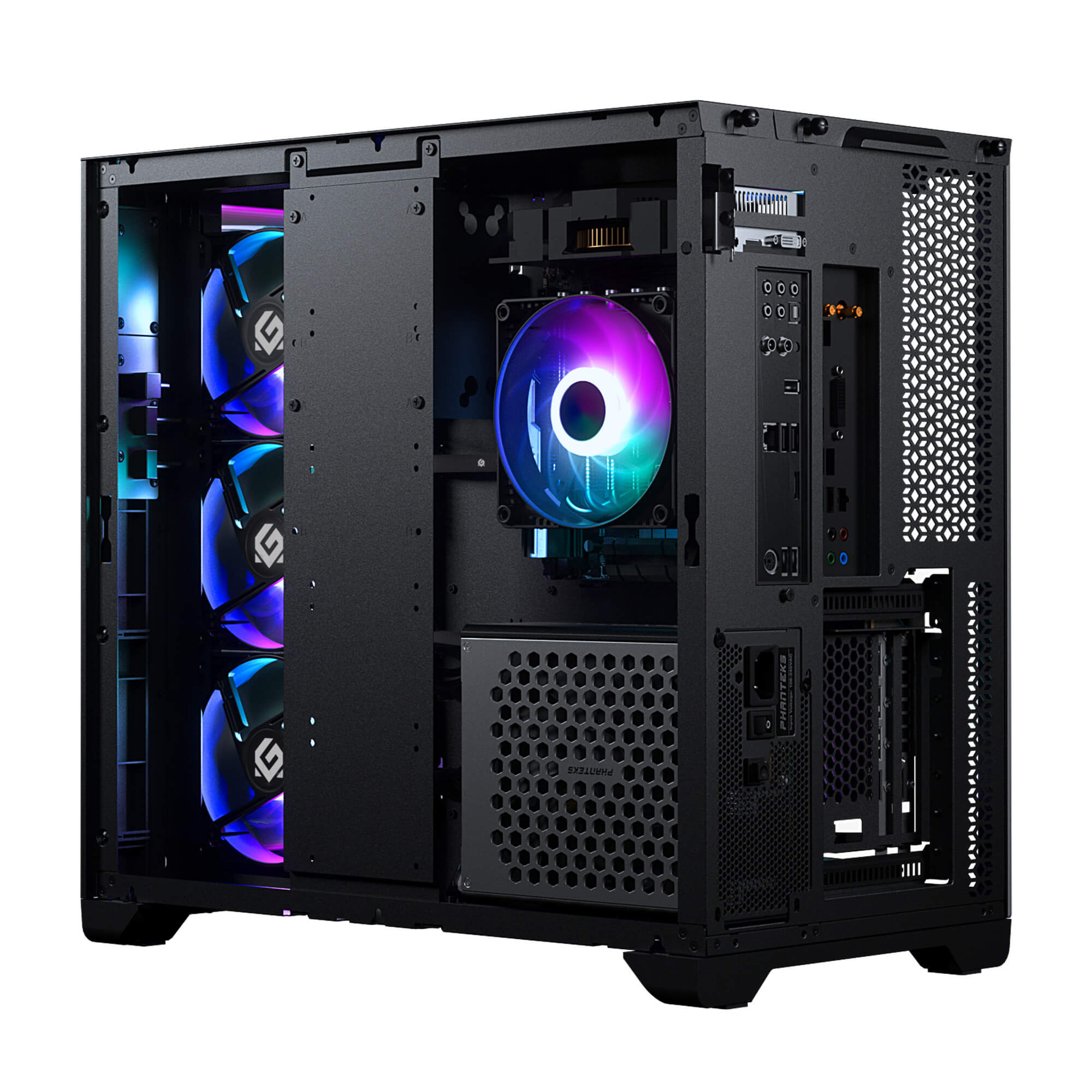

A second ITX motherboard can be installed for a dual-system setup with a dual slot half-height expansion card, to bring more possibilities for streamers, professionals and multi-user systems.
|FORM FACTOR||Mid Tower|
|MATERIALS||Tempered Glass, Steel|
|MOTHERBOARD||Mini-ITX, Micro-ATX, ATX, E-ATX|
|SUPPORT||(up to 280mm wide)|
|FRONT I/O||1x USB 3.1 gen2 Type-C|
|2x USB 3.0|
|Microphone / Headphone|
|D-RGB (Addressable) control|
|(Mode- & Color Button)|
|Reset Button / System 2 Power Button|
|INTERNAL||USB 3.1 (gen2 Type-C)|
|D-RGB Expansion (Compatible with Phanteks|
|D-RGB Motherboard sync|
|WINDOW||Front and Side Tempered Glass|
|VERTICAL GPU||Yes, Optional Phanteks Vertical|
|GPU Bracket Required|
|3.5”/2.5″ BAYS||2 Included|
|DEDICATED 2.5”||5 Included,9 Max|
|TOTAL FANS||9 x 120 mm / 4 x 140 mm + 3x|
|TOP FAN||3x 120 mm / 2x 140 mm|
|SIDE FAN||3x 120 mm|
|BOTTOM FAN||3x 120 mm / 2x 140 mm|
|DUST FILTERS||Bottom Dust Filter|
|TOP RADIATOR||Up to 360 / 280|
|SIDE RADIATOR||Up to 360|
|BOTTOM RADIATOR||Up to 360 / –|
|GPU LENGTH||410 mm / 16.1 in|
|GPU WIDTH||162 mm / 6.4 in|
|MOTHERBOARD||280 mm / 11.0 in|
|CPU COOLER||148 mm / 5.9 in|
|CABLE||90 mm / 3.6 in|
|PSU LENGTH||275 mm / 10.9 in (155 mm if Lower SSD is Installed)|
|TOP RADIATOR||140 x 430 x 75 mm|
|SIDE RADIATOR||128 x 400 mm|
|BOTTOM RADIATOR||145 x 410 mm|
|CASE DIMENSION||270 x 450 x 460 mm / 10.7 x17.9 x 18.3 in|
|NET WEIGHT||9.5 kg / 20.9 lbs|
|PACKAGE||357 x 538 x 507 mm / 14 x 21.1|
|DIMENSION||x 20 in|
|GROSS WEIGHT||9.50 kg / 20.9 lbs|
