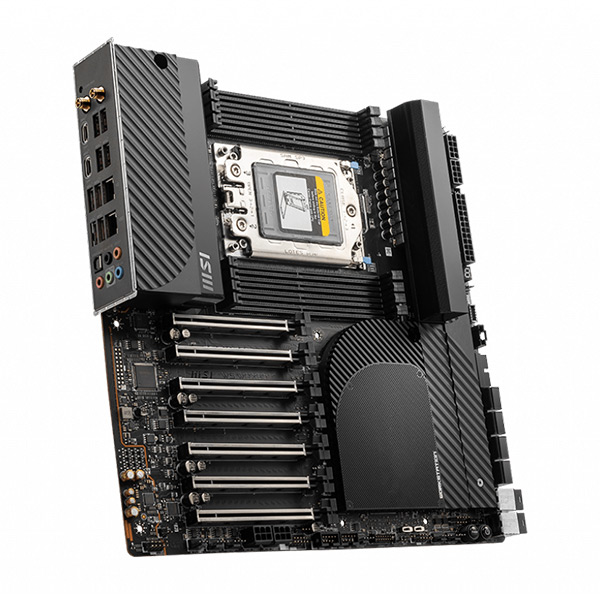

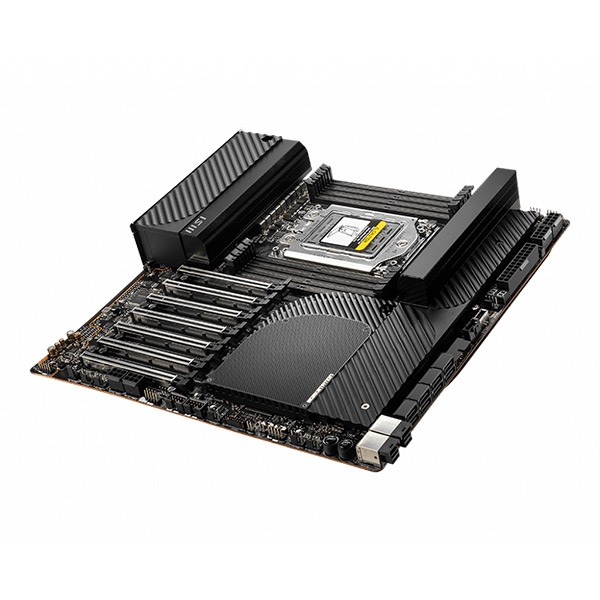

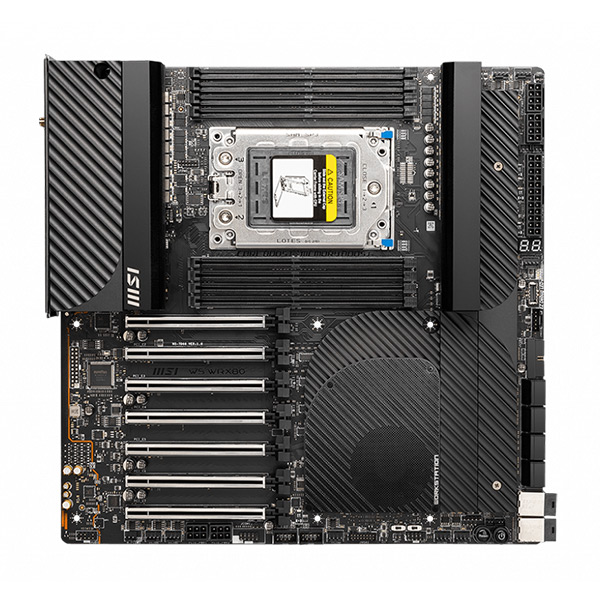

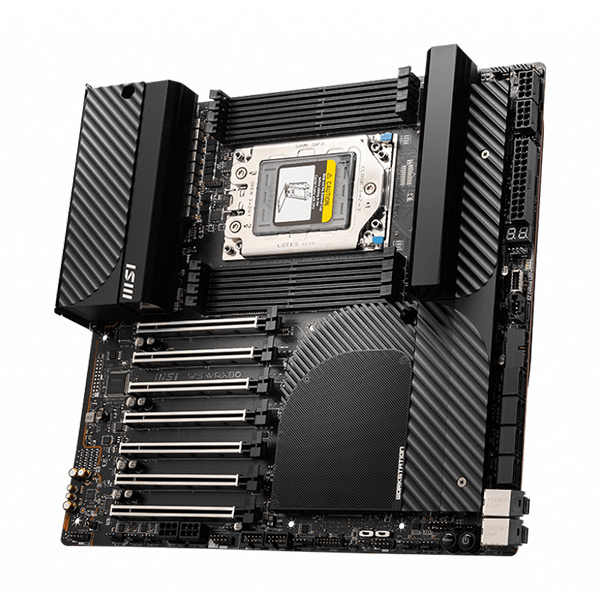

MSI WS WRX80 Workstation Motherboard :
- Supports AMD Ryzen™ Threadripper™ PRO Series Processors for sWRX8 socket
- Supports DDR4 Memory, 8 Channel DDR4-4400+MHz (OC)
- Extreme Power Design: Direct 11 phases with 105A Smart Power Stage to unleash the maximum performance.
- Premium Thermal Module: Aluminum Cover, Stacked Fin Array, 7W/mK thermal pads and Frozr Heatsink ensure the extreme performance with low temperature.
- Latest Network Solution: Onboard 10G Super LAN and latest Wi-Fi 6E solution deliver the best online experience without lag.
- Lightning experience: PCIe 4.0 slots, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2×2 20G Type-C.
- 14 Layer Server-grade PCB with 2oz Thickened Copper: Provides higher performance and long-lasting system stability without any compromise.
- Chest Plate: The metal backplate strengthens the board, which prevents bending, protects components and benefits your installation process.
- Audio Boost 5: Ultimate audio solution with premium ALC4080 audio processor, delivering the breathtaking experience.

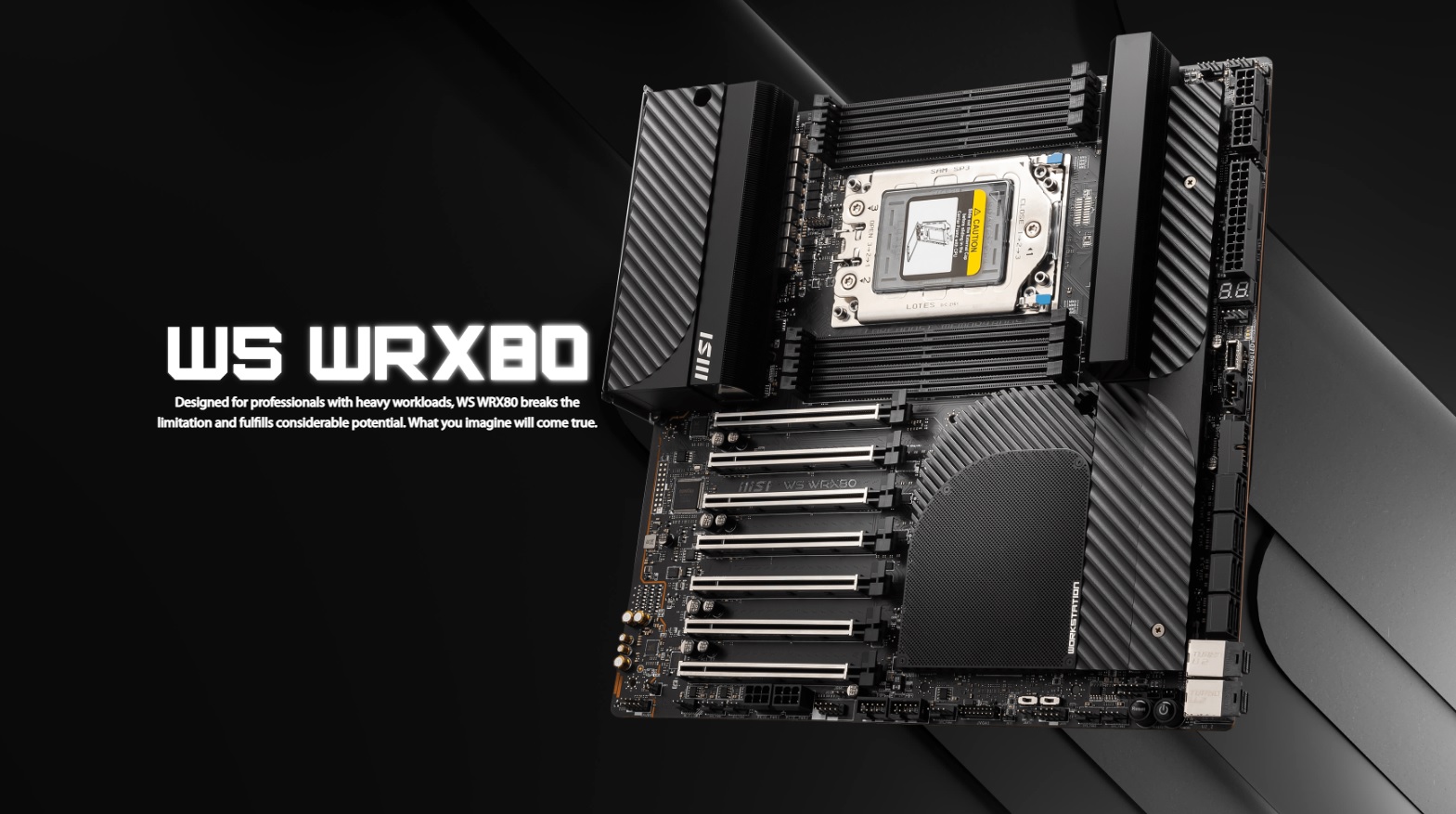

Unrivaled Performance for Professional Competence
MSI WS WRX80 is masterminded by the latest AMD Ryzen® Threadripper PRO Series processors and is responsible for releasing incomparable performance. With this workstation, professionals can work on 3D rendering, post-production and data science smoothly and increase their productivity.
Robust 11 Direct Phases 105A SPS Power Design
To handle multi-threaded workloads, the MSI WS WRX80 adopts the powerful 11 direct phases 105A SPS to unleash the power of the core processors. There are two 8-pin CPU power connectors on the board to provide stable currents. It also features 14 layers Server Grade PCB with 20z thicken copper, ensuring high stability.
Memory OC Support
The MSI WS WRX80 features & memory channels DDR4 DIMMs that support up to 2TB. With MSI’s exclusive Memory Boost, MSI OC LAB optimizes the memory performance and overciocks to 4400MHz.
In addition to dominant performance, t also supports ECC memory which automatically detects data errors and prevents system failure to guarantee non-interrupting working condition.
To deal with multi-threaded workloads like rendering and simulation, the MSI WS WRX80 is designed with an Extended Heatsink arrayed in high aspect ratio fins. In the heatsink, there is a semi-passive fan to dissipate heat generated by the 10. The WRX80 chipset is covered by a PCH heatsink equipped with an actively cooled fan, and the fin is expanded the surface to improve heat dissipation.
Extended Heatsink with Stacked Fin Array
To deal with multi-threaded workloads like rendering and simulation, the MSI WS WRX80 is designed with an Extended Heatsink arrayed in high aspect ratio fins. In the heatsink, there is a semi-passive fan to dissipate heat generated by the 1O. The WRX80 chipset is covered by a PCH heatsink equipped with an actively cooled fan, and the fin is expanded the surface to improve heat dissipation.
7 PCle 4.0 x 16 Slots Support
The WS WRX80 has 7 PCie 4.0 x16 slots with Steel Armor for high-end andprofessional graphics cards which accelerates rendering, modeling. and simulation.
M.2 Gen4 Slots with Double-sided Shield Frozr
The MSI WS WRX80 has 2 onboard M.2 Gen4 slots that professionals can use to install storage devices to achieve high efficiency. 1The Double-sided Shield Frozr maintains SSD performance under high-speed operation.
The MSI WS WRX80 has 2 U.2 slots and 8 SATA ports. Professionals can get more done in less time when working on tasks such as dealing with videos, animations and 8D rendering
Powered by Aspeed AST2600 BMC SoC, the MSI WS WRX80 introduces Remote Management for multitasking. Professionals can remotely control hardware devices and update network devices, and
have administrators monitor the system.
Lightning Speed Connectivity
The MSI WS WRX80 provides the latest network and USB solutions to accelerate professionals productivity. Save your time, and encourage creativity.
AMD Wi-Fi 6E Module
The latest W-Fi 6E solution supports 6GHz spectrum, MU-MIMO and BSS color technology, and delivers up to 2400Mbps speed.
Lightning 20G USB Type-C
Powered by ASMedia ASM3242 USB 3.2 Gen 2×2 controllr, the Lightning 20G USB Type-C achieves 20Gbps to increase data transfering speed.
Onboard 10G Super LAN and 1G LAN
Professionals can take advantage of dual Ethernet ports including Aquantia® AQC113C 10G LAN and Realtek® RTL8116-CG 1G LAN to fulfill both higher bandwidth and NC-SI LAN control.
The metal plate composed of iron helps prevent bending when installing heavy high-end graphics cards and protects other major components. The rounded edge arrayed in a linear pattern adds more aesthetics to this workstation motherboard.
|Supports AMD Ryzen™ Threadripper™ PRO 5000 WX and 3000 WX Series Processors 1|
|Supports sWRX8 socket|
|1. Please go to www.msi.com to get the newest support status as new processors are released.|
|See supported processors|
|CHIPSET||AMD® WRX80 Chipset|
|MEMORY||8x DDR4 memory slots, support up to 2TB 1|
|Supports 2133/ 2400/ 2666/ 3200 by JEDEC|
|Supports 8-Channel mode|
|Support ECC and non-ECC, buffered and un-buffered, U-DIMM, R-DIMM, 3DS R-DIMM and LRDIMM memory|
|1. Please refer to www.msi.com for more information on compatible memory.|
|2. AMD Ryzen™ Threadripper™ PRO 5000 WX and 3000 WX Series Processors support A-XMP OC mode.|
|See supported memory|
|EXPANSION SLOTS||7x PCIe 4.0/3.0 x16 slots (From CPU)|
|ONBOARD GRAPHICS||1x VGA connector, supports a maximum resolution of 1920*1200 60Hz 1|
|1. VGA connector is dedicated for ASPEED 2600|
|MULTI-GPU||AMD MULTI-GPU Support|
|SATA PORTS||8x SATA 6Gb/s ports (From WRX80 chipset)|
|M.2 & U.2 SSD SLOTS|
|2x M.2 slots (Key M)|
|M2_1 slot (from CPU)|
|Supports up to PCIe 4.0 x4 and SATA 6Gb/s|
|Supports 2260/ 2280 storage devices|
|M2_2 slot (from CPU)|
|Supports up to PCIe 4.0 x4 and SATA 6Gb/s|
|Supports 2260/ 2280/ 22110 storage devices|
|2x U.2 slots 1/ 2|
|1. U2_1 slot will be unavailable when installing M.2 SSD in the M2_1 slot.|
|2. U2_2 slot will be unavailable when installing M.2 SSD in the M2_2 slot|
|RAID||Supports RAID 0, RAID 1, RAID5 and RAID10 for SATA storage devices|
|Supports RAID 0 and RAID 1 for M.2 NVMe storage devices|
|AUDIO||Realtek® ALC4080 Codec|
|7.1-Channel High Definition Audio|
|Supports S/PDIF output|
|LAN||1x Aquantia® AQC113CS 10Gbps LAN controller|
|1x Realtek ® RTL8116-CG 1Gbps LAN controlle|
|WIRELESS LAN & BLUETOOTH||AMD® Wi-Fi 6E module|
|The Wireless module is pre-installed in the M.2 (Key-E) slot|
|Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz1 (160MHz) up to 2.4Gbps|
|Supports 802.11a/ b/ g/ n/ ac/ ax|
|Supports Bluetooth® 5.2**, FIPS, FISMA|
|1. Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 10 21H1 and Windows 11.|
|2. Bluetooth 5.2 will be ready in Windows 10 21H1 and Windows 11.|
|POWER CONNECTORS||1x 24-pin ATX main power connector|
|2x 8-pin EPS 12V power connectors|
|2x 6-pin ATX PCIE power connectors|
|INTERNAL USB CONNECTORS||AMD® WRX80 Chipset|
|1x USB 3.2 Gen 2 10Gbps Type-C internal connector|
|2x USB 3.2 Gen 1 5Gbps Type-A ports through the internal USB connectors|
|4x USB 2.0 Type-A ports through the internal USB connectors|
|FAN CONNECTORS||1x 4-pin CPU fan connector|
|1x 4-pin water-pump fan connector|
|6x 4-pin System fan connectors|
|SYSTEM CONNECTORS||1x Water Flow meter connector|
|1x Front panel audio connector|
|2x System panel connectors|
|1x Chassis Intrusion connector|
|2x 2-pin Thermal Sensors connector|
|1x TPM 2.0 module connector|
|1x Serial port connector|
|2x Multi-Power Sync connectors|
|1x VGA D-Sub 15 pin connector|
|1x Power Supply Unit SMBUS connector|
|INTERNAL BUTTONS||1x Power button|
|1x Reset button|
|JUMPERS||1x Clear CMOS jumper|
|SWITCHES||1x BMC switch|
|1x VGA switch|
|LED FEATURE||1x 2-Digit Debug Code LED|
|4x EZ Debug LED|

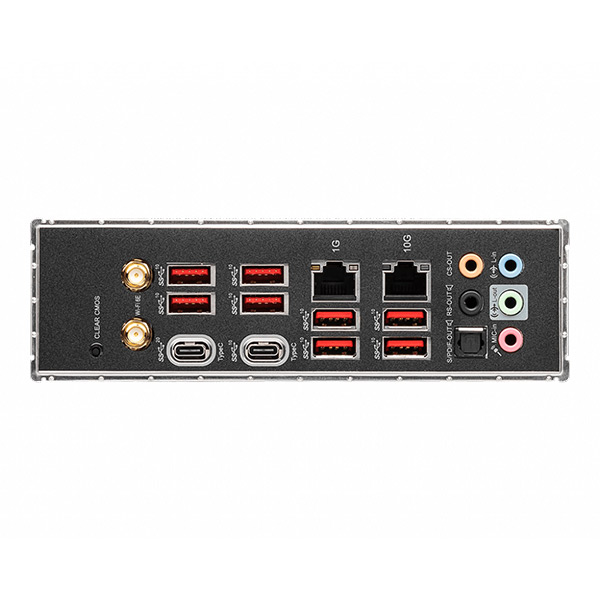

|BACK PANEL PORTS||1. Wi-Fi / Bluetooth|
|2. USB 3.2 Gen 2 10Gbps Type-A|
|3. 1G LAN|
|4. 10G LAN|
|5. Audio connectors|
|6. Clear CMOS button|
|7. USB 3.2 Gen 2×2 20Gbps Type-C|
|8. USB 3.2 Gen 2 10Gbps Type-C|
|9. USB 3.2 Gen 2 10Gbps Type-A|
|10. Optical S/PDIF OUT|
|I/O CONTROLLER||NUVOTON NCT6687-R Controller Chip|
|HARDWARE MONITOR||CPU/ System/ Chipset temperature detection|
|CPU/ System/ Pump fan speed detection|
|FORM FACTOR||E-ATX Form Factor|
|12 in. x 12.2 in. (30.5 cm x 31.0 cm)|
