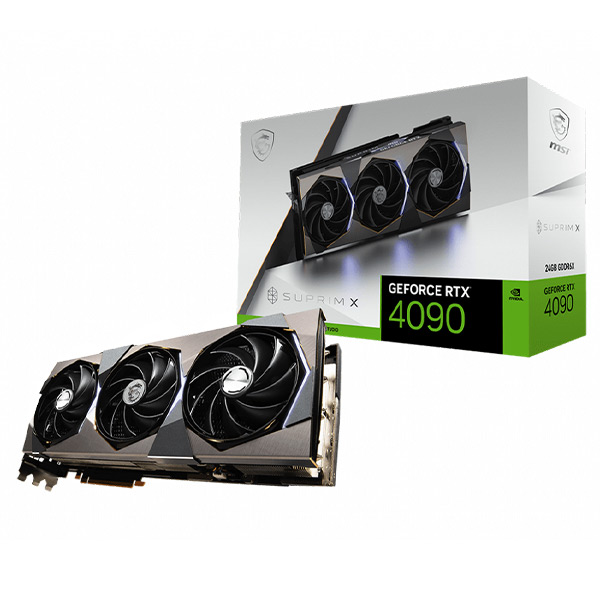

MSI RTX 4090 Suprim X 24GB GDDR6X 384-BIT GAMING GRAPHICS CARD
The MSI RTX 4090 Suprim X 24GB is the ultimate GeForce GPU. It brings an enormous leap in performance, efficiency, and AI-powered graphics. Experience ultra-high performance gaming, incredibly detailed virtual worlds with ray tracing, unprecedented productivity, and new ways to create. It’s powered by the NVIDIA Ada Lovelace architecture and comes with 24 GB of G6X memory to deliver the ultimate experience for gamers and creators.
Boost Clock / Memory Speed
- Extreme Performance: 2640 MHz (MSI Center)
Boost: 2625 MHz (GAMING & SILENT Mode)
- 24GB GDDR6X
- DisplayPort x 3 (v1.4a)
HDMI™ x 1 (Supports 4K @120Hz HDR, [email protected] HDR, and Variable Refresh Rate as specified in HDMI 2.1a)
TRI FROZR 3S Thermal Design
- TORX Fan 5.0: Fan blades linked by ring arcs and a fan cowl work together to stabilize and maintain high-pressure airflow.
- VAPOR CHAMBER: The GPU and memory modules are covered with a Vapor Chamber which rapidly transfers heat to Core Pipes.
- Core Pipe: Precision-machined heat pipes ensure max contact to the GPU baseplate and spread heat along the full length of the heatsink.
- Airflow Control: Sections of different heatsink fins disrupt unwanted airflow harmonics and reduce noise.
- Dual BIOS gives you the choice to prioritize full performance in GAMING mode or low noise in SILENT mode.
- The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.
- Controls lighting for both MSI and compatible third-party RGB products.
SUPRIM and its logo concept are inpired by diamond crystals and geometry.
A celebration of decades of MSI graphics card mastery, MSI RTX 4090 Suprim X 24GB is crafted with qualities that evoke prestige.
High-quality materials and construction are emphasized by the geometry of points, lines, and planes.
CHANGE THE GAME
Ascend to a superior experience with MSI RTX 4090 Suprim X 24GB . See, hear, and feel a profoundly elevated graphics card built with high-quality materials and assembled with enthusiast features.
01. SHARP LOOKS

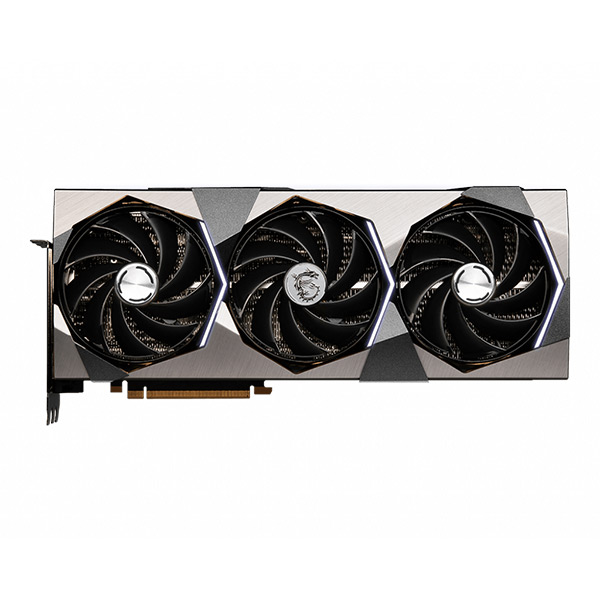

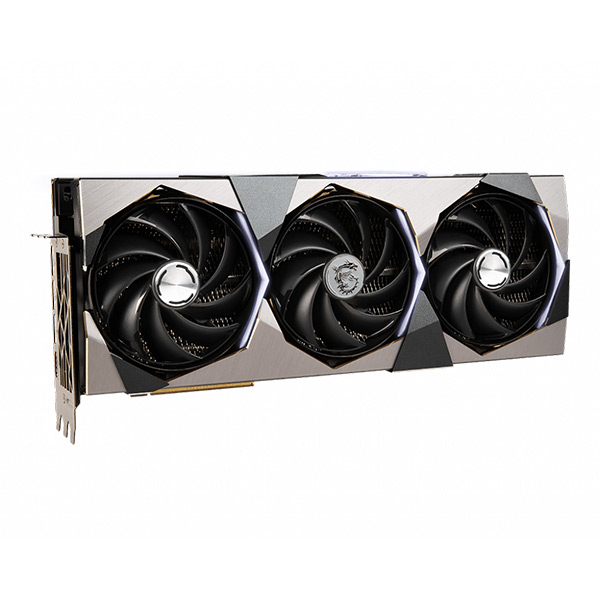

The second iteration of MSI RTX 4090 Suprim X 24GB inherits the exterior design philosophy of its predecessor, with a brushed metal cover, octagon-shaped fan cutouts and chevrons around each fan.
02. POLISHED EDGES
Beveled edges are polished several times with a diamond-tipped cutter to achieve a mirror-finish. Clean sharp lines emphasize the metal construction to sight and touch.
03. FINISHING TOUCHES
The motif of straight lines continue around the fans with octagonal cutouts featuring polished 45-degree beveled edges.
Upgraded fans, airflow control, and other thermal innovation make TRI-FROZR 3S the best air-cooling solution yet from MSI.
TORX FAN 5.0
TORX FAN 5.0 incorporates design improvements that result in +23% increased airflow compared to an axial fan.
Ring arcs link sets of three fan blades that focus airflow into the heatsink. Blades tilt 22 degrees to maintain high- pressure airflow even at slower rotational speeds.
The trailing end of each ring arc folds inward to reduce turbulence and drag.
Airflow stability is further improved with both a fan cowl that extends shortly beyond the enclosure to lengthen the air passageway and bulging notches under the cowl to reduce recirculation.
MSI RTX 4090 Suprim X 24GB has a Vapor Chamber is excellent for rapidly stabilizing heat on a planar surface. The GPU and VRAM are covered with a Vapor Chamber which transfers heat to Core Pipes.
KEEPING THE CORE COOL
Core Pipes are precision-crafted to make maximum use of the available space. MSI RTX 4090 Suprim X 24GB has a squared section of heat pipes fully touch the vapor chamber to then spread heat along the full length of the heatsink.
Sections of different heats ink fins disrupt unwanted airflow harmonics and reduce noise.
Updated heat pipe pathing has allowed more space for additional heatsink fins.
Additional efficiency is gained by adjusting the size of the wave edges under the fan motor and other spots where there is less airflow.
AIR ANTEGRADE FIN
Fins with a V-shaped cutout are located at the airflow passthrough to improve flow efficiency. Optimizing the inclination angle and increasing the wave notch shapes the air resistance towards the center, pushing out warm air faster like a nozzle.

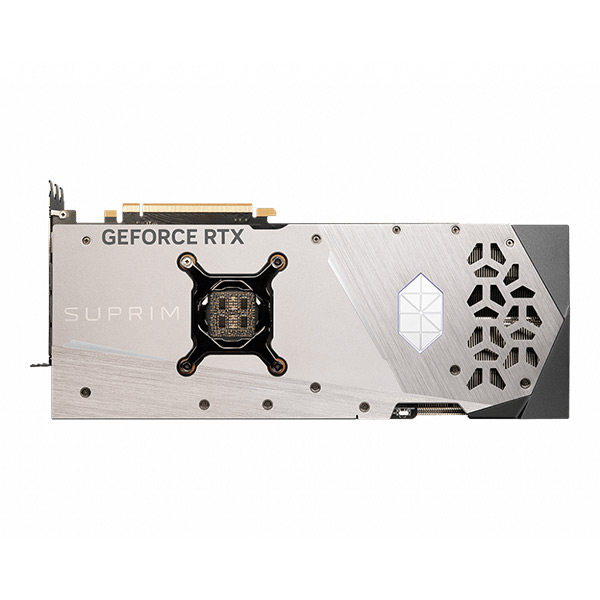

Thermal pads under the sturdy metal backplate provide additional cooling while the flow-through ventilation reduces trapped heat.
The fans completely stop when temperatures are relatively low, eliminating all noise when active cooling is not needed. The fans will automatically start spinning again when the heat is on during gaming.
Two sets of durable ball bearings spin the TORX FANs for years of intense and lengthy gaming sessions.
PCB and Reinforcement
High-Efficiency CarbonyI Inductors (HCI)
Manufacturing and material improvements to our choke parts have culminated as High-Efficiency Carbonyl Inductors (HCI.) One-piece molding allows this design to operate with less choke noise and better electric filtering.
Highly efficient Smart Power Stages (SPS) allow for accurate current regulation with lower resistance. The result is less power loss and less heat produced from the power layout.
Dual BIOS gives you the choice to prioritize full performance in GAMING mode or low noise in SILENT mode.
Hardened Defenses – Fuse
Additional fuses built into the custom PCB provide additional safeguards against electrical damage.
A die-cast anti-bending plate reinforces the whole card while thermal pads allow cooling to reach critical component underneath.
YOUR SUPPORT CHARACTER

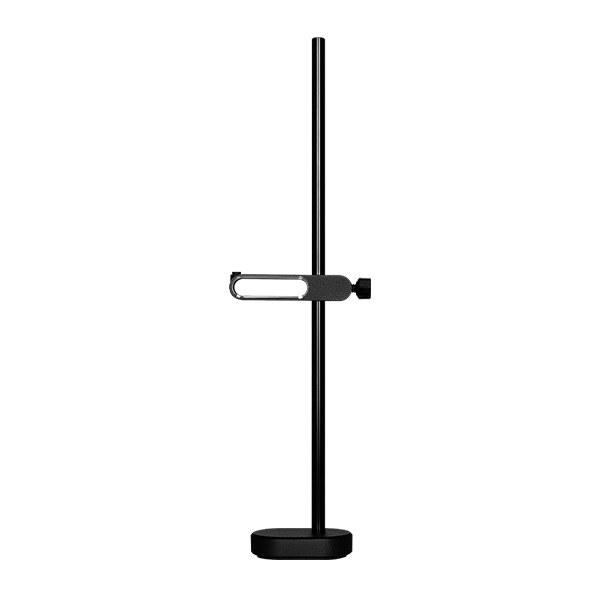

A bundled support stand can be attached to the PC case to hold up the MSI RTX 4090 Suprim X 24GB graphics card.
|MODEL NAME||MSI RTX 4090 Suprim X 24GB|
|GRAPHICS PROCESSING UNIT||NVIDIA® GeForce RTX® 4090|
|INTERFACE||PCI Express® Gen 4|
|CORE CLOCKS||Extreme Performance: 2640 MHz (MSI Center)|
Boost: 2625 MHz (GAMING & SILENT Mode)
|CUDA® CORES||16384 Units|
|MEMORY SPEED||21 Gbps|

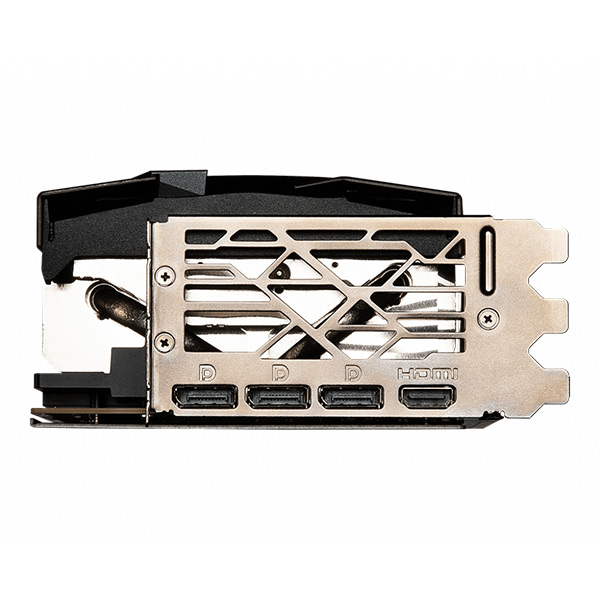

|OUTPUT||DisplayPort x 3 (v1.4a)|
HDMI™ x 1 (Supports [email protected] HDR, [email protected] HDR, and Variable Refresh Rate as specified in HDMI 2.1a)
|POWER CONSUMPTION||Silent mode: 450W|
Gaming mode: 480W

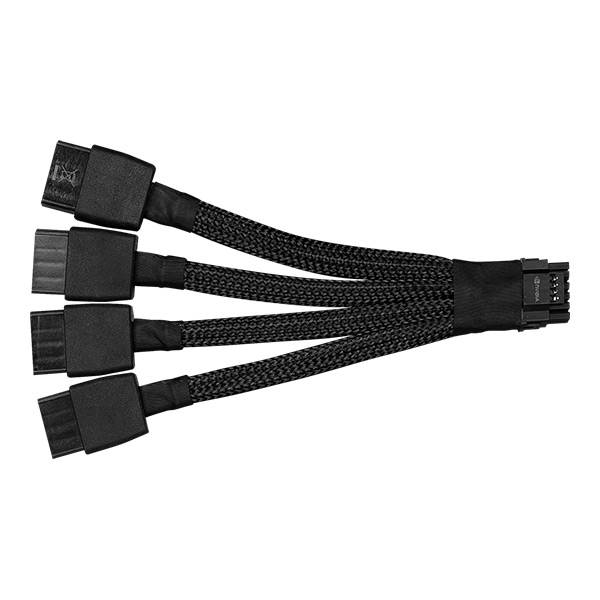

|POWER CONNECTORS||16-pin x 1|
|RECOMMENDED PSU||1000W (Min. 850W)|
|CARD DIMENSION (MM)||336 x 142 x 78 mm|
|WEIGHT (CARD / PACKAGE)||2413g / 3636g|
|DIRECTX VERSION SUPPORT||12 Ultimate|
|OPENGL VERSION SUPPORT||4.6|
|DIGITAL MAXIMUM RESOLUTION||7680×4320|
