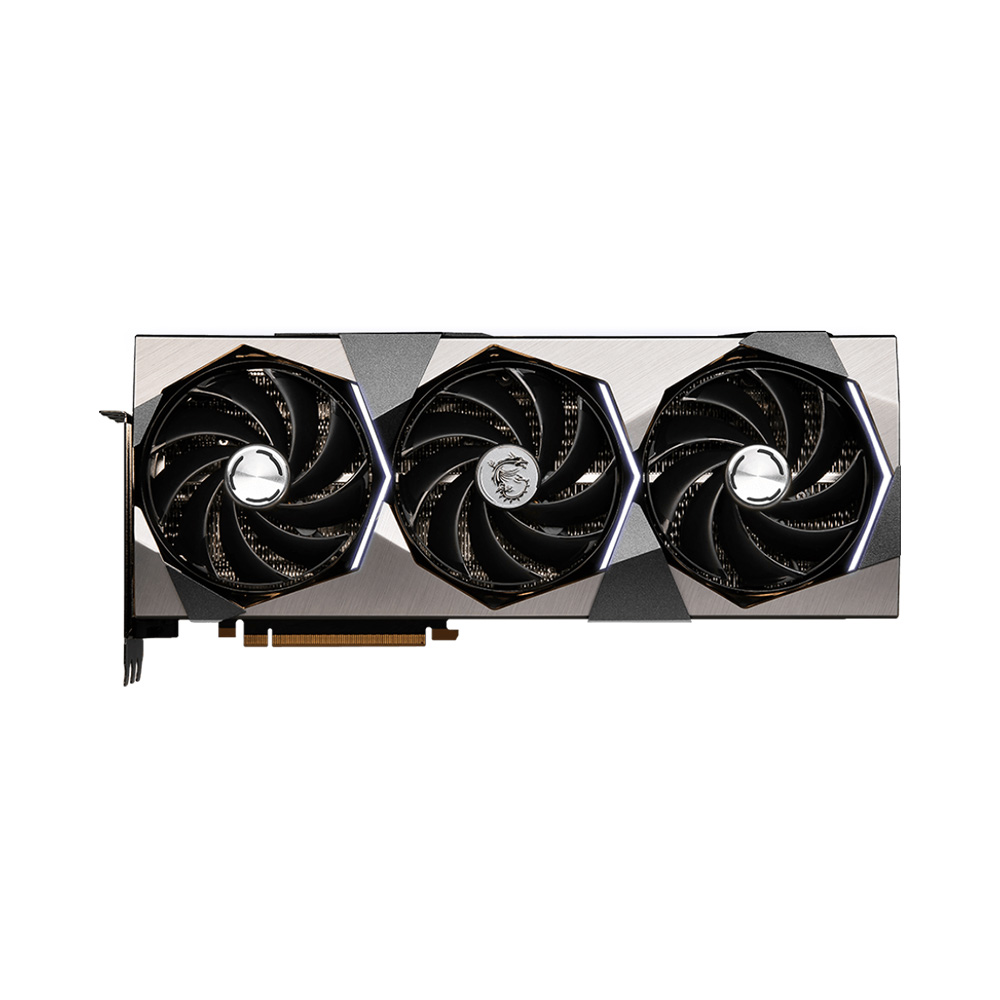

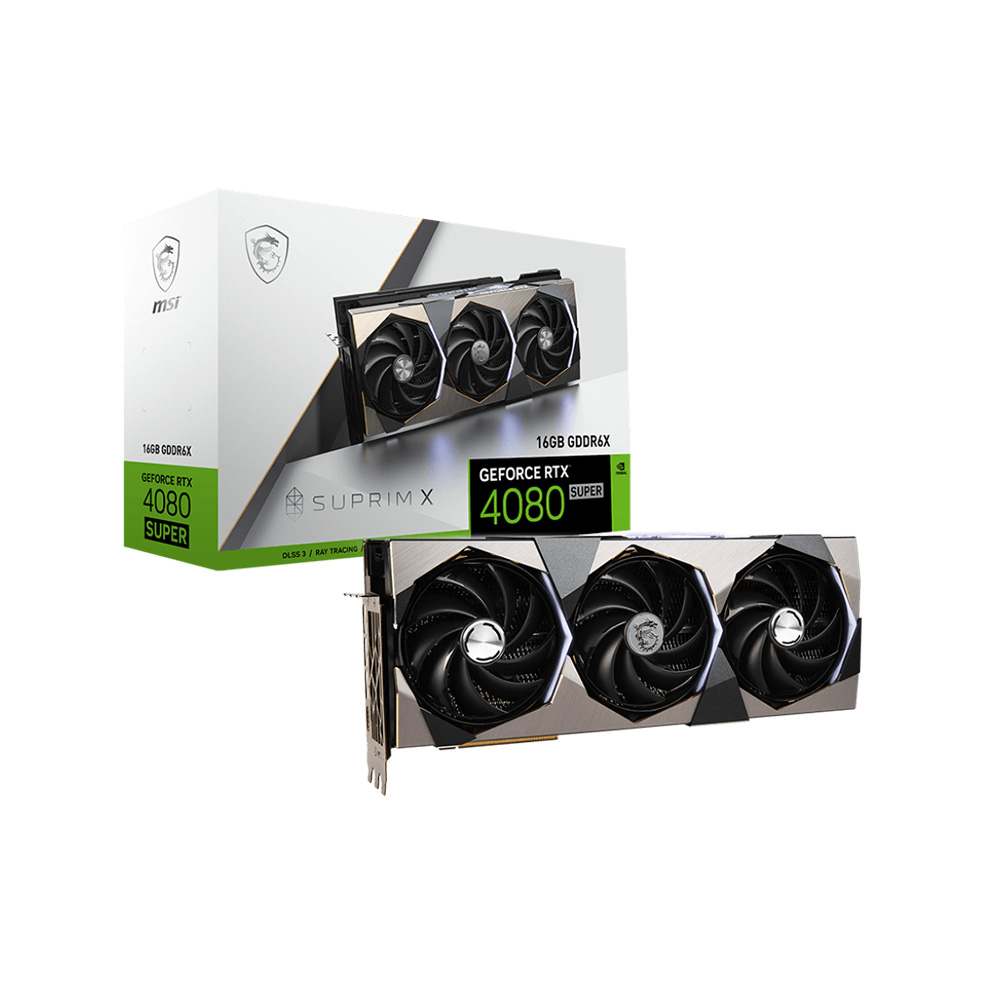

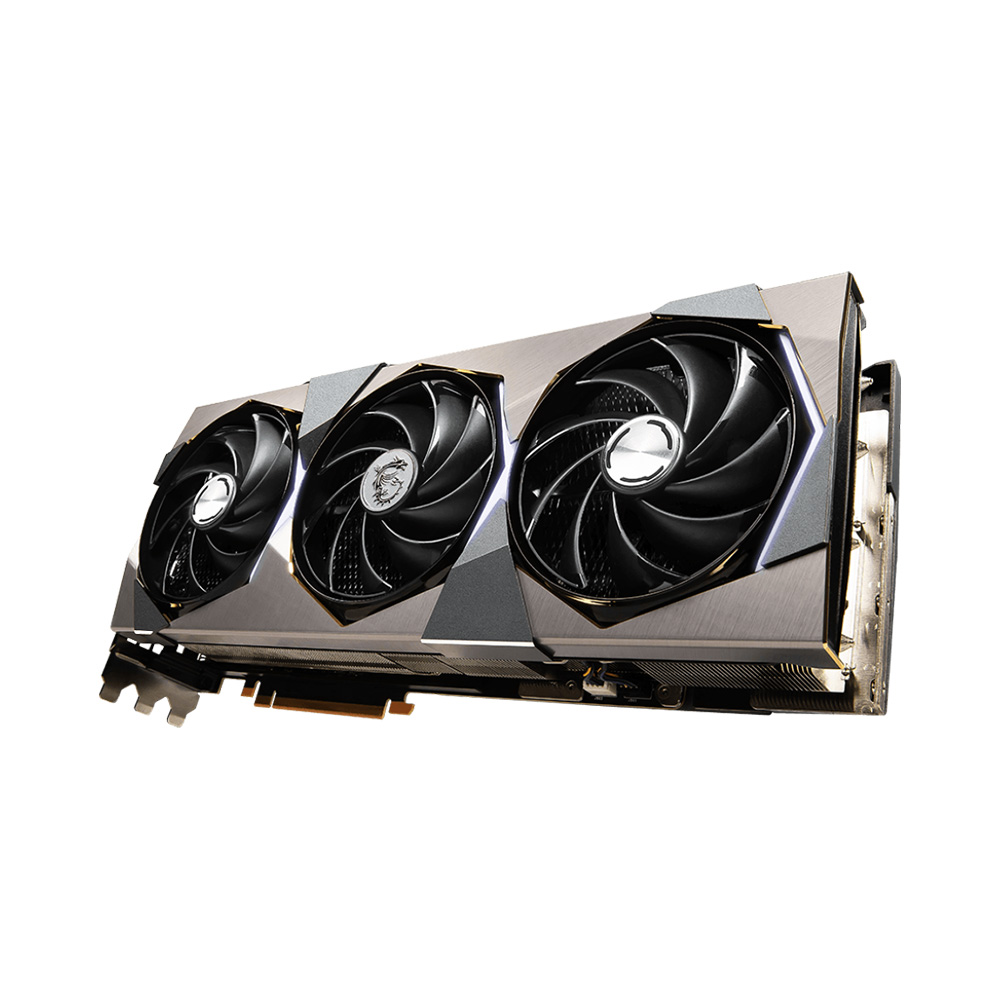

MSI RTX 4080 Super Suprim X 16GB Graphics Card :
Features :
Supercharge your PC with the MSI RTX 4080 Super Suprim X. Bring your games and creative projects to life with accelerated ray tracing and AI-powered graphics. It’s powered by the ultra-efficient NVIDIA Ada Lovelace architecture and 16GB of super-fast G6X memory.
- Boost Clock / Memory Speed
- Extreme Performance: 2655 MHz (MSI Center)
- Boost: 2640 MHz (GAMING & SILENT Mode)
- 23 Gbps
- 16GB GDDR6X
- DisplayPort x 3 (v1.4a)
- HDMI™ x 1 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI™ 2.1a)
- TRI FROZR 3S Thermal Design
- TORX Fan 5.0: Fan blades linked by ring arcs and a fan cowl work together to stabilize and maintain high-pressure airflow.
- VAPOR CHAMBER: The GPU and memory modules are covered with a Vapor Chamber which rapidly transfers heat to Core Pipes.
- Core Pipe: Precision-machined heat pipes ensure max contact to the GPU baseplate and spread heat along the full length of the
- heatsink.
- Airflow Control: Sections of different heatsink fins disrupt unwanted airflow harmonics and reduce noise.
- Dual BIOS
- Dual BIOS gives you the choice to prioritize full performance in GAMING mode or low noise in SILENT mode.
Overview :
CHANGE THE GAME
Ascend to a superior experience with MSI RTX 4080 Super Suprim X. See, hear, and feel a profoundly elevated graphics card built with high-quality materials and assembled with enthusiast features.

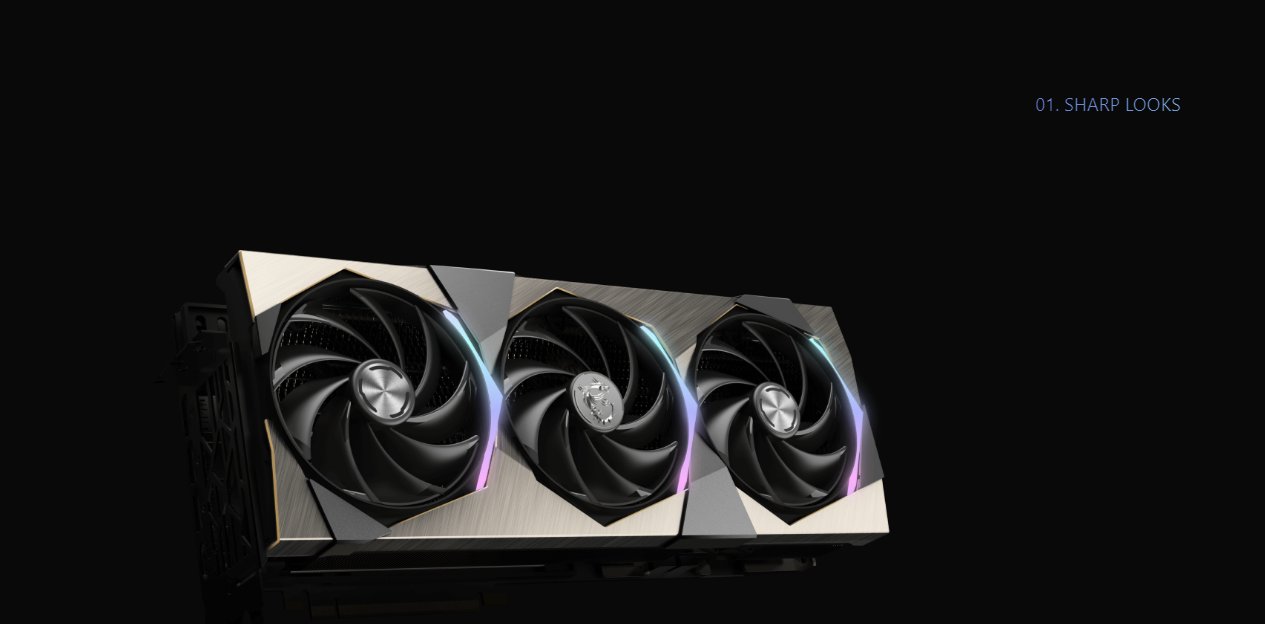

SHARP LOOKS
The second iteration of MSI RTX 4080 Super Suprim X inherits the exterior design philosophy of its predecessor, with a brushed metal cover, octagon-shaped fan cutouts and chevrons around each fan.
POLISHED EDGES
Beveled edges are polished several times with a diamond-tipped cutter to achieve a mirror-finish. Clean sharp lines emphasize the metal construction to sight and touch.All in MSI RTX 4080 Super Suprim X.
FINISHING TOUCHES
The motif of straight lines continue around the fans with octagonal cutouts featuring polished 45-degree beveled edges in MSI RTX 4080 Super Suprim X.

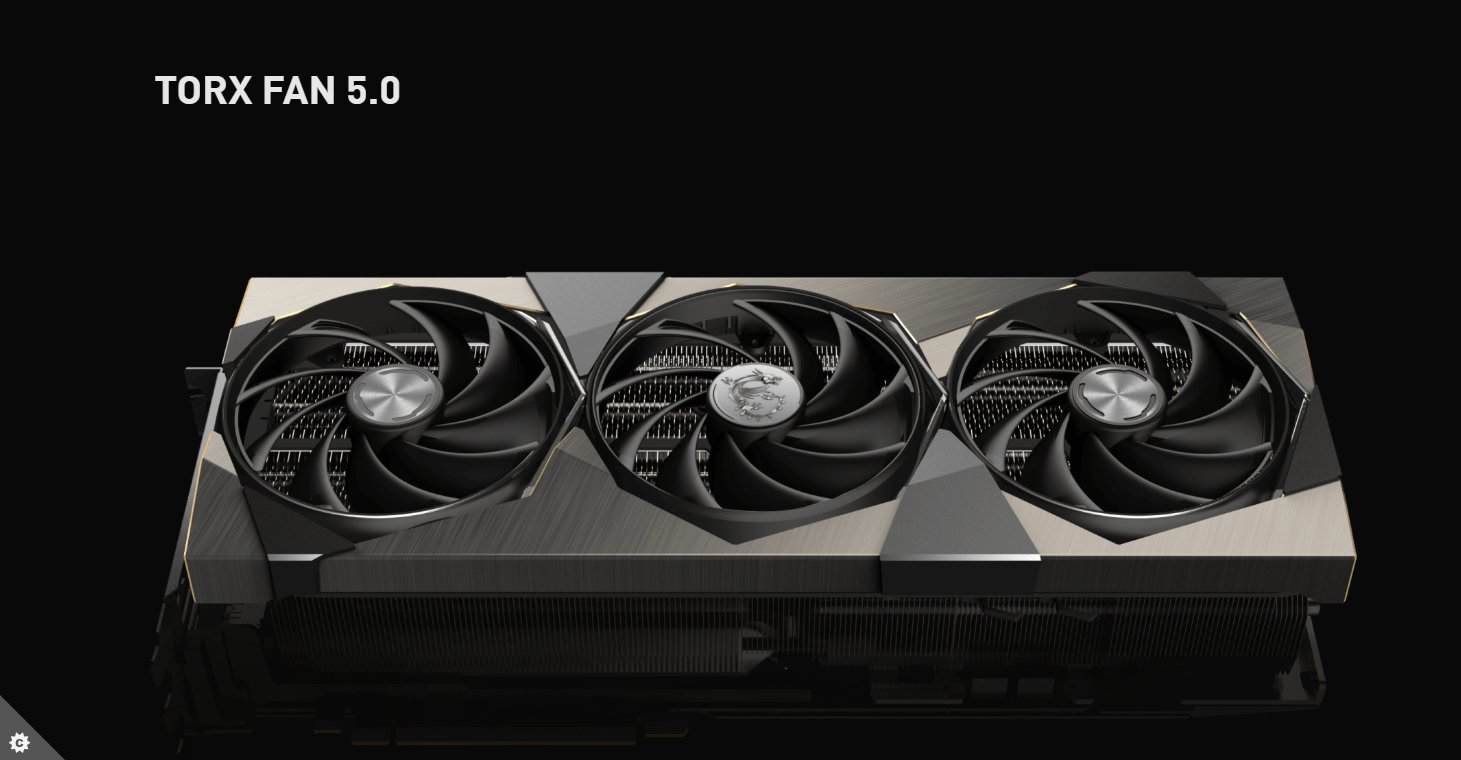

TORX FAN 5.0
TORX FAN 5.0 incorporates design improvements that result in +23% increased airflow compared to an axial fan All in MSI RTX 4080 Super Suprim X.
ADVANCED SOLUTION
VAPOR CHAMBER
A Vapor Chamber is excellent for rapidly stabilizing heat on a planar surface. The GPU and VRAM are covered with a Vapor Chamber which transfers heat to Core Pipes.All in MSI RTX 4080 Super Suprim X.
KEEPING THE CORE COOL
CORE PIPE
Core Pipes are precision-crafted to make maximum use of the available space. A squared section of heat pipes fully touch the vapor chamber to then spread heat along the full length of the heatsink in MSI RTX 4080 Super Suprim X.
AIRFLOW CONTROL
Sections of different heatsink fins disrupt unwanted airflow harmonics and reduce noise with MSI RTX 4080 Super Suprim X.
FILLED FINS
Updated heat pipe pathing has allowed more space for additional heatsink fins.All in MSI RTX 4080 Super Suprim X.
WAVE-CURVED 3.0
Additional efficiency is gained by adjusting the size of the wave edges under the fan motor and other spots where there is less airflow.
AIR ANTEGRADE FIN
Fins with a V-shaped cutout are located at the airflow passthrough to improve flow efficiency. Optimizing the inclination angle and increasing the wave notch shapes the air resistance towards the center, pushing out warm air faster like a nozzle.All in MSI RTX 4080 Super Suprim X.

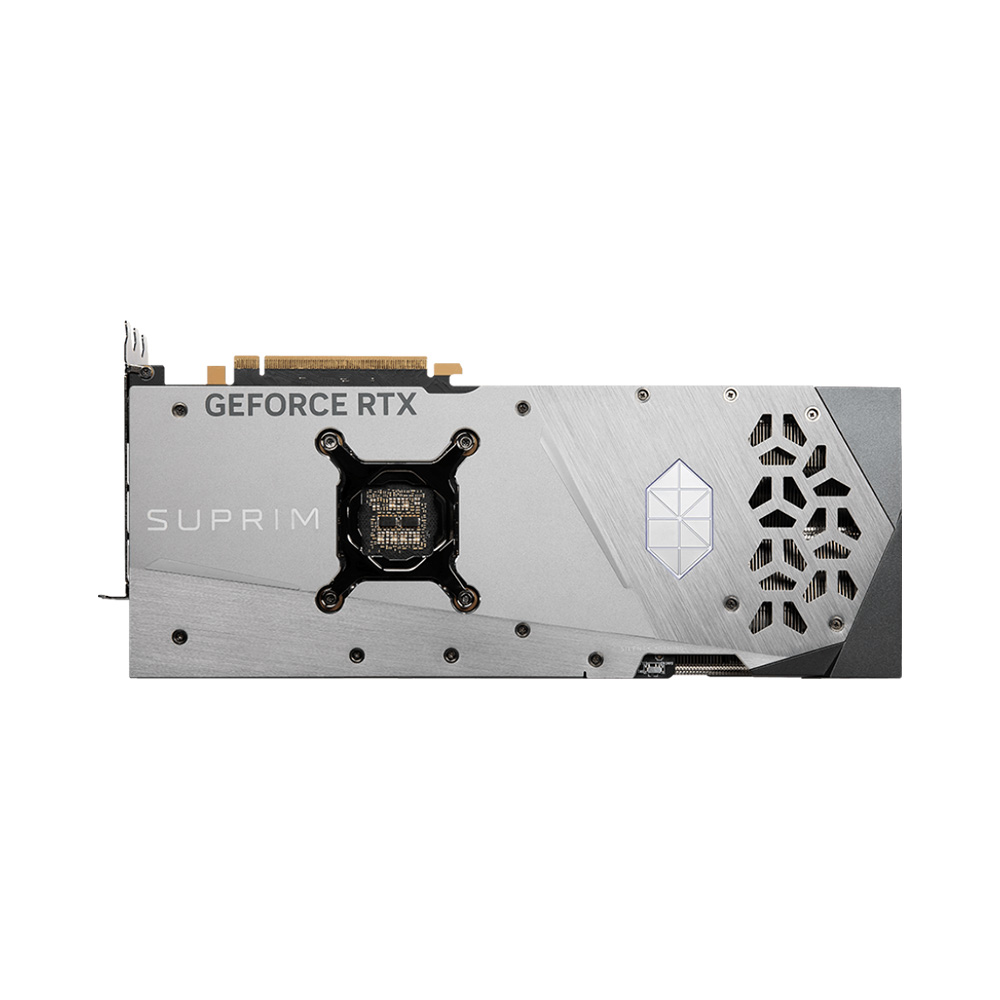

METAL BACKPLATE
Thermal pads under the sturdy metal backplate provide additional cooling while the flow-through ventilation reduces trapped heat.
ZERO FROZR
The fans completely stop when temperatures are relatively low, eliminating all noise when active cooling is not needed. The fans will automatically start spinning again when the heat is on during gaming.
DOUBLE-BALL BEARING
Two sets of durable ball bearings spin the TORX FANs for years of intense and lengthy gaming sessions.
High-Efficiency CarbonyI Inductors (HCI)
Manufacturing and material improvements to our choke parts have culminated as High-Efficiency Carbonyl Inductors (HCI.) One-piece molding allows this design to operate with less choke noise and better electric filtering.
DrMos
DrMOS power stage solutions provide great efficiency with low power loss and enhanced voltage controls.
Dual BIOS
Dual BIOS gives you the choice to prioritize full performance in GAMING mode or low noise in SILENT mode in MSI RTX 4080 Super Suprim X.
Hardened Defenses – Fuse
Additional fuses built into the custom PCB provide additional safeguards against electrical damage.
RELENTLESS DEFENSE
A die-cast anti-bending plate reinforces the whole card while thermal pads allow cooling to reach critical component underneath.

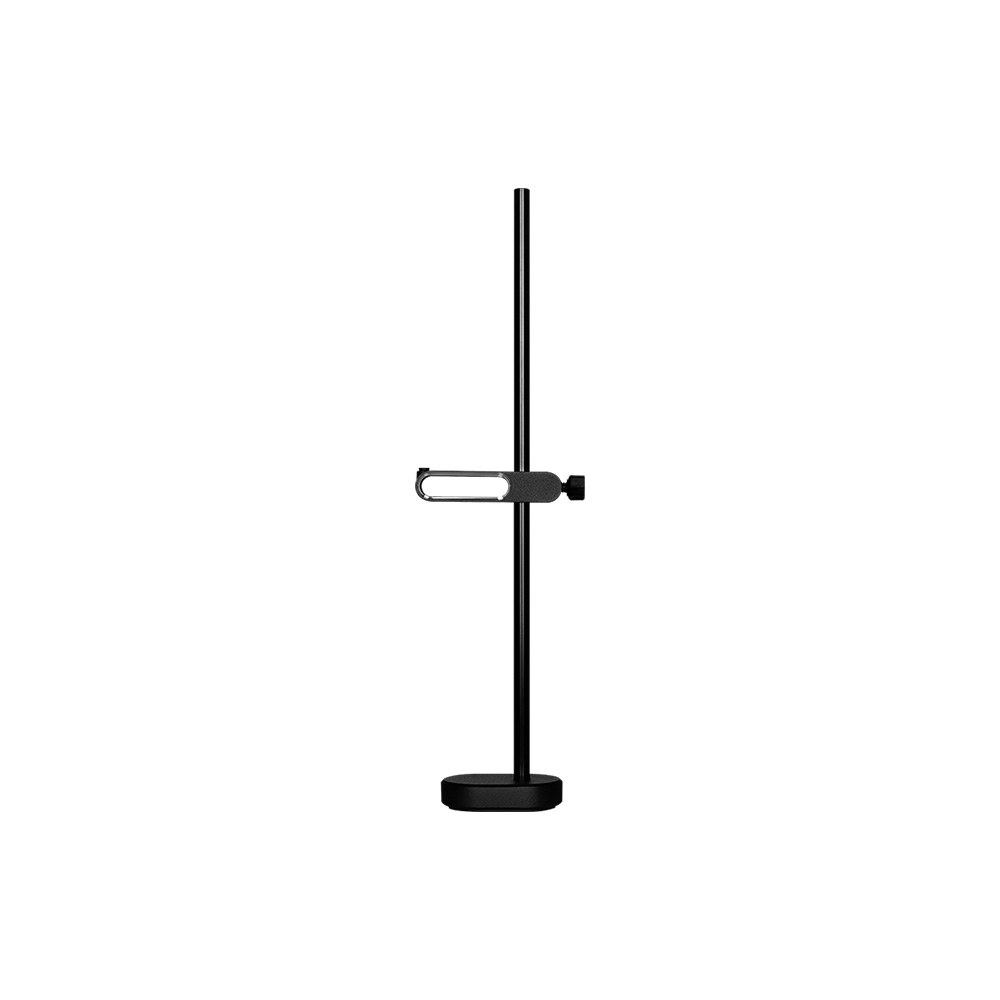

YOUR SUPPORT CHARACTER
A bundled support stand can be attached to the PC case to hold up the graphics card.
Specification :
| MODEL NAME | MSI RTX 4080 Super Suprim X |
| GRAPHICS PROCESSING UNIT | NVIDIA® GeForce RTX™ 4080 Super 16GB |
| INTERFACE | PCI Express® Gen 4 |
| CORE CLOCKS | Extreme Performance: 2655 MHz (MSI Center) Boost: 2640 MHz |
| CUDA® CORES | 10240 Units |
| MEMORY SPEED | 23 Gbps |
| MEMORY | 16GB GDDR6X |
| MEMORY BUS | 256-bit |

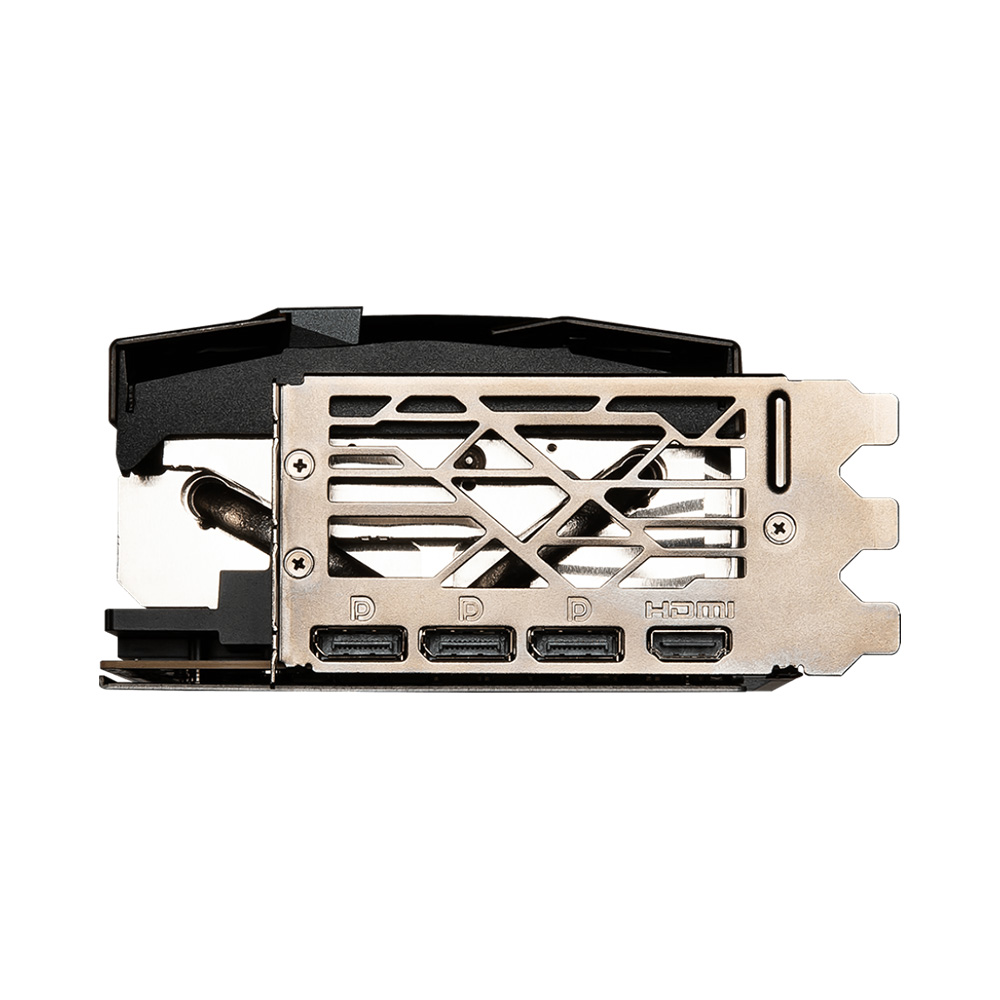

| OUTPUT | DisplayPort x 3 (v1.4a) HDMI™ x 1 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI 2.1a) |
| HDCP SUPPORT | Y |
| POWER CONSUMPTION | 320W |

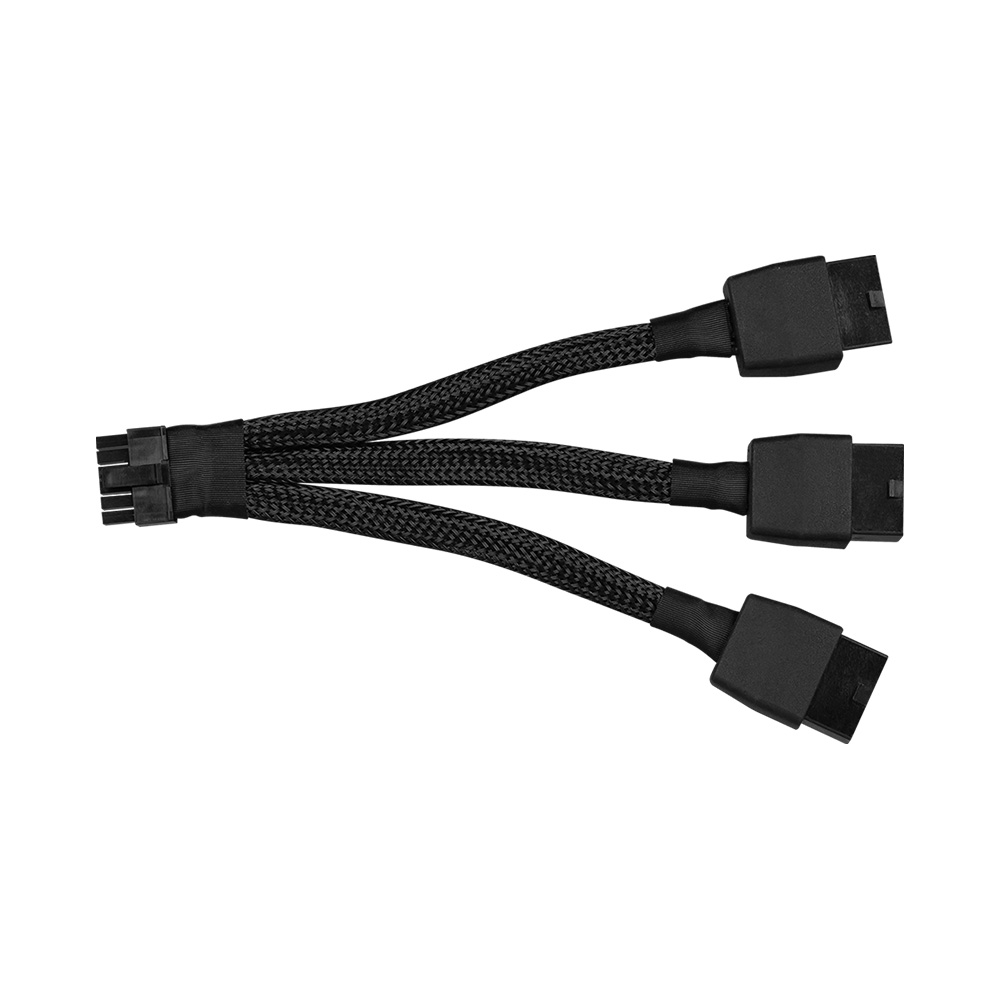

| POWER CONNECTORS | 16pin x 1 |
| RECOMMENDED PSU | 850 W (Min.750 W) |
| CARD DIMENSION (MM) | 336 x 142 x 78 mm |
| WEIGHT (CARD / PACKAGE) | 2372g / 3573g |
| DIRECTX VERSION SUPPORT | 12 Ultimate |
| OPENGL VERSION SUPPORT | 4.6 |
| MAXIMUM DISPLAYS | 4 |
| G-SYNC® TECHNOLOGY | Y |
| DIGITAL MAXIMUM RESOLUTION | 7680 x 4320 |
| WARRANTY | 3 Years |
