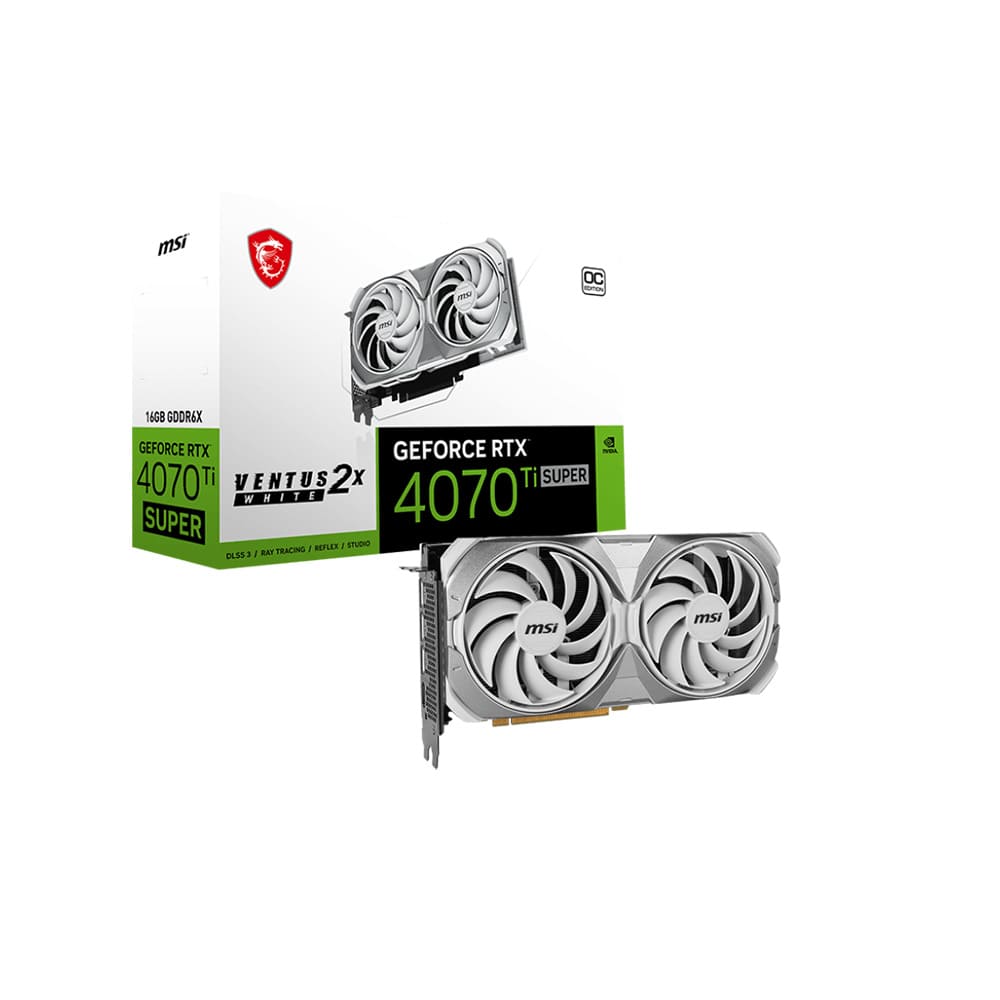

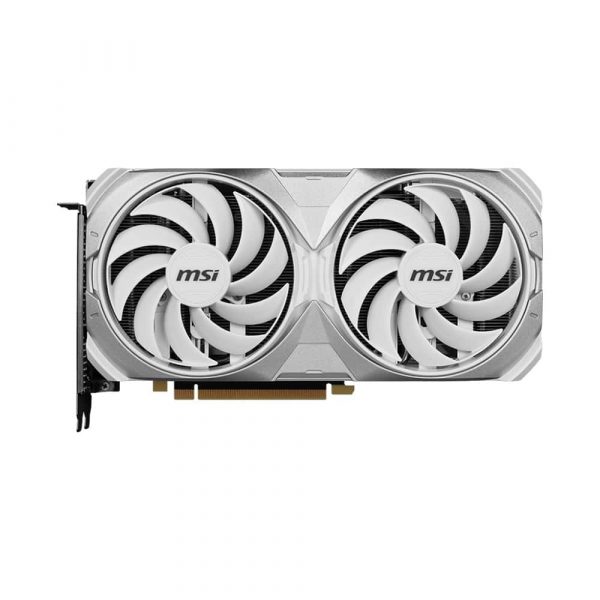

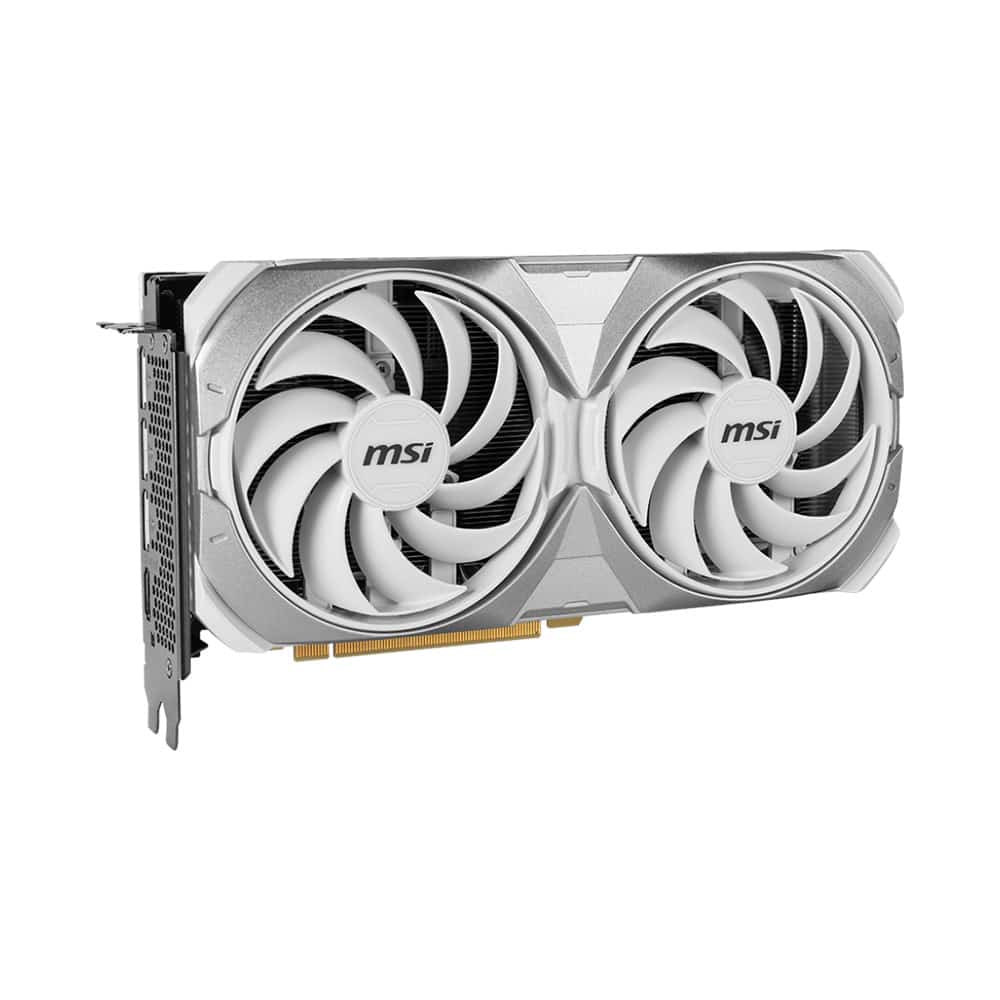

MSI RTX 4070 Ti Super Ventus 2x 16GB White Graphics Card :
Features:
Get equipped for supercharged gaming and creating with MSI RTX 4070 Ti Super Ventus 2x 16GB White Graphics Card. It’s built with the ultra-efficient NVIDIA Ada Lovelace architecture. Experience super fast ray tracing, AI-accelerated performance with DLSS 3, new ways to create, and much more.
- Boost Clock / Memory Speed
- 2610 MHz / 21 Gbps
- 16GB GDDR6X
- DisplayPort x 3 (v1.4a)
- HDMI™ x 1 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI™ 2.1a)
- Dual Fan Thermal Design
- TORX Fan 4.0: A masterpiece of teamwork, fan blades work in pairs to create unprecedented levels of focused air pressure.
- Airflow Control: Don’t sweat it, Airflow Control guides the air to exactly where it needs to be for maximum cooling.
- Core Pipe: Precision-crafted heat pipes ensure max contact to the GPU and spread heat along the full length of the heatsink.
- Zero Frozr: The fans completely stop when temperatures are relatively low, eliminating all noise.
- Reinforcing Backplate
The reinforcing backplate features a flow-through design that provides additional ventilation.
Overview:
TAKE THE ESSENTIALS
VENTUS brings a fundamentally solid experience to users looking for a performance graphics card. A sharp-looking updated design with TORX FAN 4.0 and Airflow Control lets VENTUS breeze through any task.All in MSI RTX 4070 Ti Super Ventus 2x 16GB White Graphics Card.
REVOLUTIONARY DUAL-FAN THERMAL
Two fans on a huge heatsink ensures a cool and quiet experience.
TORX FAN 4.0
TORX FAN 4.0 is built on teamwork, with pairs of fan blades bound together with a linked outer ring design that focuses airflow into the Dual-Fan cooling system in MSI RTX 4070 Ti Super Ventus 2x 16GB White Graphics Card.
AIRFLOW CONTROL
Stay stealthy with Airflow Control which improves airflow dynamics. Deflectors provide additional surface area and guide air to where it’s needed for maximum cooling.
COPPER BASEPLATE
Heat from the GPU and memory modules is immediately captured by a solid nickel-plated copper baseplate and then rapidly transferred to an array of heat pipes. This widening of the thermal transfer systems with highly efficient mechanisms improves overall efficiency.
CORE PIPE
Core Pipes are precision-crafted to make maximum use of the available space. A squared section of heat pipes fully touch the GPU baseplate to then spread heat along the full length of the heatsink.All in MSI RTX 4070 Ti Super Ventus 2x 16GB White Graphics Card.
Double Ball Bearing
The fan core spins TORX FAN for years of intense and lengthy gaming sessions.All in MSI RTX 4070 Ti Super Ventus 2x 16GB White Graphics Card.

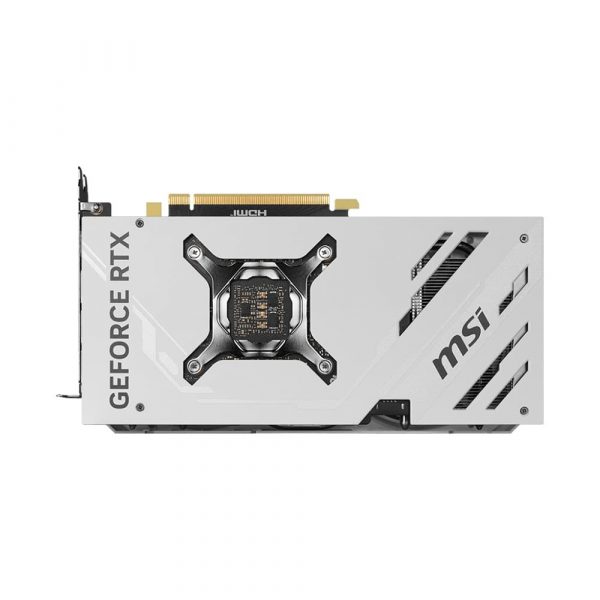

Metal Backplate
A sturdy brushed aluminum backplate features a flow-through design that provides additional ventilation.
Effective Thermal Padding
An abundance of clay-based thermal pads provide additional heat dissipation for board components.
DrMos
DrMOS power stage solutions provide great efficiency with low power loss and enhanced voltage controls.
2 Oz Copper
A thickened copper layer inside the PCB increases conductivity which improves heat dissipation and reliability.
Fuse
Additional fuses built into the custom PCB provide additional safeguards against electrical damage.
Specifications:
MODEL NAME | MSI RTX 4070 Ti Super Ventus 2x 16GB White Graphics Card |
GRAPHICS PROCESSING UNIT | NVIDIA® GeForce RTX™ 4070 Ti Super 16GB |
INTERFACE | PCI Express® Gen 4 |
CORE CLOCKS | Extreme Performance: 2625 MHz (MSI Center) Boost: 2610 MHz |
CUDA® CORES | 8448 Units |
MEMORY SPEED | 21 Gbps |
MEMORY | 16GB GDDR6X |
MEMORY BUS | 256-bit |

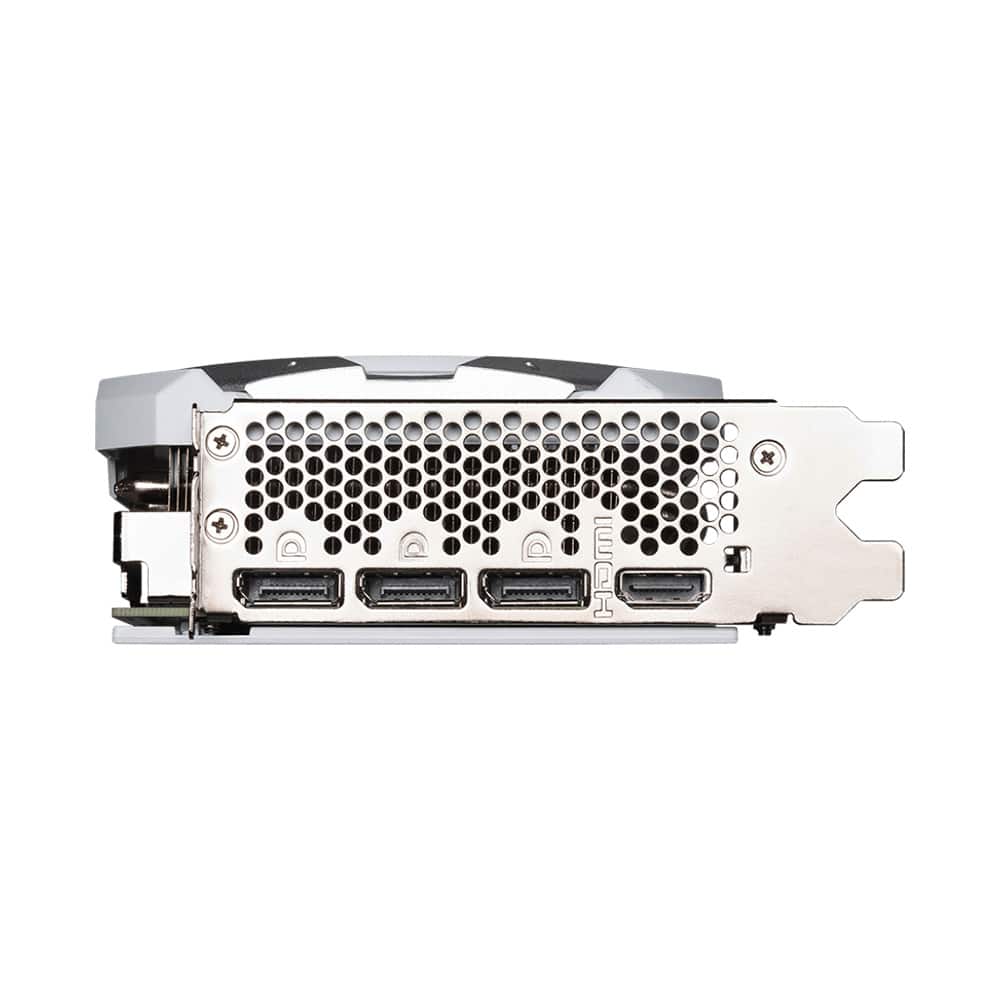

OUTPUT | DisplayPort x 3 (v1.4a) HDMI™ x 1 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI™ 2.1a) |
HDCP SUPPORT | Y |
POWER CONSUMPTION | 285W |

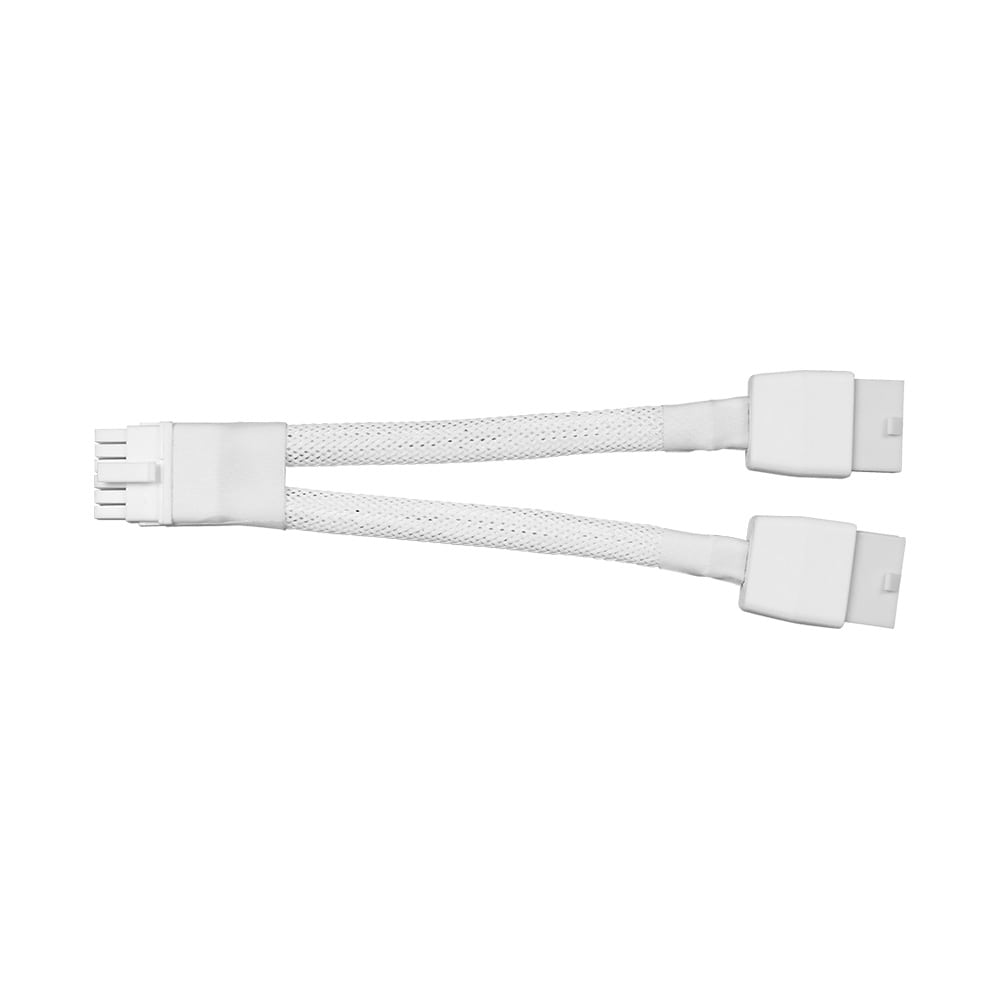

POWER CONNECTORS | 16pin x 1 |
RECOMMENDED PSU | 700 W |
CARD DIMENSION (MM) | 242 x 125 x 51 mm |
WEIGHT (CARD / PACKAGE) | 882 g / 1214 g |
DIRECTX VERSION SUPPORT | 12 Ultimate |
OPENGL VERSION SUPPORT | 4.6 |
MAXIMUM DISPLAYS | 4 |
G-SYNC® TECHNOLOGY | Y |
DIGITAL MAXIMUM RESOLUTION | 7680 x 4320 |
WARRANTY | 3 Years |
