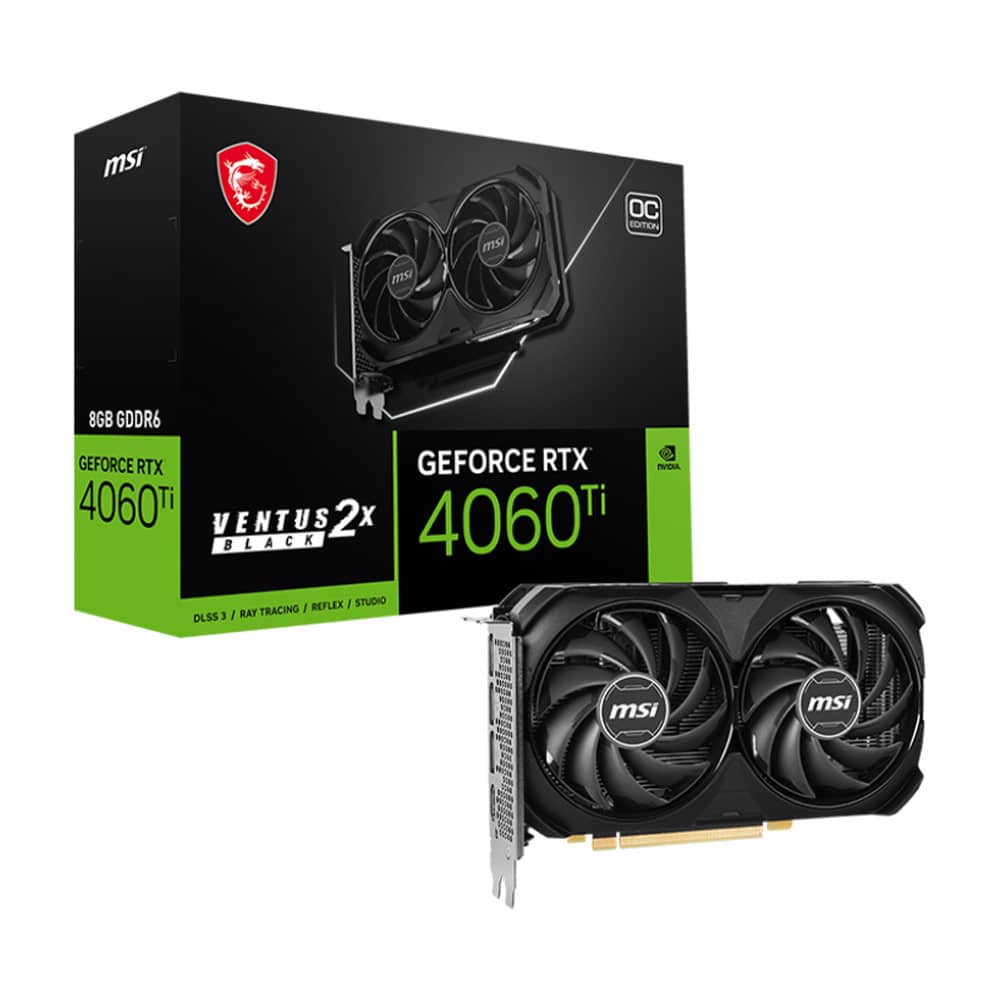

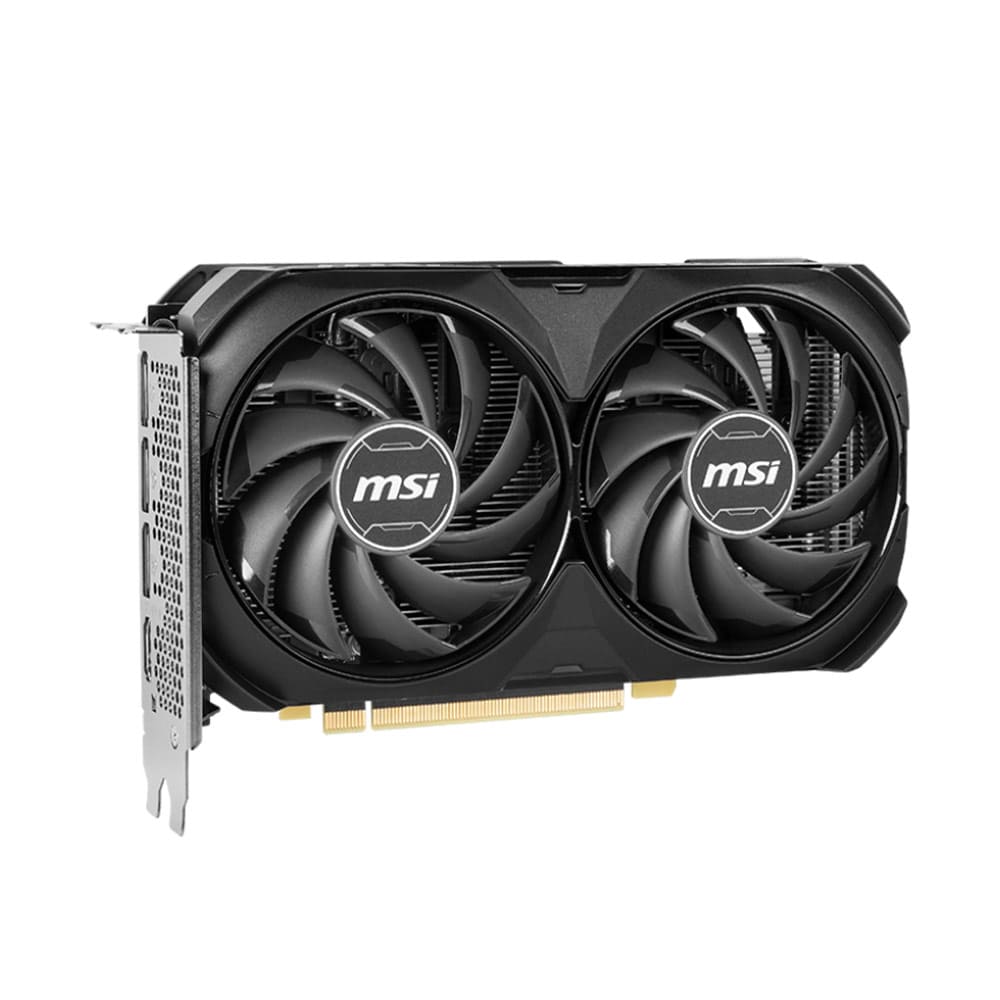

MSI RTX 4060 Ti Ventus 2X OC Black 8GB Graphics Card :
Features of MSI RTX 4060 Ti Ventus 2X OC Black 8GB :
Game, stream, create. The MSI RTX 4060 Ti Ventus 2X OC Black 8GB lets you take on the latest games and apps with the ultra-efficient NVIDIA Ada Lovelace architecture. Experience immersive, AI-accelerated gaming with ray tracing and DLSS 3, and supercharge your creative process and productivity with NVIDIA Studio.
Boost Clock / Memory Speed
- 2565 MHz / 18 Gbps
- 8GB GDDR6

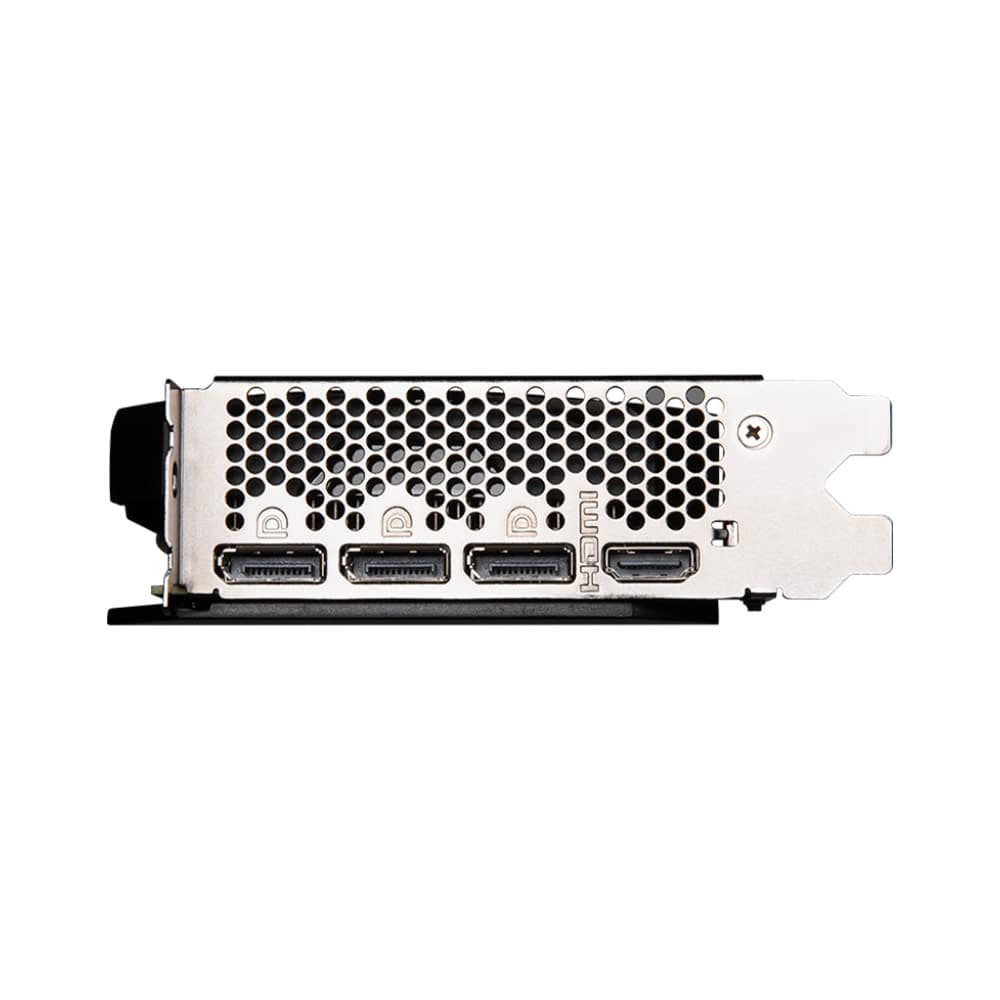

- DisplayPort x 3 (v1.4a)
HDMI™ x 1 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI™ 2.1a)
Dual Fan Thermal Design
- TORX Fan 4.0: A masterpiece of teamwork, fan blades work in pairs to create unprecedented levels of focused air pressure.
- Zero Frozr: The fans completely stop when temperatures are relatively low, eliminating all noise.
Reinforcing Backplate
- The reinforcing backplate features a flow-through design that provides additional ventilation.
MSI Center
- The exclusive MSI Center software lets you monitor, tweak, and optimize MSI products in real-time.
Overview of MSI RTX 4060 Ti Ventus 2X OC Black 8GB :
TAKE THE ESSENTIALS
MSI RTX 4060 Ti Ventus 2X OC Black 8GB brings a fundamentally solid experience to users looking for a performance graphics card. A sharp-looking updated design with TORX FAN 4.0 lets MSI RTX 4060 Ti Ventus 2X OC Black 8GB breeze through any task.
REVOLUTIONARY

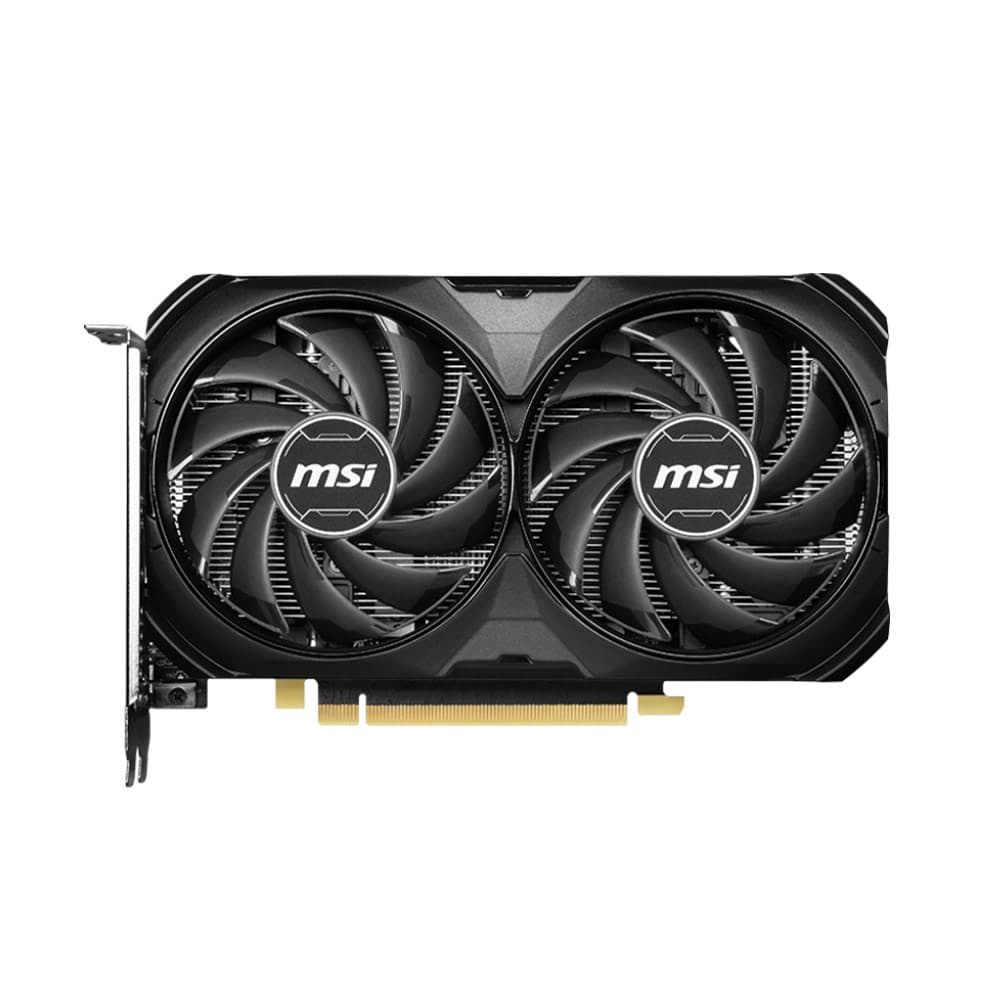

DUAL-FAN THERMAL
Two fans on a huge heatsink ensures a cool and quiet experience.

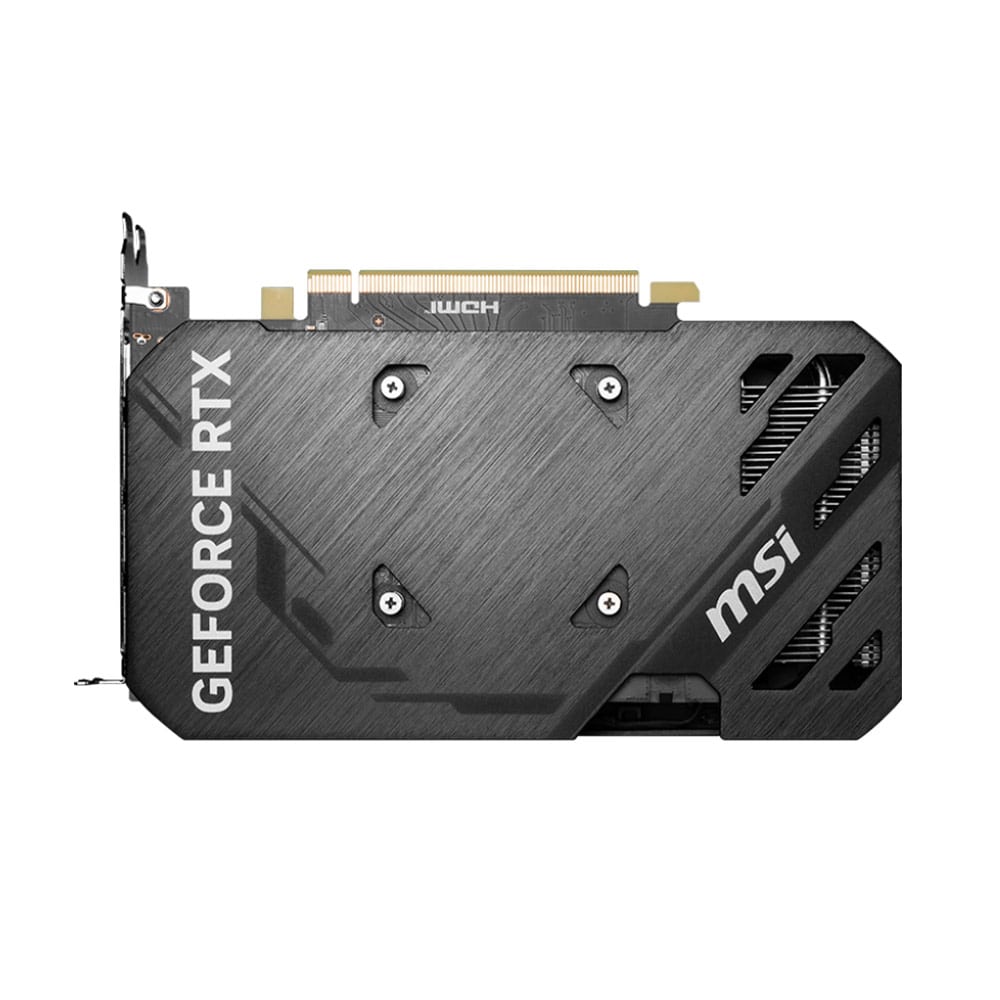

Reinforcing Backplate
The reinforcing backplate in MSI RTX 4060 Ti Ventus 2X OC Black 8GB features a flow-through design that provides additional ventilation.
Effective Thermal Padding
An abundance of clay-based thermal pads provide additional heat dissipation for board components.
HARDENING EVERY DETAIL- CUSTOM PCB
DrMos
DrMOS power stage solutions provide great efficiency with low power loss and enhanced voltage controls.
Fuse
Additional fuses built into the custom PCB provide additional safeguards against electrical damage.
Specifications of MSI RTX 4060 Ti Ventus 2X OC Black 8GB :
| MODEL NAME | GeForce RTX™ 4060 Ti VENTUS 2X BLACK 8G OC |
| GRAPHICS PROCESSING UNIT | NVIDIA® GeForce RTX™ 4060 Ti |
| INTERFACE | PCI Express® Gen 4 x16 (uses x8) |
| CORE CLOCKS | Extreme Performance: 2580 MHz (MSI Center) Boost: 2565 MHz |
| CUDA® CORES | 4352 Units |
| MEMORY SPEED | 18 Gbps |
| MEMORY | 8GB GDDR6 |
| MEMORY BUS | 128-bit |
| OUTPUT | DisplayPort x 3 (v1.4a) HDMI™ x 1 (Supports 4K@120Hz HDR and 8K@60Hz HDR and Variable Refresh Rate (VRR) as specified in HDMI™ 2.1a) |
| HDCP SUPPORT | Y |
| POWER CONSUMPTION | 160 W |
| POWER CONNECTORS | 8-pin x 1 |
| RECOMMENDED PSU | 550 W |
| CARD DIMENSION (MM) | 199 x 120 x 42 mm |
| WEIGHT (CARD / PACKAGE) | 546 g / 783 g |
| DIRECTX VERSION SUPPORT | 12 Ultimate |
| OPENGL VERSION SUPPORT | 4.6 |
| MAXIMUM DISPLAYS | 4 |
| G-SYNC® TECHNOLOGY | Y |
| DIGITAL MAXIMUM RESOLUTION | 7680 x 4320 |
| WARRANTY | 3 Years |
