MSI RTX 3070 Ti Ventus 3X OC 8GB GDDR6X 256-BIT GAMING GRAPHICS CARD
The MSI RTX 3070 Ti Ventus 3X OC 8GB graphics card is powered by Ampere—NVIDIA’s 2nd gen RTX architecture. Built with enhanced RT Cores and Tensor Cores, new streaming multiprocessors, and superfast G6X memory, it gives you the power you need to rip through the most demanding games.
Core / Memory
- Boost Clock / Memory Speed
- 1800 MHz / 19 Gbps
- 8GB GDDR6X

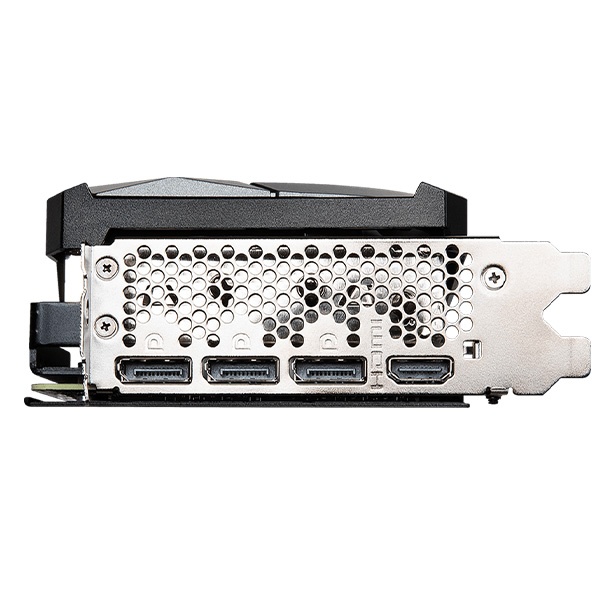

- DisplayPort x 3 (v1.4a)
- HDMI x 1 (Supports [email protected] as specified in HDMI 2.1)
- Premium metal backplate provides a nice visual finish to the card. It also strengthens the card and thanks to some cleverly place thermal pads even helps to keep the temperature low.
- Precision-crafted heat pipes ensure max contact to the GPU and spread heat along the full length of the heatsink.
Triple Fan Thermal Design
- TORX Fan 3.0: The award-winning MSI TORX Fan 3.0 design creates high static pressure and pushes the limits of thermal performance.
- Zero Frozr: Calm before the storm, keeping fans still and maintaining silence until cooling is needed.
- Thermal Padding: An abundance of thermal pads use any chance for additional heat transfer directly from the components.
- The exclusive MSI Center software lets you monitor, tweak, and optimize MSI products in real-time.
MSI RTX 3070 Ti Ventus 3X OC 8GB brings a performance-focused design that maintains the essentials to accomplish any task at hand.
A capable triple fan arrangement laid into a rigid industrial design lets this sharp looking graphics card fit into any build.
WE’VE GOT YOUR BACK

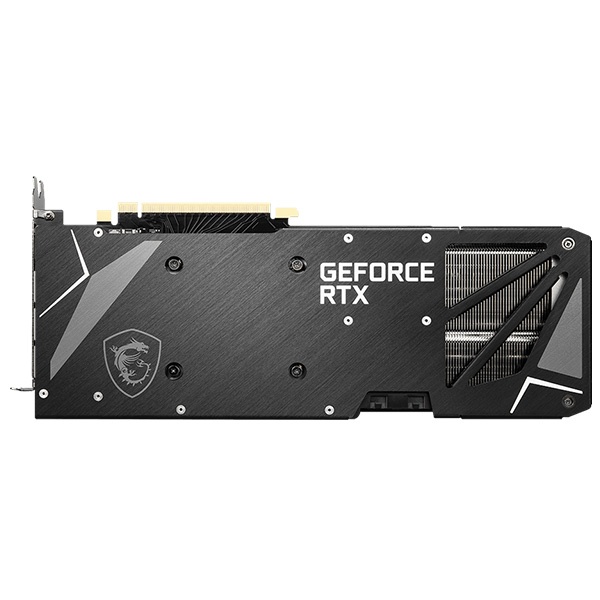

A brushed metal backplate provides a clean visual finish to the card. It also strengthens the card and thanks to some cleverly place thermal pads even helps to keep the temperature low.
CUTTING EDGE TRIPLE FAN THERMAL

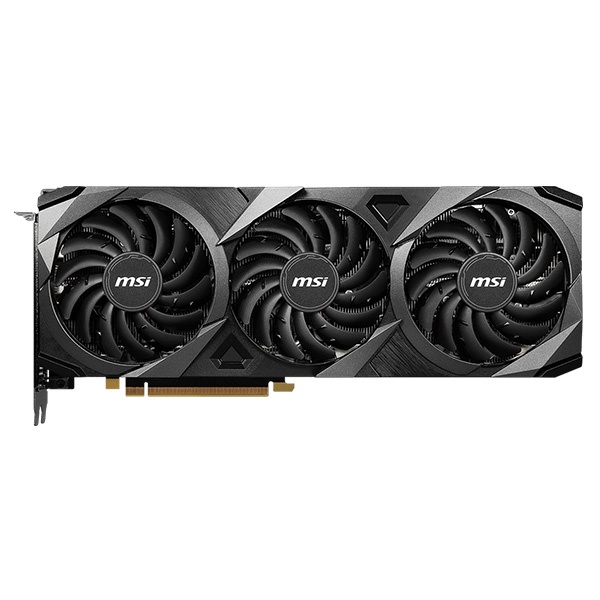

Torx Fan 3.0
MSI RTX 3070 Ti Ventus 3X OC 8GB has the award-winning MSI TORX Fan 3.0 design keeps the limits of thermal performance turning.
Fan blades alternate between traditional blades and dispersion blades that focus and accelerate airflow into the heatsink.
Zero Frozr is the calm before the storm. The fans completely stop when temperatures are relatively low, eliminating all noise when active cooling is unneeded.
The fans will automatically start spinning again when the heat is on during gaming.
Core Pipes are precision-machined for maximum contact over the MSI RTX 3070 Ti Ventus 3X OC 8GB GPU and spread the heat along the full length of the heatsink for optimal cooling.
Ample amounts of thermal pads allow various board components to transfer heat directly to the heatsink for better cooling.
TRACES OF BRILLIANCE
Specially designed Anti-Bending brackets reinforce the card to resist sagging, bending, and twisting.

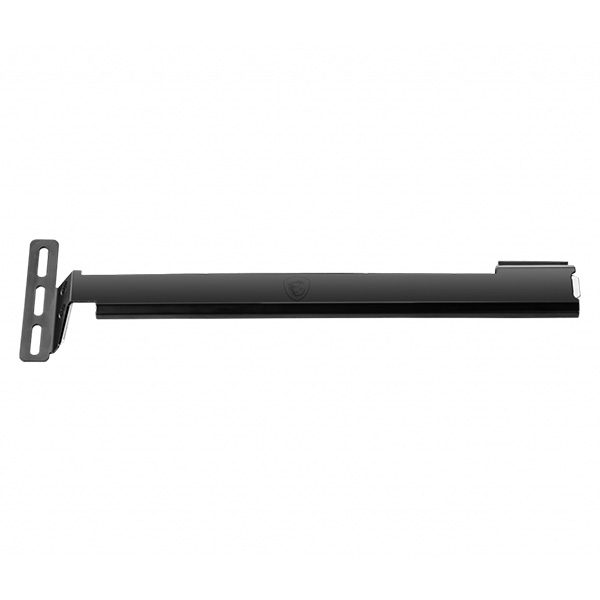

A bundled support bracket can be attached to your PC case for additional graphics card reinforcement.
TAILORED PCB DESIGN
Not all circuit boards are created equal. A custom PCB Design in MSI RTX 3070 Ti Ventus 3X OC 8GB provides greater reliability and beefed up power circuitry for pushing the card to its limits.
|MODEL NAME||MSI RTX 3070 Ti Ventus 3X OC 8GB|
|GRAPHICS PROCESSING UNIT||NVIDIA® GeForce RTX™ 3070 Ti|
|INTERFACE||PCI Express® Gen 4|
|CORE CLOCKS||Boost:1800 MHz|
|MEMORY SPEED||19 Gbps|
|OUTPUT||DisplayPort x 3 (v1.4a)|
HDMI x 1 (Supports [email protected] as specified in HDMI 2.1)
|POWER CONSUMPTION||290 W|
|POWER CONNECTORS||8-pin x 2|
|RECOMMENDED PSU||750 W|
|CARD DIMENSION (MM)||305 x 120 x 57 mm|
|WEIGHT (CARD / PACKAGE)||1160g / 1735g|
|DIRECTX VERSION SUPPORT||12 API|
|OPENGL VERSION SUPPORT||4.6|
|ADAPTIVE VERTICAL SYNC||Y|
|DIGITAL MAXIMUM RESOLUTION||7680 x 4320|
