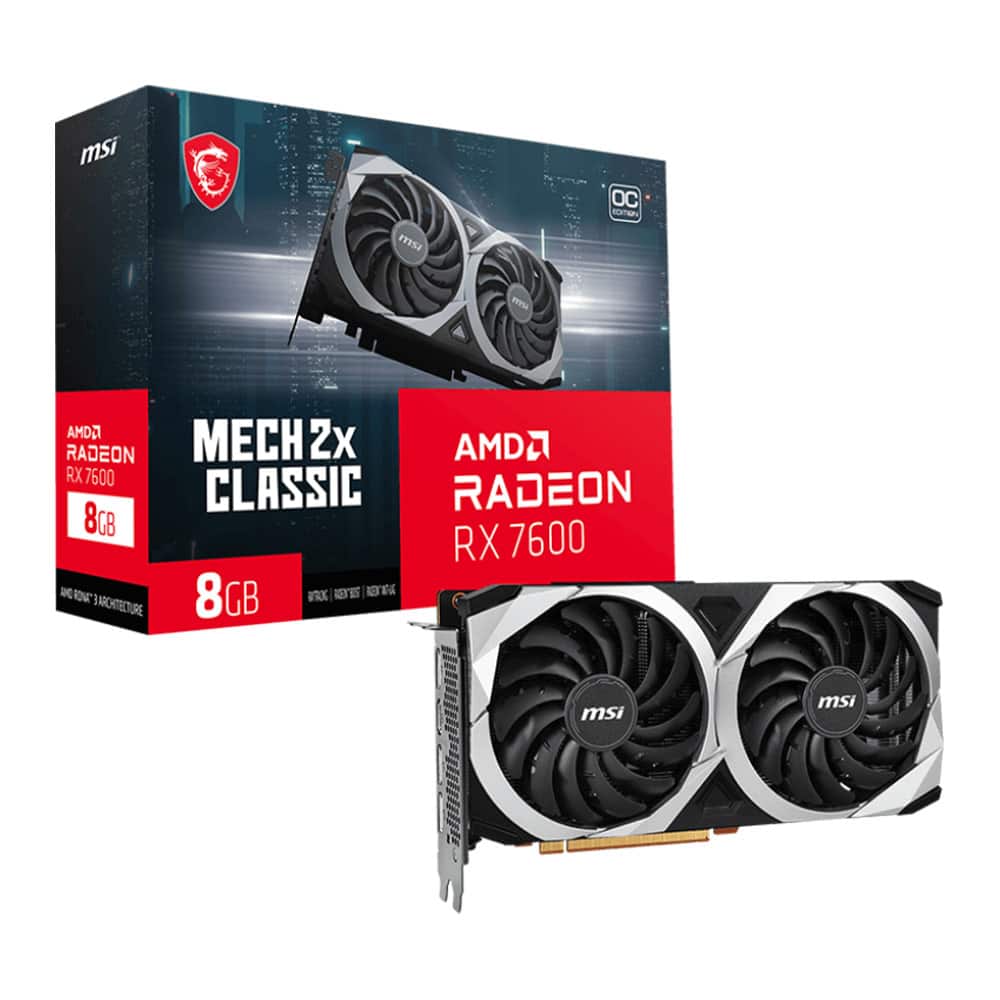

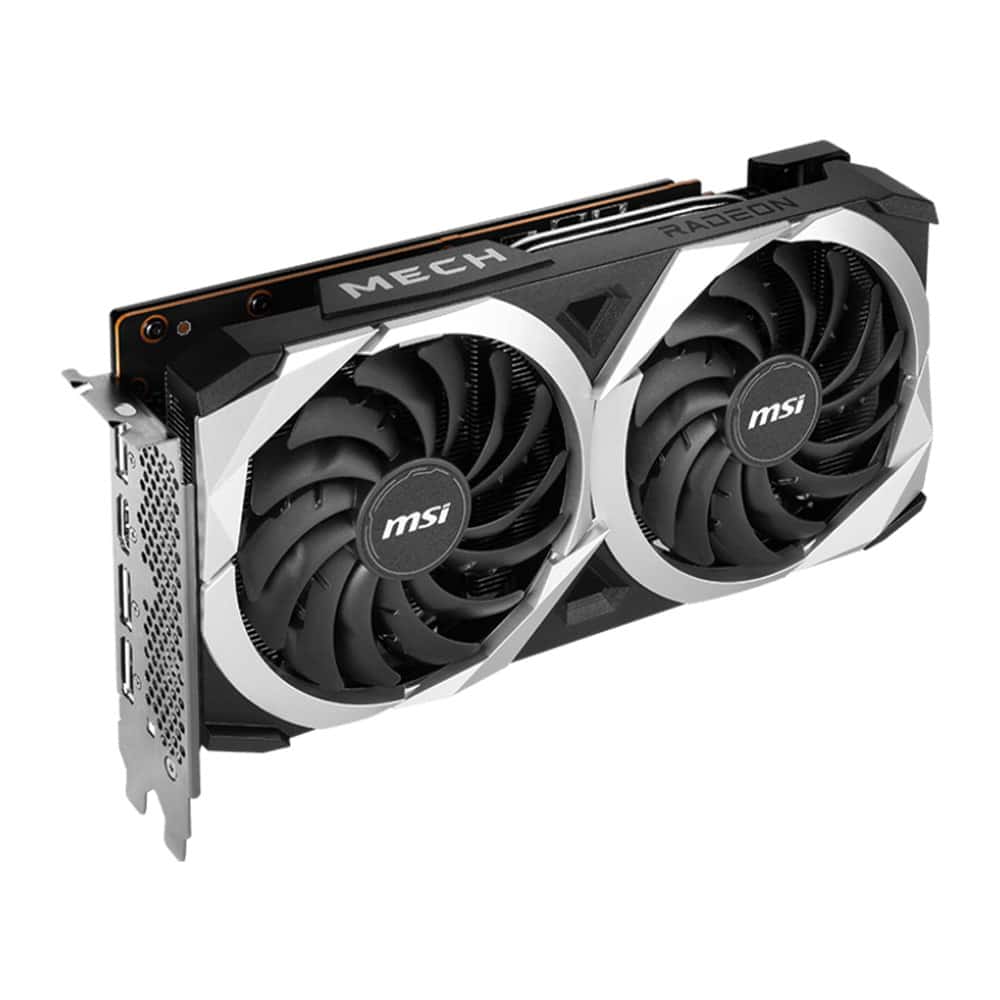

MSI Radeon RX 7600 Mech 2X Classic OC 8GB Graphics Card
Features :
Experience unprecedented performance, visuals, and efficiency for gaming and streaming in 1080p with the MSI Radeon RX 7600 Mech 2X Classic OC 8GB Graphics Card, powered by RDNA™ 3 architecture. Immerse yourself in breathtaking visuals with the pinpoint color accuracy of AMD Radiance Display™ Engine and boost frame rates with AMD FidelityFX™ Super Resolution and Radeon™ Super Resolution upscaling technologies.1,2 To unlock even more performance, combine MSI Radeon RX 7600 Mech 2X Classic OC 8GB Graphics Card with a compatible AMD Ryzen™ processor to activate AMD smart technologies.3
Boost Clock / Memory Speed
- Up to 2695 MHz / 18Gbps
- 8GB, GDDR6
- DisplayPort™ x 3 (v1.4)
HDMI™ x 1 (Supports 4K@120Hz/8K@60Hz and VRR as specified in HDMI™ 2.1)
Dual Fan Thermal Design
- TORX Fan 3.0: The award-winning MSI TORX Fan 3.0 design creates high static pressure and pushes the limits of thermal performance.
Afterburner Overclocking Utility
- Supports multi-GPU setups.
- OC Scanner: An automated function finds the highest stable overclock settings.
- On Screen Display: Provides real-time information of your system’s performance.
- Predator: In-game video recording.
MSI Center
- The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.
Overview:

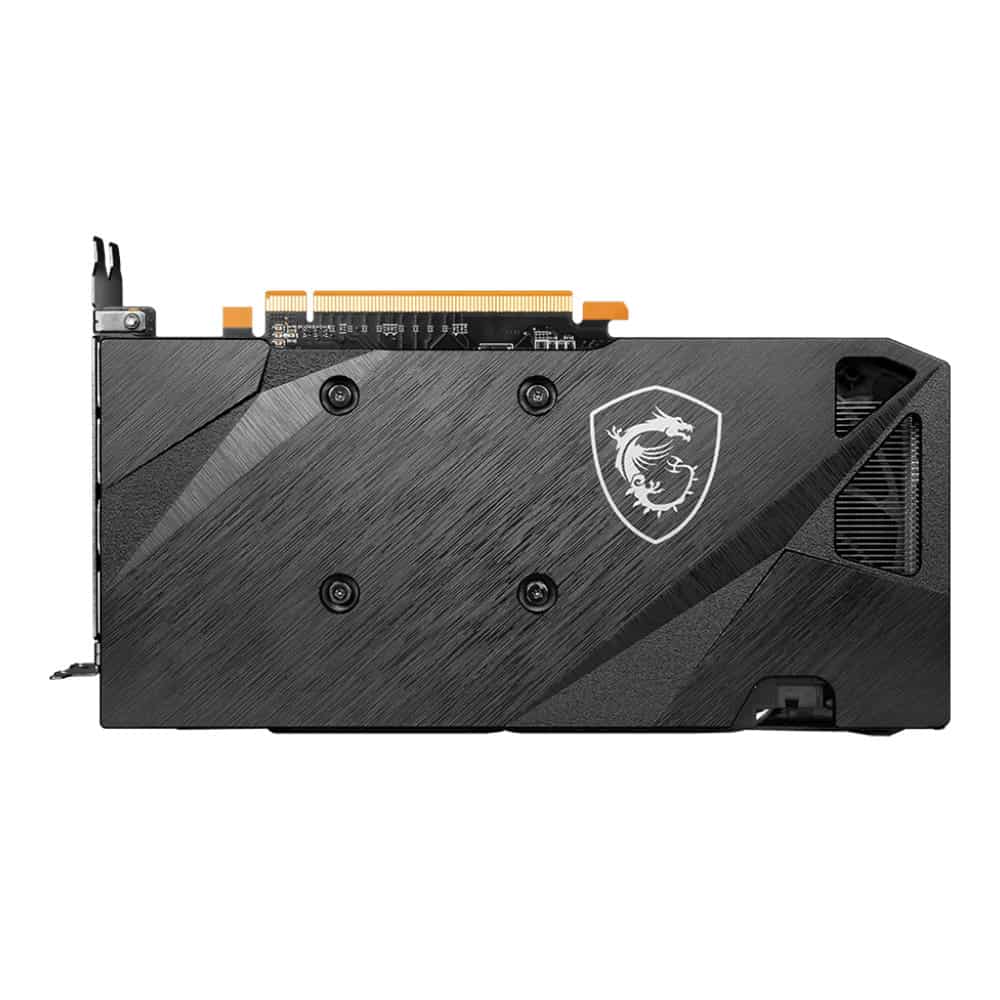

BACKPLATE
A clean-looking brushed-finish backplate reinforces the length of the card.

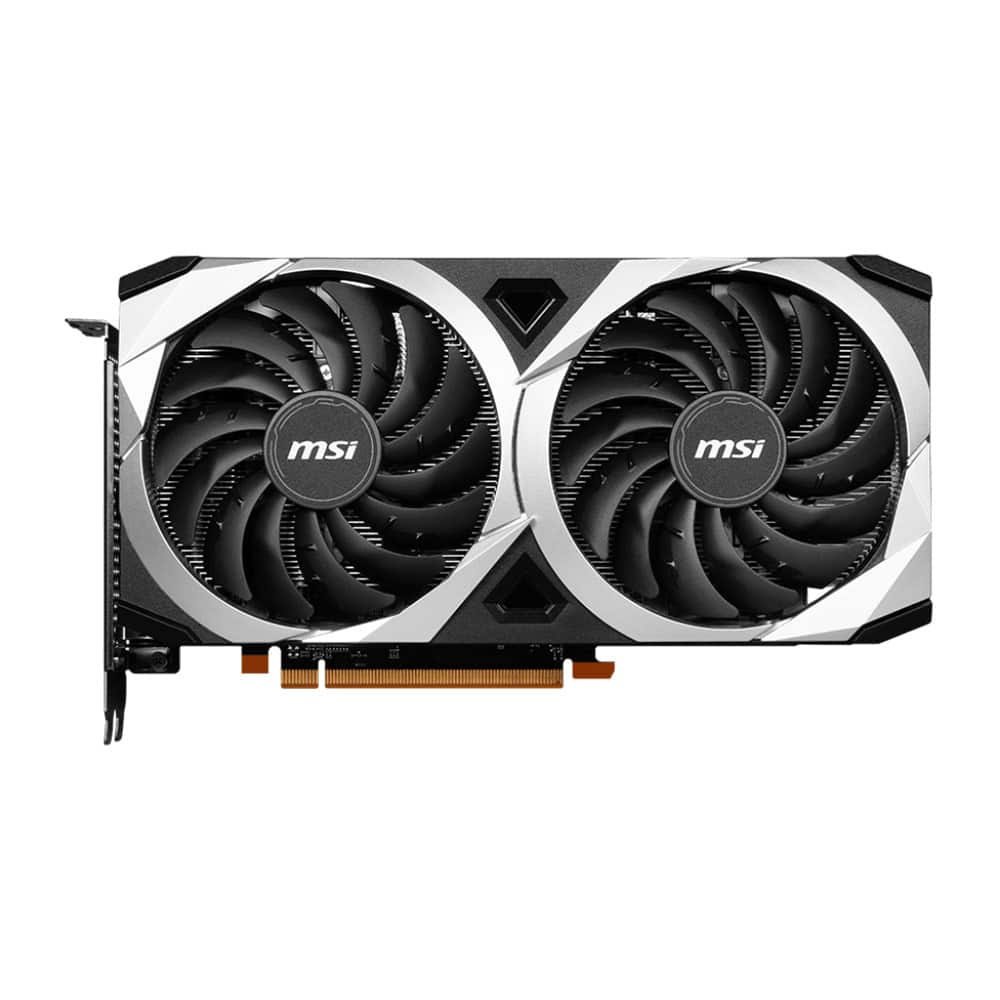

DUAL FAN DESIGN
The award-winning MSI TORX Fan 3.0 design keeps the limits of thermal performance turning. Fan blades alternate between traditional blades and dispersion blades that focus and accelerate airflow into the heatsink.
CHILLINGLY SILENT
Zero Frozr is the calm before the storm. The fans completely stop when temperatures are relatively low, eliminating all noise when active cooling is unneeded. The fans will automatically start spinning again when the heat is on during gaming.
TOUGH ENOUGH TO BACK YOU UP!
MSI Radeon RX 7600 Mech 2X Classic OC 8GB Graphics Card has been crafted to serve you well during intense gameplay. MSI Radeon RX 7600 Mech 2X Classic OC 8GB Graphics Card legendary item has extra power unlocked through the Custom PCB.
BETTER SAFE THAN SORRY
Additional fuses built into the custom PCB provide additional safeguards against electrical damage.
FORGED FROM ENHANCED MATERIALS
An enhanced PCB material design in MSI Radeon RX 7600 Mech 2X Classic OC 8GB Graphics Card with 2oz thickened copper increases conductivity, improving heat dissipation, and high-performance reliability.
TAILORED PCB DESIGN
Not all circuit boards are created equal. A custom PCB Design in MSI Radeon RX 7600 Mech 2X Classic OC 8GB Graphics Cardprovides greater reliability and beefed up power circuitry for pushing the card to its limits.
Specifications :
| MODEL NAME | Radeon™ RX 7600 MECH 2X CLASSIC 8G OC |
| GRAPHICS PROCESSING UNIT | AMD Radeon™ RX 7600 |
| INTERFACE | PCI Express® Gen 4 x 8 |
| STREAM PROCESSORS | 2048 Units |
| CORE CLOCKS | Boost: Up to 2695 MHz Game: Up to 2280 MHz |
| MEMORY SPEED | 18 Gbps |
| MEMORY | 8GB GDDR6 |
| MEMORY BUS | 128-bit |

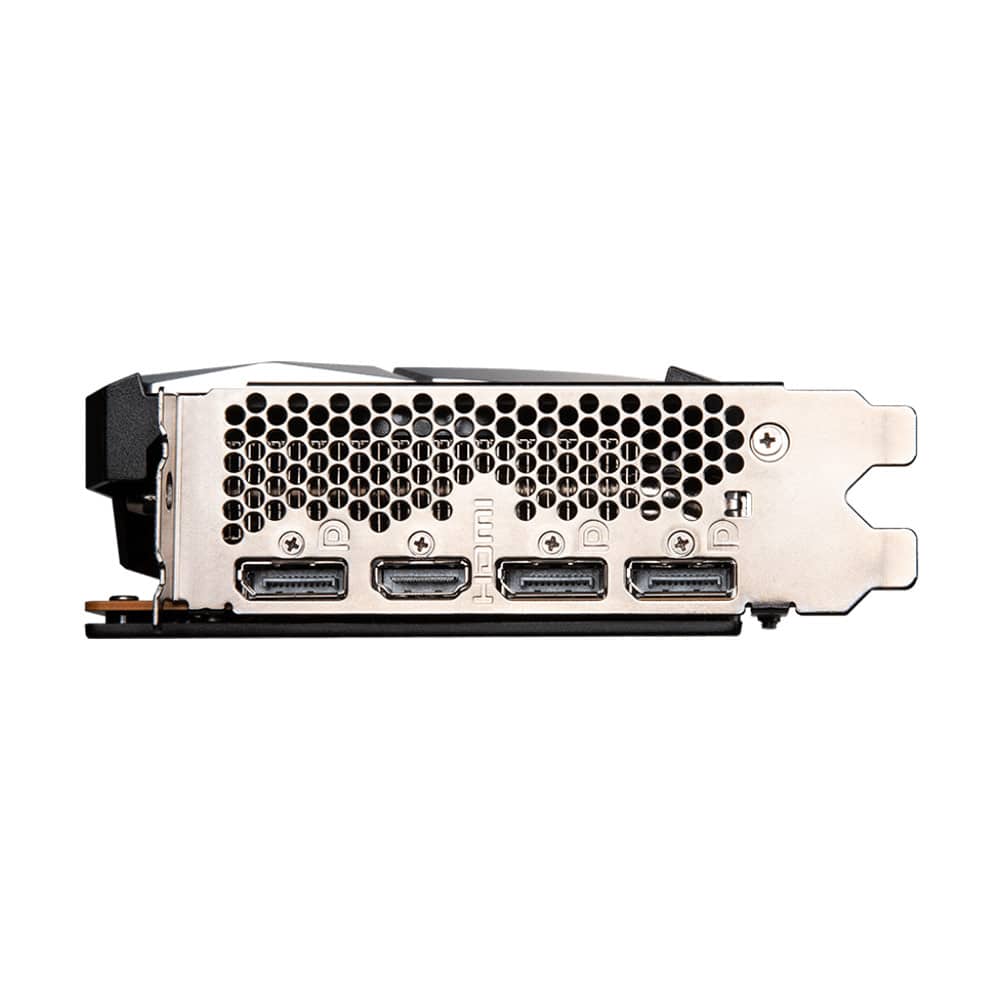

| OUTPUT | DisplayPort x 3 (v1.4) / HDMI™ x 1 (Supports 4K@120Hz/8K@60Hz and VRR as specified in HDMI™ 2.1) |
| HDCP SUPPORT | Y |
| POWER CONSUMPTION | 165 W |
| POWER CONNECTORS | 8-pin x 1 |
| RECOMMENDED PSU | 550 W |
| CARD DIMENSION (MM) | 235 x 125 x 47 mm |
| WEIGHT (CARD / PACKAGE) | 666g / 983g |
| DIRECTX VERSION SUPPORT | 12 Ultimate |
| OPENGL VERSION SUPPORT | 4.6 |
| MAXIMUM DISPLAYS | 4 |
| FREESYNC™ TECHNOLOGY | Y |
| DIGITAL MAXIMUM RESOLUTION | 7680 x 4320 |
| WARRANTY | 3 Years |
