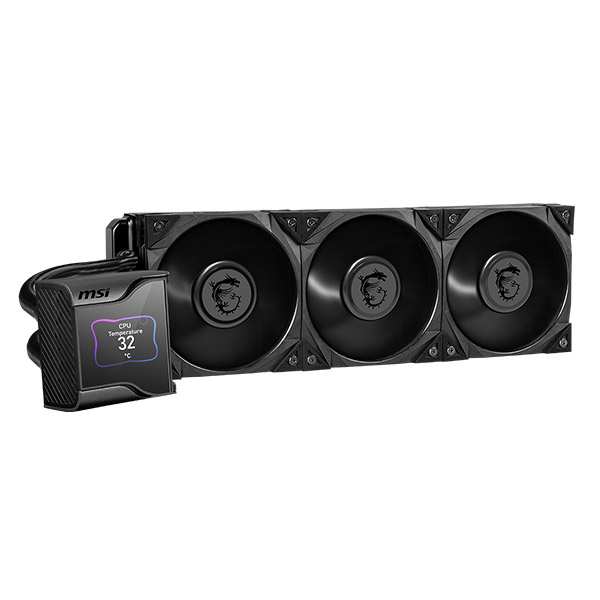

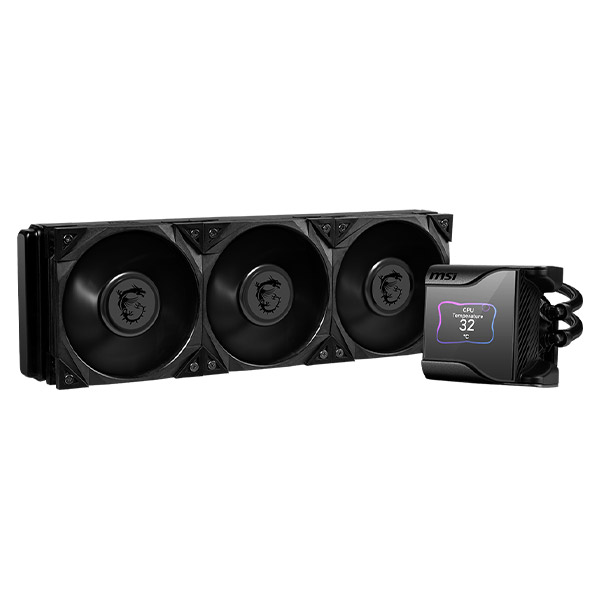

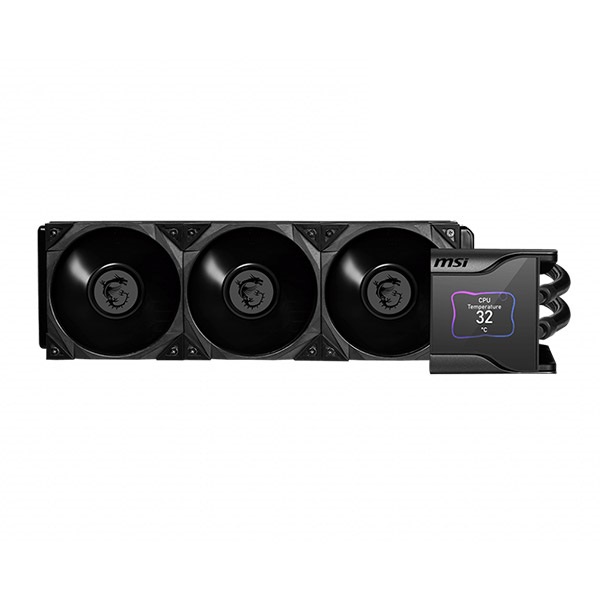

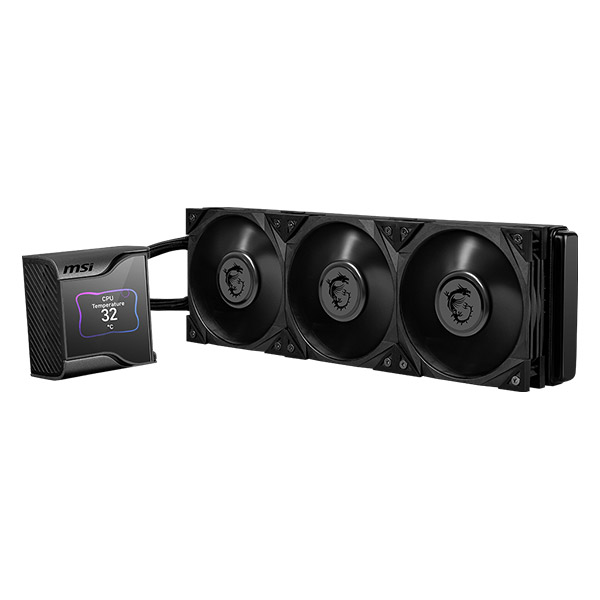

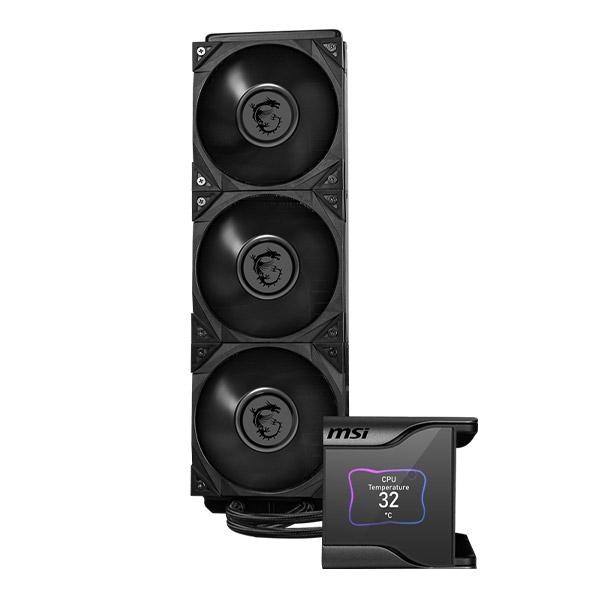

MSI MEG Coreliquid S360 CPU Liquid Cooler 360mm with Built-in 2.4” IPS display
Features :
- MSI’S MEG SILENT GALE P12 provides sufficient airflow to the radiator for cooling while maintaining low noise levels.
- A 60mm fan is placed within the water block to help dissipate heat for the M.2 SSD, CPU VRMs, and surrounding components.
- The MEG SILENT GALE P12 and the water block fan support 0% RPM to ensure zero noise under low temperatures.
- The MSI MEG Coreliquid S360 comes with a 2.4” IPS display capable of displaying hardware information, GIF, MP4, photos, texts, and live weather information.
- The MSI MEG Coreliquid S360 liquid cooler provides out of box support for LGA 1700.
MEG SILENT GALE P12
The MEG SILENT GALE P12 is MSI’s innovative silent fan designed to generate the most silent airflow.
CONCENTRATED COOLING PERFORMANCE
A 60mm fan is placed within the water block to help dissipate heat for the M.2 SSD, CPU VRMs, and surrounding components.
The MEG SILENT GALE P12 and the water block fan support 0% RPM to ensure zero noise under low temperatures.
2.4” CUSTOMIZABLE IPS DISPLAY
The MSI MEG Coreliquid S360 comes with a 2.4” IPS display capable of displaying hardware information, GIF, MP4, photos, texts, and live weather information.
TOTAL CONTROL IN YOUR HANDS
Everything ranging from MSI MEG Coreliquid S360 fan speed to the IPS display can be adjusted through the MSI Center.
LGA 1700 COMPATIBLE
The MSI MEG Coreliquid S360 liquid cooler provides out of box support for LGA 1700.
EVAPORATION PROOF TUBING
Constructed with three layers of netted plastic tubing and a reinforced mesh exterior.
Specifications :
Fan info | |
---|---|
Number of Fans | 3 |
Fan Dimensions | 120 x 120 x 25mm / 4.7 x 4.7 x 0.98 inches |
Fan Speed | 0 ~ 2000 RPM |
Fan Lighting | NA |
Fan Air Flow | 56.2 CFM |
Fan Noise Level | 22.7 dBA |
Fan Air Pressure | 2.21 mm-H2O |
Fan Bearing | Hydro-Dynamic Bearing (HDB) |
Fan Life Expectancy | 50,000 hours, 40oC |
Fan Rated Current | 0.4 A (Max) |
Fan Power Consumption | 4.8 W (Max) |
PWM Mode | Yes |
Cable Length (PWM cable) | 350mm; 13.78 inches |
ARGB Cable Connector | NA |
Radiator Info | |
Radiator Material | Aluminum |
Radiator Dimensions (W x D x H) | 394 x 120 x 27mm / 15.5 x 4.7 x 1.06 inches |
Cold Plate Material | Copper |
Water Cooling Pipe Material | Black Rubber + Mesh |
Water Cooling Pipe Length | 400mm / 15.75 inches |
Pump/Block Info | |
Block Dimensions (W x D x H) | 95 x 95 x 54 mm |
Panel Size | 2.4” |
Panel Type | IPS |
Panel Resolution | 320 x 240 |
Panel Color bit | 16 bits |
Panel Brightness | 500 nits |
Pump Life Expectancy | 50,000 hours |
Pump Noise Level | 21.2 dBA |
Pump Load Current | 0.33 A |
Pump Power Consumption | 4 W |
Pump Speed | PWM controlled; 100% duty cycle w/ 2800 +/-300 RPM |
SATA Power Cable | 650mm x 1 |
USB 2.0 Cable | 750mm x 1 |
Radiator Fan Cable | 400mm x 1 |
Pump / CPU Fan Cable | 400mm x 1 |
Socket Info | |
Intel Socket | LGA 1150/1151/1155/1156/1200/1700 LGA 2011/2011-3/2066 |
AMD Socket | AM4/FM2+/FM2/FM1/AM3+/AM3/AM2+/AM2 SocketTR4/sTRX4/SP3 |
