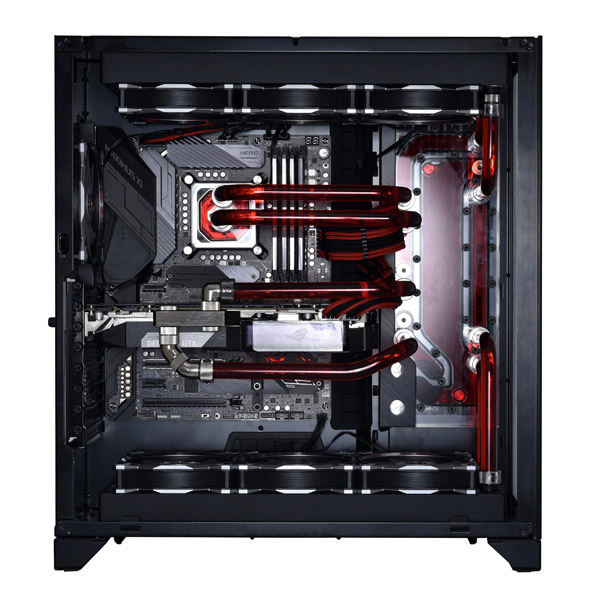

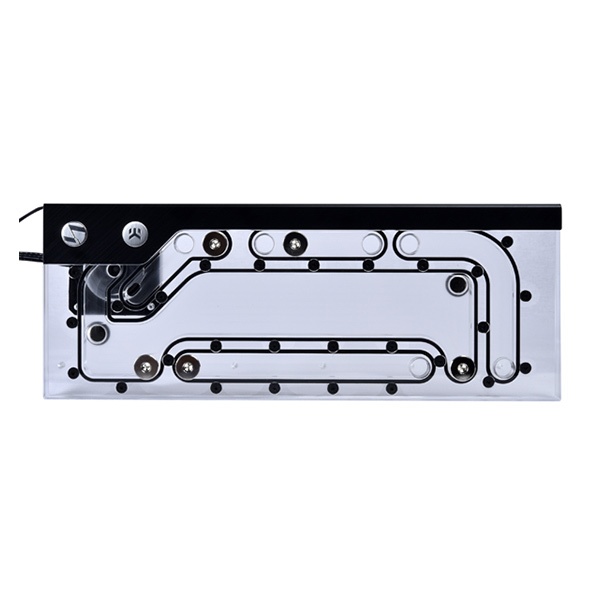

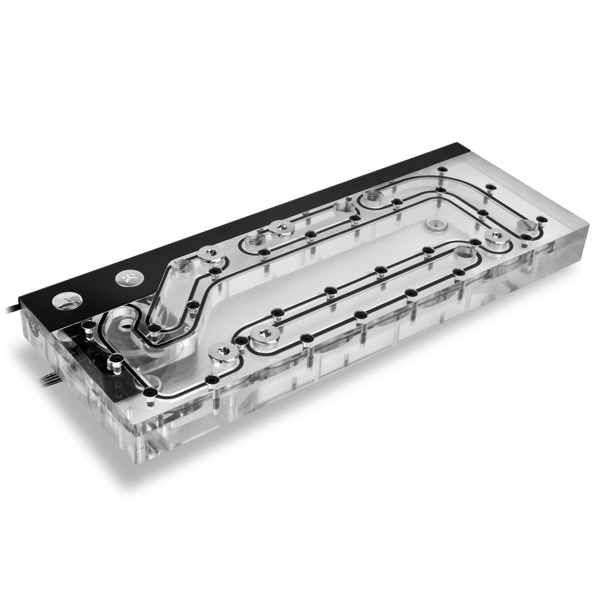

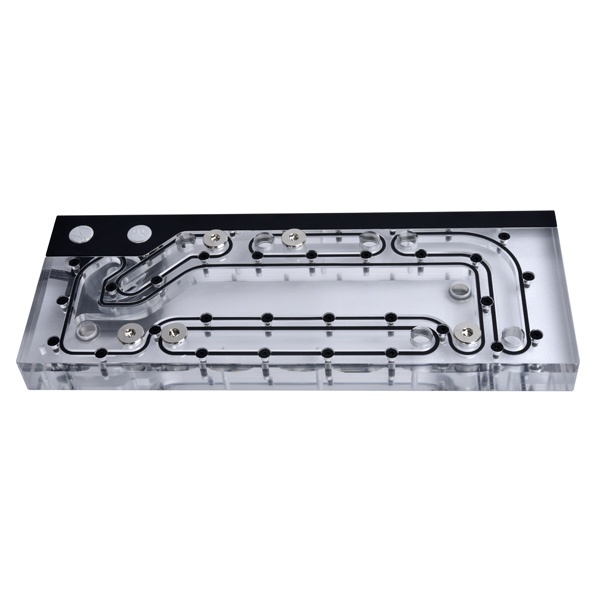

Lian Li Presents Lian Li O11D Distro Plate G1 a Premium Distro Plate Designed By EK Waterblocks, Lian Li O11D Distro Plate G1 Features ARGB Lighting, A Built in Pump, Multiple inlet and outlet ports and an adaptable solution for single GPU, dual GPU,vertical GPU, single radiator or dual radiator configuration
Overview :

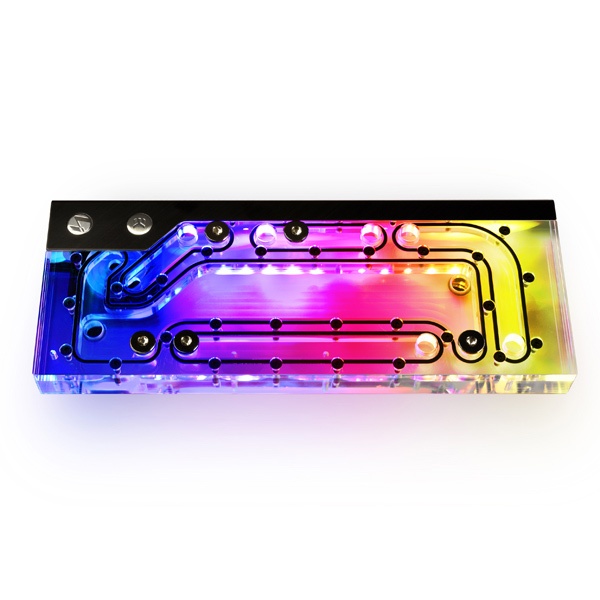

Designed by EK. Together we empower you to showcase your water-cooling skills. Multiple inlet and outlet ports. Provide an adaptable solution for single GPU, dual GPU,vertical GPU, single rad or dual rad configuration. ARGB in the front, take full control of the lighting by connecting the 5V header into the motherboard.
SPECIFICATIONS
| PRODUCT NAME | Lian Li O11D Distro Plate G1 |
|---|---|
| MODEL | LIAN LI O11D DISTRO-PLATE G1 DESIGNED BY EKWB WITH DDC 3.1 PUMP |
| DIMENSIONS | (L) 345 x (W) 131 x (H) 29 mm |
| MATERIAL | ACRYLIC (BODY) PPS-GF30, EPDM O-RINGS, ALUMINUM OXIDE, GRAPHITE (PUMP) |

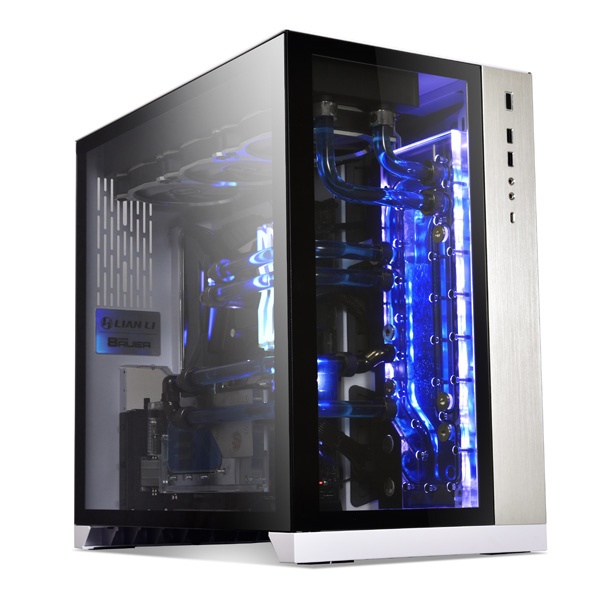

| COMPATIBILITY | O11D, O11D XL |
| ADDRESSABLE RGB LED STRIP | 1 (LED COUNT 18) |
| LED POWER CONSUMPTION | 0,3A 5V |
| CPU BLOCK SUPPORT | 1 CPU block |
| GPU BLOCK SUPPORT | UP TO 2 GPU BLOCKS IN SLOT 1 OR SLOT 2 |
| RADIATOR SUPPORT | UP TO 2 X 120/240/360MM RADIATORS UP TO 60MM IN THICKNESS |
| PORT THREAD TYPE | G1/4 |

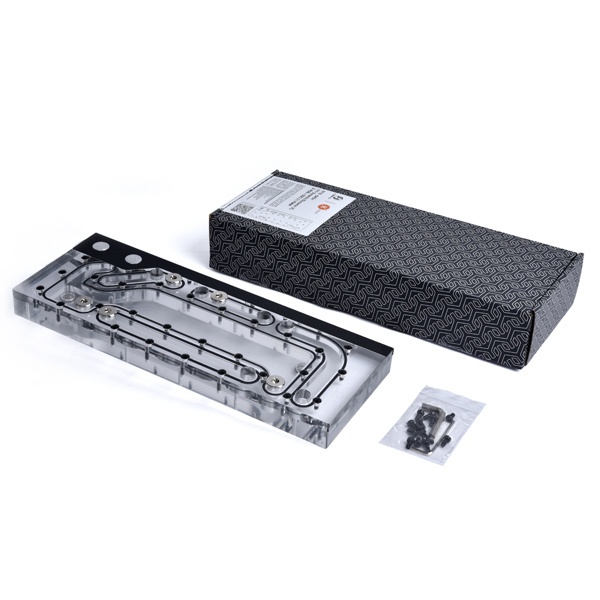

| MOUNTING HOLE SIZE | M4 (MOUNTING HARDWARE IS INCLUDED) |

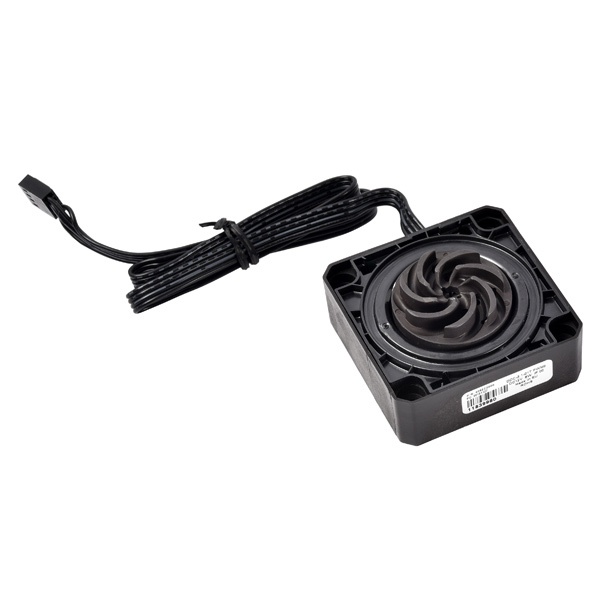

| PUMP ELECTRICAL & MECHANICAL PROPERTIES | |
| MOTOR | ELECTRONICALLY COMMUTED MOTOR |
| RATED VOLTAGE | 12V DC |
| POWER CONSUMPTION | 6W |
| MAXIMUM PRESSURE HEAD | 2.6M< |
| MAXIMUM FLOW | 500 L/H |
| MAXIMUM AMBIENT TEMPERATURE | 10-50°C |
| MAXIMUM FLUID TEMPERATURE | 10-60°C |
| POWER CONNECTOR | 4PIN PWM FAN CONNECTOR |
| CABLE LENTH | 50CM |
| TECHNICAL DATA | |
| RESERVOIR DIAMETER | 60mm |
| OVERALL HEIGHT | 121mm incl. pump |
| MOUNTING HOLE PATTERN | 50x50mm |
| OPERATIONAL REGIME | |
| PWM DUTY CYCLE | ~ 20-100% |
| DEFULT BEHAVIOR | Runs at 100% duty cycle when no PWM feedback signal is present. |
