LG 28MQ780-B Monitor :
Features :
- 27.6 (70.1cm) SDQHD (2560 x 2880) Nano IPS Display
- DCI-P3 98% (Typ.) with HDR10
- Ergonomic Stand with C-Clamp
- USB Type-C™ (90W Power Delivery)
- Live Color Low Blue Light, Built-in KVM
- Ambient Light Sensor
Overview :
Double the Screen, Twice the Experience
Enhance your efficiency with a new format of 16:18 aspect ratio SDQHD display.
Stunning Image Quality
SDQHD (2560 x 2880) Nano IPS DCI-P3 98% (Typ.) & HDR10
Ergonomics
Ergonomic Stand with C-Clamp Various Movement of Display
User Convenience
USB Type-C™ Easy Installation
New DualUp Monitor UNBOXING and SETUP
Let’s going to take a look inside of new DualUp monitor box and get to know the process of installing it, one by one.
More Screen and Less Space
DualUp monitor only occupied compact space for one monitor but this 16:18 aspect ratio monitor support, two 21.5-(70.1cm) monitors (16:9 aspect ratio), at one screen. It enhances work efficiency and productivity at the same time.

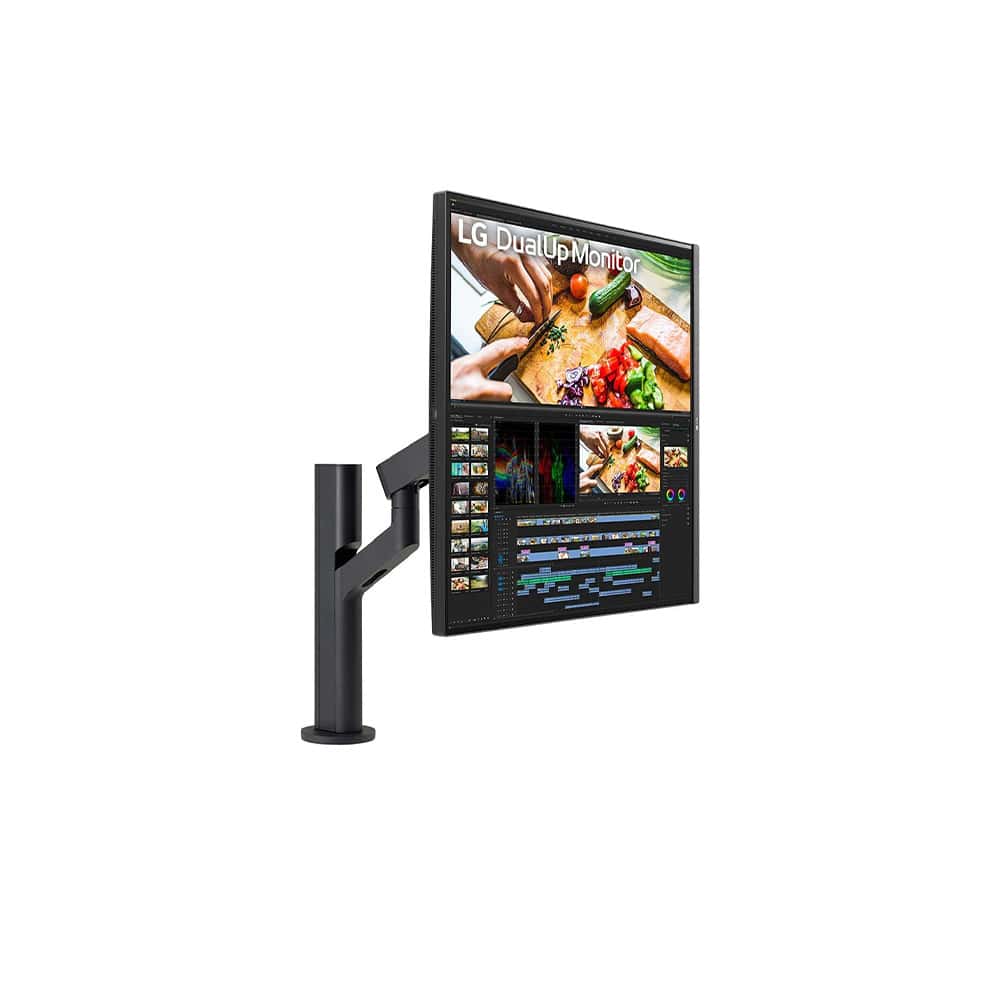

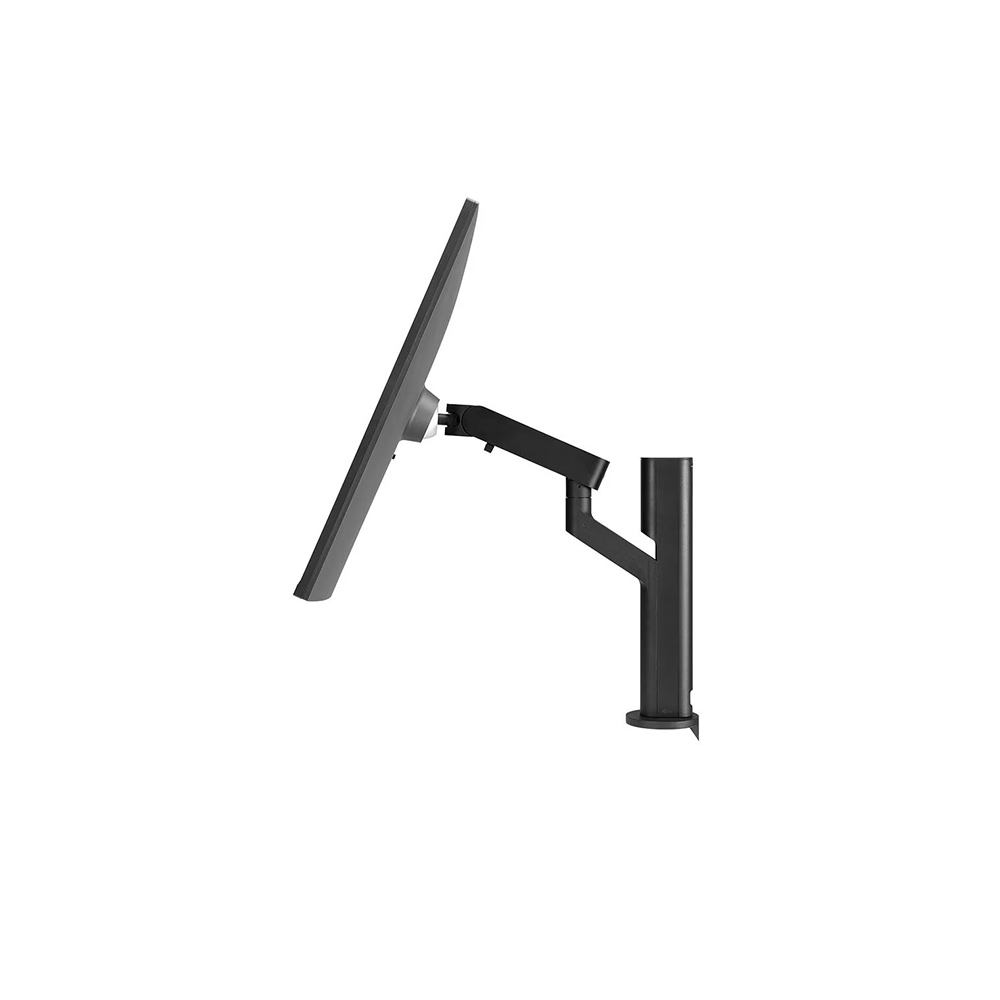

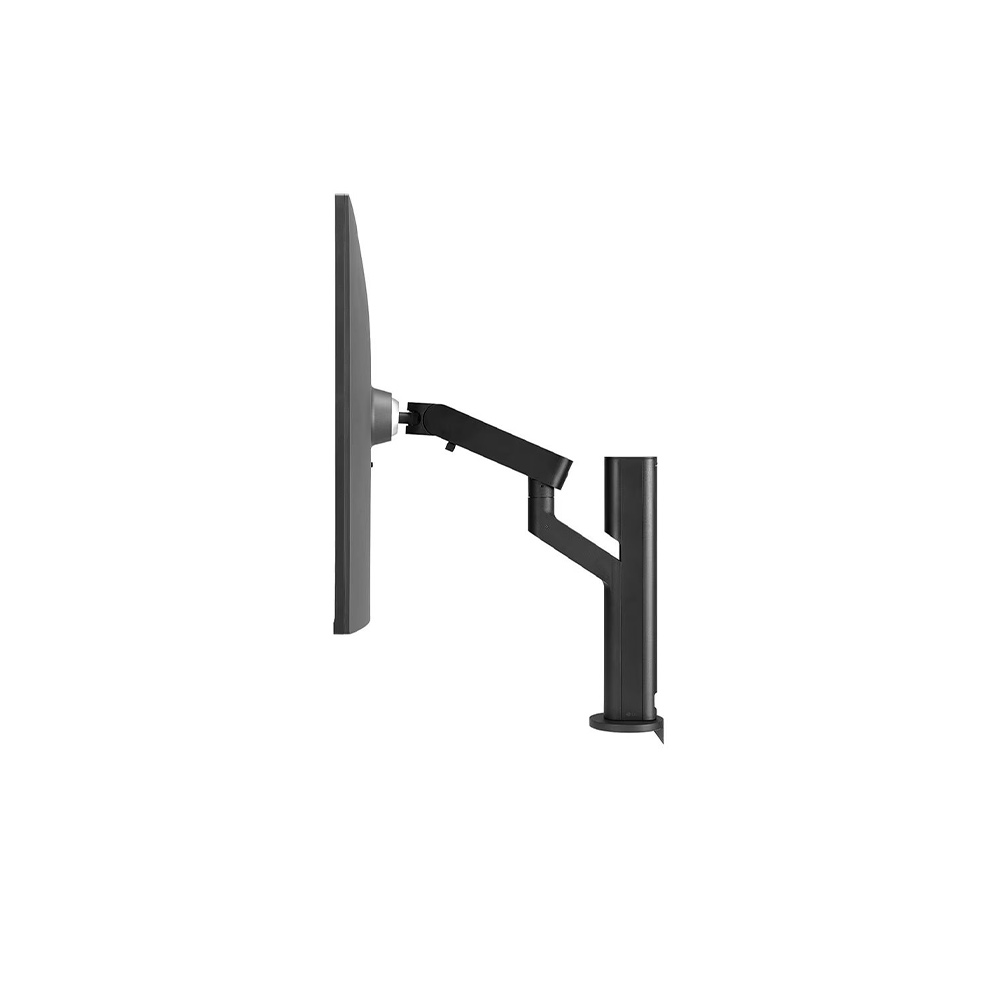

Ergonomic Movement within Eye Rotation Range
Enhanced flexibility of the Ergo stand* offers expanded ergonomic adjustment of extend, retract, swivel, pivot, height and tilt as well as providing perfect position of screen for more comfortable and sustainable user experience.
Stunning Image Quality, Apposite to Your Work
The 27.6 (70.1cm) SDQHD (2560 x 2880, 16:18 aspect ratio) Nano IPS display supports a wide colour spectrum, 98% of DCI-P3 colour gamut, and offers vibrant colour reproduction with the support of HDR10.
Increase Viewing Comfort while Maintaining Colour Quality
LG‘s Live Colour Low Blue Light with TÜV Rheinland Eyesafe® Display Certification helps to protect your eyes against blue light by combining RGB hardware and software adjustments while maintaining vivid colour quality.
Reducing Eye Strain with Auto Brightness Control
The sensor reacts to light, making the screen brighter in bright areas and darker in the dark. It provides a comfortable working environment.
Ideal Monitor for Creating, Developing, and Multitasking
LG DualUp Monitor, a new style display of 16:18 aspect ratio, helps to boost efficiency and productivity. You can check more information at a glace within the extended upper and lower space.
Easy Control and Connectivity
USB Type-C™ port allows from display and data transferring to connected device charging (up to 90W), enabling support for your laptop all at the same time over a single cable.
How to Utilize DualUp Monitor Set-up
- PBP & Built-in KVM*
DualUp monitor allows you to control multiple contents from two computers with the picture-by-picture feature. Also, the built-in KVM feature helps to manage content with a single keyboard and mouse. - 1 Source PBP**
By connecting two cables, out of HDMI, DisplayPort, and USB Type-C™, you can utilize a dual monitor setup with 28MQ780. It helps to control two-screen easily without using software or shortcut keys.
Fully Use Your Desk
Basically, for the dual monitor set-up without DualUp monitor but conventional monitors, more than 2-times are required compared to the existing space. DualUp monitor helps users to set workspace comfortably in their current space. Also, C-Clamp & Grommet and One Click Mount make it to install easily without other equipment.
Specifications :
Product name | DualUpYear Y22 |
PICTURE QUALITY | |
Size (cm) | 70.1 cm |
Resolution | 2560 x 2880 |
Panel Type | IPS |
Aspect Ratio | 16:18 |
Pixel Pitch | 0.18195 x 0.18195 mm |
Brightness (Min.) | 240 cd/m² |
Brightness (Typ.) | 300 cd/m² |
Color Gamut (Min.) | DCI-P3 90% (CIE1976) |
Color Gamut (Typ.) | DCI-P3 98% (CIE1976) |
Color Depth | 1.07B |
Contrast Ratio (Min.) | 700:1 |
Contrast Ratio (Typ.) | 1000:1 |
Response Time | 5ms (GtG at Faster) |
Refresh Rate (Max.) [Hz] | 60 |
Viewing Angle (CR≥10) | 178º(R/L), 178º(U/D) |
POWER | |
Type | External Power(Adapter) |
AC Input | 100-240V 2.5A |
Power Consumption (Typ.) | 40W |
Power Consumption (Max.) | 190W |
Power Consumption (Energy Star) | 28.31W |
Power Consumption (Sleep Mode) | Less than 0.5W |
Power Consumption (DC Off) | Less than 0.3W |
STAND | |
Display Position Adjustments | Tilt/Height/Swivel/Pivot/Extend/Retract |
INPUT/OUTPUT | |
HDMI | Yes (2ea) |
DisplayPort | Yes (1ea) |
DP Version | 1.4 |
USB-C | Yes(1ea) |
USB-C (Max. Resolution at Hz) | 2560×2880 at 60Hz |
USB-C (Data Transsmission) | Yes |
USB-C (Power Delivery) | 90W |
USB Upstream Port | Yes (1ea/ver2.0) |
USB Downstream Port | Yes (2ea/ver3.0) |
Built-in KVM | Yes |
Headphone Out | 3-pole (Sound Only) |
SOUND | |
Speaker | 7W x 2 |
Maxx Audio | Yes |
DIMENSIONS/WEIGHT | |
Dimension with Stand (W x H x D) | 481.5 x 843.2 x 461.3mm |
Dimension without Stand (W x H x D) | 481.5 x 549.5 x 44.9mm |
Dimension in Shipping (W x H x D) | 745 x 240 x 557 mm |
Weight with Stand | 9.0kg |
Weight without Stand | 4.3kg |
Weight in Shipping | 13.2kg |
CABINET/ACCESSORIES | |
Wall Mountable | 100 x 100 mm |
HDMI | Yes |
USB Type C | Yes |
USB A to B | Yes |
Remote Controller | Yes |
Special Features | |
HDR 10 | Yes |
HDR Effect | Yes |
Nano IPS™ Technology | Yes |
Color Calibrated in Factory | Yes |
Auto Brightness | Yes |
Flicker safe | Yes |
Reader Mode | Yes |
Color Weakness | Yes |
Super Resolution+ | Yes |
Black Stabilizer | Black Stabilizer |
Dynamic Action Sync | Yes |
User Defined Key | Yes |
Auto Input Switch | Yes |
PBP | Yes (2PBP) |
Others (Feature) | Low Blue LightDual controller |
OnScreen Control (LG Screen Manager) | Yes |
