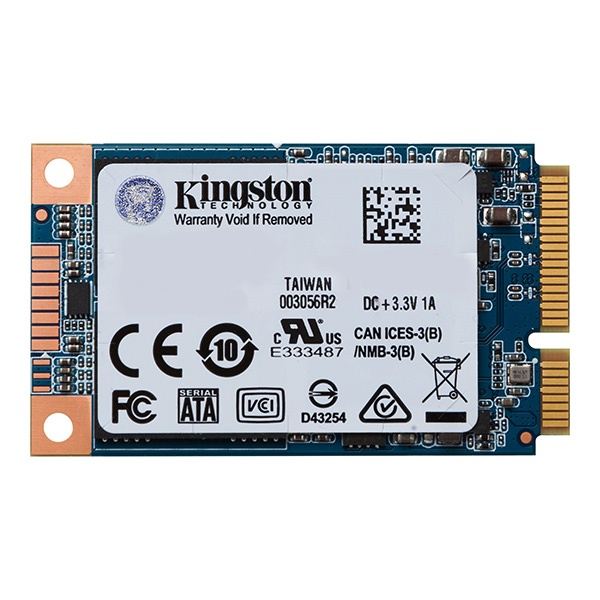

Kingston UV500 SSD mSATA solid-state drive featuring 120GB Capacity & read and write speeds of up to 520MB/s and 320MB/s
FEATURES
Kingston’s UV500 SSD dramatically improves your system’s responsiveness with incredible boot, loading, and transfer times compared to mechanical hard drives. It uses a Marvell 88SS1074 controller and 3D NAND Flash to power through daily tasks and improve productivity. UV500 also provides end-to-end data protection using 256-bit AES Hardware-based encryption and support for TCG Opal 2.0 security management solutions.
Key Features
- Next-Gen 64-layer, 3D TLC NAND
- AES 256-bit Hardware Encryption Self-Encrypting Drive (SED) and TCG Opal 2.0
- 10X faster than a 7200RPM hard drive
- Multiple capacity 120GB
- GDPR Ready
- 5 year warranty
Specifications
| Form factor | mSATA |
| Interface | SATA Rev. 3.0 (6Gb/s) – with backwards compatibility to SATA Rev. 2.0 (3Gb/s) |
| Capacities | 120GB |
| Controller | Marvell 88SS1074 Controller |
| NAND | 3D TLC |
| Encryption | Encryption Support (AES 256-bit) |
| Sequential Read/Write2 | 120GB — up to 520/320MB/s |
| Maximum 4K Read/Write2 | 120GB — up to 79,000/18,000 IOPS |
| Power Consumption | 0.195W Idle / 0.5W Avg / 1.17W (MAX) Read / 2.32 W (MAX) Write |
| Dimensions | 50.8mm x 29.85mm x 4.85mm (mSATA) |
| Operating temperature | 0°C~70°C |
| Storage temperature | -40°C~85°C |
| Weight | 120GB — 6.2g (mSATA) |
| Vibration operating | 2.17G Peak (7–800Hz) |
| Vibration non-operating | 20G Peak (10–2000Hz) |
| Life expectancy | 1 million hours MTBF |
| Total Bytes Written (TBW)4 | 120GB — 60TB |
| Warranty | 5 Years |
