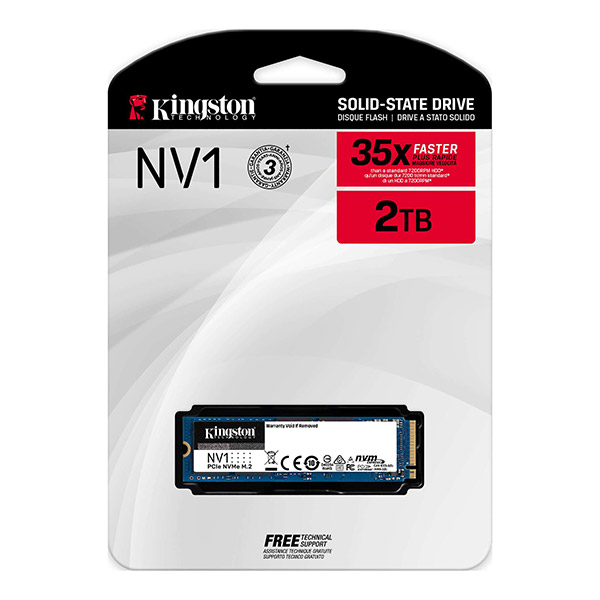

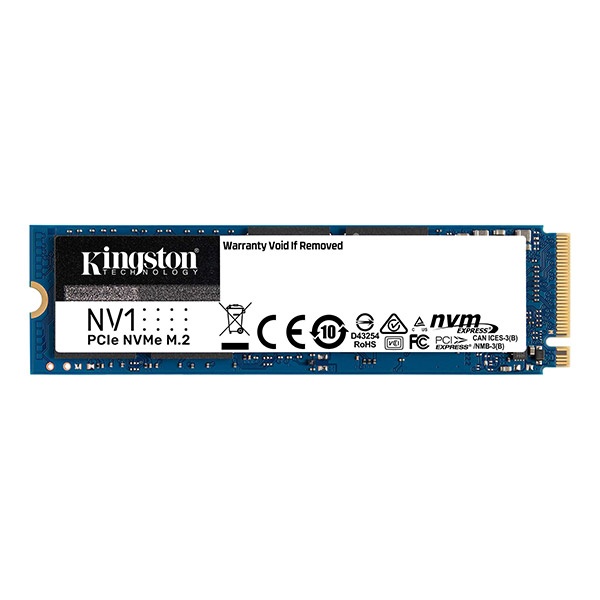

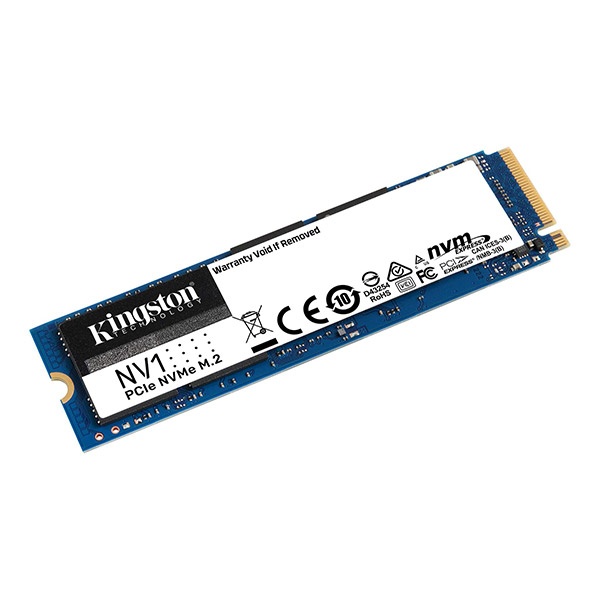

Kingston NV1 2000GB M.2 NVMe Internal SSD :
Efficient performance for thinner notebooks and systems
Kingston NV1 2000GB M.2 NVMe PCIe SSD is a substantial storage solution that offers read/write1 speeds up to 2,100/1,700MB/s, which is 3 to 4 times faster than a SATA-based SSD, and 35 times faster than a traditional hard drive. NV1 works with lower power, lower heat, and quicker loading time. The efficient performance and single-sided M.2 2280 (22x80mm) design makes NV1 ideal for thin notebooks and systems with limited space.
Available in capacities from 500GB – 2TB2 to give you all the space you need for applications, documents, photos, videos, and more.
Features :
- NVMe PCIe SSD Performance
- 3-year limited warranty
- Up to 2,100MB/s Read, 1,700MB/s Write
- Product contains drive only; cloning software not included.
Overview :
NVMe PCIe Performance
Kingston NV1 2000GB M.2 NVMe Offers read/write speeds up to 2,100/1,700MB/s
Ideal for systems with limited space
Kingston NV1 2000GB M.2 NVMe Easily integrate into designs with M.2 connectors. Perfect for thin laptops and small form factor PCs.
Multiple Capacities
Available in a range of capacities up to 2TB2 to meet your data storage requirements.
Specifications :
Form Factor | M.2 2280 |
Interface | NVMe™ PCIe Gen 3.0 x 4 Lanes |
Capacities2 | 250GB, 500GB, 1TB, 2TB |
Sequential Read/Write1 | 250GB – 2100/1100MB/s |
500GB, 1TB, 2TB – 2100/1700MB/s | |
Endurance3 | 250GB – 60TBW |
500GB – 120TBW | |
1000GB – 240TBW | |
2000GB – 480TBW | |
Power Consumption | 250GB: 5mW Idle / 85.5mW Avg / 0.99W (MAX) Read / 1.5W (MAX) Write |
500GB: 5mW Idle / 205mW Avg / 1.1W (MAX) Read / 3.3W (MAX) Write | |
1000GB: 5mW Idle / 220mW Avg / 1.1W (MAX) Read / 3.3W (MAX) Write | |
2000GB: 5mW Idle / 340mW Avg / 1.1W (MAX) Read / 3.3W (MAX) Write | |
Storage Temperature | -40°C~85°C |
Operating Temperature | 0°C~70°C |
Dimensions | 22mm x 80mm x 2.1mm |
Weight | 7g (All capacities) |
Vibration Operating | 2.17G (7-800 Hz) |
Vibration Non-operating | 20G (20-1000Hz) |
Warranty/Support4 | Limited 3-year warranty with free technical support |
