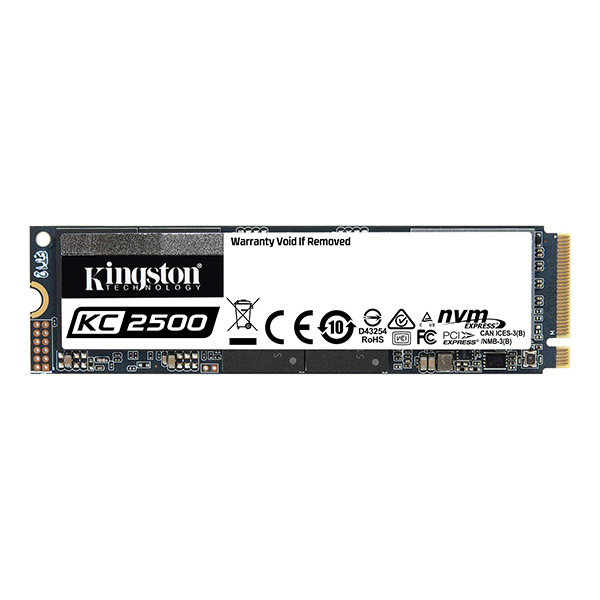

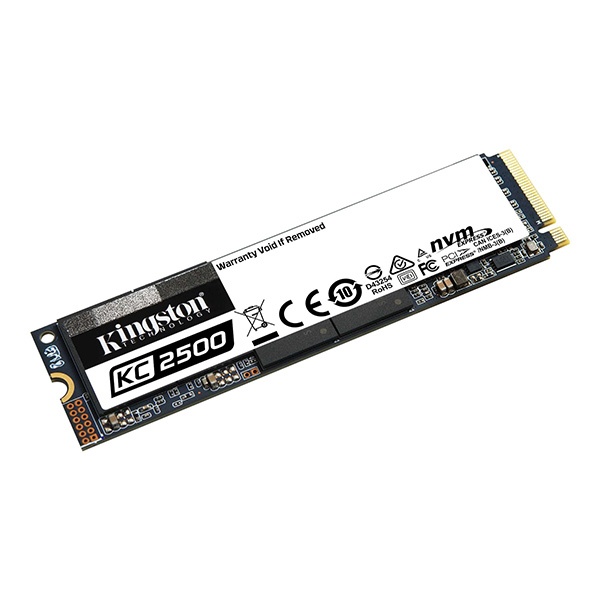

Kingston KC2500 Series PCIe Gen 3.0 x4 Self Encrypting Internal SSD, Featuring 2TB Capacity, Read / Write Speeds Upto 3500 / 2900 MB/s and An Endurance Rating of 1.2 PBW.
Features
Kingston’s KC2500 NVMe PCIe SSD delivers powerful performance using the latest Gen 3.0 x 4 controller and 96-layer 3D TLC NAND. With read/write speeds up to 3,500/2,900MB/s1, KC2500 delivers outstanding endurance and improves the workflow in desktop, workstations, and high-performance computing (HPC) systems. The compact M.2 design gives greater flexibility, increasing storage but also saving space.
KC2500 is a self-encrypting drive that supports end-to-end data protection using XTS-AES 256 bit Hardware-based encryption and allows the usage of independent software vendors with TCG Opal 2.0 security management solutions such as Symantec™, McAfee™, WinMagic® and others. KC2500 also has built-in Microsoft eDrive support, a security storage specification for use with BitLocker.
Key Features
- Incredible NVMe PCIe performance
- Supports a full-security suite (TCG Opal 2.0, XTS-AES 256 bit, eDrive)
- Ideal for desktop, workstations, and high-performance computing (HPC) systems
- Using the latest Gen 3.0 x 4 controller to reach speeds up to 3,500/2,900MB/s
- Protect and secure your data with Kingston’s self-encrypting drive
Specifications
| Model | SKC2500M8/2000G |
| Form Factor | M.2 2280 |
| Interface | NVMe™ PCIe Gen 3.0 x 4 Lanes |
| Capacities | 2000GB |
| Controller | SMI 2262EN |
| NAND | 96-layer 3D TLC |
| Encrypted | XTS-AES 256 bit |
| Sequential Read/Write1 | 2TB – up to 3,500/2,900MB/s |
| Random 4K Read/Write1 | 2TB – up to 375,000/300,000 IOPS |
| Total Bytes Written (TBW3 | 2TB – 1.2PBW |
| Power Consumption | .003W Idle / .2W Avg / 2.1W (MAX) Read / 7W (MAX) Write |
| Storage Temperature | -40°C~85°C |
| Operating Temperature | 0°C~70°C |
| Dimensions | 80mm x 22mm x 3.5mm |
| Weight | 2000GB – 11g |
| Vibration Operating | 2.17G Peak (7-800Hz) |
| Vibration Non-operating | 20G Peak (20-1000Hz) |
| MTBF | 2,000,000 |
| Warranty | 5 Years |
