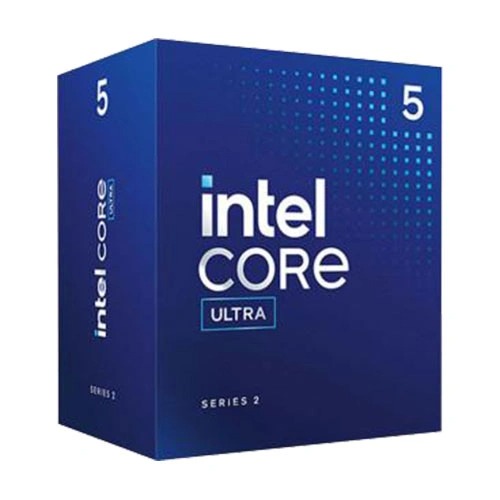

Intel Core Ultra 5 235 Desktop Processor – 14 Cores / 14 Threads
Overview:
Intel Core Ultra 5 235 comes with 14 cores and 14 threads, 5.00 GHz Max Turbo frequency, delivers amazingly smooth performance for demanding applications and gaming. It’s also future-proof with PCIe 5.0 and DDR5 support, making it well ready for next Motherboards and memory.
Intel Core Ultra 5 235 Its 24 MB Intel Smart Cache and enhances data access speed, reducing latency. With a base power consumption of 65W and a maximum turbo power of 121W, the processor indicating strong performance even under heavy workloads. It supports up to 256 GB of memory, compatible with DDR5 memory types at speeds up to 6400 MT/s, and supports ECC Memory operates on dual memory channels for improved bandwidth. The processor is designed for FCLGA1851 sockets and is compatible with B860 and Z890 motherboards, making it ideal for high-end desktops and other updated PC’s. This Intel Core Ultra 5 235 CPU offers a perfect balance of power, efficiency, and scalability for advanced computing needs.
Even this Intel Core Ultra 5 2 processor comes with Intel Graphics, which offering strong performance, multi-core efficiency, and future-proofing with its support for the latest technology.
Specifications:
| Product Collection | Intel® Core™ Ultra Processors (Series 2) |
| Code Name | Arrow Lake |
| Vertical Segment | Desktop |
| Processor Number | 235 |
| Recommended Customer Price | $247.00 – $257.00 |
| Overall Peak TOPS (Int8) | 27 |
| Total Cores | 14 |
| Performance Cores (P-Cores) | 6 |
| Efficient Cores (E-Cores) | 8 |
| Low Power Efficient Cores | 0 |
| Total Threads | 14 |
| Max Turbo Frequency | 5.0 GHz |
| Performance-core Max Turbo Frequency | 5.0 GHz |
| Efficient-core Max Turbo Frequency | 4.4 GHz |
| Performance-core Base Frequency | 3.4 GHz |
| Efficient-core Base Frequency | 2.9 GHz |
| Intel Smart Cache | 24 MB |
| Total L2 Cache | 26 MB |
| Processor Base Power | 65 W |
| Maximum Turbo Power | 121 W |
| CPU Lithography | TSMC N3B |
| Intel® DL Boost (CPU) | Yes |
| AI Frameworks (CPU) | OpenVINO™, WindowsML, DirectML, ONNX RT, WebNN |
| Marketing Status | Launched |
| Launch Date | Q1’25 |
| Embedded Options Available | No |
| Use Conditions | PC/Client/Tablet, Workstation |
| Max Memory Size | 256 GB |
| Memory Type | DDR5 up to 6400 MT/s |
| Memory Channels | 2 |
| ECC Memory Support | Yes |
| Integrated Graphics | Intel® Graphics |
| Graphics Base Frequency | 300 MHz |
| Graphics Max Dynamic Frequency | 2 GHz |
| GPU Peak TOPS (Int8) | 6 |
| Xe-Cores | 3 |
| Graphics Outputs | eDP 1.4b, DP 2.1 UHBR20, HDMI 2.1 FRL |
| Max Resolution (HDMI) | 4096 × 2304 @ 60Hz (HDMI 2.1 TMDS)7680 × 4320 @ 60Hz (HDMI 2.1 FRL) |
| Max Resolution (DisplayPort) | 7680 × 4320 @ 60Hz |
| Max Resolution (eDP) | 3840 × 2400 @ 120Hz |
| DirectX Support | 12 |
| OpenGL Support | 4.5 |
| OpenCL Support | 3.0 |
| H.264 Encode/Decode | Yes |
| H.265 (HEVC) Encode/Decode | Yes |
| AV1 Encode/Decode | Yes |
| Intel® Quick Sync Video | Yes |
| Displays Supported | 4 |
| Graphics Device ID | 0x7D67 |
| Intel® DL Boost (GPU) | Yes |
| AI Frameworks (GPU) | OpenVINO™, WindowsML, DirectML, ONNX RT, WebGPU |
| NPU Name | Intel® AI Boost |
| NPU Peak TOPS (Int8) | 13 |
| Sparsity Support | Yes |
| Windows Studio Effects Support | Yes |
| AI Frameworks (NPU) | OpenVINO™, WindowsML, DirectML, ONNX RT, WebNN |
| DMI Revision | 4 |
| Max DMI Lanes | 8 |
| Intel® Thunderbolt™ 4 | Yes |
| Scalability | 1S Only |
| PCI Express Revision | PCIe 5.0 and PCIe 4.0 |
| PCIe Configurations | Up to 1×16 + 2×4, 2×8 + 2×4, 1×8 + 4×4 |
| Max PCIe Lanes | 24 |
| Socket Support | FCLGA1851 |
| Thermal Solution Specification | PCG 2022C |
| Max Operating Temperature | 105°C |
| Package Size | 45 × 37.5 mm |
| Intel® Gaussian & Neural Accelerator | 3.5 |
| Intel® Thread Director | Yes |
| Intel® Speed Shift Technology | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Hyper-Threading Technology | No |
| Intel® 64 | Yes |
| Instruction Set | 64-bit |
| Instruction Set Extensions | Intel® SSE4.1, SSE4.2, AVX2 |
| Idle States | Yes |
| Enhanced Intel SpeedStep® Technology | Yes |
| Thermal Monitoring Technologies | Yes |
| Intel® Volume Management Device (VMD) | Yes |
| Intel vPro® Eligibility | Intel vPro® Enterprise |
| Intel® Threat Detection Technology (TDT) | Yes |
| Intel® Active Management Technology (AMT) | Yes |
| Intel® Standard Manageability (ISM) | Yes |
| Intel® Remote Platform Erase (RPE) | Yes |
| Intel® One-Click Recovery | Yes |
| Intel® Secure Key | Yes |
| Intel® Control-Flow Enforcement Technology | Yes |
| Intel® Total Memory Encryption – Multi Key | Yes |
| Intel® AES New Instructions | Yes |
| Intel® Trusted Execution Technology | Yes |
| Execute Disable Bit | Yes |
| Intel® OS Guard | Yes |
| Intel® Boot Guard | Yes |
| Mode-based Execute Control (MBEC) | Yes |
| Intel® Stable IT Platform Program (SIPP) | Yes |
| Intel® Virtualization Technology with Redirect Protection (VT-rp) | Yes |
| Intel® Virtualization Technology (VT-x) | Yes |
| Intel® Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® VT-x with Extended Page Tables (EPT) | Yes |
