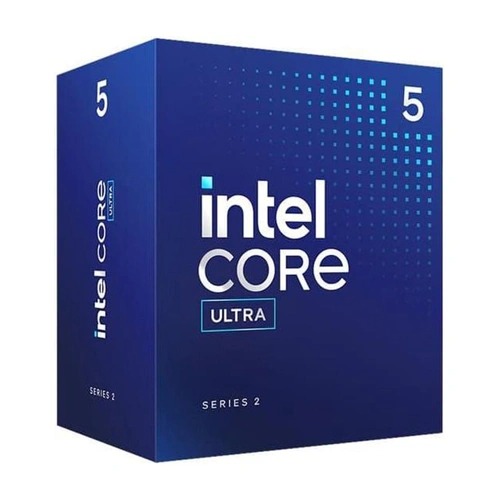

Intel Core Ultra 5 225 Desktop Processor – 10 Cores (6P+4E) / 10 Threads
Overview:
Intel Core Ultra 5 Processor 225 comes with 10 cores and 10 threads, 4.9 GHz Max Turbo frequency, delivers amazingly smooth performance for demanding applications and gaming. It’s also future-proof with PCIe 5.0 and DDR5 support, making it well ready for next Motherboards and memory.
Intel Core Ultra 5 225 Its 20 MB Intel Smart Cache and enhances data access speed, reducing latency. With a base power consumption of 65W and a maximum turbo power of 121W, the processor indicating strong performance even under heavy workloads. It supports up to 256 GB of memory, compatible with DDR5 memory types at speeds up to 6400 MT/s, and operates on dual memory channels for improved bandwidth. The processor is designed for FCLGA1851 sockets and is compatible with B860 and Z890 motherboards, making it ideal for high-end desktops and other updated PC’s. This Intel Core Ultra 5 225 CPU offers a perfect balance of power, efficiency, and scalability for advanced computing needs.
Even this Intel Core Ultra 5 225 processor comes with Intel Graphics, which offering strong performance, multi-core efficiency, and future-proofing with its support for the latest technology.
Specification :
| Total Cores | 10 |
| # of Performance-cores | 6 |
| # of Efficient-cores | 4 |
| Total Threads | 10 |
| Max Turbo Frequency | 4.9Ghz |
| Performance-core Max Turbo Frequency | 4.9Ghz |
| Efficient-core Max Turbo Frequency | 4.4Ghz |
| Performance-core Base Frequency | 3.3Ghz |
| Efficient-core Base Frequency | 2.7Ghz |
| Cache | 20 MB Intel® Smart Cache |
| Total L2 Cache | 22 MB |
| Processor Base Power | 65W |
| Maximum Turbo Power | 121W |
| Intel® Deep Learning Boost (Intel® DL Boost) on CPU | Yes |
| AI Software Frameworks Supported by CPU | OpenVINO™, WindowsML, DirectML, ONNX RT, WebNN |
| CPU Lithography | TSMC N3B |
| Supplemental Information | |
| Marketing Status | Launched |
| Launch Date | Q1’25 |
| Embedded Options Available | No |
| Use Conditions | PC/Client/Tablet |
| Memory Specifications | |
| Max Memory Size (dependent on memory type) | 256GB |
| Memory Types | Up to DDR5 6400 MT/s |
| Max # of Memory Channels | 2 |
| CC Memory Supported | No |
| GPU Specifications | |
| GPU Name | Intel® Graphics |
| Graphics Base Frequency | 300 MHz |
| Graphics Max Dynamic Frequency | 1.8 Ghz |
| GPU Peak TOPS (Int8) | 4 |
| Graphics Output | DP2.1 UHBR20, HDM2.1 FRL 12GHz, eDP1.4b |
| X-Cores | 2 |
| Max Resolution (HDMI) | 4K @ 60Hz (HDMI 2.1 TMDS) 8K @ 60Hz (HDMI2.1 FRL) |
| Max Resolution (DP) | 8K @ 60Hz |
| Max Resolution (eDP – Integrated Flat Panel) | 4K @ 60Hz |
| DirectX* Support | 12 |
| Open GL Support | 4.5 |
| OpenCL* Support | 3 |
| Intel® Quick Sync Video | Yes |
| # of Displays Supported | 4 |
| Intel® Deep Learning Boost (Intel® DL Boost) on GPU | Yes |
| NPU Specifications | |
| NPU Name | Intel® AI Boost |
| NPU Peak TOPS (Int8) | 13 |
| Sparsity Support | Yes |
| Windows Studio Effects Support | Yes |
| AI Software Frameworks Supported by NPU | OpenVINO™, WindowsML, DirectML, ONNX RT, WebNN |
| Expansion Options | |
| Direct Media Interface (DMI) Revision | 4 |
| Max # of DMI Lanes | 8 |
| Intel® Thunderbolt™ 4 | Yes |
| Scalability | 1S Only |
| PCI Express Revision | 5.0 and 4.0 |
| PCI Express Configurations | Up to 1×16+2×4, 2×8+2×4, 1×8+4×4 |
| Max # of PCI Express Lanes | 24 |
| Package Specifications | |
| Sockets Supported | FCLGA1851 |
| Thermal Solution Specification | PCG 2022C |
| Max Operating Temperature | 105 °C |
| Advanced Technologies | |
| Intel® Gaussian & Neural Accelerator | 3.5 |
| Intel® Thread Director | Yes |
| Intel® Speed Shift Technology | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® 64 | Yes |
| Instruction Set | 64 Bit |
| Instruction Set Extensions | Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2 |
| Idle States | Yes |
| Enhanced Intel SpeedStep® Technology | Yes |
| Thermal Monitoring Technologies | Yes |
| Intel® Volume Management Device | Yes |
| Security & Reliability | |
| Intel® Standard Manageability (ISM) | Yes |
| Intel® Secure Key | Yes |
| Intel® Control-Flow Enforcement Technology | Yes |
| Intel® AES New Instructions | Yes |
| Intel® Trusted Execution Technology | Yes |
| Execute Disable Bit | Yes |
| Intel® OS Guard | Yes |
| Intel® Boot Guard | Yes |
| Mode-based Execute Control (MBEC) | Yes |
| Intel® Virtualization Technology (VT-x) | Yes |
| Intel® Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® VT-x with Extended Page Tables (EPT) | Yes |
| Warranty | 3 Years |
