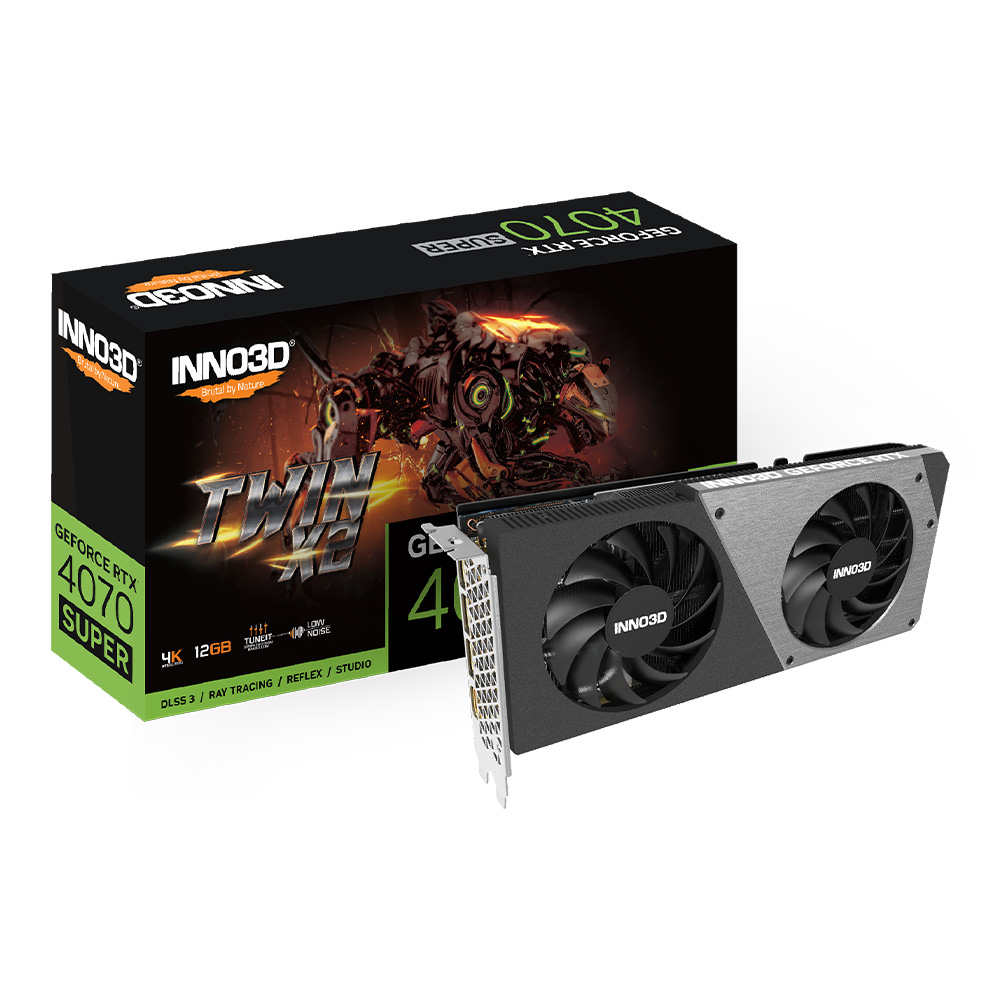

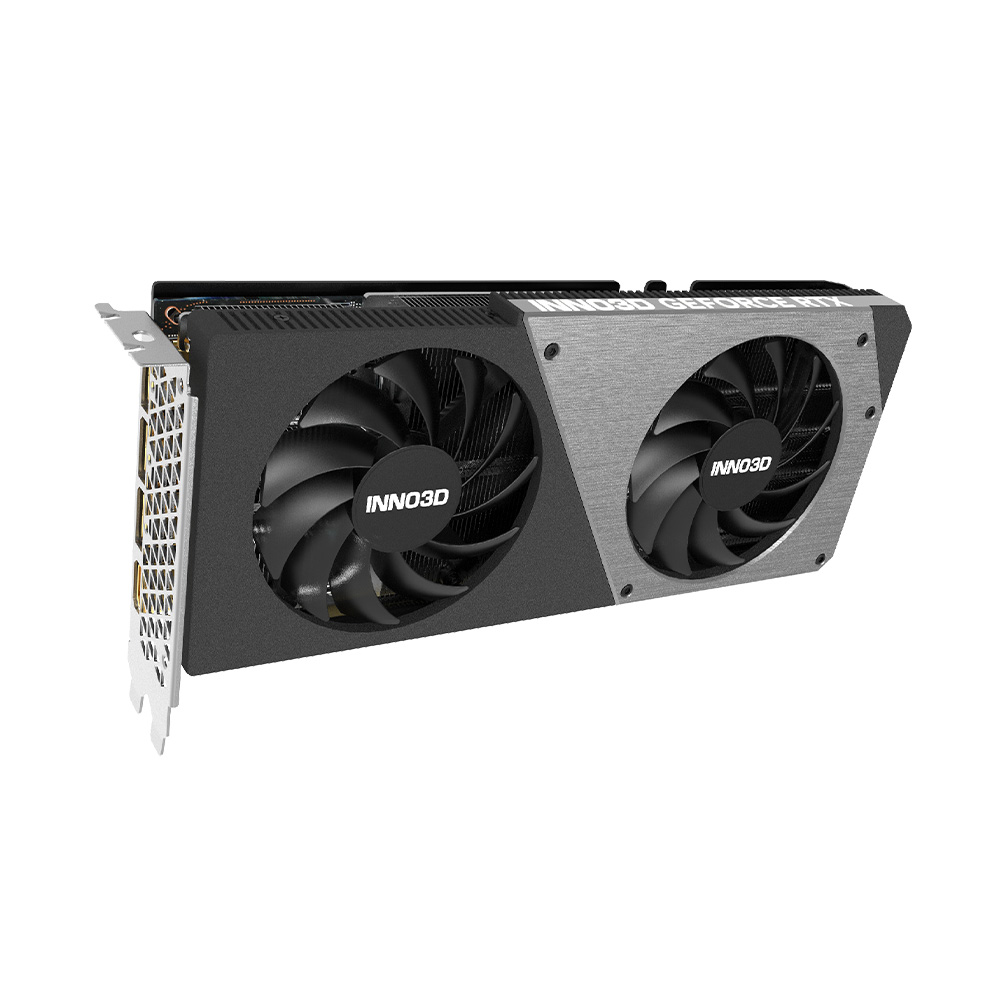

Inno3d RTX 4070 Super Twin X2 12GB Graphics Card :
Features :
- POWERFUL DUAL FAN
- DUAL SLOT
- ALUMINUM BASE
- HEATSINK DESIGN
- MULTIFUNCTIONAL BACKPLATE
Overview :
POWERFUL DUAL FAN
88mm scythe fan blades for optimal cooling with detachable fan blades in Inno3d RTX 4070 Super Twin X2 12GB.
DUAL SLOT
Two slot form factor is an excellent option for MATX and ITX SFF (small form factor) builds in Inno3d RTX 4070 Super Twin X2 12GB.
COPPER BASE
– Full coverage for GPU
– Absorb the heat effectively and spread out by heatpipes
OPTIMIZED FIN THICKNESS AND SPACING
– Increased airflow between the fins
ALUMINUM BASE
– Full coverage tor Memory
– Spread out the heat effectively to the fins

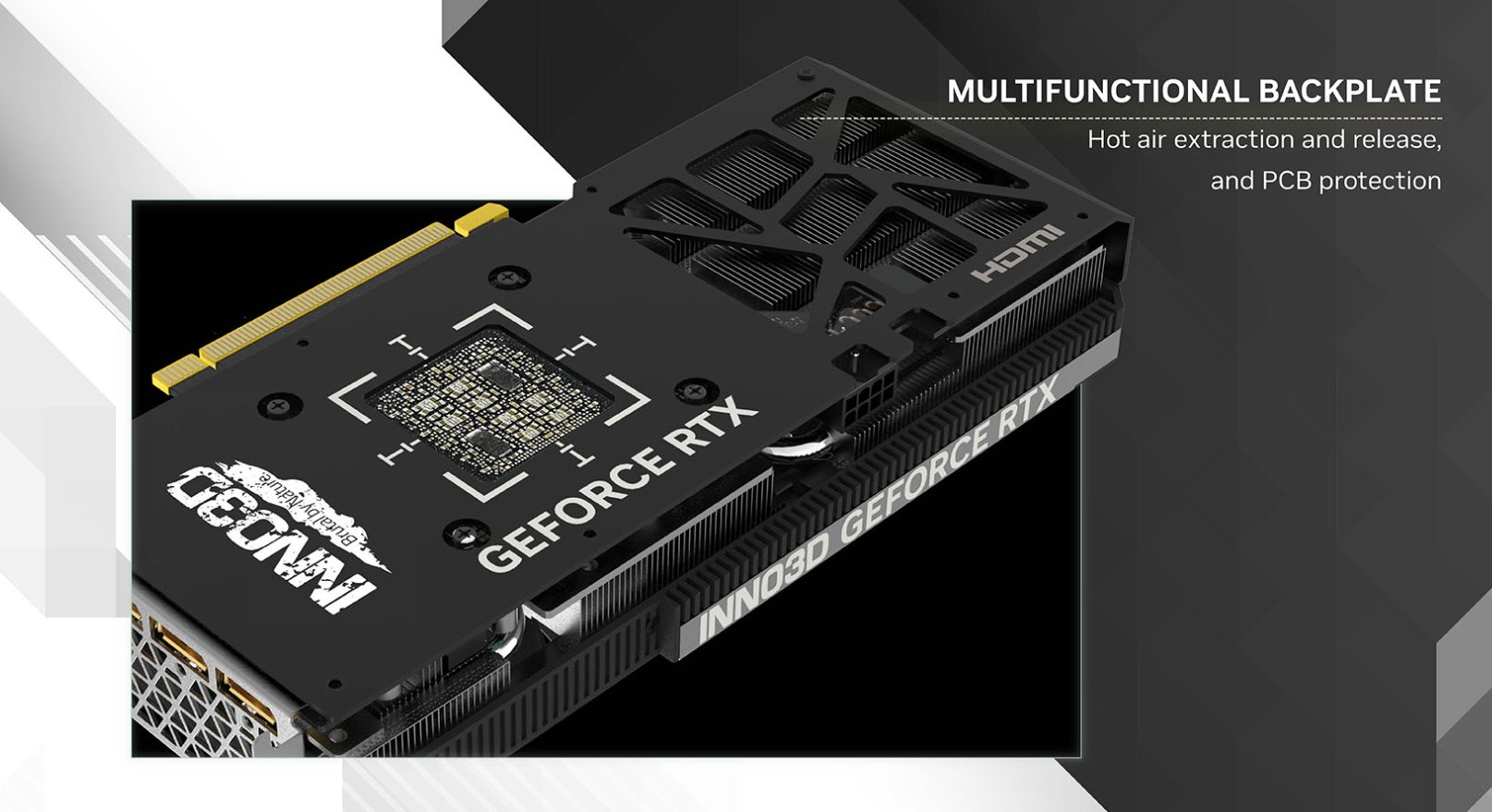

MULTIFUNCTIONAL BACKPLATE
Hot air extraction and release, and PCB protection all in one Inno3d RTX 4070 Super Twin X2 12GB.
Specifications :
| GPU Engine Specs | |
| CUDA Cores | 7168 |
| Boost Clock (MHz) | 2475 |
| Base Clock (MHz) | 1980 |
| Thermal and Power Spec | |
| Minimum System Power Requirement | 650 |
| Supplementary Power Connectors | 2x PCIe 8-pin cables (adapter in box) OR 450 W or greater PCIe Gen 5 cable |
| Memory Specs | |
| Memory Clock | 21Gbps |
| Standard Memory Config | 12GB |
| Memory Interface | GDDR6X |
| Memory Interface Width | 192-bit |
| Memory Bandwidth (GB/sec) | 504 |
| Feature Support | |
| Real-Time Ray Tracing | Yes |
| Ray Tracing Cores | 3rd Generation |
| Tensor Cores | 4th Generation |
| NVIDIA Architecture | Ada Lovelace |
| Microsoft DirectX | 12 Ultimate |
| NVIDIA DLSS | Yes |
| PCI Express Gen 4 | Yes |
| NVIDIA GeForce Experience | Yes |
| NVIDIA Ansel | Yes |
| NVIDIA FreeStyle | Yes |
| Bus Support | PCI-E 4.0 X16 |
| NVIDIA ShadowPlay | Yes |
| OS Certification | Windows 11 / 10, Linux, FreeBSDx86 |
| NVIDIA Highlights | Yes |
| NVIDIA G-SYNC™-Ready | Yes |
| Game Ready Drivers | Yes |
| NVIDIA Studio Drivers | Yes |
| NVIDIA GPU Boost™ | Yes |
| Vulkan API | Yes |
| OpenGL | 4.6 |
| DisplayPort 1.4a | Yes |
| NVIDIA Encoder | 1x 8th Generation |
| NVIDIA Decoder | 5th Generation |
| HDMI 2.1a | Yes |
| Accessories | |
| Installation Guide | Yes |
| Power Guide | Yes |
| Graphics Card Dimensions | |
| Length | 250mm |
| Height | 118mm |
| Width | 42mm |
| Display Support | |
| Multi Monitor | Yes |
| Maximum Digital Resolution | 7680×4320 |
| HDCP | 2.3 |
| Standard Display Connectors | HDMI 2.1a, 3x DisplayPort 1.4a |
| Warranty | 3 Years |
