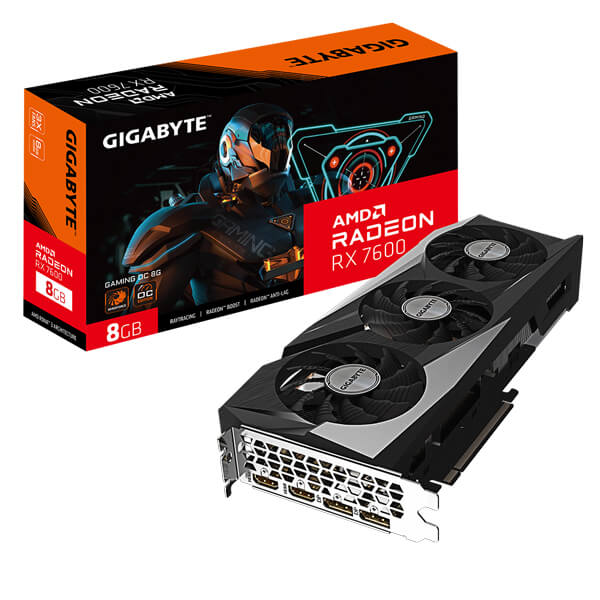

Gigabyte RX 7600 Gaming OC 8GB GDDR6 Triple Fan Graphics Card
Feature:
- Powered by Radeon RX 7600
- Integrated with 8GB GDDR6 128-bit memory interface
- WINDFORCE cooling system
- RGB Fusion
- Protection metal back plate
CORE CLOCK
Boost Clock* : up to 2755 MHz (Reference card: 2655 MHz)
Game Clock* : up to 2355 MHz (Reference card: 2250 MHz)
WINDFORCE COOLING SYSTEM
Gigabyte RX 7600 Gaming OC 8GB has The WINDFORCE cooling system features three 80mm unique blade fans, alternate spinning, 5 composite copper heat pipes directly touch the GPU, 3D active fan and Screen cooling, which together provide high efficiency heat dissipation.
ALTERNATE SPINNING
Reduce the turbulence of adjacent fans and increase airflow pressure.
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.
UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.
HEAT PIPES DIRECT TOUCH
The shape of the pure copper heat pipe maximizes the direct contact area with the GPU. The heat pipe also covers the VRAM through a large metal plate contact to ensure proper cooling.
SCREEN COOLING
Extended heatsink allows air to pass through, providing better heat dissipation.
Specification:
| Model | GV-R76GAMING-OC-8GD |
| Chipset | AMD RADEON |
| GPU | RX 7600 |
| Engine Clock | Boost Clock : up to 2755 MHz (Reference card: 2655 MHz) Game Clock : up to 2355 MHz (Reference card: 2250 MHz) |
| PCI EXPRESS | 4.0 |
| MEMORY CLOCK | 18 Gbps |
| MEMORY SIZE | 8 GB |
| MEMORY INTERFACE | 128-BIT |
| MEMORY TYPE | GDDR6 |
| OpenGL | 4.6 |
| PORTS | HDMI,DisplayPort |
| DirectX | 12 Ultimate |
| RESOLUTION | 7680 x 4320 |
| COOLER | Triple Fan |
| Max Display Support | 4 |
| Recommended PSU | 550W |
| GPU CORE (CUDA CORE) | 2048 |
| POWER CONNECTORS | 1 x 8-pin |
| WARRANTY | 3 Years |
| NOTE** | Features, Price and Specifications are subject to change without notice. Images use for Representation Purpose Only. |
