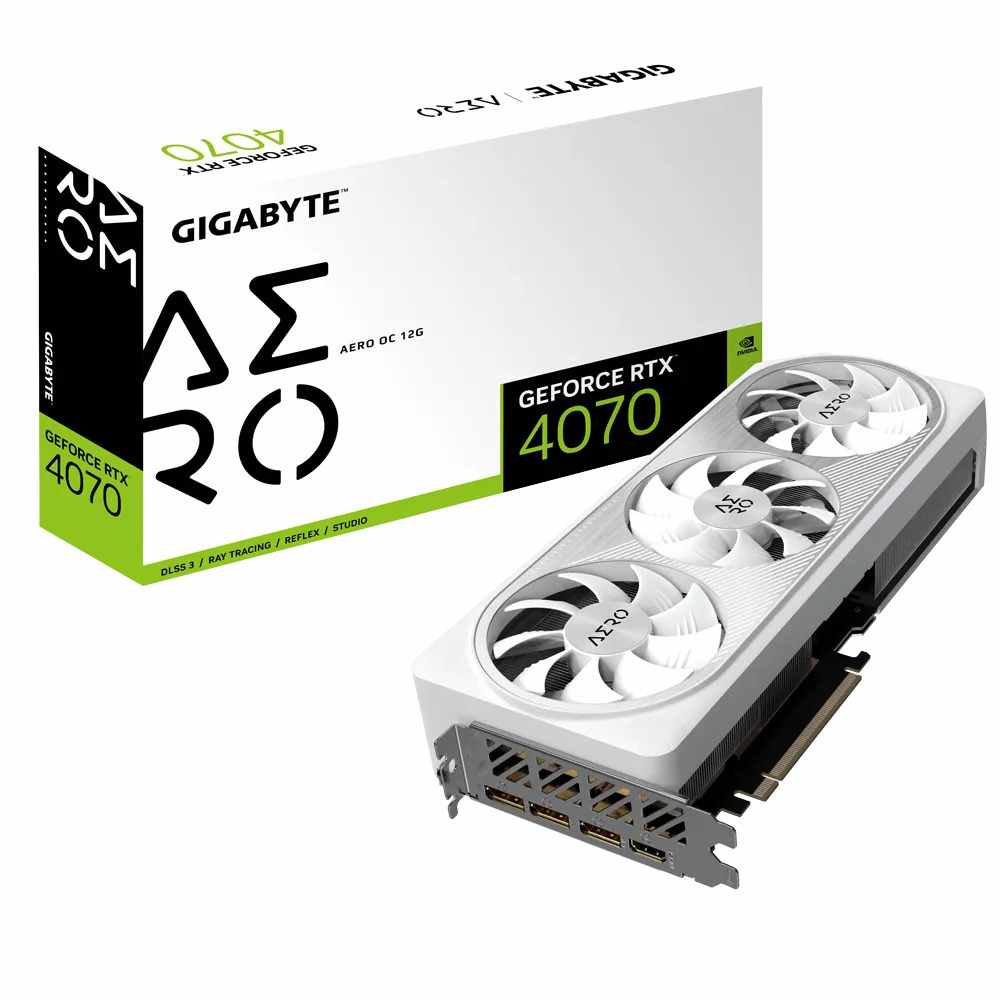

Gigabyte RTX 4070 Aero OC 12GB Graphics Card :
Features of Gigabyte RTX 4070 Aero OC 12GB :
- Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace arch, and full ray tracing
- 4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering
- 3rd Generation RT Cores: Up to 2X ray tracing performance
- Powered by GeForce RTX™ 4070
- Integrated with 12GB GDDR6X 192bit memory interface
- WINDFORCE Cooling System
- RGB Fusion
- Dual BIOS
- Protection metal back plate
- 4 Years Warranty (Online registration required)
Overview of Gigabyte RTX 4070 Aero OC 12GB :
The Ultimate Platform for Gamers and Creators
Powered by GeForce RTX 40 Series and DLSS 3
- New Streaming Multiprocessors
Up to 2x performance and power efficiency
- Fourth-Gen Tensor Cores
Up to 4x performance with DLSS 3 vs. brute-force rendering
- Third-Gen RT Cores
Up to 2x ray tracing performance
NVIDIA Ada Lovelace architecture
Realistic and Immersive Graphics
Dedicated Ray Tracing Cores
NVIDIA DLSS 3
NVIDIA Reflex low-latency platform
Built for Live Streaming
AI-Enhanced Voice and Video
RTX Video Super Resolution and NVIDIA Broadcast
Fast-Track Your Creativity
Performance and Reliability
Game Ready and Studio Drivers

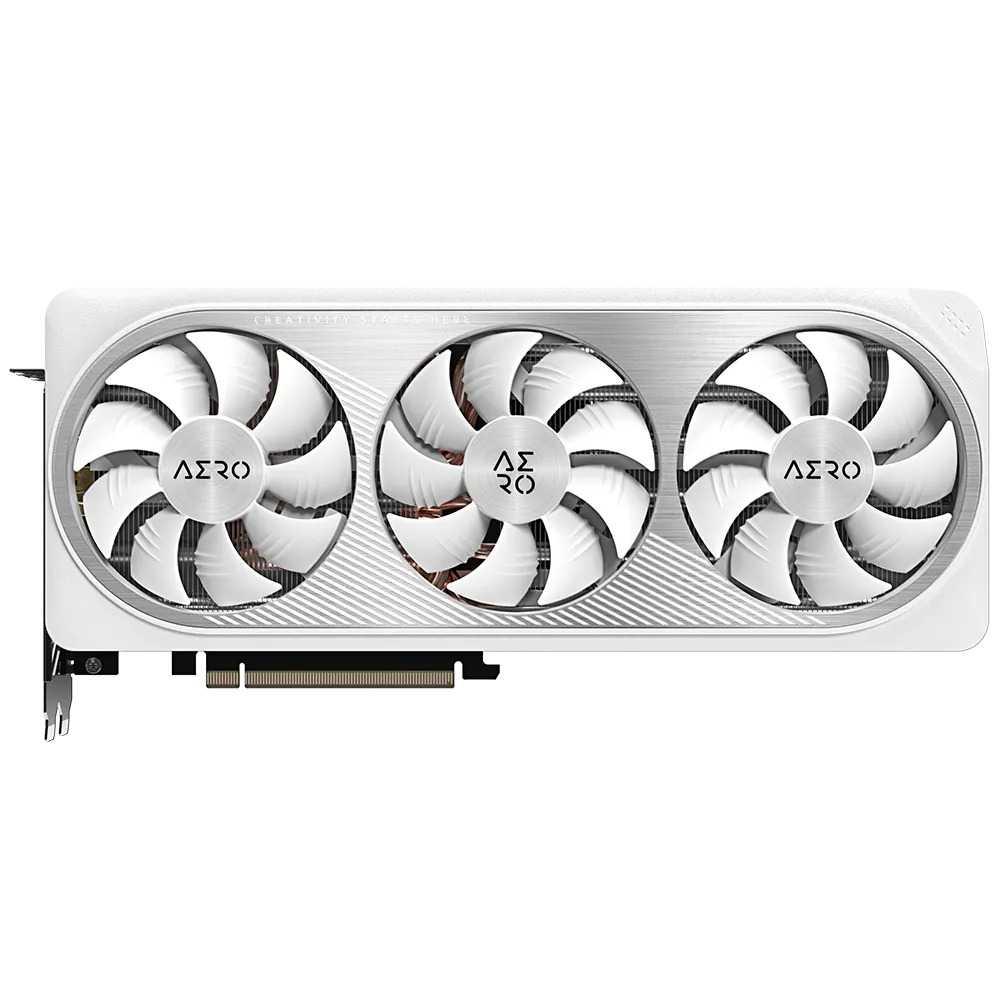

WINDFORCE COOLING SYSTEM
The Gigabyte RTX 4070 Aero OC 12GB features three 90mm unique blade fans, alternate spinning, 8 composite copper heat pipes directly touches the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.
Reduce the turbulence of adjacent fans and increase airflow pressure.
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.
UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.
GRAPHENE NANO LUBRICANT
Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.

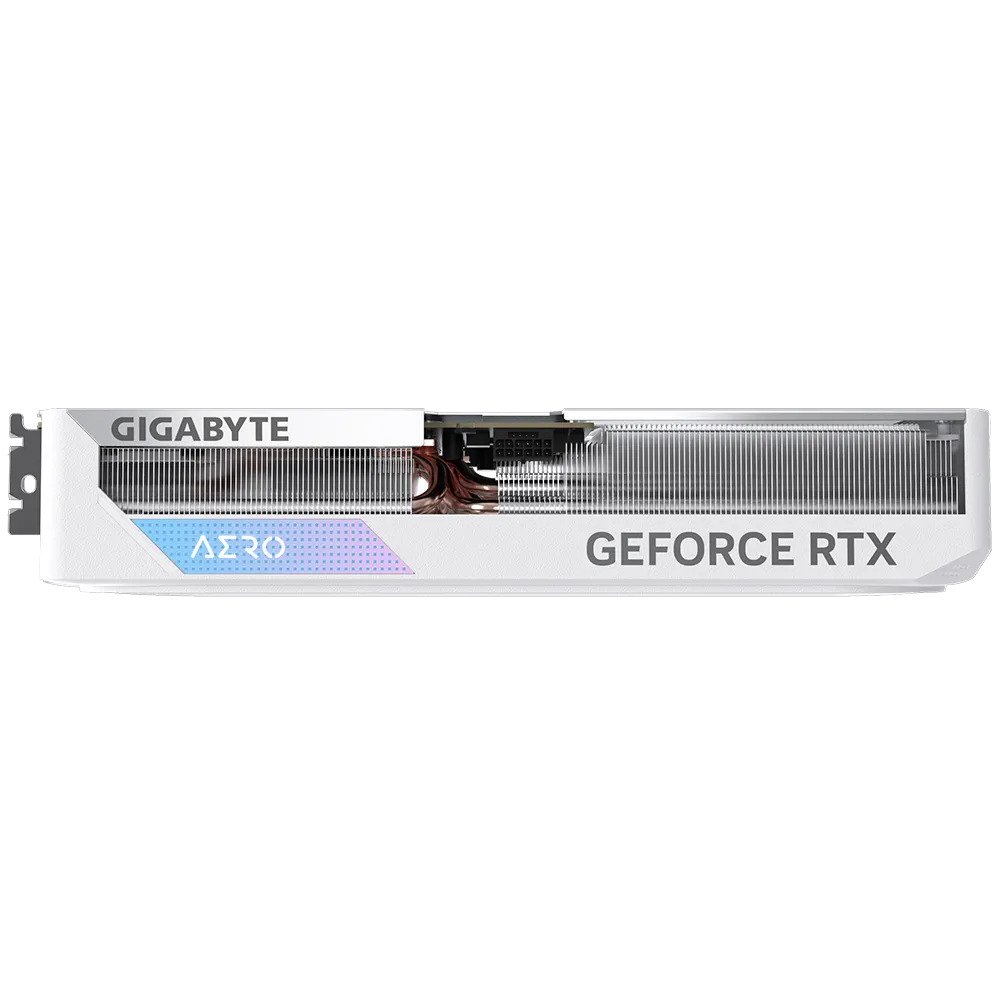

Extended heatsink allows air to pass through, providing better heat dissipation.
LARGE COPPER PLATE & HEAT-PIPE
The large copper plate directly contacts the GPU, coupled with the composite heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink.
The legendary three-ring lighting provides excellent visual enjoyment. You can choose any lighting effect or synchronize with other devices in GIGABYTE CONTROL CENTER.
EXCELLENT IN ESSENTIAL

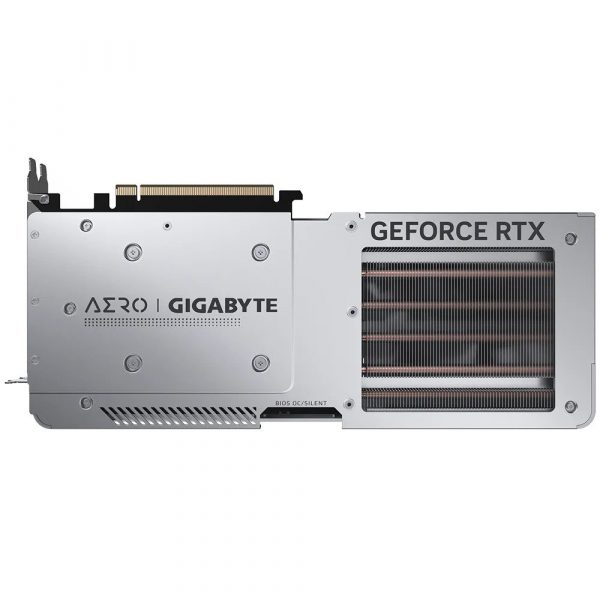

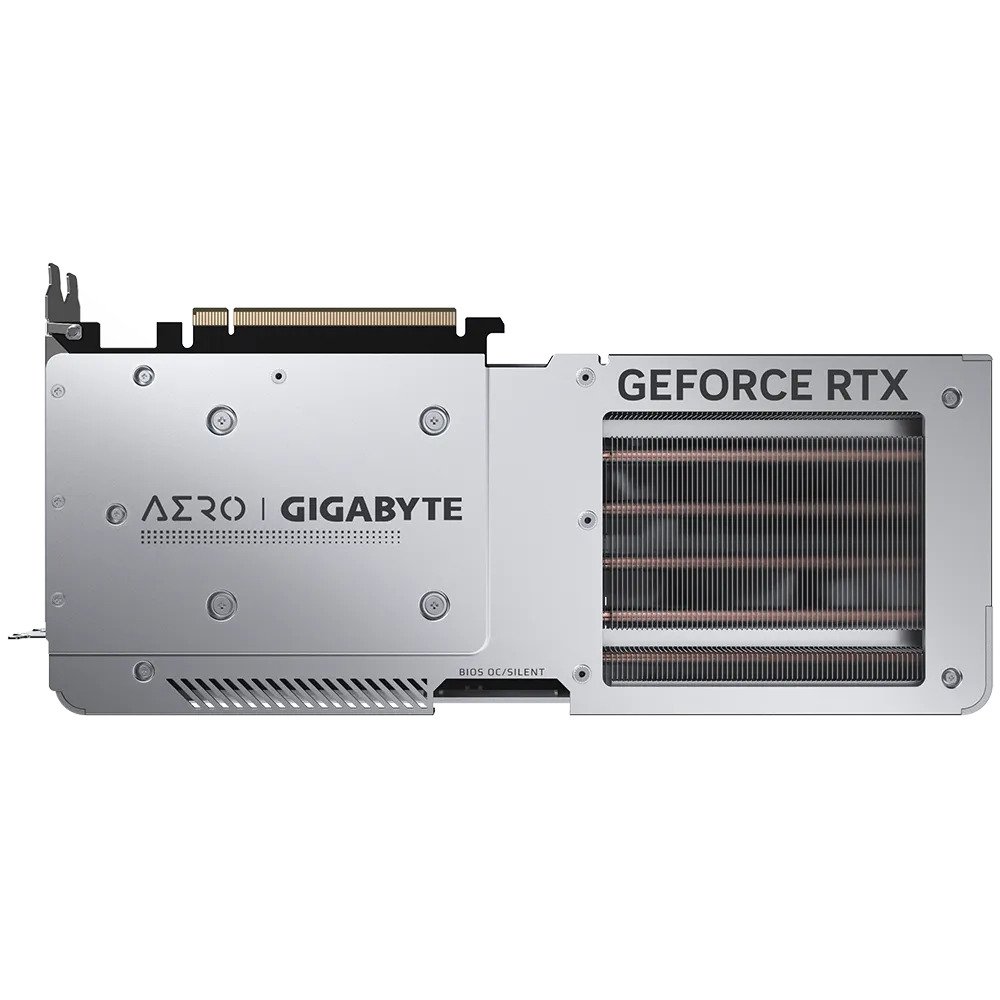

- PROTECTION METAL BACK PLATE
The metal back plate not only provides an aesthetical shape, but also enhances the structure of the Gigabyte RTX 4070 Aero OC 12GB graphics card to provide complete protection.
- DUAL BIOS
The factory default setting is OC mode, which provides users with the best performance. However, switching to silent mode will enjoy a quieter experience.
- POWER INDICATOR
When experiencing any power supply abnormality, the indicator will alert gamers by flashing light.
- ULTRA DURABLE
Ultra Durable certified highest-grade metal chokes, lower ESR solid capacitors, 2oz copper PCB, and lower RDS(on) MOSFETs, plus over-temperature design to deliver superior performance and longer system life.
- FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.
- 4-YEAR WARRANTY
We want you to experience the best service you have ever had. This is why, on top of our standard 3-year warranty, we would like to offer you an additional 1 year of protection to your graphics card free of charge. You can enjoy a 4-year warranty by registering on the website within 30 days of purchase.
GIGABYTE CONTROL CENTER
GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time.
Specifications of Gigabyte RTX 4070 Aero OC 12GB :
|GeForce RTX™ 4070
|2565 MHz (Reference Card: 2475 MHz)
|L=300 W=130 H=57.6 mm

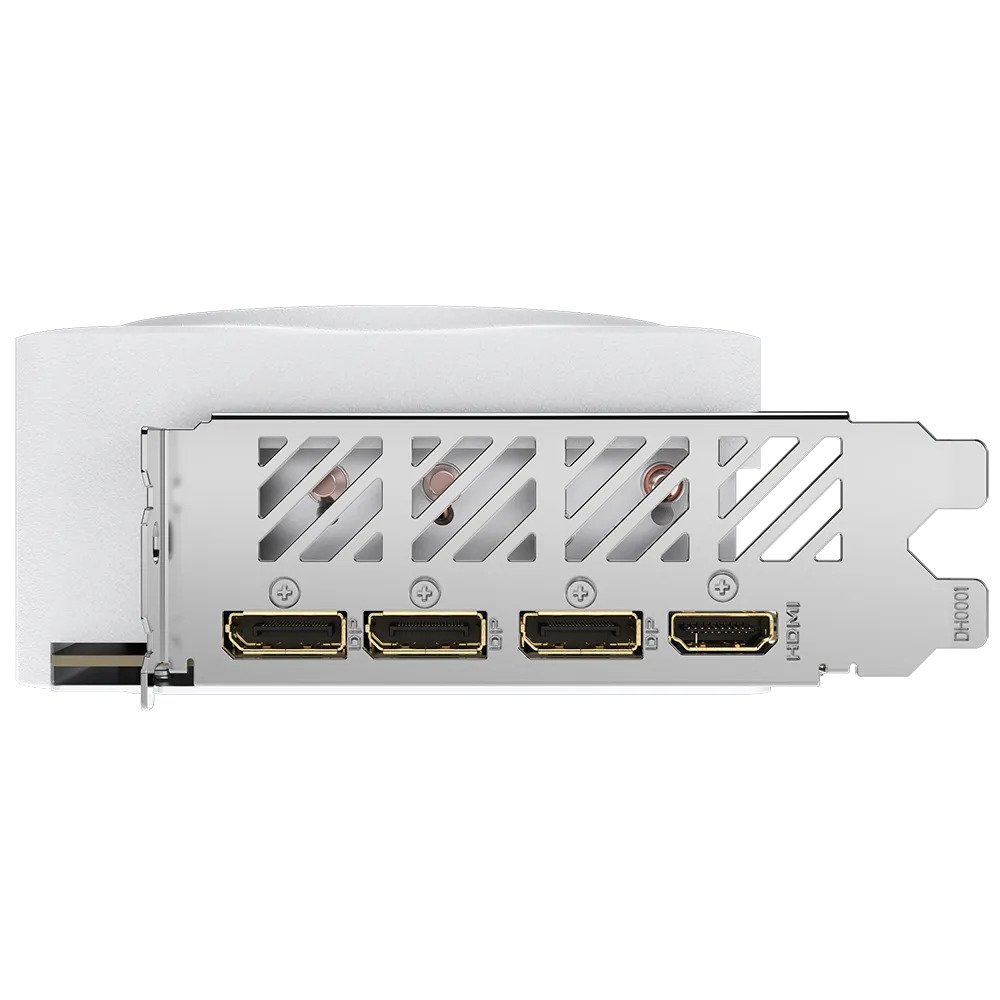

|DisplayPort 1.4a *3
HDMI 2.1a *1
|1. Quick guide
2. Warranty registration
3. One 16-pin to two 8-pin power adaptor
