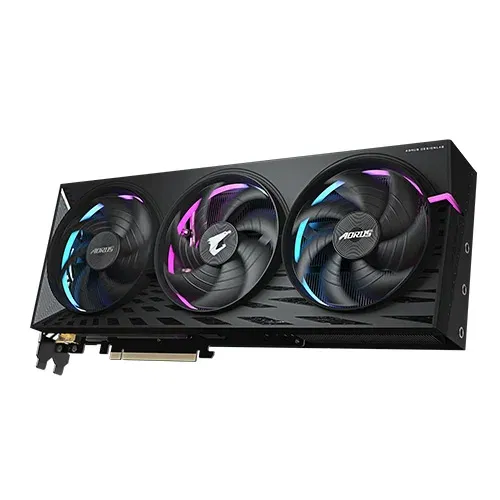

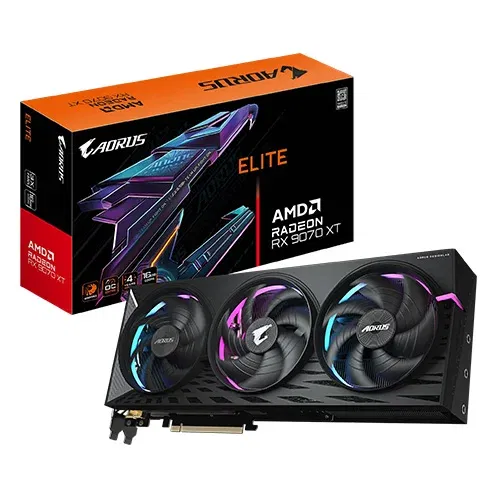

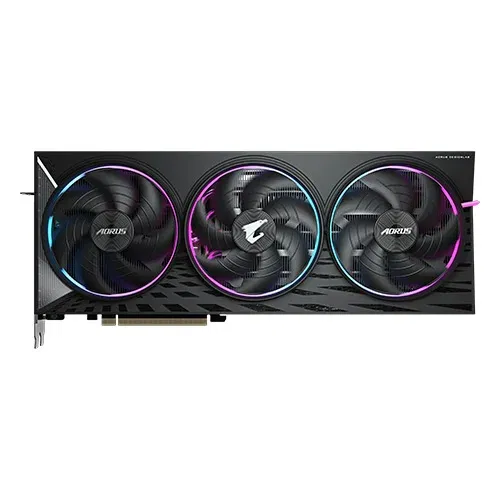

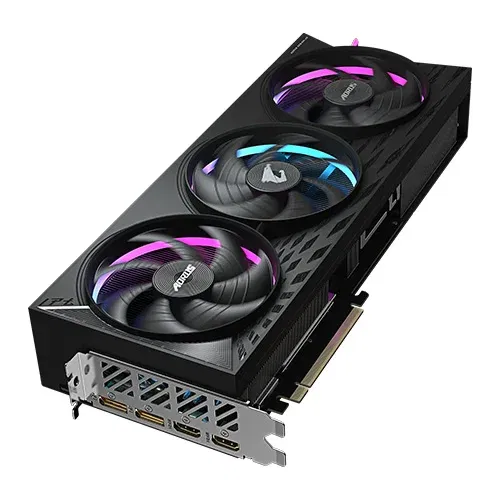

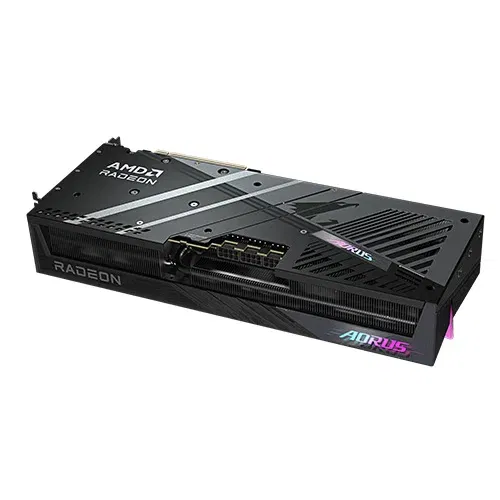

Gigabyte Aorus RX 9070 XT Elite 16GB GDDR6 Graphics Card :
Overview :
The Gigabyte Aorus RX 9070 XT Elite 16GB GDDR6 Graphics Card is an advanced gaming graphics card engineered for high-performance 1440p and 4K gaming. Built on AMD’s RDNA 4 architecture, Gigabyte Aorus RX 9070 XT Elite 16GB GDDR6 Graphics Card features enhanced ray tracing, AI-driven upscaling, and ultra-fast memory. With AORUS’s WindForce cooling technology, factory overclocking, and RGB Fusion lighting, this Gigabyte Aorus RX 9070 XT Elite 16GB GDDR6 Graphics Card offers top-tier performance, cooling efficiency, and aesthetics.
Features :
- AMD RDNA 4 Architecture – Optimized for high-performance gaming and power efficiency.
- AORUS WindForce Cooling System – Triple-fan design with alternate spinning for improved airflow.
- 16GB GDDR6 Memory – High-speed VRAM for ultra-smooth 4K gaming and content creation.
- Factory Overclocked (Elite Edition) – Higher clock speeds for superior gaming performance.
- AI-Enhanced FidelityFX Super Resolution (FSR 3) – Upscales graphics for increased FPS without sacrificing quality.
- Real-Time Ray Tracing – Delivers realistic lighting, reflections, and shadow effects.
- RGB Fusion 2.0 – Customizable lighting with multiple modes and synchronization options.
- Dual BIOS Mode – Switch between Performance and Quiet modes for optimized gaming or silent operation.
- PCIe 5.0 Support – Ensures faster data transfer and future-proof connectivity.
- Metal Reinforced Backplate – Provides additional structural integrity and heat dissipation.
- AORUS Engine Software – Fine-tune performance with real-time monitoring and overclocking tools.
- Multi-Display Support – Connect up to 4 monitors for an immersive gaming experience.
Specifications :
| Graphics Engine | AMD Radeon RX 9070 XT |
| Architecture | RDNA 4 |
| Bus Standard | PCI Express 5.0 |
| Compute Units | 80 |
| Ray Accelerators | 80 |
| Video Memory | 16GB GDDR6 |
| Memory Speed | 20 Gbps |
| Memory Interface | 256-bit |
| Engine Clock | OC Mode: 2775MHz Default Mode: 2725MHz (Boost Clock) |
| Maximum Resolution | 8K (7680 x 4320) |
| Display Outputs | 1 x HDMI 2.1 3 x DisplayPort 2.1 |
| HDCP Support | Version 2.3 |
| Maximum Display Support | Up to 4 displays |
| AMD CrossFire Support | Yes, via DirectX 12 multi-GPU |
| Power Connectors | 2 x 8-pin |
| Recommended PSU | 750W |
| Slot Design | 2.7-slot |
| Cooling System | AORUS WindForce 3X Triple-Fan |
| Backplate | Yes, metal backplate |
| RGB Lighting | Yes, RGB Fusion 2.0 |
| Accessories Included | User Manual, GPU Support Bracket |
| Software Bundled | AORUS Engine, AMD Radeon Software |
| Warranty | 3 Years |
