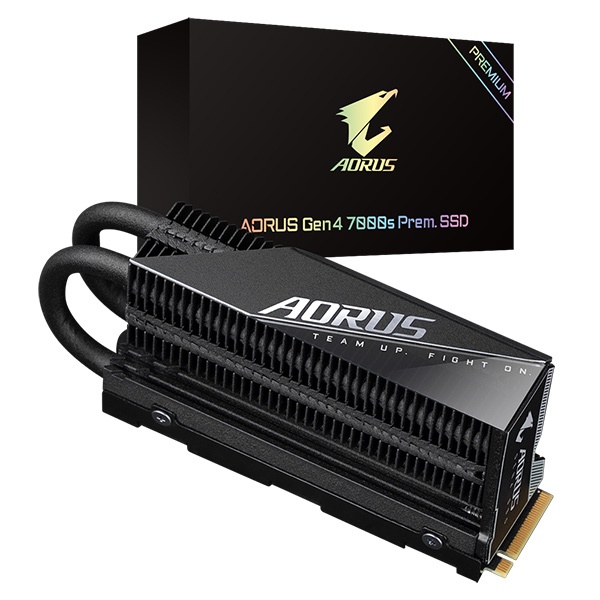

Gigabyte Aorus 7000s Prem 1TB Gen4 M.2 NVMe Internal SSD :
Features :
- Form Factor: M.2 2280
- Interface: PCI-Express 4.0 x4, NVMe 1.4
- Total Capacity: 1000GB*
- Sequential Read Speed : up to 7000 MB/s**
- Sequential Write speed : up to 5500 MB/s**
- Wear Leveling, Over-Provision technologies
- TRIM & S.M.A.R.T supported
- AES-256 Supported
- M.2 Thermal Guard XTREME with Nanocarbon coating
- Warranty: Limited 5-years
Overview :
Top Gen4 SSD Performance
7000 MB/s Seq. Read With No Throttling
2nd Generation PCIe 4.0×4 Controller
The 2nd generation PCIe 4.0 controller PS5018-E18 deliver sequential read/write up to 7GB/s with 3D TLC NAND Flash. The E18 controller is built with the advanced 12nm process ensuring sufficient computing power. Also it supports up to 8 NAND Flash channel with 32CE, DDR4 caching and meets NVMe 1.4.
- PCIe 4.0×4, NVMe 1.4 Interface
- DDR4 DRAM cache
- 8 CH with 32 CEs
- Phison 4th Gen LDPC
- Support AES-256 Encryption
- Thermal Throttle Protection
NAND Flash Selected for High Quality and Performance
Gigabyte Aorus 7000s Prem 1TB have Selected High Speed 3D TLC NAND Flash (1200MT/s)
The 3D TLC NAND Flash(96L) is operating at 1200MT/s, Which is 50 % more than the prevision version that leads to better performance.
Xtreme Storage Performance
Gigabyte Aorus 7000s Prem 1TB comes With 2nd generation PCIe 4.0 controller PS5018-E18, AORUS Gen4 7000s Prem. SSD delivers blazing speeds: up to 7,000 MB/s for sequential read, and up to 5,500MB/s sequential Write*. Sequential Read performance of PCIe 4.0 SSDs is up to 2 times faster than the PCIe 3.0 SSDs. Get ready to enter the next generation of computing with faster and smoother, gaming, streaming, and graphics intensive rendering.
M.2 Thermal Guard XTREME with Nanocarbon Coating
M.2 Thermal Guard XTREME is made up of two heatpipes and stacked fins with advanced thermal technology Nanocarbon coating for maximum heat dissipation efficiency. Applied with dual side high conductivity thermal pad ensures the heat transferring to the stacked fins. The M.2 Thermal Guard XTREME is the best solution in passive airflow condition when your personal computer adopts CPU AIO water cooler.
Extreme Seq. Read Performance with No Throttling
Gigabyte Aorus 7000s Prem 1TB Compared with regular plated heat spreader, the M.2 Thermal Guard XTREME improves thermal dissipation to keep the highest Seq. read performance with no throttling. AORUS 7000s Gen4 Prem. SSD comes with the best thermal solution in current market, there is no performance compromised, enjoy the smoother & upgraded storage performance any time.
Why is keeping an SSDs at lower temperatures so important?
Higher working temperature may cause data loss. The degradation factor of data loss could be a hundred times higher. With Heat Spreaders, the AORUS Gen4 7000s Prem. SSD can operate at lower working temperatures to improve data storage reliability. Furthermore, SSDs can running at extreme performance without throttling
SSD Tool Box
The newly updated SSD Tool Box is a software that gives users an overview of the SSD Status and various aspects such as model name, FW version, health condition and sensor temperature. Moreover, users can clear all the data with the Secure Erase function. You can download the SSD Tool Box from the link.
Specifications :
- InterfacePCI-Express 4.0 x4, NVMe 1.4
- Form FactorM.2 2280
- Total Capacity1000GB
- NAND3D TLC NAND Flash
- External DDR CacheDDR4 1GB
- Sequential Write speedUp to 5500 MB/s
- Random Read IOPSup to 350k
- Random Write IOPSup to 700k
- Dimension92 x 23.5 x 44.7 mm
- Mean time between failure (MTBF)1.6 million hours
- Power Consumption (Active)Average: R : 7.6W, W : 8.4W
- Power Consumption (Idle)<30mW
- Temperature (Operating)0°C to 70°C
- Temperature (Storage)-40°C to 85°C
- Warranty
- 1. Limited 5-years or 1400TBW.
- 2. Limited warranty based on 5 years or 1400TBW, whichever comes first. (*TBW is evaluated by JEDEC workload standard. )
*TBW (Terabyte Written): Terabytes Written is the total amount of data that can be written into a SSD before it is likely to fail. - 3. When the usage of an NVME SSD as indicated by the “Percentage Used” (SMART ID: 05) in SMART page of “GIGABYTE SSD toolbox” reaches 100 means out of warranty. (A new unused product will show the number of 0)
- Note
- • Test system configuration: configuration may vary by models, we will choose the latest platform for verification.
- • Performance may vary based on SSD’s firmware version and system hardware & configuration. Sequential performance measurements based on CrystalDiskMark and IOmeter 1.1.0.
- • Speeds based on internal testing. Actual performance may vary.
- • 1GB = 1 billion bytes. Actual useable capacity may vary.
