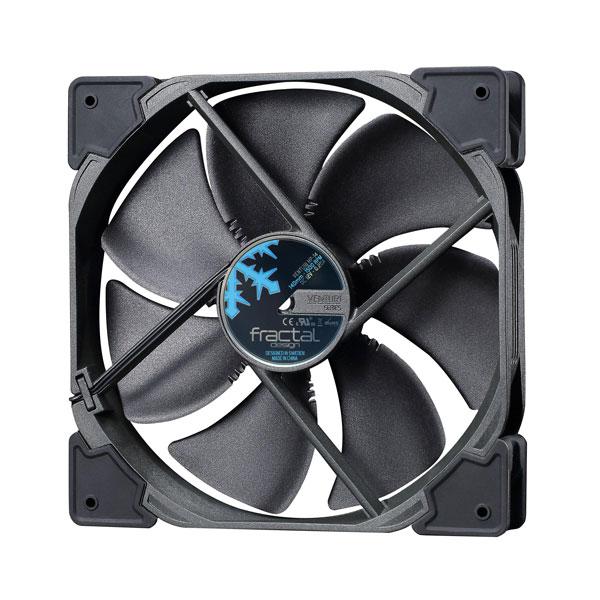

Fractal Design Venturi HP-14 PWM Single 140mm High Performance Case Fan
The Venturi High Pressure Series PWM fans are optimized for high-restriction airflow scenarios, making them an excellent choice for usage on large heatsinks, on radiators, or in other highly restrictive scenarios
- True FDB-bearings provides silent operation and a long lifespan
- Counter-balanced magnet reduces axial tension on the bearing
- Integrated vibration-dampening corners
Designed for strength and silence
Fractal Design Venturi HP-14 PWM These fans can move an amazing amount of air through restricted environments compared to other fans at the same, minimal noise level.
The HP-14 comes with two sets of solid vibration-dampening rubber corners: one for standard 140 mm fan hole spacing (125 mm) and one compatible with the standard 120 mm hole spacing (105 mm). Â The Venturi High Pressure Series PWM fans are ideal for anyone looking for a perfect balance between high performance and low noise built from sturdy, high quality materials.
Key features
- Fractal Design Venturi HP-14 PWM Made from high-grade glass fiber reinforced thermoplastic polymer
- Ground-breaking airflow, perfect for low-restriction usage scenarios
- Aerodynamical stator struts reduce noise and unwanted turbulence
- Strategically placed notches on the blades further reduce and diffuse any humming noise produced when the blades pass the stator struts
- The trip wire technology introduces a micro-turbulent layer that combats elements that negatively affect performance, resulting in quieter operation
Smart PWM support starting at 400 RPM
- Fractal Design Venturi HP-14 PWM Ideal for CPU heat sinks or radiators

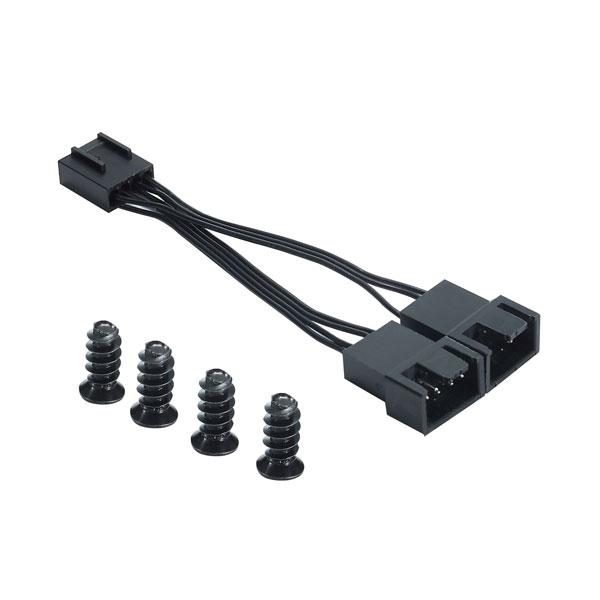

- Comes with a PWM Y-cable, for connecting additional fans to a single PWM header on your motherboard or PWM fan controller
FDB-bearings :True FDB-bearings, providing silent operation and long lifespan
Balanced magnet : Counter-balanced magnet reduces axial tension on the bearing
Vibration dampening : Integrated vibration-dampening corners, made from solid high-quality synthetic rubber
Specifications
| Product code (Black) | FD-FAN-VENT-HP14-PWM-BK |
| Size | 140 x 140 x 25 mm |
| Screw hole pattern | 125 x 125 mm / 105 x 105 mm |
| Fan Connector | 4-pin |
| Bearing | FDB |
| Number of blades | 7 |
| Rotational speed | 1500 RPM |
| Noise level | 30.1 dB (A) |
| Airflow (CFM) | 78.1 |
| Airflow (m3/h) | 132.7 |
| Static pressure | 1.94mm H2O |
| Fan input power | 1.4 W |
| Fan max input current | 0.2 A |
| Fan input voltage | 12 V |
| Fan starting voltage | 7 V |
| Low (0-20%) PWM speed | 400 RPM |
| Low PWM airflow (CFM) | 24.0 |
| Low PWM airflow (m3/h) | 40.8 |
| Low PWM noise level | < 10 dB (A) |
| Low PWM static pressure | 0.45 mm H2O |
| MTBF | 150,000 hours |
| Fan weight | 210 g |
| Cable length | 500 mm |
| Cable type | Braided all-black ribbon wire |
| Package weight | 210 g |
| Package dimensions (Including hanging tab) | 200 x 142 x 30 mm |
| Package dimensions (Excluding hanging tab) | 167 x 142 x 30 mm |
| Warranty | 2 Years |
