Fractal Design Ridge Black Mini Tower Cabinet, M-ITX Support, Vertical or Horizontal Layout, USB Type C, Up To 120 mm Radiator Support
Overview:

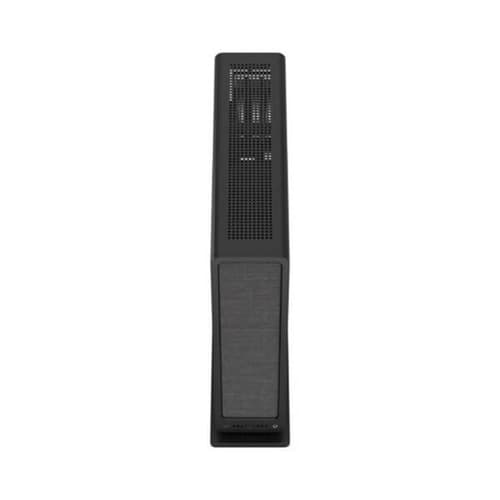

The Fractal Design Ridge PCIe 4.0 (M-ITX) Mini Tower Cabinet Black Fractal Design Ridge (FD‑C‑RID1N‑11) is a compact, stylish mini‑ITX case featuring a slim-pillared steel frame with ventilated aluminum panels. Fractal Design Ridge Designed for living‑space setups, it supports GPUs up to 335 mm, includes PCIe 4.0 riser, and provides strong passive airflow with dual 140 mm fans and versatile mounting options. Ideal for console‑like PC builds that prioritize performance and sleek aesthetics
Key Features:
Slim mini‑ITX design: Vertical footprint of 374 × 110 × 395 mm, offering a 12.6 L volume perfect for home or office spaces
128 mm GPU support: Accommodates GPUs up to 335 mm (325 mm with SSD), with PCIe 4.0 riser pre-installed

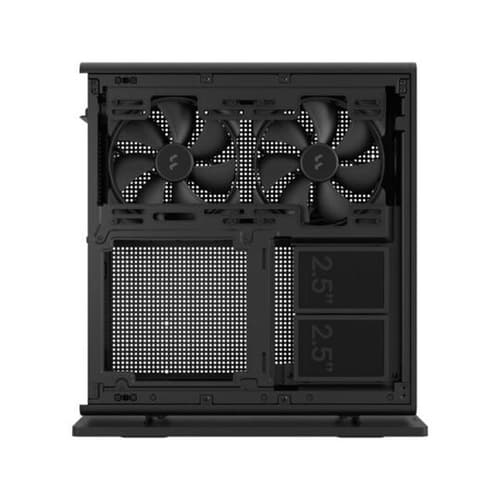

Efficient cooling layout: Pre‑installed with two 140 mm PWM side fans; supports two 120/140 mm side fans and three 80 mm top fans. Side radiator support: up to 120 mm with GPU installed, or 280 mm without GPU
High-speed front I/O: Includes USB‑C 20 Gbps, two USB‑A 5 Gbps, combo audio jack, power button, and LED
Storage flexibility: Four 2.5″ SSD mounts included; no dedicated 3.5″ drive support
Build convenience: Tool‑less steel side panels, captive thumbscrews, 13.8 mm cable routing, and SFX/SFX‑L PSU compatibility
Specification Table:
| Component | Specification |
|---|---|
| Form Factor | Mini‑ITX (12.6 L) |

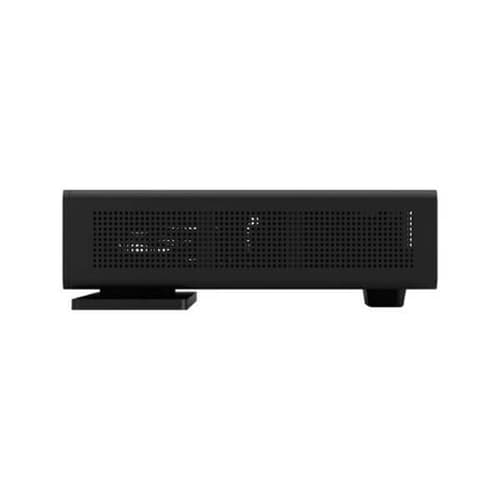

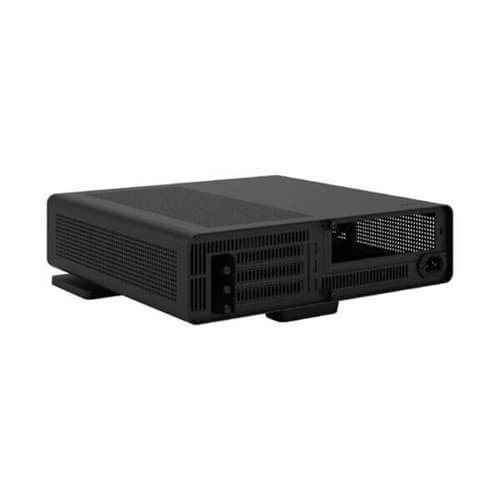

| Dimensions (V) | 374 × 110 × 395 mm (V) / 360 × 115 × 375 mm (H) |
| Weight | 4.3 kg |
| Motherboard Support | Mini‑ITX |
| PSU Support | SFX / SFX‑L (max ~130 mm) |
| GPU Length | 325 mm with SSD, 335 mm max |
| GPU Height | 125 mm with fans, 137 mm no fans |
| GPU Thickness | 57 mm (with fans), 82 mm w/o fans |
| CPU Cooler Height | 70 mm max |
| Storage Bays | 4×2.5″ SSD mounts |
| Expansion Slots | 3 full-height |
| Side Fan Support | 2×120/140 mm (2×140 mm PWM included) |
| Top Fan Support | 3×80 mm |
| Radiator Support | Side: 120 mm w/ GPU, up to 280 mm w/o GPU |
| Front I/O | 1×USB‑C Gen 2×2, 2×USB‑A 3.0, 1×3.5 mm combo jack, power LED/button |
| Cable Routing | 13.8 mm behind PSU |
| Side Panels | Tool‑less steel, captive thumbscrews |
| Warranty | 2 years |
