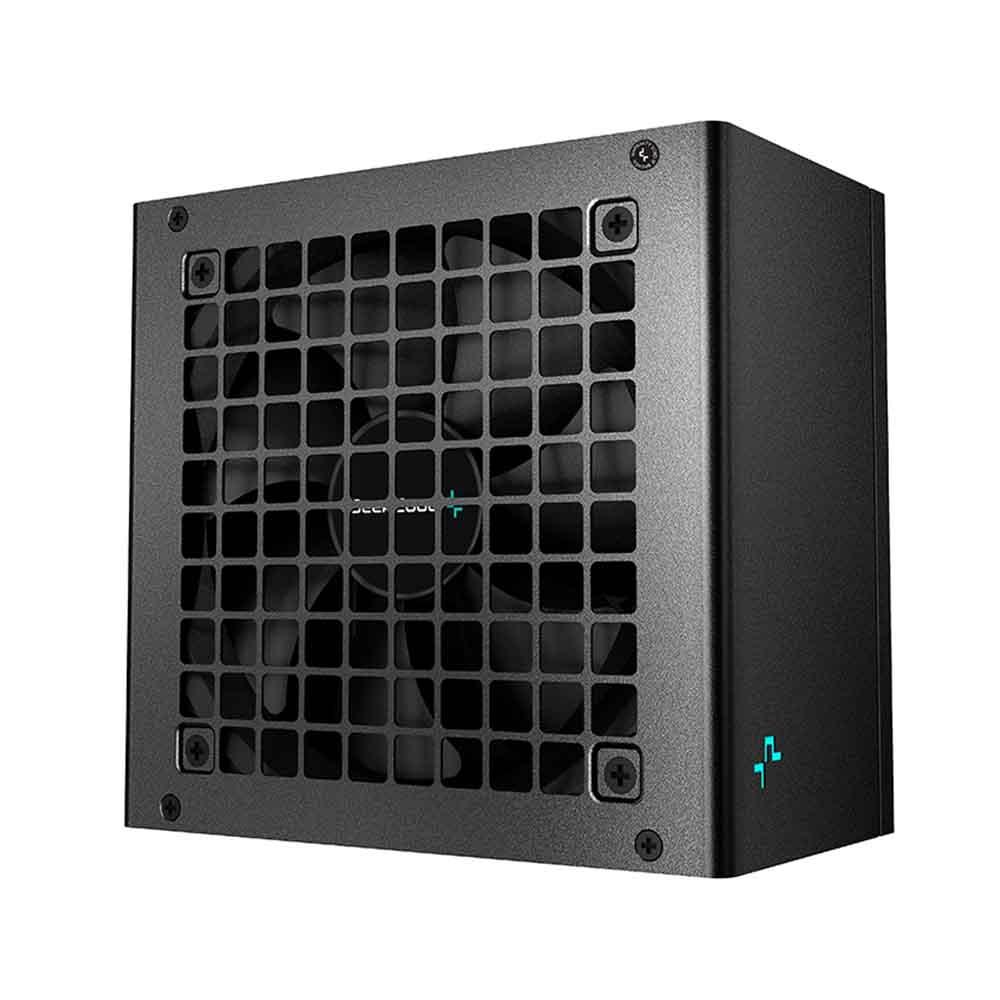

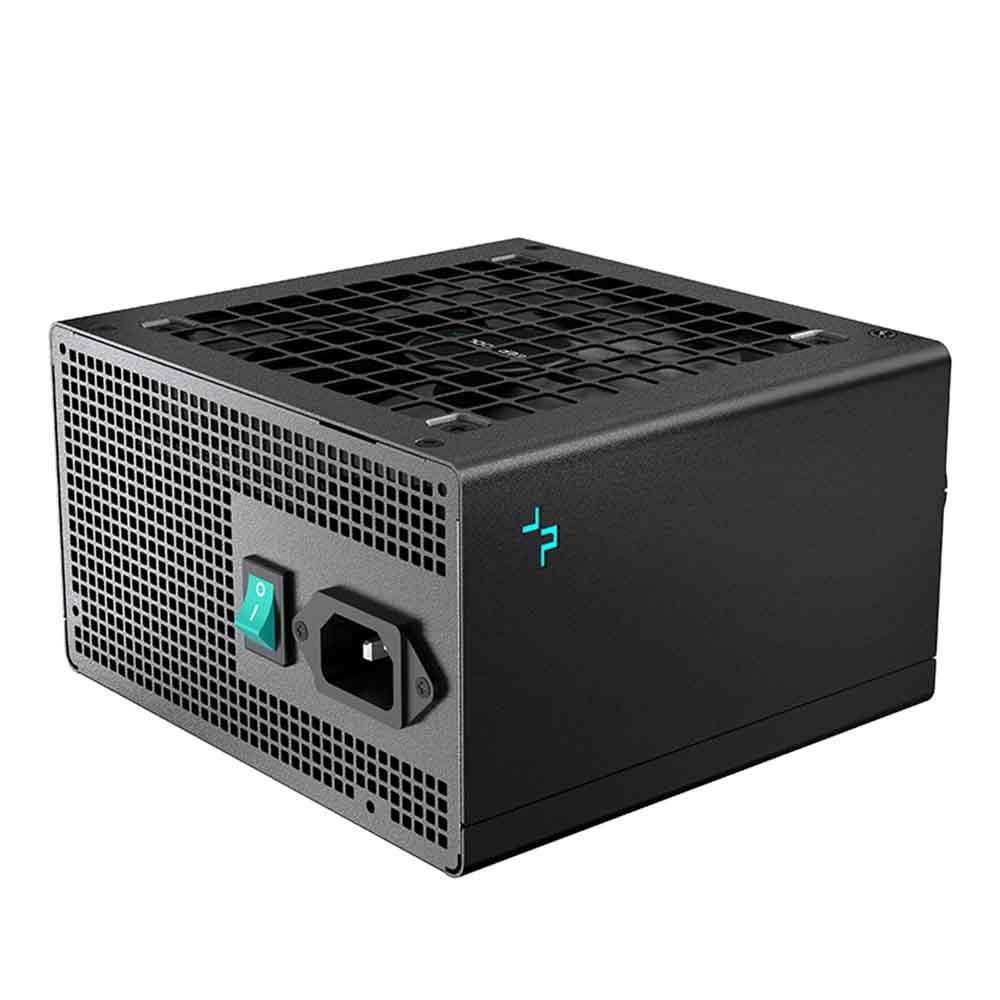

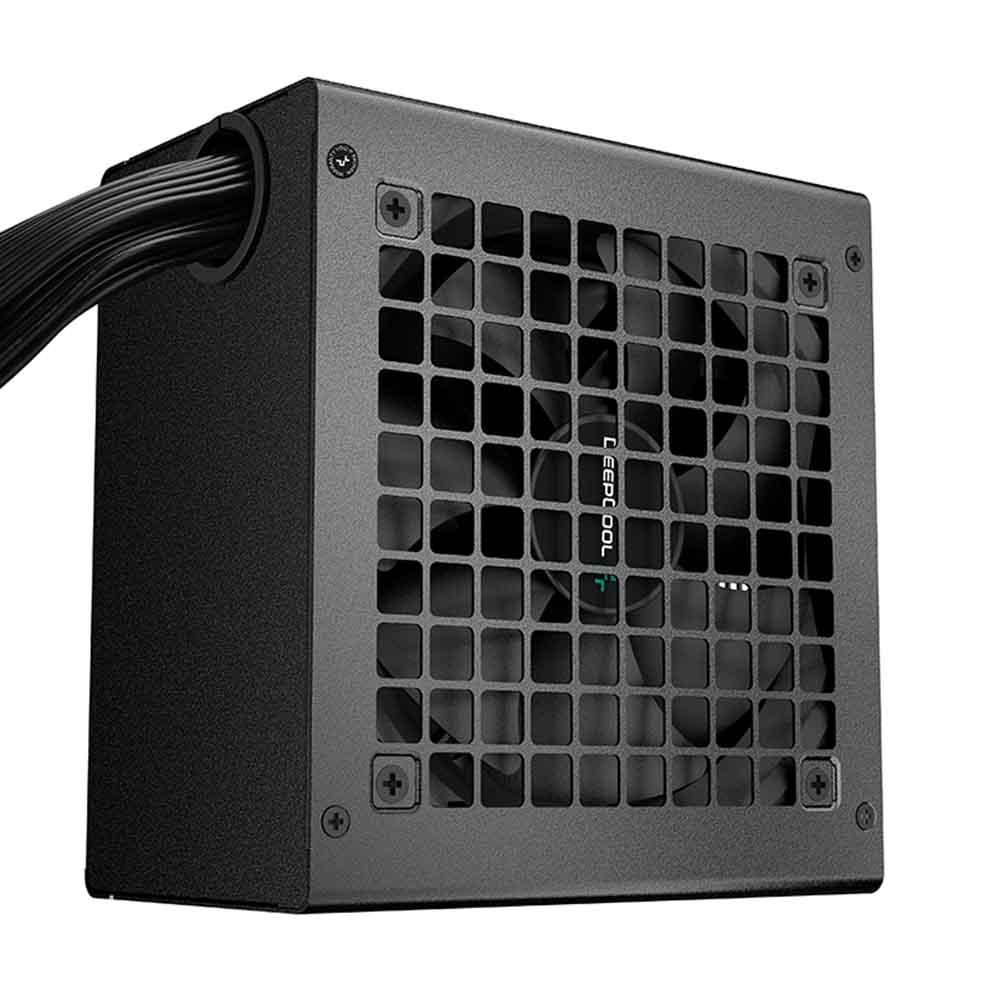

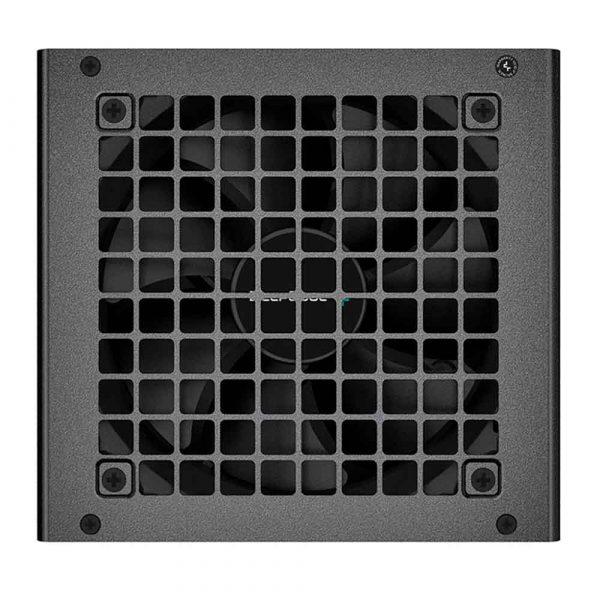

Deepcool PK550D 550W 80 Plus Bronze Power Supply
Overview :
PK550D
The Deepcool PK550D 550W power supply offers reliable 80 PLUS Bronze efficiency to power computer system builds with stability and low noise performance.
BEAUTIFUL IN BRONZE
The Deepcool PK550D 550W is certified 80 PLUS Bronze, delivering up to 85% efficiency under typical load minimizing excess heat waste and lowering energy costs.
DC-DC CONVERSION
A highly efficient DC-DC board designed for the +3.3V and +5V rails help achieve tighter voltage regulation and improve system compatibility for next-generation components.
TOUGH AND DURABLE
Designed to operate effortlessly in high temperatures up to 40°C and high altitudes up to 5000m while providing continuous stable power output.
ERP LOT 6 COMPLIANT
Designed to be highly power efficient when in power standby mode to meet international ErP Lot 6 standards to lower overall energy consumption.
STEALTH BLACK

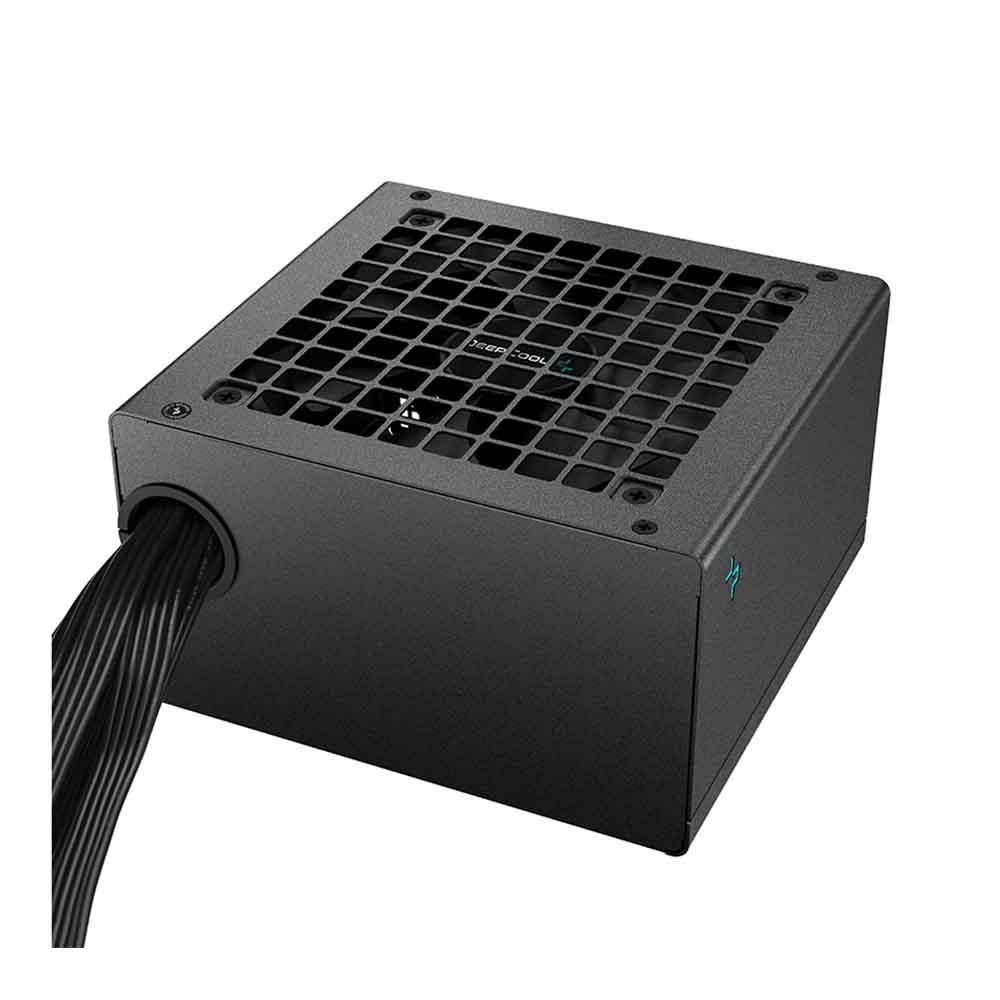

Black direct power cables help blend in with other components.

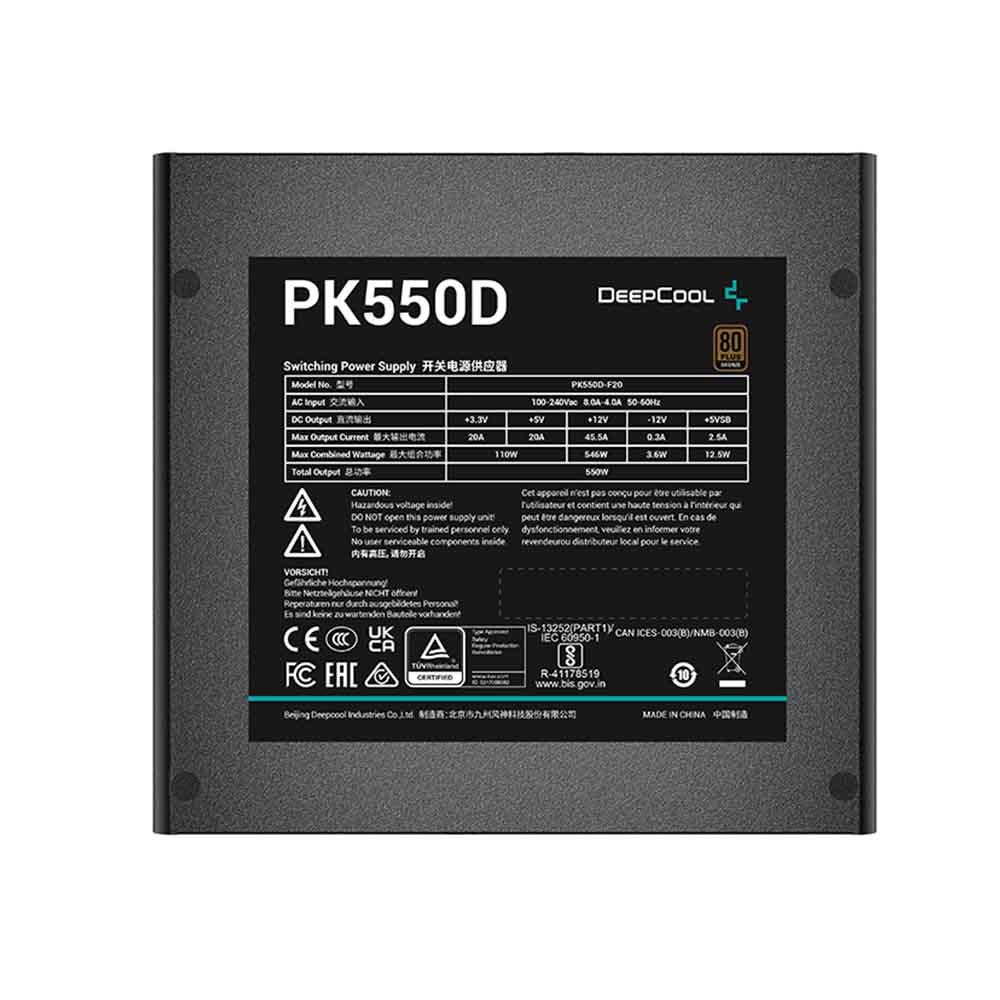

Specifications :
| Type | ATX12V V2.4 |
| Product Dimensions | 150×140×86mm (W x L x H) |
| 80PLUS Certifications | Bronze |

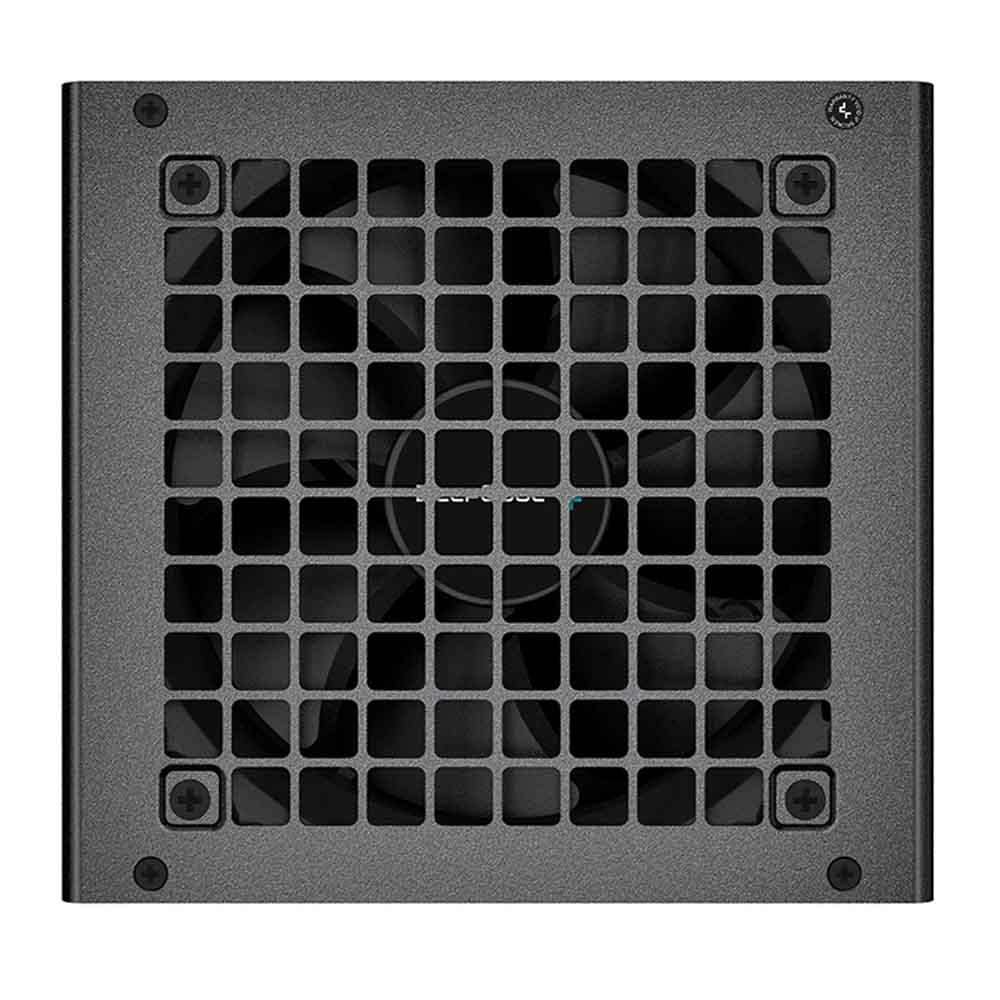

| Fan Size | 120mm |
| Fan Bearing | Hypro Bearing |
| Topology | Active PFC+DC to DC |
| Capacitors | Taiwan capacitor |
| Power Good Signal | 100-150ms |
| Hold Up Time | ≥16ms(80% Load) |
| Efficiency | ≥85% Under Typical Load(50% Loading) |
| Protection | SCP,OPP,OTP,OVP,OCP,UVP |
| Operation Temperature | 0 – 40 °C |
| Regulatory | CB/CE/FCC/CAN ICES-003(B)/NMB-003(B)/ TUV-RH/CCC/UKCA/EAC/RCM/BIS |
| Erp Regulation | ErP 2013 |
| MTBF | 100,000 Hours |
| EAN P/N | 6933412711971 R-PK550D-FA0B-UK |
| Warranty | 5 Years |
