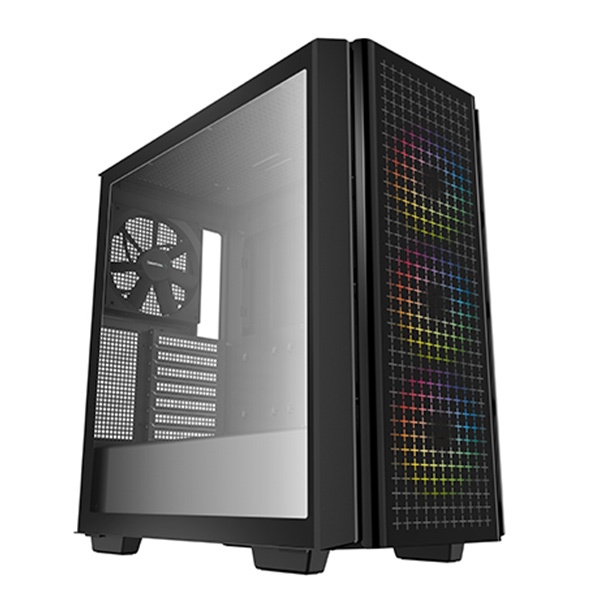

Deepcool CG540 ARGB Cabinet :
The DeepCool CG540 Mid-Tower Case combines abundant airflow and generous cooling capacity in an updated modern design that makes system building a breeze with four pre-installed fans.
Overview :
ON FULL DISPLAY

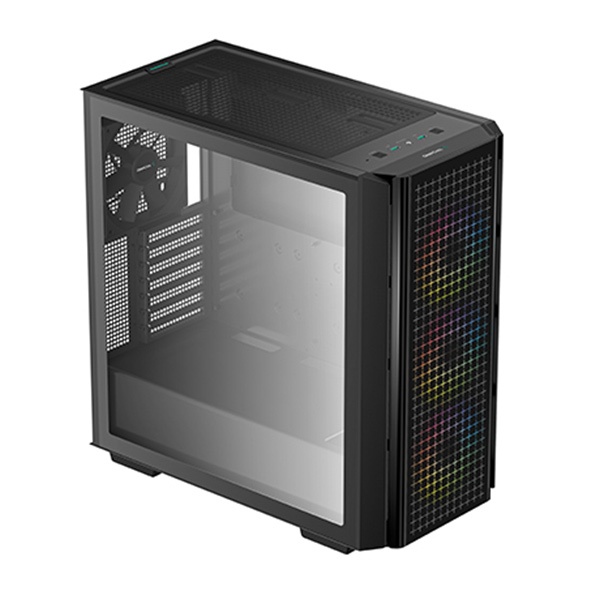

Put on a show with tempered glass side and front panels lined with optimized ventilation for proper airflow performance.
SHINE BRIGHT

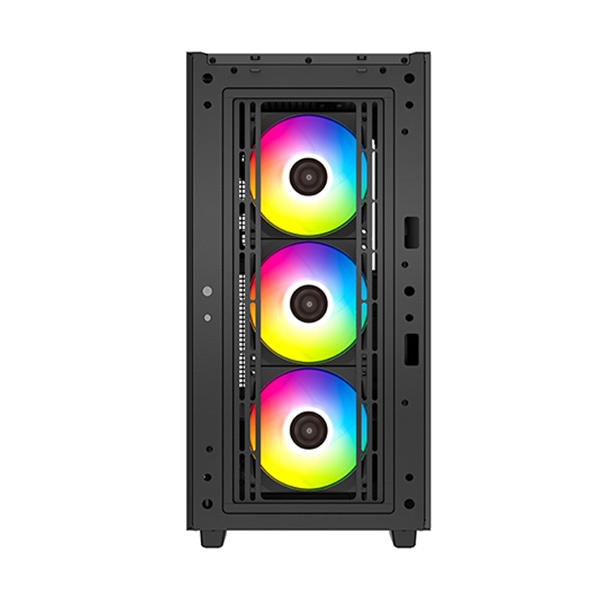

Three pre-installed 120mm ARGB fans installed in front illuminate through the designed tempered glass.
An additional 140mm black fan is featured in the rear for increased airflow.
An additional 140mm black fan is featured in the rear for increased airflow.
EXPANSIVE COOLING CAPACITY
Get big cooling potential with support up to 6x 120mm or 5x 140mm case fans, and multiple radiator configurations for 360mm installed in front and 280mm up top.
COMPATIBILITY
– Max CPU Cooler Height: 175mm
– Max GPU Length: 380mm
– Max PSU Length: 160mm
COMPLETE STORAGE
Install up to 2x 2.5” SSDs directly on the backplate and 2x 3.5” HDDs underneath the shroud for ample storage discreetly tucked away.
EASY ACCESS SIDE PANELS
Quickly get to your internal components with simple slide and latch side panels and a solid tempered glass window to highlight your system.
CLEAN AND TIDY
Easy-to-clean magnetic dust filters.
INDEPENDENT PCIE SLOT BAFFLES
Remove and reuse for simpler setup.

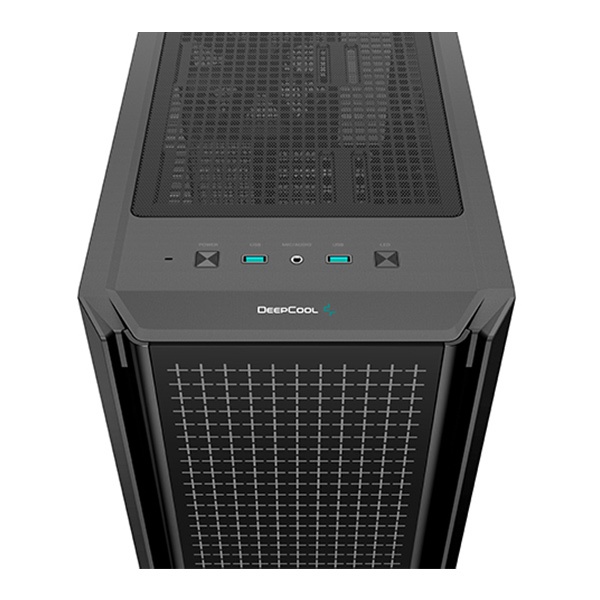

FRONT I/O PANEL
Along with two USB 3.0 ports and a combination audio/mic jack, the reset button is custom configured to control preset lighting effects on the three pre-installed ARGB fans.
Specifications :
| Product Dimensions | 455×230×470mm(L×W×H) |
| Net Weight | 7.5Kg |
| Materials | ABS+SPCC+Tempered Glass |
| Motherboard Support | Mini-ITX / Mico-ATX / ATX / E-ATX |
| Front I/O Ports | USB3.0×2、Audio×1 |
| 3.5″ Drive Bays | 2 |
| 2.5″ Drive Bays | 2 |
| Expansion Slots | 7 Slots |
| Pre-Installed Fans | Front: 3×120mm Rear: 1×140mm |
| Fan Support | Front: 3×120 / 2×140mm Top: 2×120 / 2×140mm Rear: 1×120 / 1×140mm |
| Radiator Support | Front: 120/140/240/280/360mm Top: 120/140/240/280mm Rear: 120/140mm |
| CPU Cooler Height Limit | 175mm |
| GPU Length Limit | 380mm |
| Power Supply Type | ATX PS2（maximum length: 160mm） |
| EAN Code | 6933412714798 |
| PN Code | R-CG540-BKAGE4-G-1 |
