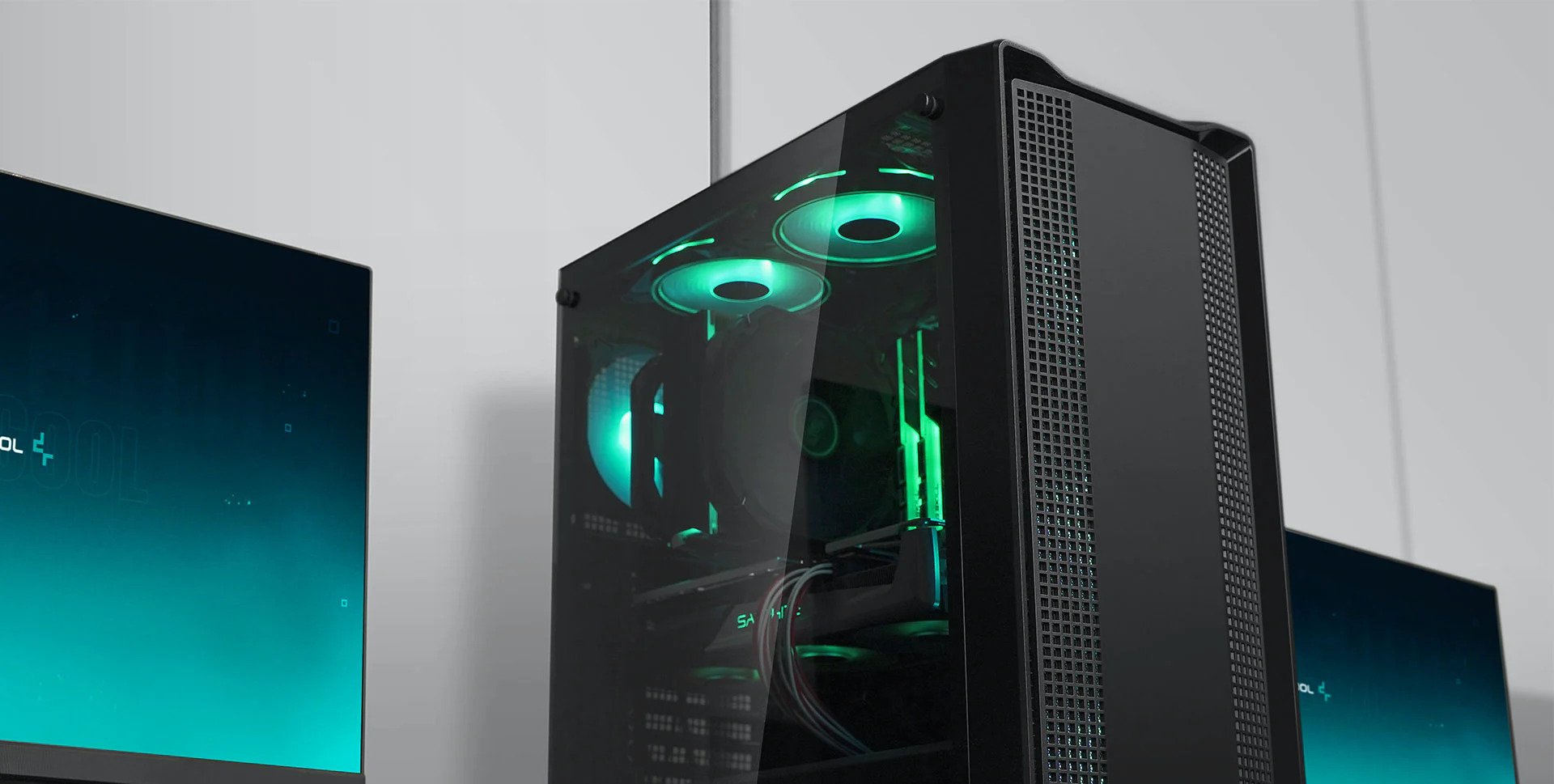

Deepcool CC560 Black Cabinet :
The Deepcool CC560 Black Mid-Tower Case offers outstanding value with spacious component compatibility, a full-sized tempered glass window, and a total of four pre-installed LED fans that gets any build started right.
Overview :
ABUNDANT AIRFLOW PERFORMANCE
Well ventilated throughout the entire chassis, the Deepcool CC560 Black sports an airflow front panel and a large mesh top panel to ensure fresh air is circulating.
PRIMED AND READY
A total of 4 pre-installed LED fans delivers big airflow performance ensuring any system build is receiving top-notch cooling capacity.
WIDE COOLING SUPPORT
Enough space to support high-performance AIO liquid coolers with room for 360mm radiators in front or 240mm on top. Cooling fan support for up to 6x 120mm or 4x 140mm.
COMPATIBILITY
- Max CPU Cooler Height: 163mm
- Max GPU Length: 370mm
- Max PSU Length: 170mm
STORAGE SOLUTIONS
Install up to 2x 2.5” SSDs directly on the backplate and 2x 3.5” HDDs underneath the shroud in a removeable drive cage for adjustability.
Specifications :
| Product Dimensions | 416×210×477mm(L×W×H) |
| Net Weight | 5.25Kg |
| Materials | ABS+SPCC+Tempered Glass |
| Motherboard Support | Mini-ITX / Micro-ATX / ATX |
| Front I/O Ports | USB3.0×1、USB2.0×1、Audio×1 |
| 3.5″ Drive Bays | 2 |
| 2.5″ Drive Bays | 2+1 |
| Expansion Slots | 7 Slots |
| Pre-Installed Fans | Front: 3×120mm |
| Rear: 1×120mm | |
| Fan Support | Front: 3×120 / 2×140mm |
| Top: 2×120 / 2×140mm | |
| Rear: 1×120mm | |
| Radiator Support | Front: 120/140/240/280/360mm |
| Top: 120/240mm | |
| Rear: 120mm | |
| CPU Cooler Height Limit | 163mm |
| GPU Length Limit | 370mm |
| Power Supply Type | ATX PS2（maximum length: 170mm） |
| EAN Code | 6933412714880 |
| PN Code | R-CC560-BKGAA4-G-1 |
