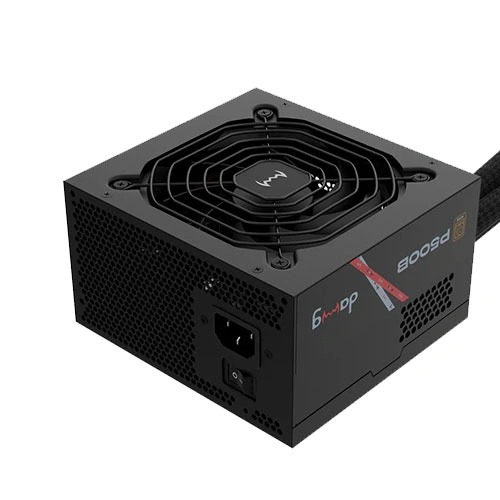

Dawg P500B 500W 80 Plus Bronze ATX Non-Modular Power Supply
Feature:
Engineered to deliver stable performance for modern gaming builds, this 500W power supply combines 80 Plus Bronze certification with Active PFC for efficient, consistent power delivery. A 120mm hydraulic bearing fan maintains optimal cooling, while OVP, UVP, SCP, and OPP protection safeguards critical components. Complete motherboard, CPU, PCIe, SATA, and peripheral connectivity, backed by a 60,000-hour MTBF, ensures dependable performance for every session.
- Model : Dawg P500B
- Max. Wattage Output : 500W
- Efficiency Certification : 80 Plus Bronze
- Power Factor Correction (PFC) : Active PFC
- Input Voltage : 230V
- Input Current : 7A
- Operating Temperature : 50°C
- MTBF : 60000H
- Protection Features : OVP | SCP | UVP | OPP
- Fan Size | Type : 120 mm Black Fan | hydraulic bearing
- Product Dimensions (W × D × H) : 15 x 14 x 8.5 cm
Connector Interfaces:Â
- Motherboard Power Cable (24 Pin) x 1 (550 mm)
- CPU Cable (4+4 Pin) x 1 (670 mm)
- PCI-E Cable (6+2 Pin) 1-to-1 x 2 (470 mm)
- SATA Cable 1-to-2 x 2 (470 + 150 mm)
- Peripheral 1-to-2 x 1 (470 + 150 mm)
Specification:
| Wattage | 500 Watt |
| Certification | 80 Plus Bronze |
| Modular | NON MODULAR |
| PCIe Connector (6+2) | 2 |
| SATA Connector | 2 |
| Peripheral (4-Pin) | 1 |
| Warranty | 5 Years |
| Note*** | Features, Price and Specifications are subject to change without notice. Images use for Representation Purpose Only. |
