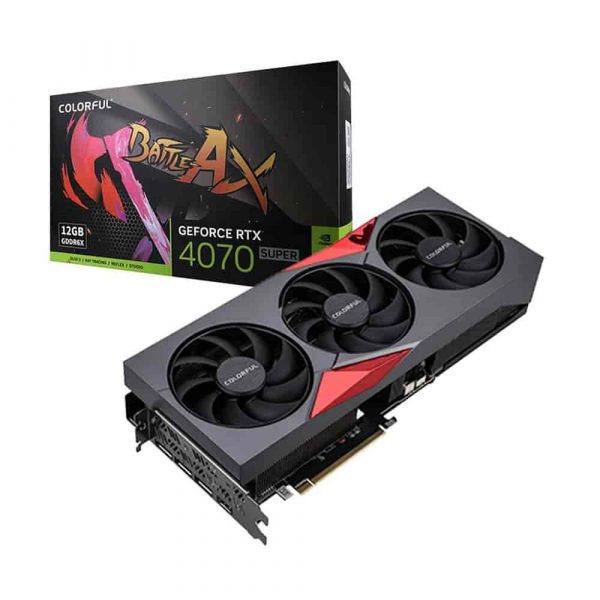

Colorful RTX 4070 SUPER NB EX 12GB Graphics card :
Features :
- CUDA Cores: 7168
- Base Clock: 1980-2475 Mhz
- One-key Overclock: 1980-2670Mhz
- Memory Interface: GDDR6X 12GB
- Power Connector: 16pin
- Power Recommended: 750 or above
- Dimensions: 324.9*134*51.2mm

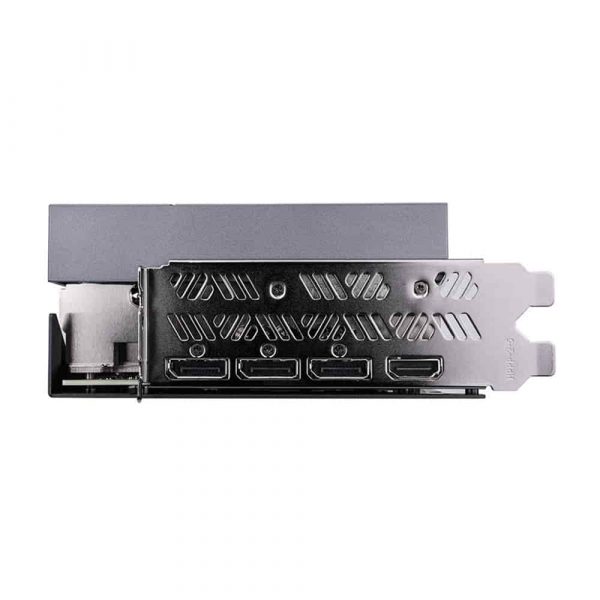

- Video Output: 3*DP 1.4a + 1*HDMI 2.1
Overview :
AXE OUT
New battle-axe is born for the top players and content creators. The dark rea diamond-shaped triangular structure represents infinite energy. in Colorful RTX 4070 SUPER NB EX 12GB.
Axe Radiator
Drive the heat out efficiently with durability

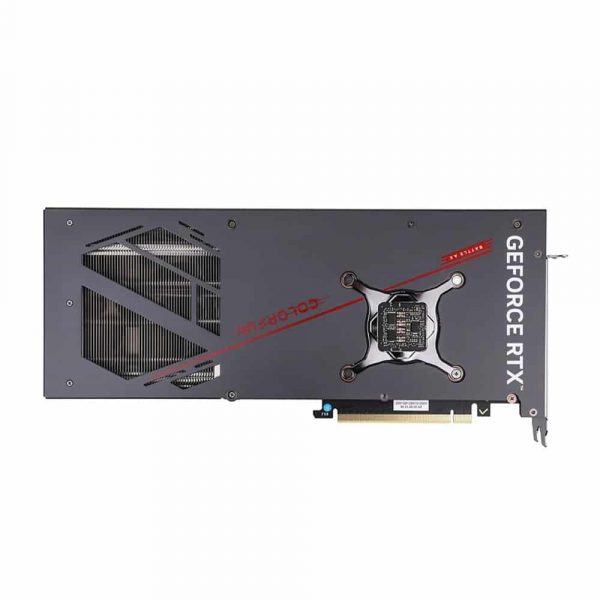

New Backboard
Heat dissipation amplified in Colorful RTX 4070 SUPER NB EX 12GB.
Cooling Module
3*6mm thermal pipes
External Armor
Mighty as a fortress
Efficient Airflow Robust & Reliable

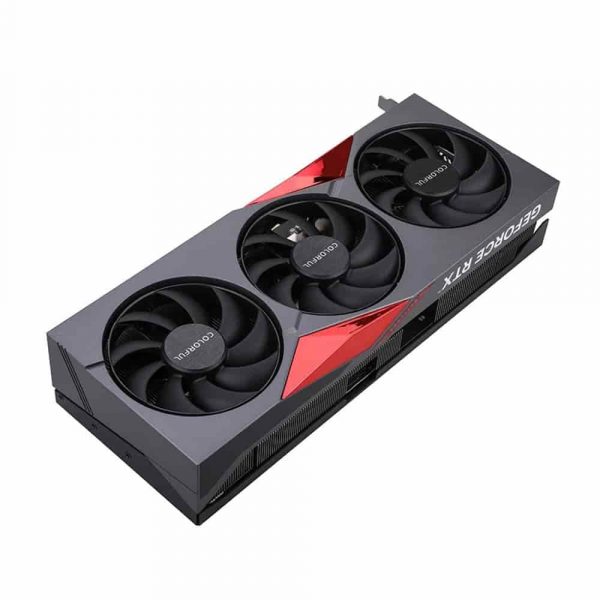

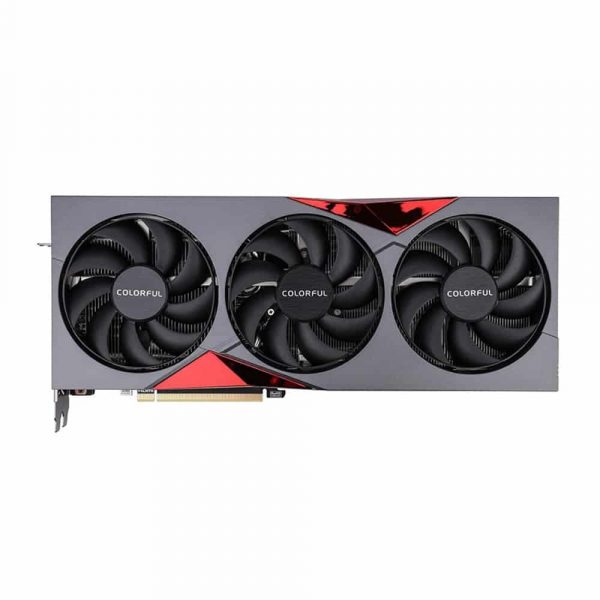

90mm Triple fans Improve air pressure and inlet volume
Dual Ball Bearing
Super long lifespan
Reflow Soldering Technic
The thermal tubes and the fins fit perfectly.
Specifications :
| Model | Colorful RTX 4070 SUPER NB EX 12GB |
| Chip Series | GeForce RTX 4070 super |
| Product Series | iGame Series |
| GPU Code Name | AD104 |
| Manufacturing Process | |
| CUDA Cores | 7168 |
| Core Clock | Base:1980Mhz; Boost:2475Mhz |
| Memory Clock | 21Gbps |
| Memory Size | 12GB |
| Memory Bus Width | 192bit |
| Memory Type | GDDR6X |
| Memory Bandwidth | 504GB/s |
| Power Connector | 16pin |
| Power Supply | 8+3 |
| TDP | 220W |
| Display Ports | 3*DP+HDMI |
| Fans Type | FAN |
| Heat Pipe Number/Spec | 6*Φ6 |
| Auto Stop Technology | Yes |
| Power Suggest | 650W and above |
| DirectX | DirectX 12 Ultimate/OpenGL4.6 |
| NV Technology Support | NVIDIA DLSS 3, NVIDIA G-SYNC, 3rd Gen Ray Tracing Cores |
| Slot Number | 3 slot |
| Product Size | 325*134*53.8mm |
| Product Weight | 1.16KG (N.W) |
| Accessories | Warranty Card, Manual |
| Warranty | 3 Years |
