Asus TUF Gaming Radeon RX 7800 XT White OC 16GB Graphics Card :
The AMD RDNA™ 3 Architecture elevated by buffed cooling and power delivery to effortlessly churn out frames at 4K resolution and beyond, and backed with an arsenal of rugged reinforcements to cover your six. Lock, load, and dominate with the Asus TUF Gaming Radeon RX 7800 XT White OC 16GB Graphics Card.
- Axial-tech fans scaled up to deliver 24% more airflow
- Dual ball fan bearings last up to twice as long as conventional designs
- Military-grade capacitors rated for 20K hours at 105C make the GPU power rail more durable
- Metal Exoskeleton adds structural rigidity and vents to increase heat dissipation
- Auto-Extreme precision automated manufacturing for higher reliability
- GPU Tweak III software provides intuitive performance tweaking, thermal controls, and system monitoring

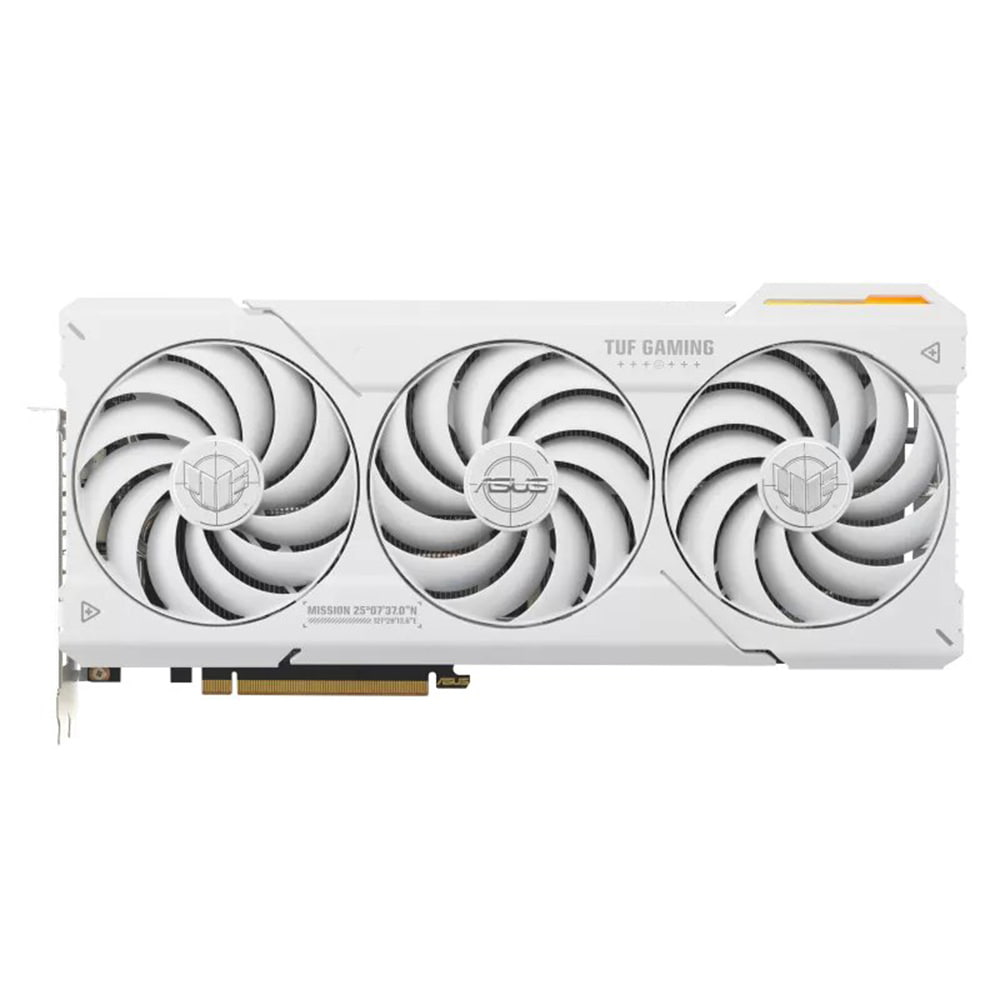

Asus TUF Gaming Radeon RX 7800 XT White OC 16GB Graphics Card Bigger and better. Axial-tech fans spin on dual-ball bearings and have been scaled up to propel 24% more air through the card, setting the stage for lower temperatures, less noise, and higher performance.
The two side fans spin counterclockwise to minimize turbulence and maximize air dispersion through the heatsink. All three fans come to a standstill when Asus TUF Gaming Radeon RX 7800 XT White OC 16GB Graphics Card temps are below 55 Celsius, letting you play less-demanding games or perform light tasks in relative silence. Fans start up again when temps are over 60 Celsius, referencing a speed curve that balances performance and acoustics for work or play.
Phase That Blaze

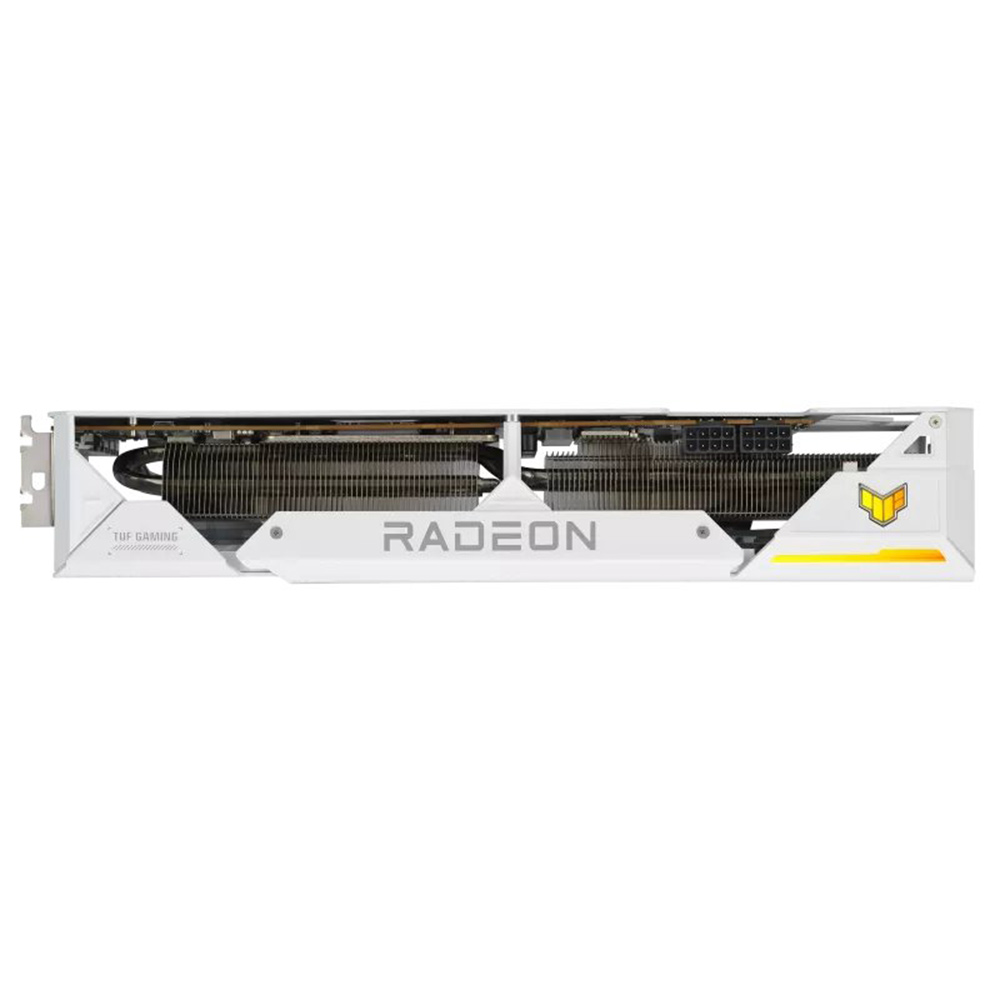

A generously sized heatsink efficiently soaks up heat from the Asus TUF Gaming Radeon RX 7800 XT White OC 16GB Graphics Card, allowing it to be whisked away by the three Axial-tech fans.
A lineup of capacitors rated to last 20,000 hours at 105 Celsius brings higher temperature and ripple tolerance to the Asus TUF Gaming Radeon RX 7800 XT White OC 16GB Graphics Card power rail, arming the card for long-term deployment in challenging conditions.

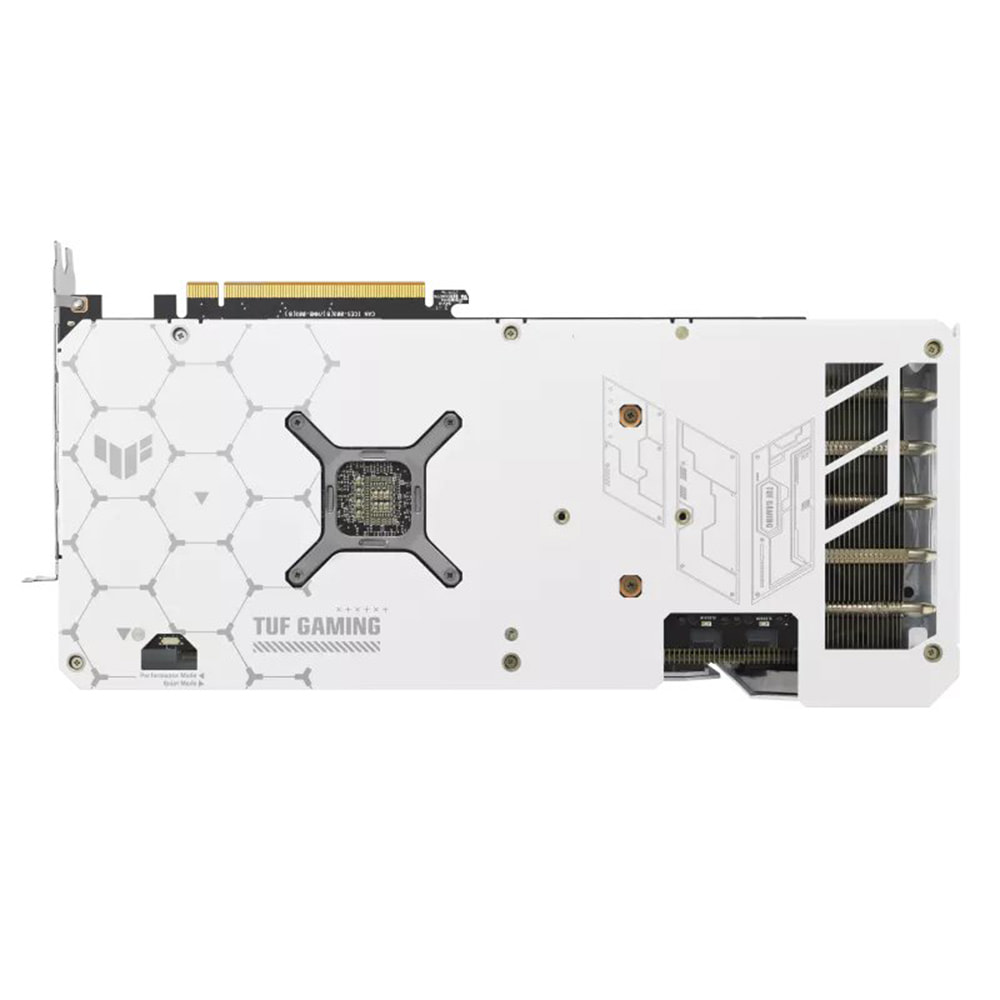

An aluminum shroud and backplate prevent PCB flex and feature large vents to further increase heat dissipation.
LOCK, LOAD, AND LET THE PERFORMANCE FLOW
The Asus TUF Gaming Radeon RX 7800 XT White OC 16GB Graphics Card gloriously presented on a backdrop of low noise and rugged durability.
Auto-Extreme Technology is an automated manufacturing process that sets new standards in the industry by allowing all soldering to be completed in a single pass. This reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting in less environmental impact, lower manufacturing power consumption, and a more reliable product overall.
Light ‘em Up!
Aura-compatible ARGB lighting on the shroud adds a dash of customizable color or functional effects to your build. Pair up with a vast range of compatible system components and coordinate the glow to create a theme that’s uniquely you.
Pillar of Support
The bundled graphics card holder banishes sag and also contains a screwdriver to help you build.
|Graphic Engine||AMD Radeon™ RX 7800 XT|
|Bus Standard||PCI Express 4.0|
|Video Memory||16GB GDDR6|
|Engine Clock||OC mode: up to 2565 MHz (Boost Clock) / up to 2254 MHz (Game Clock)|
Default mode: up to 2520 MHz (Boost Clock) / up to 2213 MHz (Game Clock)
|Memory Speed||19.5 Gbps|
|Resolution||Digital Max Resolution 7680 x 4320|

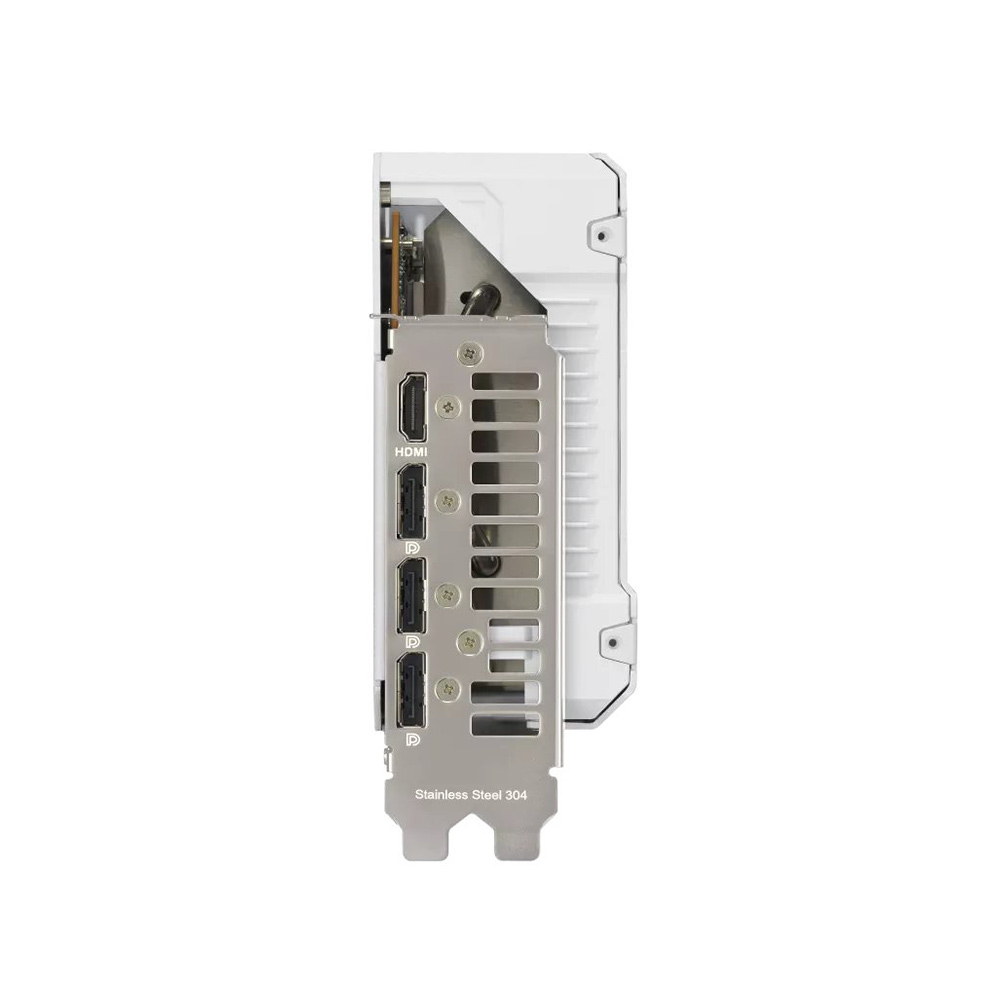

|Interface||Yes x 1 (Native HDMI 2.1)|
Yes x 3 (Native DisplayPort 2.1)
|HDCP Support||Yes (2.3)|
|Maximum Display Support||4|
|NVlink/ Crossfire Support||No|
|Accessories||1 x TUF certificate of Reliability|
1 x TUF Gaming Graphics Card Holder
1 x TUF Velcro Hook & Loop
1 x Collection card
1 x Thank you card
1 x Speedsetup Manual
|Software||ASUS GPU Tweak III & Drivers: please download all software from the support site.|
|Dimensions||319.8 x 150.9 x 59.2 mm|
12.6 x 5.94 x 2.33 inch
|Power Connectors||2 x 8-pin|
