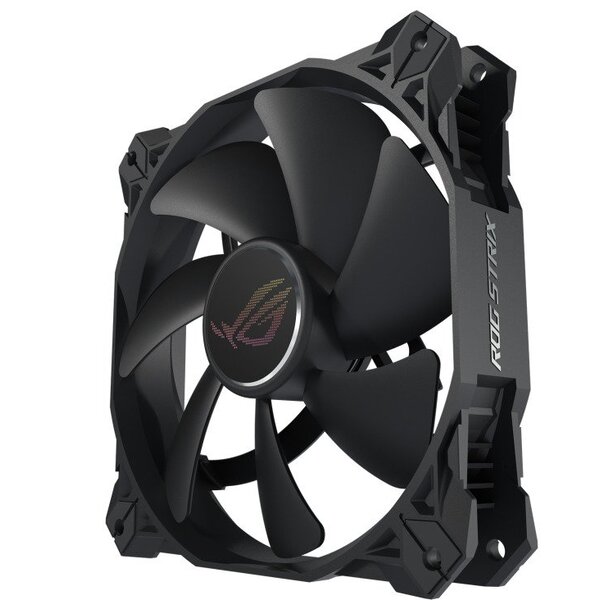

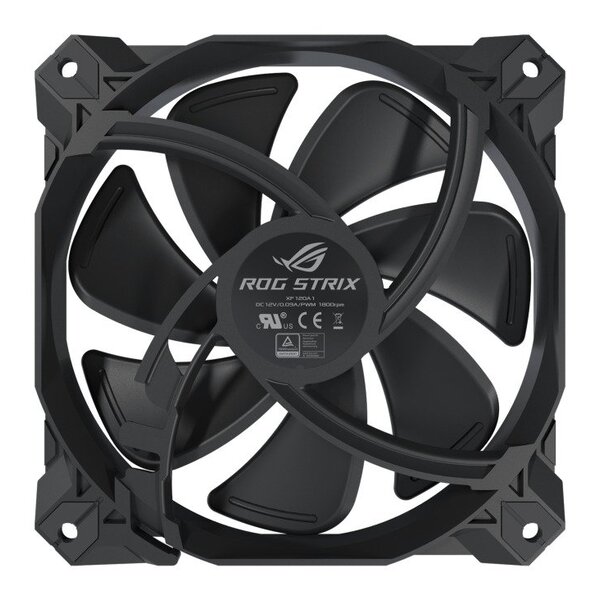

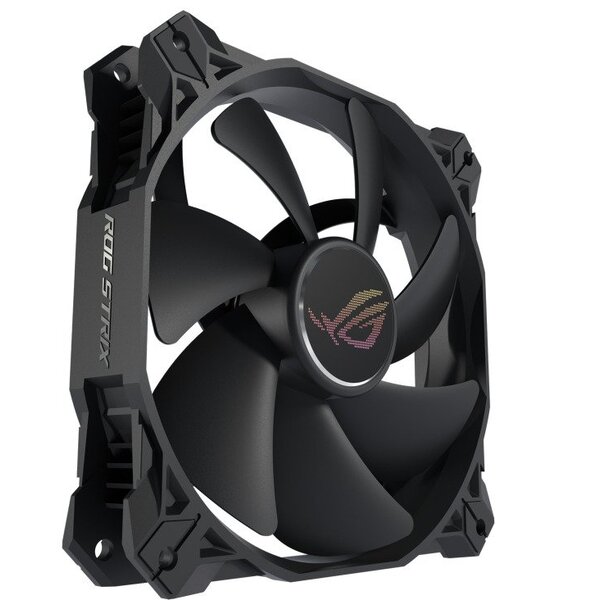

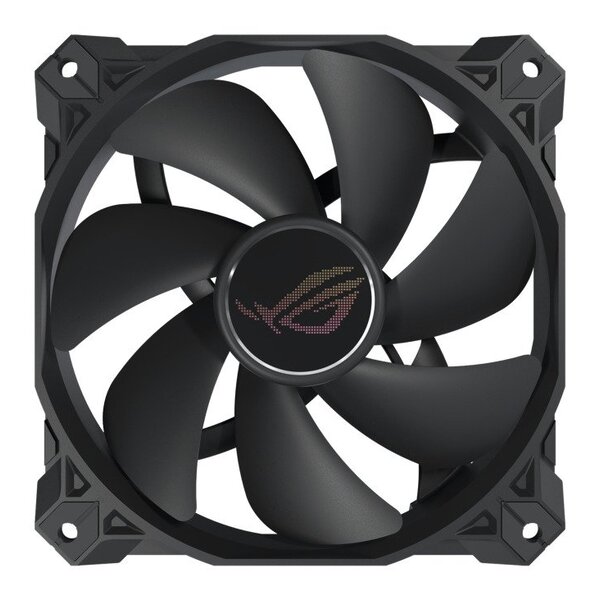

Asus ROG Strix XF120 Fan:
- Optimal blend of airflow and static pressure: Enables use as a PC case, radiator or CPU cooler fan
- MagLev bearing: Stabilizes rotor for reduced friction and noise, and offers 400,000-hour life span
- Minimized acoustic profile: Whisper-quiet, 22.5 dB(A) cooling performance and tuned to deliver a smooth and stable sound frequency
- Aerodynamic fan blade and frame design: Minimizes turbulence and maximizes airflow
- Extensive operating range: 250 – 1800 rpm range for more flexibility and to create a quiet fan curve (fan spins down at 0% PWM utilization)
- Anti-vibration pads and mounts: Reduces vibration and prevents rattling
- 5-year warranty
Asus ROG Strix XF120 The fan bearing in ROG Strix XF 120 features 360° MagLev technology to prevent slanting and friction. This technology delivers exceptional cooling performance, low noise and a long lifespan of up to 400,000 hours.
Asus ROG Strix XF120 Precision-engineered grooves on the fan blades direct and focus air to flow smoothly along the blades for reduced flow separation. This increases fan performance and reduces vortex noise, improving overall acoustics.
Asus ROG Strix XF120 The angle and curvature of the frame struts are carefully designed to direct and channel airflow in a unidirectional, highly focused stream. This design minimizes turbulence and the focused airflow enhances static pressure.
DYNAMIC BALANCE PRE-CALIBRATION
Asus ROG Strix XF120 The balance of each fan is manually tuned to minimize inefficiency and ensure optimal performance.
PRECISE, FLEXIBLE PWM SPEED CONTROL
Asus ROG Strix XF120 An extensive operating range of 250 – 1800 rpm offers the precision and flexibility to maximize cooling performance across various workloads, and the fan automatically turns off when set to 0% PWM duty cycle for an ultralow noise profile when handling lighter workloads.
|Fan Size||120 x 120 x 25 mm|
|Fan Speed||1800 rpm (+/- 10%)|
|Fan Airflow||62.5 CFM|
|Fan Pressure||3.07 mm H2O|
|Fan Noise Level||22.5 dB(A)|
|Fan Input Power||1.08W|
|Fan Operating Voltage||12V|
|Fan Starting Voltage||10.2V|
|Fan Input Current||0.09A|
