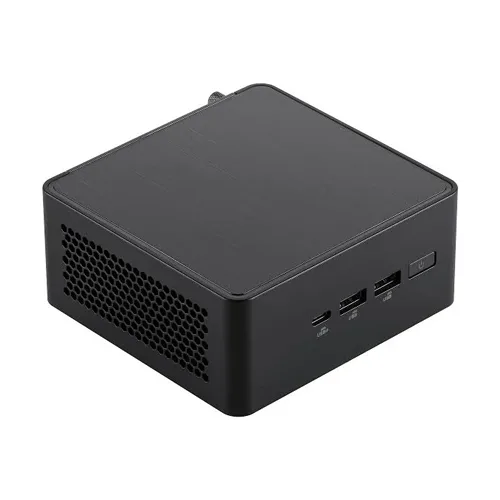

Asus NUC 15 Pro Barebone Mini PC (Intel Core 7-240H with Intel Arc 140T GPU)
Overview :
Step into next-generation computing performance with the Asus NUC 15 Pro Barebone Mini PC, driven by the advanced AI-ready Intel Core 7-240H processor (Series 2). Designed for demanding business environments, corporate offices, and power users, this Asus NUC 15 Pro Barebone Mini PC delivers elite desktop-class computing power in a remarkably small footprint. Whether you are outfitting a busy office, deploying multi-display digital signage, or configuring an advanced workstation, it provides unmatched reliability and speed.
Next-Gen Processing and High-Speed Memory Support
At the heart of the system is the powerful Intel Core 7-240H processor paired with dedicated AI acceleration to handle heavy multitasking workflows with ease. Because this is a barebone kit, the Asus NUC 15 Pro Barebone Mini PC grants you total freedom to customize your hardware build. It features dual-channel slots supporting up to 96GB of high-speed DDR5-5600 memory. For storage, the chassis accommodates robust configurations, including a primary M.2 2280 PCIe Gen 5 x4 NVMe slot and an additional M.2 2242 PCIe Gen 4 slot.
Advanced Connectivity and Quad-Display Support
Modern connectivity is seamlessly integrated into the Asus NUC 15 Pro Barebone Mini PC. It features elite Intel Wi-Fi 7 BE201 and Bluetooth 5.4, dual lightning-fast Thunderbolt 4 ports, and dual HDMI 2.1 outputs for rapid wireless and wired performance. Thanks to its extensive port layout, this mini PC effortlessly supports up to four simultaneous 4K displays.
Toolless Design and Enterprise Reliability
IT administrators will appreciate the intelligent chassis design, which drastically reduces deployment time, simplifies hardware upgrades, and cuts maintenance overhead. Backed by a 3-year manufacturer warranty and broad operating system support—including Windows 11 and Linux—it is a trusted, future-proof cornerstone for any professional workspace.
Note: This is a barebone product. RAM memory, storage drives, and operating system are not included and must be purchased separately.
Specifications Table :
| Product Name | Asus NUC 15 Pro Barebone Mini PC |
| Processor (CPU) | Intel Core 7 Processor 240H (cTDP 40W) |
| Chipset | Integrated |
| Graphics | Intel Arc 140T GPU |
| Operating System | Not Included (Barebone) Supported OS: Windows 11 Home 64-bit / Windows 11 Pro 64-bit |
| Memory (RAM) | Not Included Max Capacity: Up to 96GB (48GB x 2) DDR5-5600 via 2 x SO-DIMM slots |
| Storage Options | Not Included • 1 x M.2 2280 PCIe Gen5x4 (Supports 128GB~8TB NVMe SSD) • 1 x M.2 2242 PCIe Gen4x4 (Supports 128GB~2TB NVMe SSD) |
| Wireless Network | Intel Wi-Fi 7 BE201 (Gig+), Bluetooth 5.4 |
| Wired Network (LAN) | Intel Ethernet Controller I226-LM, 2.5G |
| Audio | No Analog Audio Support (Digital Audio) |
| Security & Features | fTPM, HDMI CEC (2 ports on back panel), MIL-STD-810H Certified |

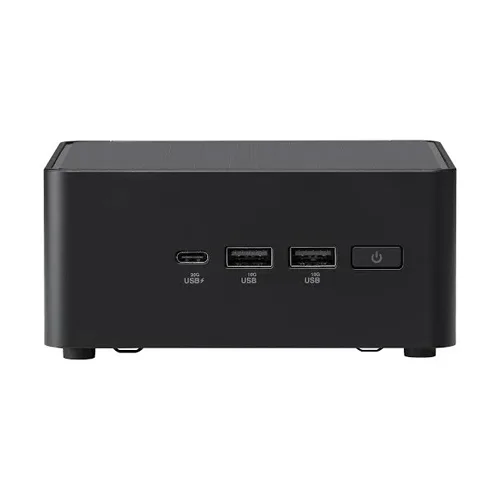

| Front I/O Ports | • 1 x USB 3.2 Gen2x2 Type-C • 2 x USB 3.2 Gen2 Type-A |
| Side I/O Ports | • 1 x Kensington Lock |

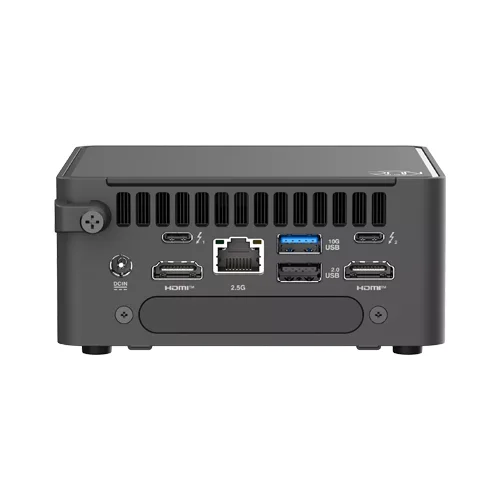

| Back I/O Ports | • 2 x Thunderbolt 4 Type-C w/ DisplayPort 2.1 • 1 x USB 3.2 Gen 2 Type-A • 1 x USB 2.0 Type-A • 2 x HDMI 2.1 (TMDS Compatible) • 1 x RJ45 LAN, 1 x DC-in |
| Power Supply | 19VDC, 6.32A, 120W Power Adapter (DOE Level VI, efficiency >=88%) |
| Warranty | 3 Years |
