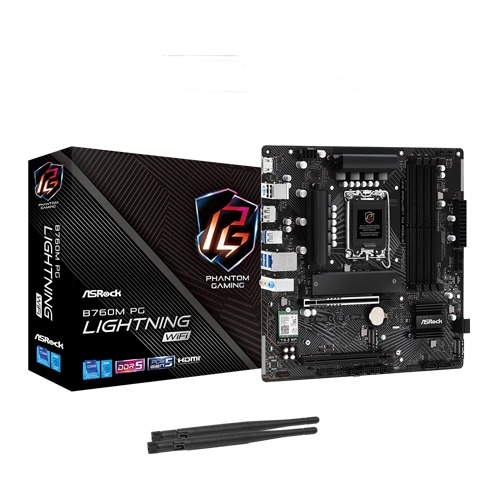

ASRock B760M PG Lightning WIFI M-ATX Motherboard (Intel Socket LGA 1700, DDR5, Wi-Fi 6E)
Feature:
- Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700)
- 7+1+1 Power Phase, Dr.MOS for VCore+GT
- 4 x DDR5 DIMMs, Supports Dual Channel, up to 7200+ (OC)
- 1 PCIe 5.0 x16, 1 PCIe 3.0 x16
- Graphics Output Options: HDMI, DisplayPort
- Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
- 4 SATA3, 3 Hyper M.2 (PCIe Gen4x4)
- 1 USB 3.2 Gen1 Type-C (Rear), 5 USB 3.2 Gen1 Type-A (3 Rear, 2 Front), 6 USB 2.0 (2 Rear, 4 Front)
- Dragon 2.5G LAN, 802.11ax WiFi 6E + Bluetooth 5.3
- Supports ASRock Auto Driver Installer
7+1+1 Power Phase Design
Featuring sturdy components and completely smooth power delivery to the CPU, offering enhanced performance for gamers.
6 Layer PCB
The 6 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency for memory overclocking! Thus, it’s able to support the latest memory modules with most extreme memory performance!
Aluminum Heatsink
The first thing that catches the eye is the optimized Aluminum Heatsink Design. Heatsinks are crucial for efficient heat dissipation, especially during heavy workloads like gaming or productivity tasks. Motherboard that built with heatsinks can effectively manage thermal performance, hence ensure system stability and durability effortlessly.
Fan-Tastic Tuning
ASRock B760M PG Lightning WIFI has ASRock Fan-Tastic Tuning function enables users to auto-detect the minimum duty of each fan with a single click. Users can also easily adjust the fan curve via the visualized UI interface, meeting their system’s cooling performance and noise reduction requirements.
PWM/DC Fan Support
ASRock fan headers automatically detect whether fans are running in DC or PWM mode, allowing users to fine-tune the fan curve and achieve quieter operation.
DDR5 XMP & EXPO Support
Derived from the “built for stable and reliable” designing concept, ASRock does not compromise on any details. This motherboard is built with high quality components, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance by enabling the pre-tested profiles. Make sure the memory modules are Intel XMP/AMD EXPO capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all.
PCIe 5.0 + Surface-Mount Tech
Compares to conventional DIP style PCIe slot, the SMT type PCIe slot improves signal flow and maximize stability under high speed, a key breakthrough to fully support the lighting speed of the latest PCIe 5.0 standard.
The latest PCI Express 5.0 is capable to perform a breathtaking bandwidth of 128GBps, ready to unleash the full potential of future high end graphic cards.
High Speed M.2 Solution
This ASRock B760M PG Lightning WIFI motherboard is capable of accomadating multiple PCI Express 4.0 M.2 SSDs, which is capable of performing twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.
Specification:
| CPU | Supports 14th, 13th & 12th Gen Intel® Core™ Processors |
| CPU Socket | LGA1700 |
| CPU Technologies | Intel® Hybrid Technology, Intel® Turbo Boost Max 3.0, Intel® Thermal Velocity Boost (TVB), Intel® Adaptive Boost Technology (ABT) |
| Chipset | Intel® B760 |
| Memory Type | DDR5 |
| Memory Slots | 4 × DDR5 DIMM |
| Maximum Memory Capacity | 256GB |
| Memory Architecture | Dual Channel |
| Memory Support | Up to DDR5 7200+ MT/s (OC) |
| ECC Memory Support | Non-ECC, Un-buffered |
| XMP Support | Intel® XMP 3.0 |
| BIOS | 128Mb AMI UEFI BIOS with GUI |
| Graphics | Intel® Xe Graphics Architecture (CPU Dependent) |
| HDMI Port | 1 × HDMI 2.1 |
| HDMI Maximum Resolution | 4K @ 60Hz |
| DisplayPort | 1 × DisplayPort 1.4 |
| DisplayPort Maximum Resolution | 8K @ 60Hz / 5K @ 120Hz |
| Audio Codec | Realtek® ALC897 |
| Audio Channels | 7.1 Channel HD Audio |
| Audio Features | Nahimic Audio |
| LAN | Dragon RTL8125BG 2.5 Gigabit LAN |
| LAN Features | Phantom Gaming LAN Software, Smart Bandwidth Control, Network Statistics, Priority Control |
| Wi-Fi | Wi-Fi 6E (802.11ax) |
| Bluetooth | Bluetooth 5.3 |
| Wireless Features | Dual-Band 2×2, MU-MIMO, 6GHz Support (Windows 11) |
| PCIe x16 Slot | 1 × PCIe 5.0 x16 |
| PCIe x16 (Chipset) | 1 × PCIe 3.0 x16 (x4 Mode) |
| M.2 Key-E Slot | 1 × Wi-Fi/BT Module Slot |
| Multi-GPU Support | AMD CrossFire™ |
| M.2 Slots | 3 × Hyper M.2 PCIe 4.0 x4 |
| M.2_1 | PCIe 4.0 x4 (2242/2260/2280, CPU) |
| M.2_2 | PCIe 4.0 x4 (2280, Chipset) |
| M.2_3 | PCIe 4.0 x4 (2280, Chipset) |
| SATA Ports | 4 × SATA3 6Gb/s |
| RAID Support | RAID 0 / 1 / 5 / 10 (SATA) |
| Rear USB Type-C | 1 × USB 3.2 Gen1 Type-C |
| Rear USB 3.2 Gen1 Type-A | 3 × USB 3.2 Gen1 Type-A |
| Front USB 3.2 Gen1 | 2 × USB 3.2 Gen1 |
| Rear USB 2.0 | 2 × USB 2.0 |
| Front USB 2.0 | 4 × USB 2.0 |
| TPM Header | 1 × SPI TPM |
| Chassis Intrusion Header | 1 |
| CPU Fan Header | 1 × 4-pin |
| CPU/Water Pump Header | 1 × 4-pin |
| Chassis/Water Pump Headers | 4 × 4-pin |
| Main Power Connector | 1 × 24-pin ATX |
| CPU Power Connector | 1 × 8-pin 12V |
| Front Audio Header | 1 |
| Thunderbolt Header | 1 × Thunderbolt™ AIC Header |
| USB 2.0 Headers | 2 (Supports 4 Ports) |
| USB 3.2 Gen1 Header | 1 (Supports 2 Ports) |
| Rear Panel Ports | 2 × Antenna Ports, 1 × PS/2, 1 × HDMI, 1 × DisplayPort, 1 × USB 3.2 Gen1 Type-C, 3 × USB 3.2 Gen1 Type-A, 2 × USB 2.0, 1 × RJ-45, 3 × Audio Jacks |
| Software | ASRock Motherboard Utility (Phantom Gaming Tuning), Phantom Gaming LAN Software |
| UEFI Features | EZ Mode, Full HD UEFI, My Favorites, Auto Driver Installer, Instant Flash, Easy RAID Installer |
| Unique Features | PCIe Gen5 Graphics, Dual Channel DDR5, 7+1+1 Power Phase (50A Dr.MOS), 2.5G LAN, Wi-Fi 6E, Auto Driver Installer, Post Status Checker |
| Included Accessories | User Manual, I/O Shield, 2 × SATA Cables, 2 × SMA Wi-Fi Antenna Cables, 2 × Wi-Fi Antennas, Wi-Fi Module Cover, 3 × M.2 Screws, M.2 Standoff |
| Operating System | Windows® 10 64-bit, Windows® 11 64-bit |
| Form Factor | Micro ATX (24.4 × 24.4 cm) |
| Certifications | FCC, CE, ErP/EuP Ready |
| Warranty | 3 Years |
