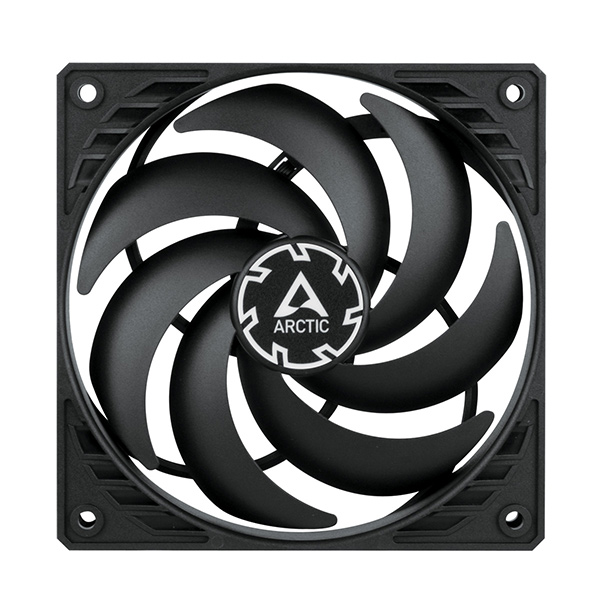

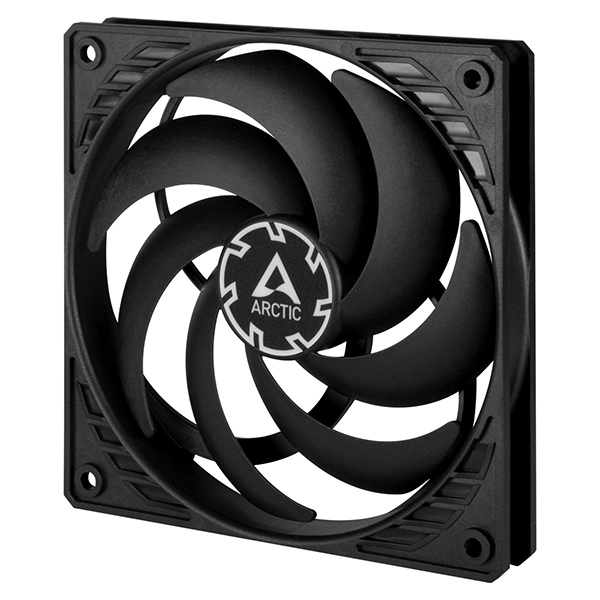

Arctic P12 Slim PWM PST Case Fan:
Overview:
IDEAL WHERE SPACE IS LIMITED
OPTIMISED FOR STATIC PRESSURE
During the development of the new Arctic P12 Slim PWM PST, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the Arctic P12 Slim PWM PST is particularly suitable for use on covered case vents or inlets with filters.
MORE EFFICIENT TECHNOLOGY
MAXIMUM QUIETNESS, MINIMUM VIBRATION
Due to a sinus-magnetizing the new motor only creates about 5 % of the vibration from commutation of a regular DC-motor without filter. Consequently, there is no need for rubber spacers due to the steady and smooth torque of the new motor.
EXTENDED LIFE SPAN
Consequently, we have extended the warranty to 10 years.
300 TO 2100 RPM REGULATED VIA PWM PST
With a wide range of regulation and the PWM Sharing Technology (PST), the P12 Slim PWM PST fan speed can be controlled synchronously with all your other fans together. This keeps noise at a minimum while guaranteeing maximum cooling performance when needed.
HIGH QUALITY BEARING
Thanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced and greater efficiency is achieved. As a result, there is less heat development as well as less bearing noise, which means you can enjoy a longer service life from your fan.
TWO WAY INSTALLATION
Specifications:
General Specifications:
| Fan Speed | 300–2100 rpm (Controlled by PWM) |
| Airflow | 71.53 m³/h 41.1 cfm |
| Static Pressure | 1.45 mm/H2O |
| Noise Level | 0.3 Sone |
| RPM-Controll | PWM |
| Fan Bearing | Fluid Dynamic Bearing |
| Connector | 4 Pin Connector + 4 Pin Socket |
| Net Weight | 85 g |
| Dimensions | 120 (L) x 120 (W) x 15 (H) mm |
| Warranty | 10 years |
Electrical Specifications:
| Typical Voltage | 12 V |
| Start Up Voltage | 4 V |
| Current | 0.12 A |
| Cable Length | 400 mm + 80 mm |
| Box Dimensions | 123 (L) x 127 (W) x 16 (H) mm |
| Gross Weight | 110 g |
