Arctic Liquid Freezer II 120 CPU Liquid Cooler

Arctic Liquid Freezer II 120 CPU Liquid Cooler :

At ARCTIC, we are proud of our completely new all-in-one CPU water cooler series. For the Liquid Freezer II Series, we have used our experience in CPU water cooling to develop a completely new compact water cooling pump. The new pump of the Liquid Freezer II Series ensures an ideal ratio of high CPU cooling performance to low noise levels.
The CPU AiO water cooler has integrated cable management within fully sleeved tubes for a clean look in your PC’s case. Our powerful P-fans provide a fast heat transfer thanks to their high static pressure and outstanding performance.

Features:

• Compatible with Intel & AMD Sockets
• In-House Developed PWM Controlled Pump
• High Performance allows Overclocking
• Motherboard VRM Cooling Solution
• Pressure Optimised Fan
• Fully Sleeved Tubes
• Integrated Cable Management
• Maintenance-free Water Loop
• Secure Hold with Backplate

Overview:

COMPATIBILITY WITH LGA1700
With the LGA 1700 mounting kit, the entire Liquid Freezer II Series is compatible with Intel’s new Alder Lake processors. Even if the socket and heat-spreader are larger compared to the predecessor, the CPU surface has been reduced and remains centered. The Liquid Freezer II cooler completely covers this area. Arctic Liquid Freezer II 120 will provide the required mounting kit free of charge to customers who submit proof of purchase of a processor with an LGA 1700 socket.

All Liquid Freezer II models ordered from the webshop already include the LGA1700 mounting kit.

«SECOND GENERATION PRICE-PERFORMANCE-CHAMP»
(ALLROUND-PC.COM)

The Arctic Liquid Freezer II 120 has been tested numerous times by independent reviewers and has been awarded for its performance, price and quiet operation. It exceeds all expectations and has set new standards in the field of compact water cooling. The Liquid Freezer II was also awarded the “European Hardware Award 2020” for the best liquid cooler in the 240 variant.

OUTSTANDING PERFORMANCE

The all-in-one cooling handles the entire cooling requirements – even of the most powerful processors from Intel® and AMD®. It performs effortlessly with over 200 W of heat to be dissipated, which is why your CPU can be kept cool even in extreme overclocking. When it comes to competitive products from leading cooler manufacturers, the Arctic Liquid Freezer II 120 leaves them behind in terms of both performance and noise level.

EFFICIENT, IN-HOUSE DEVELOPED PUMP

Unlike many of our competitors, we went to great lengths to develop the water pump. The result is greatly reduced humming and higher efficiency. Like the other components, the pump is also PWM controlled. This leads to a significantly lower noise level at low and typical loads, but also to much lower power consumption, with a maximum of of 0.7 W at no load, 2.1 W under normal load and a maximum of 3.4 W under full load for the entire AiO.

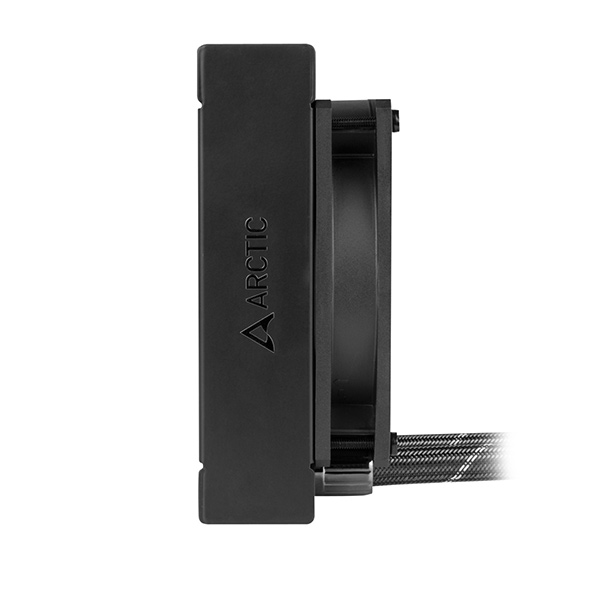

PREMIUM CLASS RADIATOR

Unlike most other all-in-one liquid cooling manufacturers, we rely on 38 mm thick radiators with a high fin density. This means that a larger amount of water can be used in the circuit, and the cooling surface can be significantly increased.

Water has a much higher heat capacity than aluminum or copper. This leads to a slower and up to 5 ° C lower temperature increase in the temporary turbo mode of modern CPUs.

SMOOTH VRM FAN

Small fans have a reputation for being particularly loud and not very durable. However, we have developed a quiet and durable diagonal fan especially for the Liquid Freezer II and are 100% convinced that this 40 mm fan is just as durable as our other case fans. In the unlikely event that it should fail, our customer service team will send you a replacement free of charge and easily, without a need to replace the entire unit.

The fan is PWM-controlled and can cool your voltage transformers and the base area almost inaudibly by up to 15 ° C. This is especially effective in overclocking scenarios, inadequate VRM cooling or in housings with poor airflow, thus permitting continuously high loads. If sufficient VRM cooling is available, it can be switched off at will.

HIGH QUALITY HOSES WITH INTEGRATED CABLE MANAGEMENT

The fiber-reinforced, long EPDM tubing of the Arctic Liquid Freezer II 120 enables installation even in large cases and effectively prevents the cooling liquid from evaporating, so that you do not have to worry about refilling the compact water cooling system.

It also hides the cables of your radiator fans thanks to sophisticated cable management. So you only have to connect a plug to the mainboard, saving valuable time during installation. In the end, you won’t need to hide any more cables and your view is reduced to just the essentials.

FAN OPTIMIZED ON STATIC PRESSURE

The popular P-fans are already installed on the compact water cooling from the factory, lending the following advantages:

THE RIGHT CONFIGURATION FOR EVERYONE

Thanks to its long hoses, availability in 5 different sizes and different lighting options the Liquid Freezer II Series is versatile. It is highly compatible and can be used effectively, from small form factor PCs (be aware of the radiator thickness!) to big towers.

Specifications:

Pump/Cold Plate

Fan

General
