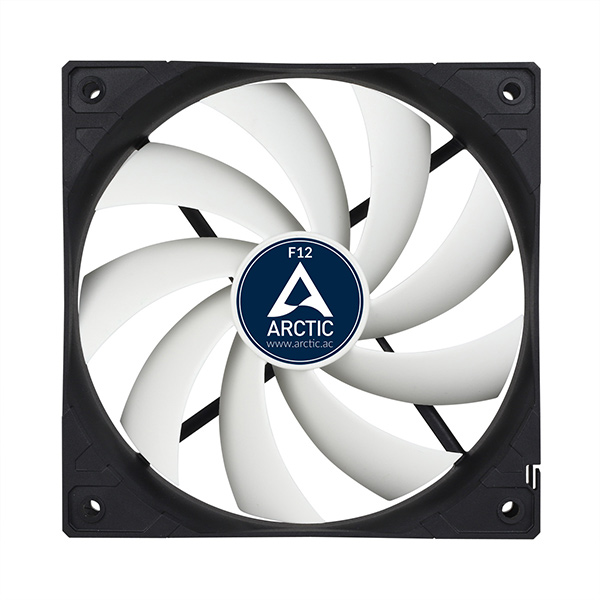

Arctic F12 Case Fan:
Overview:
LONG SERVICE LIFE
The Arctic F12 Fluid Dynamic Bearing comes with an oil capsule that avoids lubricant leakage. Thus this bearing is as quiet as a sleeve bearing but comes with a significantly higher service life
INNOVATIVE DESIGN ENABLES QUIET AND EFFICIENT VENTILATION
The innovative design of the fan blades improves the air flow and facilitates a highly efficient ventilation. The impeller was designed with a focus on minimzing the noise level yet delivering the desired airflow and pressure.
TWO WAY INSTALLATION
Blow warm air out of the case
Draw cool air into your case
Specifications:
| Dimensions | 120 (L) x 120 (W) x 25 (H) mm |
| Weight | 107 g |
| Speed | 1350 rpm |
| Static Pressure | 1.0 mm H2O |
| Airflow | 53 cfm | 90.1 m³/h |
| Bearing | Fluid Dynamic Bearing |
| Cable Length | 400 mm |
| Connector | 3-Pin Connector |
| Current/Voltage | 0.24 A/12 V |
| Starting Voltage | 2.7 V |
| Noise Level | 0.3 Sone |
| Ambient Operating Temperature | 0–40 °C |
| Dimensions | 137 (L) x 123 (W) x 127 (H) mm |
| Weight | 642 g |
